2

Safety instructions

XF ENGINE

1-1

1. SAFETY INSTRUCTIONS

Do not run the engine in an enclosed or
unventilated area.
Make sure exhaust fumes are properly
extracted.

Maintain a safe distance from rotating and/or
moving components.

Various sorts of oil and other lubricants used on
the vehicle may constitute a health hazard.
This also applies to engine coolant, windscreen
washer fluid, refrigerant in air-conditioning
systems, battery acid and diesel fuel.
So avoid inhaling and direct contact.

Exhaust gases contain carbon monoxide.
Carbon monoxide is a deadly, colourless and
odourless gas, which, when inhaled, deprives
the body of oxygen, leading to asphyxiation.
Serious carbon monoxide poisoning may result
in brain damage or death.

It is recommended to always disconnect the
battery’s earth connection during repair or
maintenance activities for which the power
supply is not required.

2

ǹ 0008

2

XF ENGINE

Safety instructions

1-2

2

ǹ 0008

2

General

XF ENGINE

2-1

2. GENERAL

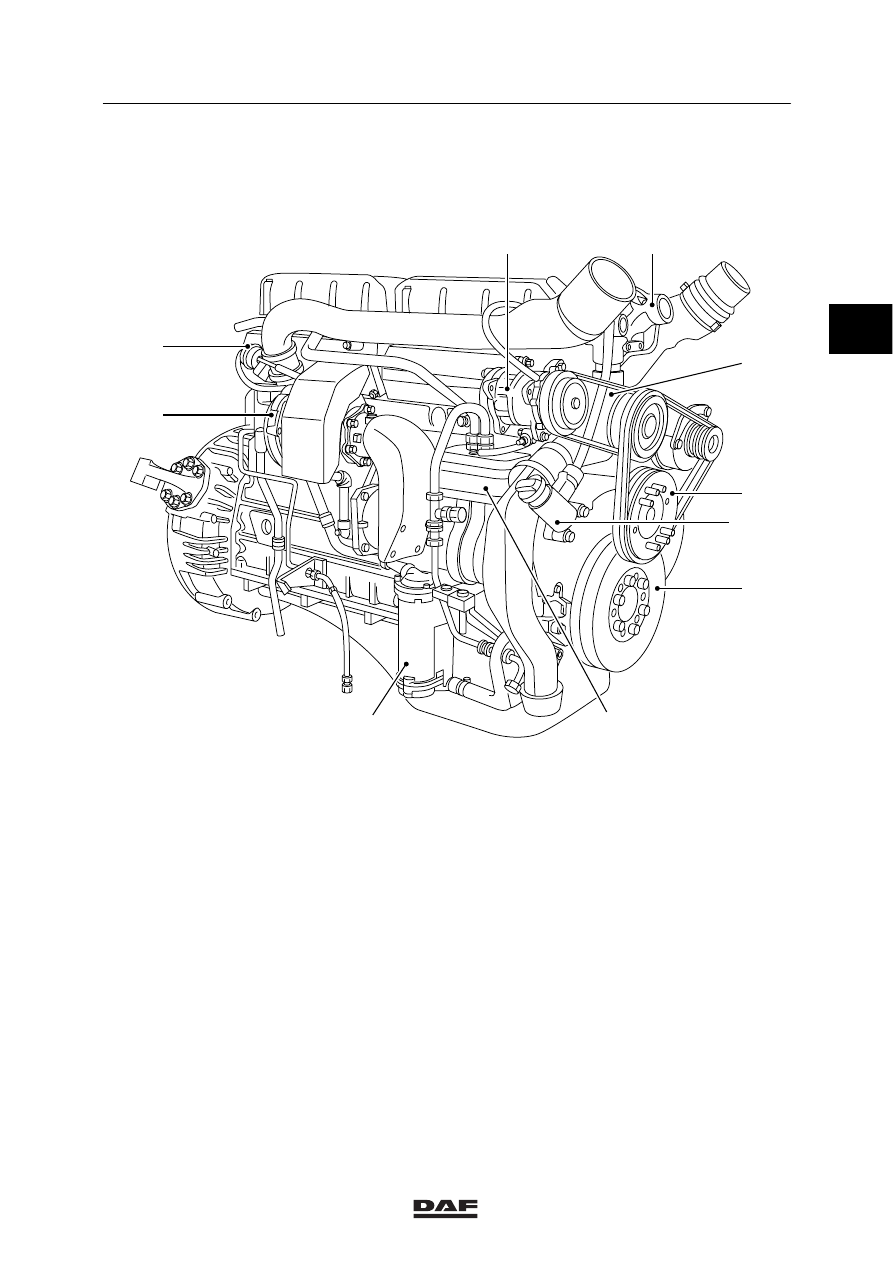

2.1 LOCATION OF COMPONENTS

M200543

8

9

7

6

5

4

3

1

10

2

Legend
1.

Thermostat housing

2.

Water pump

3.

Air-conditioning compressor

4.

Fan drive

5.

Vibration damper

6.

Air compressor

7.

Oil cooler

8.

Turbocharger

9.

Wastegate diaphragm

10. Oil-filling pipe

2

ǹ 0008

2

XF ENGINE

General

2-2

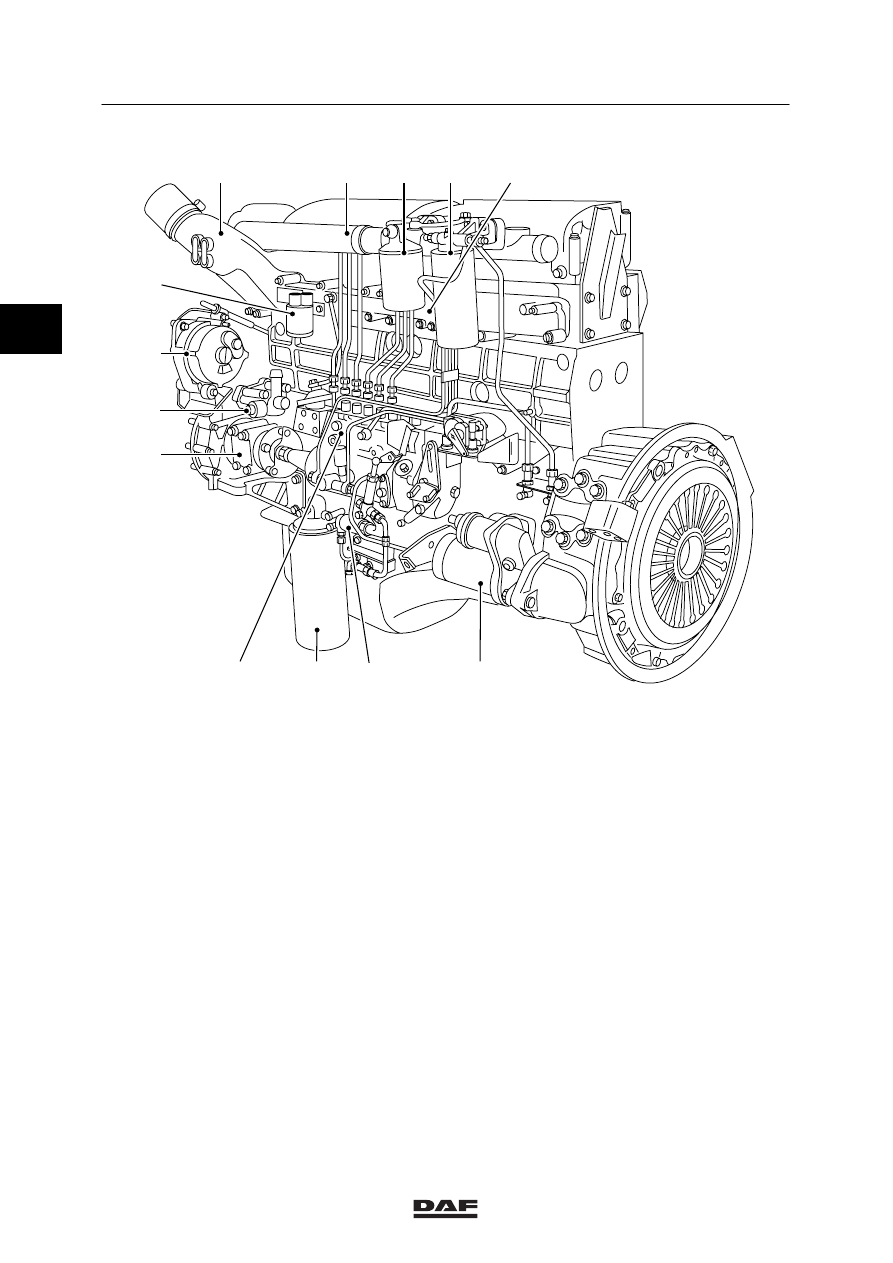

M200542

12

16

13

14 15

23

22

11

20

21

17

18

19

Legend
11.

Steering pump

12. Fuel pump drive housing
13. Fuel pump
14. Oil filter
15. Engine brake valve
16. Starting motor
17. Engine information-code plate
18. Fuel filter
19. Coolant filter
20. Coolant pipe
21. Inlet manifold
22. Glow-filament relay
23. Alternator

2

ǹ 0008
