Citroen C6 (2011 year). Instruction - part 11

7.11

Press the MENU button.

Turn the dial and select the MAP

function.

Press the dial to confi rm the selection.

Turn the dial and select

the MAP DETAILS function.

Permits selection of the services

which can be seen on the map

(hotels, restaurants, hazardous

areas...).

ACTIONS ON THE MAP

MAP DETAILS

GPS

Press the dial to confi rm the selection.

Turn the dial and select the

orientation of your choice.

Select OK and press the dial to

confi rm.

Repeat steps 1 to 3 then turn the dial

and select the MAP ORIENTATION

function.

MAP ORIENTATION

3D VIEW

NORTH DIRECTION

VEHICLE DIRECTION

For improved visibility, beyond the scale of 6 miles (10 km), the map

automatically switches to North Orientation.

7.12

Press the MENU button.

Press the dial to confi rm the selection.

Turn the dial and select the MAP

function.

Turn the dial and select the MAP IN

WINDOW or FULL SCREEN MAP

tab.

Select OK

and press the dial to confi rm.

Press the dial to confi rm the selection.

Turn the dial and select the DISPLAY

MAP function.

DISPLAYING THE MAP IN A WINDOW OR
IN FULL SCREEN MODE

GPS

DISPLAY MAP

FULL SCREEN MAP

MAP IN WINDOW

7.13

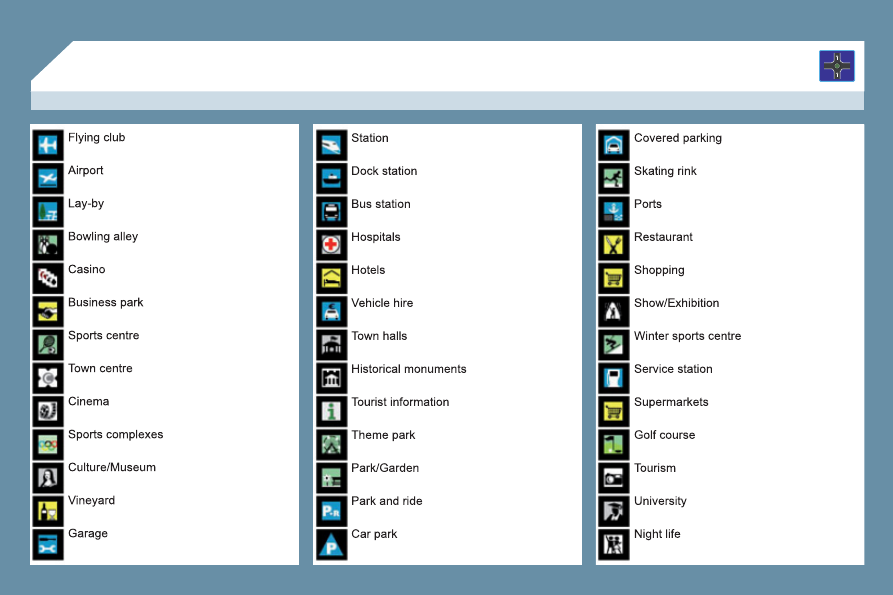

List of POI

GPS

7.14

ADDING A STAGE

During guidance, press the MENU

button.

Turn the dial and select the

NAVIGATION GUIDANCE function.

Press the dial to confi rm the selection.

Turn the dial and select the

JOURNEY LEGS AND ROUTE

function.

JOURNEY LEGS AND ROUTE

Select OK and press the dial to

confi rm the order of the stages.

When the new address has been

entered, select OK and press the dial

to confi rm.

Enter for example a new address.

Select the ADD A STAGE function

(9 stages maximum) and press the

dial to confi rm.

Press the dial to confi rm the selection.

Select STRICT (the stage must be completed in order to continue to

the next destination) or PROXIMITY then press the dial to confi rm.

ENTER AN ADDRESS

ADD A STAGE

GPS

7.15

ACTIVATING THE FILTER ON THE ROUTE

We recommend a fi lter on the route and a fi lter around the vehicle of:
-  3 miles (5 km) or 6 miles (10 km) for a region with heavy traffi c,
-  12 miles (20 km) for a region with a normal level of traffi c,
-   60 miles (100 km) for long journeys (motorway).

Press the MENU button.

Turn the dial and select the TRAFFIC

INFORMATION function.

Press the dial to confi rm the selection.

FILTER TRAFFIC INFORMATION

Turn the dial and select the FILTER

TRAFFIC INFORMATION function.

TRAFFIC INFORMATION

Press the dial to confi rm

the selection.

Select the GEOGRAPHIC FILTER

function and press the dial to confi rm.

Turn the dial and select KEEP ALL

MESSAGES or KEEP MESSAGES.

In this case, select the fi lter of your

choice.

Select OK and press the dial to

confi rm.

GEOGRAPHIC FILTER

AROUND THE VEHICLE

ON THE ROUTE

7.16

Press the MENU button.

READ MESSAGES

NEW MESSAGE DISPLAY

CONFIGURING THE TMC MESSAGE
ANNOUNCEMENTS

We recommend that you do not tick the NEW MESSAGE DISPLAY tab for regions with heavy traffi c.

Turn the dial and select the TRAFFIC

INFORMATION function.

Press the dial to confi rm the selection.

Turn the dial and select the

CONFIGURE MESSAGE

ANNOUNCEMENT function.

Select the READ MESSAGES tab.

The Traffi c Information Messages will

be read by the voice synthesiser.

Select the NEW MESSAGE DISPLAY

tab.

The traffi c information messages

are extended to the fi lters selected

(geographic...) and can also be

displayed when guidance is not

active.

CONFIGURE MESSAGE ANNOUNCEMENT

TRAFFIC INFORMATION

Select OK and press the dial to

confi rm.

7.17

05 AUDIO/VIDEO

RADIO

SELECTING A STATION

Press the SOURCE button several

times in succession and select

the RADIO.

Press the BAND button to select a

waveband: FM1, FM2, FMast, AM.

Briefl y press one of the buttons to

carry out an automatic search of

the radio stations.

Press one of the buttons to carry out a

manual search of the radio stations.

Press the LIST button to display the

list of stations received locally

(60 maximum).

To update this list, press for more than

two seconds.

The external environment (hills, buildings, tunnels, basement car parks, ...) may block reception,
including in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does
not indicate any failure of the audio equipment.

RDS

Select ACTIVATE FREQUENCY

FOLLOWING (RDS) then press OK.

RDS appears on the display.

Select the FM WAVEBAND

PREFERENCES function then press OK.

Select AUDIO FUNCTIONS then

press OK.

Press the MENU button.

The RDS, if displayed, enables you to continue listening to the same

station by automatic retuning to alternative fequencies. However, in

certain conditions, coverage of an RDS station may not be assured

throughout the country as radio stations do not cover 100 % of the

territory. This explains the loss of reception of the station during

a journey.

FM WAVEBAND PREFERENCES

ACTIVATE FREQUENCY FOLLOWING (RDS)

7.18

05 AUDIO/VIDEO

INFORMATION AND ADVICE

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,

is an audio compression standard which permits the recording of

several tens of music fi les on a single disc.

In order to be able to play a recorded CDR/DVDR or CDRW/

DVDRW, when recording it is preferable to select standards

ISO 9660 level 1.2 or Joliet.

If the disc is recorded in another format, it may not be played

correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible (4x maximum)

for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

recommended.

The audio equipment will only play audio fi les with the extension

".mp3" with a sampling rate of 22.05 KHz or 44.1 KHz. No other type

of fi le (.wma, .mp4, .m3u...) can be played.

It is advisable to restrict fi le names to 20 characters without using

special characters (e.g.: " " ? ; ù) to avoid any playing or displaying

problems.

Insert circular compact discs only. Some anti-pirating

systems, on original discs or CDs copied using

a personal recorder, may generate malfunctions

regardless of the quality of the original player.

Insert an audio CD or an MP3 compilation in the player,

play begins automatically.

If the player already contains a disc,

press the SOURCE button several

times in succession and select CD to

listen to it.

Press one of the buttons to select a

track on the CD.

Press the LIST button to display

the list of tracks on the CD or of the

directories of the MP3 compilation.

The playing and displaying of an MP3 compilation may depend on

the recording programme and/or the parameter settings used. We

recommend use of the ISO 9660 recording standard.

MP3 CD

PLAYING A CD OR AN MP3 COMPILATION

7.19

COPY CD TO JUKEBOX

STOP COPY

COMPLETE CD

Select COPY CD TO JUKEBOX and

press the dial to confi rm.

Select COMPLETE CD to copy

the entire CD and press the dial to

confi rm.

To stop the copy, repeat points 2 and 3.

Select STOP COPY and press the dial

to confi rm.

The AUTO CREATION tab automatically copies the CD by default

into an album of the type "album n°...".

The audio or MP3 CD is copied onto the hard disc. Copying may take

up to 20 minutes depending on the duration of the CD. During this

copying phase, it is not possible to listen to the albums previously

recorded on the hard disc or the CDs.

Select the letters one by one and select

OK to confi rm.

If it is not an MP3 CD, the Jukebox automatically compresses

the CD in MP3 format. The compression may take approximately

20 minutes depending on the duration of the CD. During this

compression phase, it is possible to listen to the CD or to albums

previously recorded on the hard disc.

A long press on the SOURCE button starts the copying of the CD.

When copying an MP3 CD, the Jukebox only retains the last album

level. It is not possible to copy fi les from the Jukebox to a CD.

The STOP THE CD COPY action does not delete the fi les which

have already been transferred onto the jukebox hard disc.

Select AUDIO FUNCTIONS then select

CD and press the dial to confi rm.

Insert an audio CD or an MP3

compilation and press the MENU

button.

JUKEBOX FUNCTION

COPYING A CD ONTO THE HARD DISC

7.20

RENAME

JUKEBOX

JUKEBOX MANAGEMENT

Press the MENU button.

Select AUDIO FUNCTIONS and

press the dial to confi rm.

Select the JUKEBOX function and

press the dial to confi rm.

Select the JUKEBOX MANAGEMENT

function and press the dial to confi rm.

Select the album to be renamed and

press the dial to confi rm.

Select the RENAME tab and press the

dial to confi rm.

Turn the dial and select the letters of

the album title one by one confi rming

each time by pressing the dial.

Use the alphanumeric keypad to enter the letters of the album title

one by one.

JUKEBOX FUNCTION

RENAMING AN ALBUM

7.21

DELETE

JUKEBOX

Press the SOURCE button several

times in succession and select the

JUKEBOX function.

Press the LIST button.

Turn the dial to select the fi les.

Press the ESC button to return to the fi rst fi le level.

Select OK and press the dial to

confi rm.

To rename the tracks of an album, follow the same procedure,

selecting the tracks to be renamed.

Use the ESC button to exit from the list of tracks.

Select the DELETE function to delete an album or

a track from the Jukebox.

JUKEBOX FUNCTION

LISTENING TO THE JUKEBOX

7.22

Press the MENU button then select the CONFIGURATION function,

then SOUNDS, then ACTIVATE AUXILIARY SOURCE to activate

the audio equipment auxiliary input.

Connect the portable equipment

(MP3 player…) to the JACK socket or

to the audio sockets (white and red,

RCA type) located in the glove box using

a suitable cable.

Press the SOURCE button several

times in succession and select AUX.

The displaying and management of the commands takes place via

the portable equipment.

It is not possible to copy the fi les onto the hard disc from the auxiliary

input.

USING THE AUXILIARY INPUT (AUX)

JACK/RCA AUDIO CABLE NOT SUPPLIED

AUDIO CD CHANGER

PLAYING A CD

Insert the CDs in a multi-slot changer

(not MP3 compatible) one by one.

On a single slot changer (MP3

compatible), press LOAD, select the

number of the CD, then insert the CD,

or press and hold LOAD and insert

the CDs one by one.

Press the SOURCE button several

times in succession and select CD

CHANGER.

Press one of the buttons on the

alphanumeric keypad to select the

corresponding CD.

Press one of the buttons to

select a track on the CD.

It is not possible to copy the fi les onto the hard disc from the CD

changer.

CD CHANGER

7.23

ACTIVATE VIDEO MODE

VIDEO PARAMETERS

You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video
sockets, located in the glove box.

Turn the dial and select the VIDEO

function.

After connecting the video equipment,

press the MENU button.

Turn the dial and select the

ACTIVATE VIDEO MODE function to

activate/deactivate the video.

Press the dial to confi rm the selection.

Pressing the "SOURCE" button several times in succession permits

the selection of an audio source other than that of the video.

Pressing the "DARK" button disconnects display of the video.

Turn the dial and select the VIDEO

PARAMETERS function to set the

display format, the brightness, the

contrast and the colours.

Press the dial to confi rm the selection.

VIDEO MENU

Videos can only be displayed when stationary.

7.24

06 INTERNAL TELEPHONE

ENTERING THE PIN CODE

Open the slot by pressing the button

using the tip of a pen.

Install the SIM card

in the holder and

then insert it in the

slot.

To remove the SIM card, repeat step 1.

Your SIM card must be installed and removed with the NaviDrive

audio and telematics system switched off and the ignition off.

Enter the PIN code on the keypad.

Confi rm the PIN code by pressing

button #.

PIN CODE

When entering your PIN code, tick the STORE PIN tab for access

to the telephone without having to enter this code when it is used

subsequently.

INSTALLING YOUR SIM CARD

(NOT SUPPLIED)

7.25

The services offered by the telephone depend on the network, the SIM card and the compatibility of
the Bluetooth equipment used. Refer to your telephone's manual and your operator to check which
services you have access to. A list of mobile telephones which offer the best range of services is
available from dealers.

BLUETOOTH TELEPHONE

CONNECTING A BLUETOOTH
TELEPHONE

For reasons of safety, the driver should only carry out operations

which require prolonged attention when the vehicle is stationary

(pairing the Bluetooth mobile telephone to the hands-free kit).

Activate the telephone's Bluetooth function.

The last telephone connected is reconnected

automatically.

Select BLUETOOTH ACTIVATION

MODE, then ACTIVATED AND

VISIBLE. Press the dial to confi rm

each operation.

Press the MENU button, select

TELEMATICS, then BLUETOOTH

FUNCTIONS. Press the dial to

confi rm each operation.

On your telephone, select the name

of the CITROËN audio/telephone.

Enter the authentication code

(0000 by default).

To fi nd and change the name of the CITROËN audio/ttelephone,

repeat step 2 then select CHANGE AUDIO/TELEPHO

ONE NAME.

7.26

only.

Once the telephone has been connected, the system can

synchronise the address book and the call list. Repeat step 2 then

select PHONE BOOK SYNCHRONISATION MODE. Select the

synchronisation of your choice and press the dial to confi rm.

The synchronisation may take a few minutes.

To change the telephone connected, repeat step 2 then select LIST

OF MATCHED TELEPHONES and press OK to confi rm. The list of

previously connected telephones (10 maximum) appears. Select the

telephone of your choice, confi rm, then select CONNECT and press

the dial to confi rm.

To change the authentication code, repeat step 2 then select

AUTHENTICATION CODE and save the code of your choice.

BLUETOOTH TELEPHONE

CONNECTING A BLUETOOTH
TELEPHONE

Content .. 9 10 11 12 ..
