I N S T R U M E N T PA N E L

W A R N I N G L A M P S

These warning lamps may be accompanied by a message and/or a sound signal

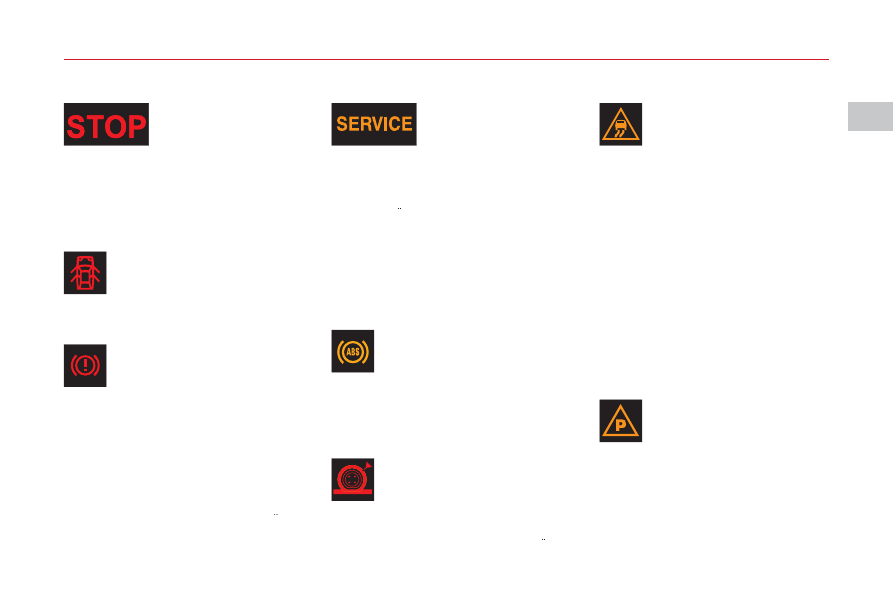

ESP/ASR

Operating

If either of the ESP or ASR

systems is active, the warning

lamp fl ashes.

For a malfunction

When the vehicle is moving, the

lighting of this warning lamp indi-

cates a system malfunction.
Contact a CITROËN dealer or a

qualifi ed workshop.

Deactivation

The lighting of the warning lamp

and of the button ESP indicates

that the system is deactivated.

Electric parking

brake

When the engine is run-

ning, this warning lamp

lights up to indicate a malfunction-

ing of the electric parking brake.

The brake is not working prop-

erly. Place the gearbox in the Park

position (P).
Contact a CITROËN dealer or a

qualifi ed workshop as soon as

possible.

ABS

The ABS warning lamp

lights up when you switch

on the ignition: it should go

out after a few seconds. If it does

not go out, there could be a sys-

tem malfunction. See "Brakes".

Roue(s) crevée(s)

If this warning lamp comes

on, it indicates a puncture

on one or more wheels.

The screen displays an image

which shows you which wheel

is affected. Contact a CITROËN

dealer or a qualifi ed workshop.

Door open

If this warning lamp comes

on while the engine is run-

ning, it tells you that one of

the doors and/or the boot is open.

Electric parking brake,

brake fl uid level,

braking distribution

malfunction

With the engine running, the light-

ing of this warning lamp indicates

that the parking brake is on or not

properly released, that the brake

fl uid level is low or that the braking

system is malfunctioning.
If the warning lamp remains on

although the parking brake is

released, stop as soon as it is safe

to do so and contact a CITROËN

dealer or a qualifi ed workshop.
See "Brakes".

SERVICE

This warning lamp

stays on fi xed for a

major fault. Contact

a CITROËN dealer or a qualifi ed

workshop as soon as possible.
This warning lamp stays on tem-

porarily for minor faults. Contact

a CITROËN dealer or a qualifi ed

workshop if necessary
To learn the origin of the corre-

sponding alert, refer to the log of

alerts (See chapter "Multifunction

displays" or your NaviDrive).

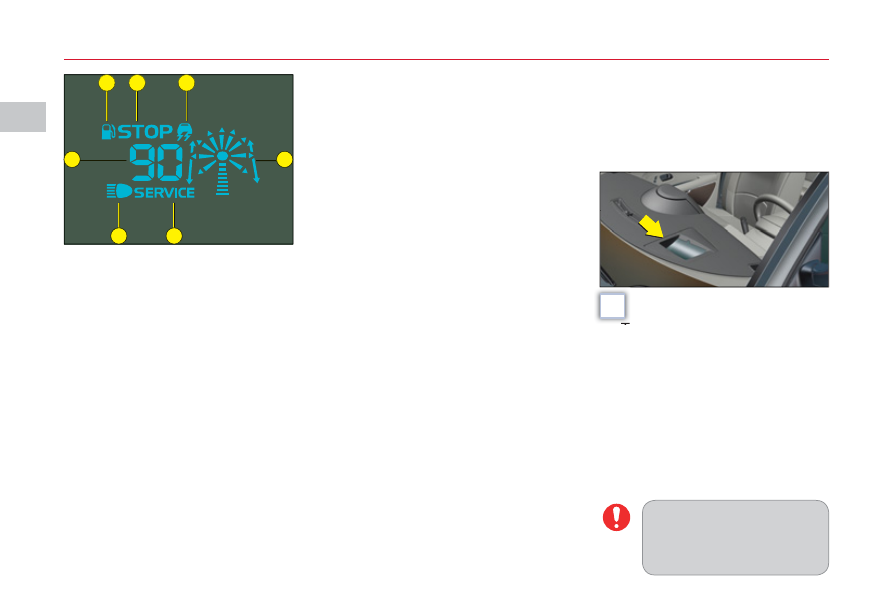

STOP warning

lamp

If this warning lamp

comes on, it is

imperative to stop the vehicle and

to switch the engine off. The warn-

ing lamp is accompanied by the

STOP symbol on the screen as

well as on the Head-up display.
Alert a CITROËN dealer or a quali-

fi ed workshop as soon as possible

I N S T R U M E N T PA N E L

W A R N I N G L A M P S

Front passenger's

airbag deactivation

See "Airbags".

Left hand direction

indicator

See "Signalling".

Right hand direction

indicator

See "Signalling".

If the hazard lamps are activated, this means that the direction indicators

fl ash on both sides at the same time.

Sidelamps

See "Signalling".

Front foglamps

See "Signalling".

Dipped beams

If this warning lamp fl ashes,

it indicates that the direc-

tional headlamps are mal-

functioning.
Contact a CITROËN dealer

or a qualifi ed workshop.

Foglamps (rear)

See "Signalling".

Main beams

See "Signalling".

Driver's seat belt not

fastened

If this warning lamp comes

on, it is reminding the

driver to fasten his seat belt. While

the vehicle is stationary it remains

on until the belt is fastened.
See "Seat belts warning lamp".

Depollution

system

If this warning lamp fl ashes

or lights up while you are

driving, this indicates a problem

with the depollution system.
Contact a CITROËN dealer or a

qualifi ed workshop as soon as

possible.

Diesel engine preheater

See method for starting

the engine.

See "Driving".

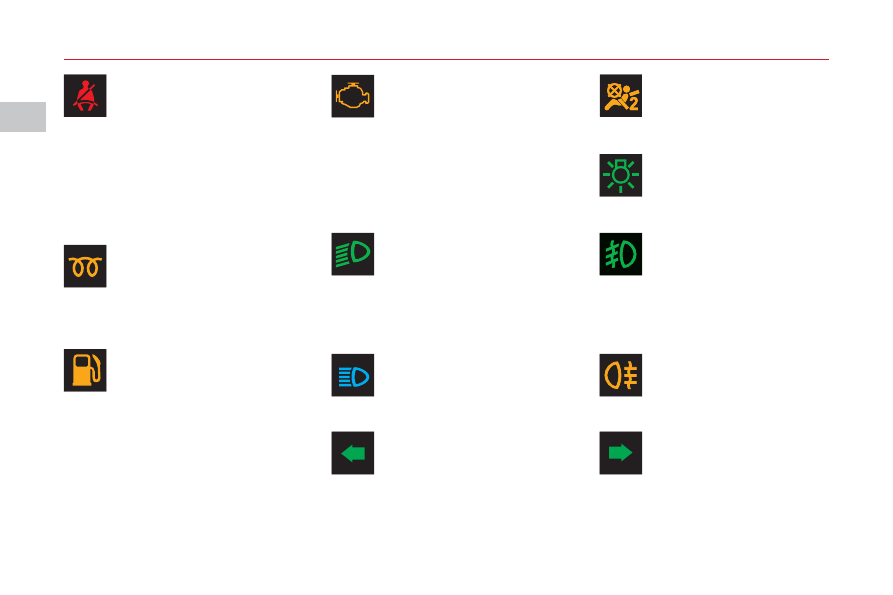

Fuel low

When it comes on perma-

nently on level ground, you

have about 8 l of fuel left.

Depending on your driving style

and your engine, you have enough

fuel left to drive approximately

30 miles (50 km). You must fi ll up

as soon as possible.
The fuel tank has a capacity of

about 72 litres.
Be careful to never drive until you run

out of fuel; it could damage the emis-

sion control and injection systems.

I N S T R U M E N T PA N E L

An incorrect engine oil level can seriously damage your

engine. See "Levels".

On switching on the ignition, the

instrument panel indicates:

Firstly, in succession:

Maintenance indicator. See

"Maintenance indicator" (next

page).
The engine oil level indicator.

Secondly:

The total and trip mileage

counters.

•

ENGINE OIL LEVEL INDICATOR

This display indicates

normal

operation.

Flashing of "OIL" indicates an oil

level that is below the minimum.
Check using the manual dipstick.

See "Levels".
Check the engine oil level on hori-

zontal ground with the engine

having been switched off for at

least 30 minutes.
Contact a CITROËN dealer or a

qualifi ed workshop.

A fl ashing of "OIL – –" indicates a

malfunctioning of the indicator.
Contact a CITROËN dealer or a

qualifi ed workshop.

I N S T R U M E N T PA N E L

MAINTENANCE INDICATOR

It informs you when the next routine service is due in accordance with the vehicle servicing schedule in the Main-

tenance Guide. This information is dependent on two parameters: the mileage covered, and the time elapsed since

the last visit.

Operation

From switching on the ignition

and for a few seconds, the span-

ner symbolising maintenance

operations lights up; the instru-

ment panel tells you the distance

remaining to the next service.
Example: there remain up to the

next service:

A few seconds after this, the engine

oil level indicator is displayed, then

the total mileage recorder resumes

its normal role. The instrument

panel gives the total and trip

mileages.

Operation if the distance to

the next service is less than

1 000 km (600 miles)

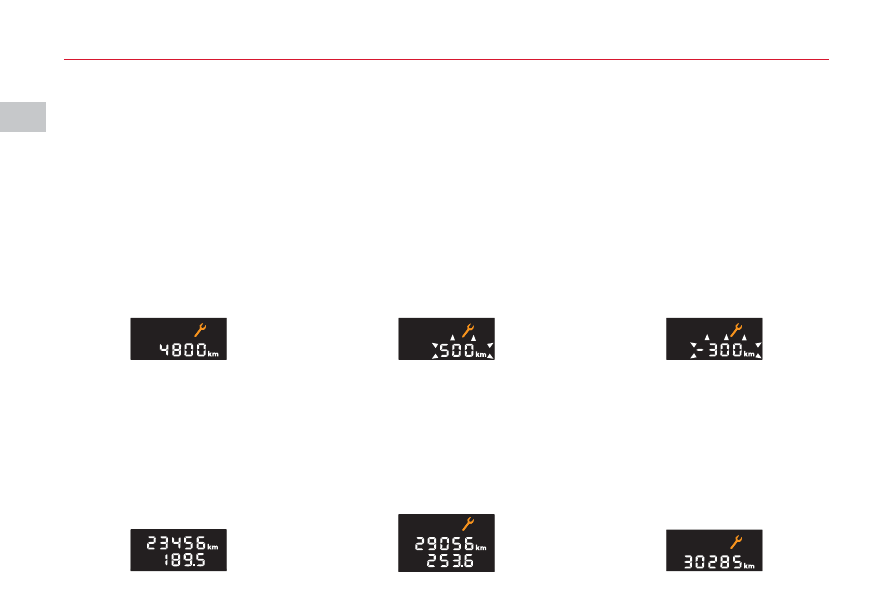

Each time you switch on the ignition

and for 5 seconds, the spanner and

the distance fl ash.
Example: there remain up to the

next service: 500 km (300 miles).

On switching on the ignition and for

5 seconds, the instrument panel

indicates:

A few seconds after this, the engine

oil level indicator is displayed, then

the total mileage recorder resumes

its normal role and the mainte-

nance symbol remains lit up.
This is a warning to you that a

service must be carried out at the

earliest opportunity.
The instrument panel gives the

total and trip mileages.

Operation if the service

interval has been passed

Each time you switch on the igni-

tion, the maintenance symbol and

the distance covered (preceded

by a minus) beyond the recom-

mended interval fl ash.
Example: You have exceeded

the service interval by 300

(180 miles).
The routine service on your vehi-

cle needs to be carried as soon as

possible.

A few seconds after switching

on the ignition, the total mile-

age recorder resumes its normal

role and the maintenance symbol

remains lit up.

I N S T R U M E N T PA N E L

Maintenance intervals

If you use your vehicle in particu-

larly diffi cult conditions, it is essen-

tial to use the service schedule for

"severe conditions" comprising

shorter intervals between services.

See "Maintenance and Warranty

Guide".

Reset to zero

It is reset by your CITROËN dealer

or a qualifi ed workshop after each

service. However, if you do your

own servicing, the procedure for

resetting to zero is as follows:

1. Switch off the ignition.
2. Press on button A and keep it

pressed.

3. Switch on the ignition.
4. Keep button A pressed down

until the screen indicates "=0"

and the maintenance symbol

disappears.

Note: If the maximum time

between two oil changes is

reached before the mileage

has been covered, the mainte-

nance spanner lights up and the

instrument panel indicates "0".

MILEAGE RECORDER

Display

When the driver's door is opened or

the vehicle is unlocked with the remote

control, for around 30 seconds there is

display of the mileage recorders and

sometimes the maintenance spanner.

Trip mileage recorder reset

This can operate when the ignition

is switched on.
With a long press on the zero

reset button A, the trip mileage dis-

played resets to zero.

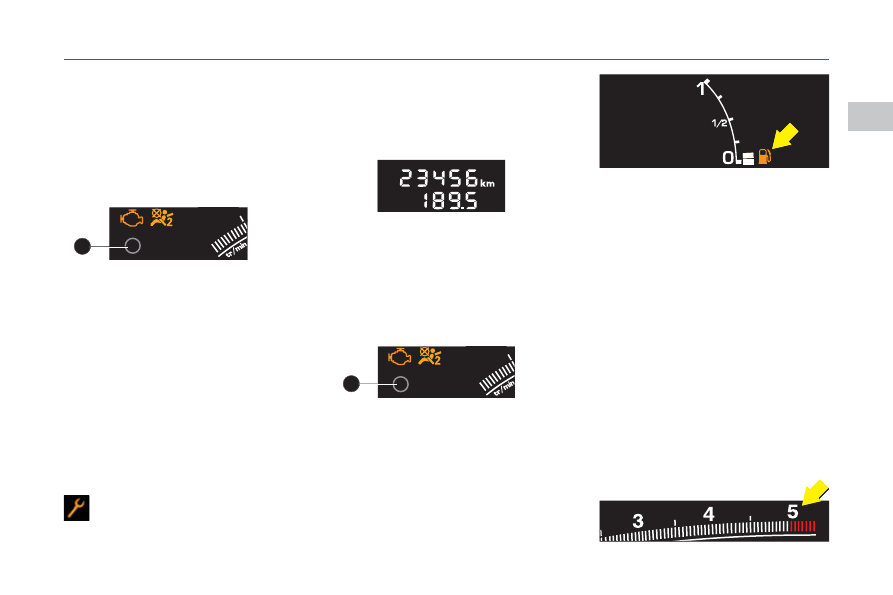

FUEL GAUGE

From the time the low fuel warning

lamp is on continuously on level

ground, accompanied by an audi-

ble signal, there remains around

8 litres of fuel in the tank.
When the second-to-last bar dis-

appears, you still have approx. 5 l

of fuel.

REV COUNTER

When you approach maximum

engine speed, crossing into the red

zone indicates the need to engage

a higher gear.

NIGHT DRIVING

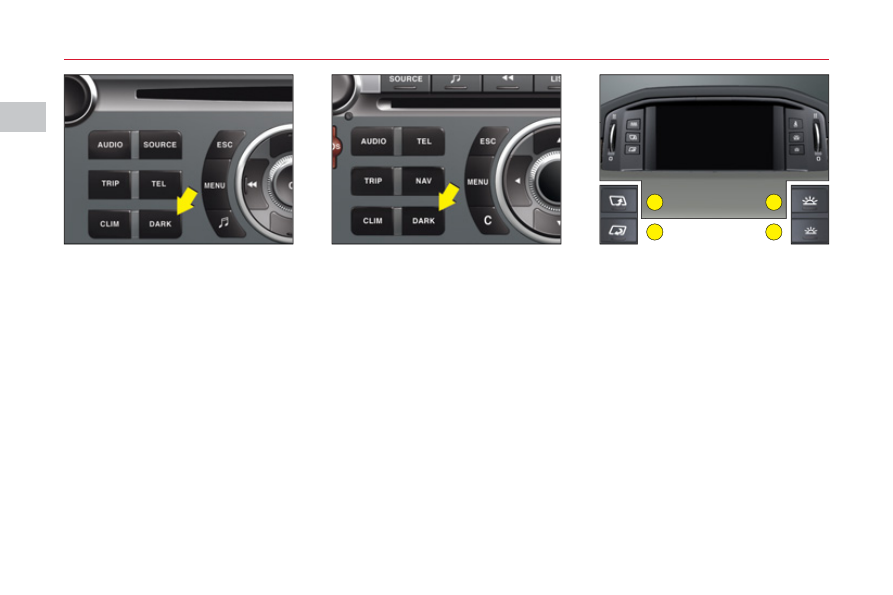

A fi rst press on the DARK button puts the display on standby. Only the

time and the temperature remain displayed.
A second press switches off the display and the instrument panel,

except for information concerning:

The speed indicator.
The automatic gearbox.
Cruise control/Speed limiter if this has been activated.

Note:

Temporary lighting of the display for modifi cation of audio-CD adjust-

ments and air conditioning.
The display lights up if any of the other buttons on the display is

pressed. To revert to night driving, press just once on button DARK.

All the displays come on if there is an alert.

A third press returns you to normal lighting.

•

-
-
-

•

DASHBOARD BRIGHTNESS

With lamps switched on, press on

button C or D to alter the intensity

of the dashboard lighting.
In the "Main menu", you have a

"Confi guration" menu, in which you

can adjust the display brightness.

See "Display" and the NaviDrive

chapter.
For enhanced visual comfort, you

can also adjust the orientation of

the NaviDrive display by pressing

buttons A and B.

I N S T R U M E N T PA N E L – D I S P L AY

H E A D - U P D I S P L AY

The Head-up display projects

essential driving data into the

driver's fi eld of vision. This enables

the driver never to take his eyes

off the road.

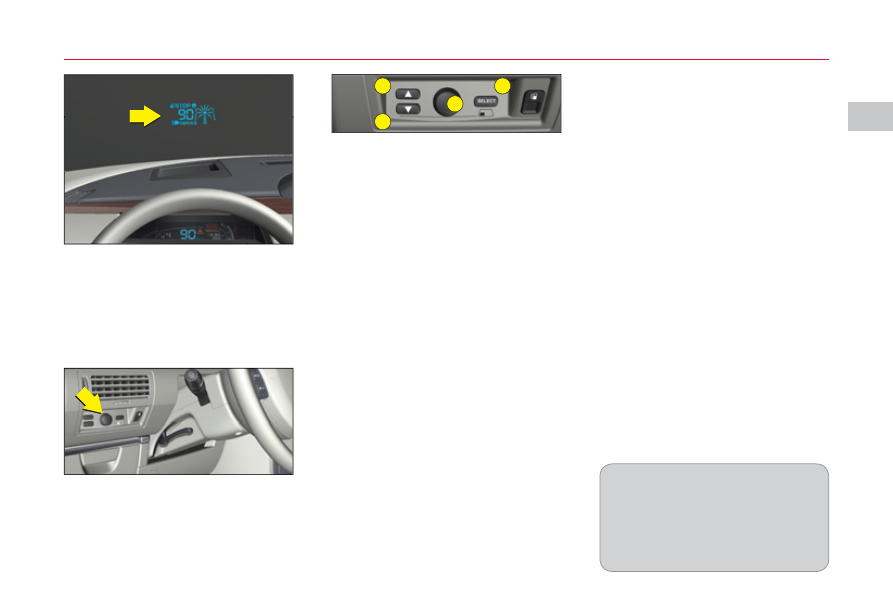

ACTIVATION/DEACTIVATION

To activate/deactivate the Head-up

display: when you switch on the

ignition, press on button 1.
The function status (activated/deac-

tivated) when you stop the engine

is retained when you restart.

ADJUSTMENTS OF

THE HEAD-UP DISPLAY

Height adjustment

To adjust the height for the Head-up

display, press on buttons 2 and 3.
It is recommended to adjust it as

low as possible.

Brightness adjustment

The Head-up display has a bright-

ness sensor so that the information

can be seen to the best advantage,

whatever the ambient brightness.
You can enhance the display

brightness at any time by rotating

the control 1.

Note:

In certain extreme weather

conditions (rain and/or snow,

strong sunlight), the Head-up

display may be momentarily

subject to interference.
When emerging from a tunnel,

there is a certain delay before

the system can re-adapt the

display brightness to the out-

side conditions.

Note: Certain types of spectacles

may disperse the light coming from

the Head-up display.

There is memorisation of

driving positions as well

as those for the Head-up

display

The adjustments you have made

for the Head-up display are

adopted alongside the driving posi-

tion memorisations (see "Memori-

sation"). They are:

Height adjustment.
Brightness.
The types of information selected.

•

•
•
•

If the Head-up display cannot be

seen, it is recommended to adjust

it for height (buttons 2 and 3) and to

check that it is activated (button 1).

The controls for the Head-up dis-

play are located beneath the air

vent on the driver's side.

H E A D - U P D I S P L AY

CONTENT OF THE HEAD-UP

DISPLAY

A "Fuel low" alert
B "STOP" warning lamp
C  "ESP" warning lamp
D Navigation instructions
E  "SERVICE" warning lamp
F Main beams warning lamp
G  Vehicle speed
To be aware of the signifi cance  of

the information projected on the

screen, see "Warning lamps".
Note: when navigation is in opera-

tion, direction arrows will fl ash. See

the NaviDrive chapter.

To suspend display of a

certain type of information:

Press button 4.
Rotate the control 1 to select

the type of information you

wish to suspend.
Press button 1.

The information fl ashes; it will no

longer be displayed.
To quit the selection mode, press

button 4.
Note: The vehicle speed informa-

tion, the "STOP" warning lamp

and the "ESP" warning lamp can-

not be suspended.

To restore display of a type

of information:

Press button 4.
Rotate the control to select the

information you wish to restore,

which fl ashes.
Press button 1.

The information stops fl ashing: it

will be displayed.
To quit the selection mode, press

button 4.

•
•

•

•
•

•

ADVICE

The windscreen of the vehicle

guarantees that the Head-up

display operates correctly.

It is recommended that it be

changed by a CITROËN dealer

or a qualifi ed workshop.
No object must ever be placed

in or over the cavity situated on

top of the dashboard between

the windscreen and the rear of

the dashboard.
To clean the glass, use a non-

abrasive cloth.

•

Note: All the adjustments and

selections you made before stop-

ping the engine are retained when

you restart. If there is a change of

driver, check whether these adjust-

ments are suitable, alter them if

necessary.

You are advised to adjust

these controls only when

the vehicle is stationary.

M U LT I F U N C T I O N D I S P L AY S

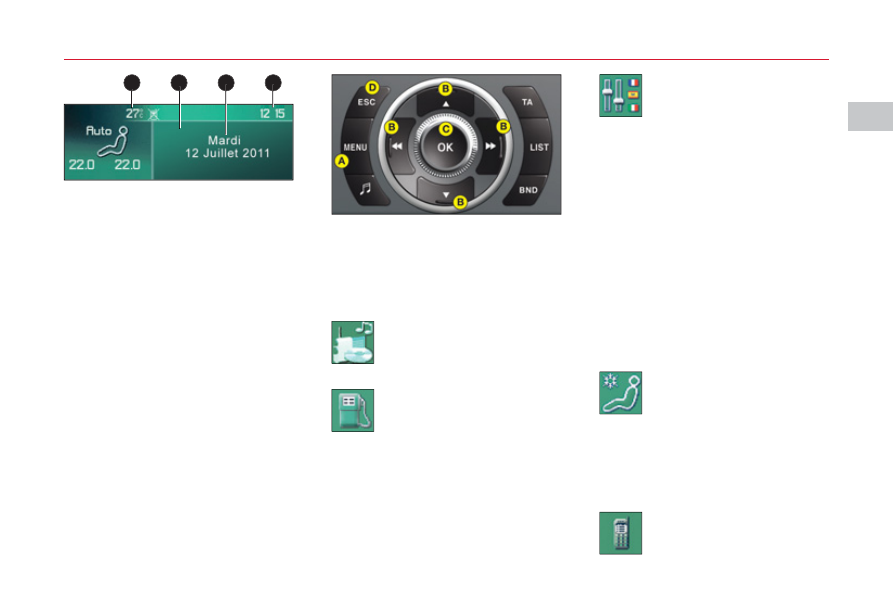

C O L O U R S C R E E N C

1 - Outside temperature
2 - Display zone
3 - Date
4 - Time

When the outside temperature is

between +3 °C and -3 °C, the tem-

perature display fl ashes (risk of

ice).
Note: The outside temperature

displayed may be higher than the

actual temperature if the vehicle is

stationary in bright sunlight.
The driver is advised not to oper-

ate the controls described below

while the vehicle is moving.

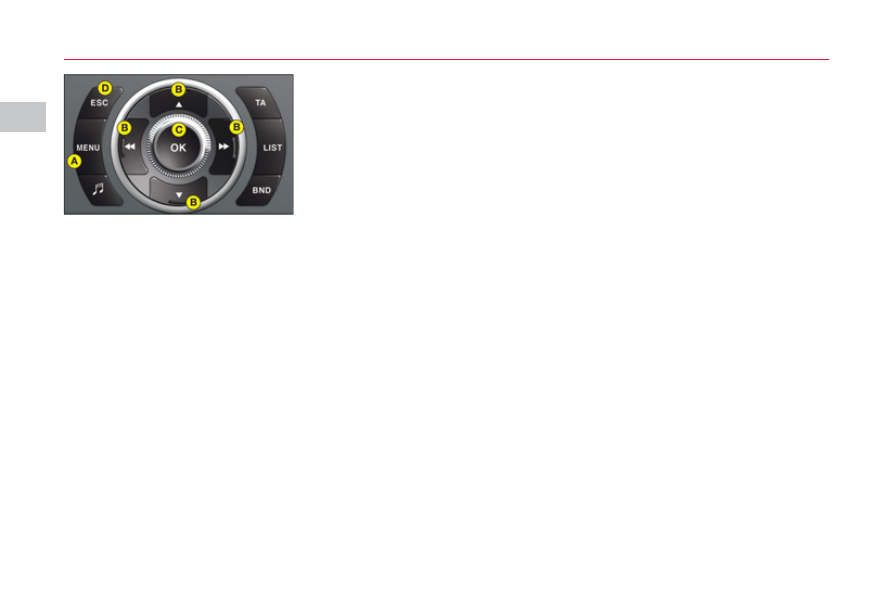

CONTROLS

A Access to the "Main menu" of

the display.

B Scroll through display menus.
C Selection in the menus of the

function chosen or value to

modify.

D Cancellation of the operation or

return to the previous display.

Main Menu

Press on button A to bring up the

"Main menu" of the multifunc-

tion display. This menu gives you

access to the following functions:

Radio mono CD

See chapter "RDS Audio

Compact Disc system".

Trip computer

For:

Entering the distance

to the destination.

Access to the log of alerts

(recall of the alerts signalled

previously).
Access to the status of func-

tions, for example automatic

lighting of headlamps, ESP,

windscreen wipe.

•

Personalisation/

Confi guration

For:

Activating/deactivating

Automatic lighting of head-

lamps.
Automatic guide-me-home

lighting, with choice of dura-

tion.
Daytime-running lamps.
The Xenon dual-function

directional headlamps.
The welcome function.

And choosing:

The brightness and the col-

our of the display, time, date

and units.
The display language.

•

-
-

•

Air conditioning

For:

Deactivating the air

conditioning.

Deactivating/activating the

differential adjustment of the

air conditioning on the driver's

side/passenger's side.

•

Bluetooth

hands-free kit

See chapter "RDS Audio

Compact Disc system".

M U LT I F U N C T I O N D I S P L AY S

C O L O U R S C R E E N C

TRIP COMPUTER

To enter the distance to

be travelled on the trip

computer:

1. Press on A.
2. Use B to select the icon

"Trip computer", then confi rm

with a press on C.

3. Select entry of distance

using B. Confi rm your choice

with a press on C.

4. To choose the distance, select

the fi gure you wish to modify

by using B, then confi rm with a

press on C.

5. Use B to adjust the value, then

validate by pressing C.

6. Validate "OK" on the screen.

To access the trip computer's

log of alerts:

1. Press on A.
2. Use B to select the icon

"Trip computer", then confi rm

with a press on C.

3. Select the log of alerts.
4. When the list displays, use B

to scroll through it.

5. Press D to return to the perma-

nent display.

To access the status of functions:

proceed in a similar manner.

PERSONALISATION/

CONFIGURATION

To activate/deactivate the

automatic guide-me-home

lighting:

1. Press on A.
2. Use B to select the icon "Per-

sonalisation-Confi guration"

then confi rm your choice by

pressing C.

3. Then select the sub-menu for

the vehicle parameters. Con-

fi rm your choice with a press

on C.

4. Using B, select lighting and

signalling. Confi rm your choice

with a press on C.

5. Press on C to select/deselect

the guide-me-home lighting.

After activation, choose the dura-

tion: press C then use B to select

the duration, then press C.

To activate/deactivate

the automatic lighting of

headlamps:

Repeat stages 1 to 4 described

above.

5. Press on C to select/deselect

the automatic lighting of head-

lamps.

Note: Activation of this function

is immediate while deactivation

requires the ignition to be switched

off.

M U LT I F U N C T I O N D I S P L AY S

C O L O U R S C R E E N C

To activate/deactivate the

daytime-running lamps:

Repeat stages 1 to 4 described

above.

5. Press on C to select/deselect

daytime-running lamps.

If you activate the daytime-running

lamps, they come on provided the

signalling control stalk is in posi-

tion 0 and the headlamps are off.
If the daytime-running lamps are

active, the sidelamps will also be

on (depending on country specifi -

cation).

To activate/deactivate the

Xenon dual-function direc-

tional headlamps:

Repeat stages 1 to 3 described

above.

4. Press B to select the driv-

ing assistance. Confi rm your

choice with a press on C.

5. Press on C to select/deselect

the Xenon dual-function direc-

tional headlamps.

To activer/deactivate the

welcome function

Repeat stages 1 to 3 described

above.

4. Press B to select the driv-

ing assistance. Confi rm your

choice with a press on C.

5. Press on C to select/deselect

welcome function.

To adjust the

display

brightness:

1. Press on A.
2. Use B to select the icon "Per-

sonalisation-Confi guration"

then confi rm your choice by

pressing C.

3. Select the display confi gura-

tion with a press on B. Confi rm

your choice with a press on C.

4. Select the brightness adjust-

ment. Confi rm your choice with

a press on C.

5. Select with a press on B, then

validate by pressing C, the

normal or alternative display

mode.
To adjust the brightness, select

the symbols "+" or "–" and

confi rm your adjustment by

pressing C.

6. Validate "OK" on the screen.

To choose the display colour:

proceed in a similar manner.

To adjust the date and the

time:

1. Press on A.
2. Use B to select the icon "Per-

sonalisation-Confi guration"

then confi rm your choice by

pressing C.

3. Select the display confi gura-

tion with a press on B. Confi rm

your choice with a press on C.

4. Select the adustment for the

date and the time, by press-

ing B, then confi rm with a

press on C.

5. Press B to select the values

you wish to modify. Confi rm

your choice with a press on C.

6. Do your adjustments with B,

then validate each adjustment

choice with a press on C.

7. Validate "OK" on the screen.

M U LT I F U N C T I O N D I S P L AY S

C O L O U R S C R E E N C

To choose units

(for temperature, fuel

consumption etc.):

1. Press on A.
2. Use B to select the icon "Per-

sonalisation-Confi guration"

then confi rm your choice by

pressing C.

3. Select the display confi gura-

tion with a press on B. Confi rm

your choice with a press on C.

4. Then select the sub-menu for

Units. Confi rm your choice with

a press on C.

5. Use B to select the unit you

wish to modify, then validate

with a press on C.

6. Validate "OK" on the screen.

To choose the language:

1. Press on A.
2. Use B to select the icon "Per-

sonalisation-Confi guration"

then confi rm your choice by

pressing C.

3. Select your choice of lan-

guage, via B.

4. Use B to select the desired

language and validate your

choice by pressing C.

5. Validate "OK" on the screen.

AIR CONDITIONING

To activate/deactivate the air

conditioning:

1. Press on A.
2. Press B to select the air condi-

tioning icon, then confi rm your

choice by pressing C.

3. Use B to select the modifi ca-

tion you wish to make to the air

conditioning and validate your

choice by pressing C.

To activate/deactivate

the left/right differential

adjustment of the air

conditioning:

1. Press on A.
2. Press B to select the air condi-

tioning icon, then confi rm your

choice by pressing C.

3. Use B to select the modifi ca-

tion you wish to make to the

differential adjustment and vali-

date your choice with a press

on C.

M U LT I F U N C T I O N D I S P L AY S

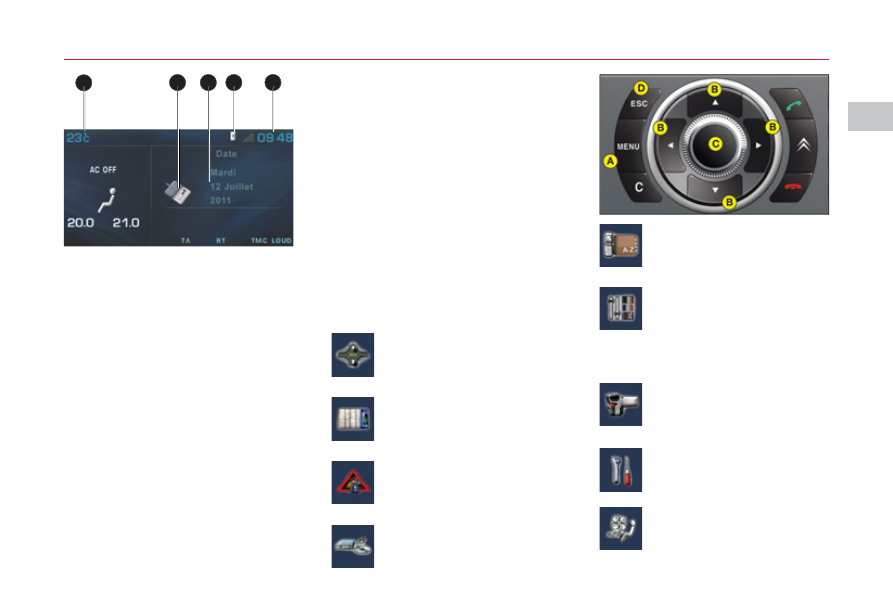

N AV I D R I V E C O L O U R D I S P L AY

1 Outside temperature.
2 Folder.
3 Date.
4 Telephone.
5 Time.
When the outside temperature is

between +3 °C and -3 °C, the tem-

perature display fl ashes (risk of

ice).
Note: The outside temperature

displayed may be higher than the

actual temperature if the vehicle is

stationary in bright sunlight.
The driver is advised not to oper-

ate the controls described below

while the vehicle is moving.

CONTROLS

A Access to the "Main menu" of

the display.

B Scroll through display menus.
C Selection in the menus of the

function chosen or value to

modify.
Scroll through display menus.

D Cancellation of the operation or

return to the previous display.

Air conditioning

Refer to the explanations

given in the section "Auto-

matic air conditioning".

Traffi c information

See chapter "NaviDrive".

Navigation - Traffi c

information

See chapter "NaviDrive".

Audio

See chapter "NaviDrive".

Main Menu

Press on button A to bring up the

"Main menu" of the multifunc-

tion display. This menu gives you

access to the following functions:

Telephone and

telematic services

See chapter "NaviDrive".

Confi guration, to activate/

deactivate the guide-me-

home lighting, automatic

lighting of headlamps etc.

as well as to adjust the

various parameters (time, date

etc.). See chapter "NaviDrive".

Map

See chapter "NaviDrive".

Video

See chapter "NaviDrive".

Vehicle diagnosis

See chapter "NaviDrive".

T R I P C O M P U T E R

OPERATION

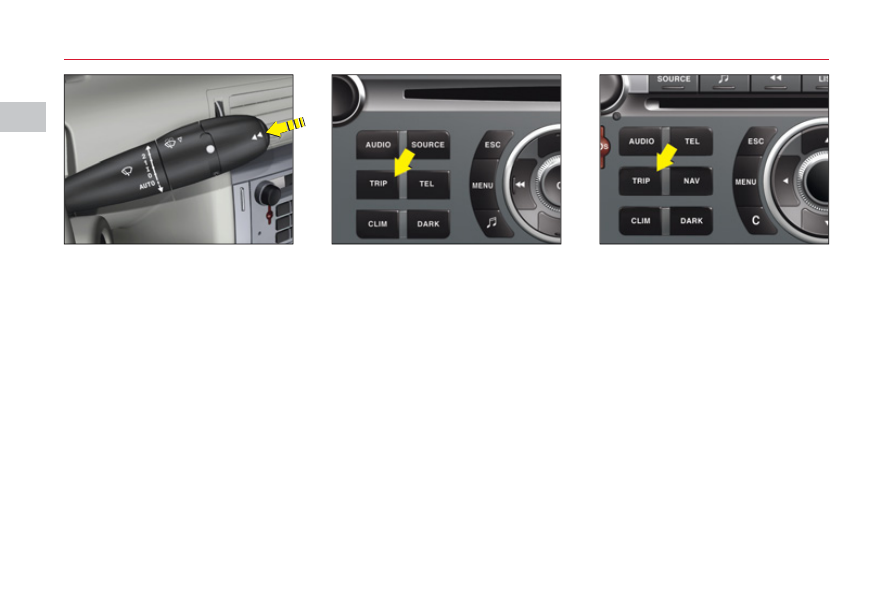

For selection and display of the

various types of information, give

short presses on the end of the

windcsreen wiper stalk.
Press on the "TRIP" button on the

radio panel, for permanent display

of the trip computer information.
To reset the trip computer infor-

mation to zero, keep the end of

the control stalk pressed for a few

seconds when you see the relevant

information displayed.

The trip computer gives you access to:

Three types of instantaneous information:

Range.
Instantaneous consumption.
Distance remaining to be travelled.

Three types of information for two Journeys 1 and 2:

The distance travelled.
Average consumption.
Average speed.
The Journeys
Journeys 1 and 2 are independent of each other but identical in use.

For example you can allocate Journey 1 to daily calculations and

Journey 2 to monthly calculations.
Resetting a Journey to zero
When the desired Journey is displayed, give a long press on the end

of the wiper control stalk.

Information concerning your vehicle:

The oil temperature (for NaviDrive display only).
The coolant temperature.
The tyre pressures.

•

-
-
-

•

-
-
-

•

-
-
-

T R I P C O M P U T E R

Colour screen C

NaviDrive colour display

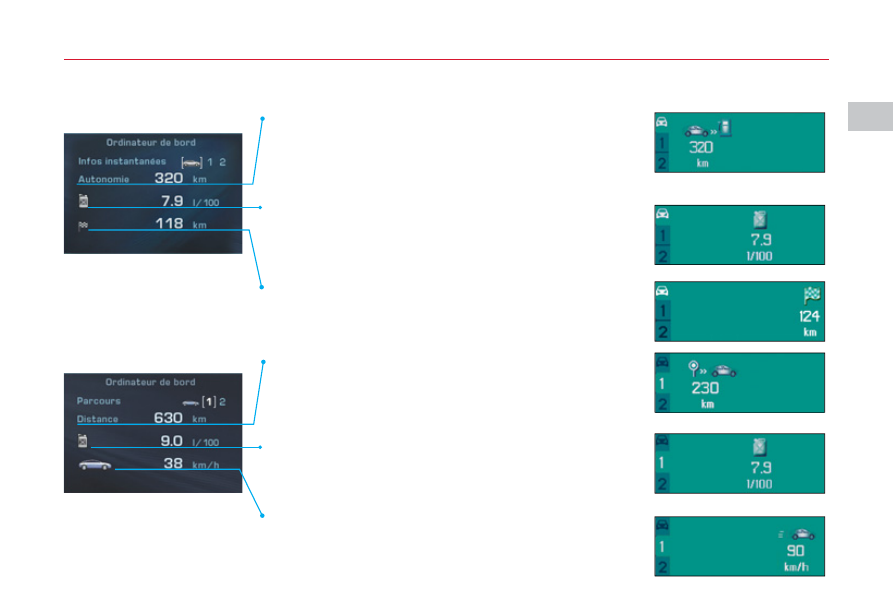

Range

This is the distance that can still be travelled on the

amount of fuel remaining in the tank. When the dis-

tance that can still be travelled is less than around

30 km (or 18 miles), only four dashes are displayed.

Instantaneous consumption

This is the result from the consumption recorded within

the last 2 seconds. This function will only display

above 30 km/h (18 mph).

Distance to be travelled

To enter it, see "Multifunction displays".

Distance travelled

This is the distance that has been travelled since the

last reset to zero of the Journey selected.

Average consumption

This is the relationship between the fuel consumed

and the distance travelled since the last reset to zero

of the trip computer.

Average speed

This is obtained, from the last reset to zero of the trip

computer, by dividing the distance travelled by the time

taken (with ignition switched on).

T R I P C O M P U T E R

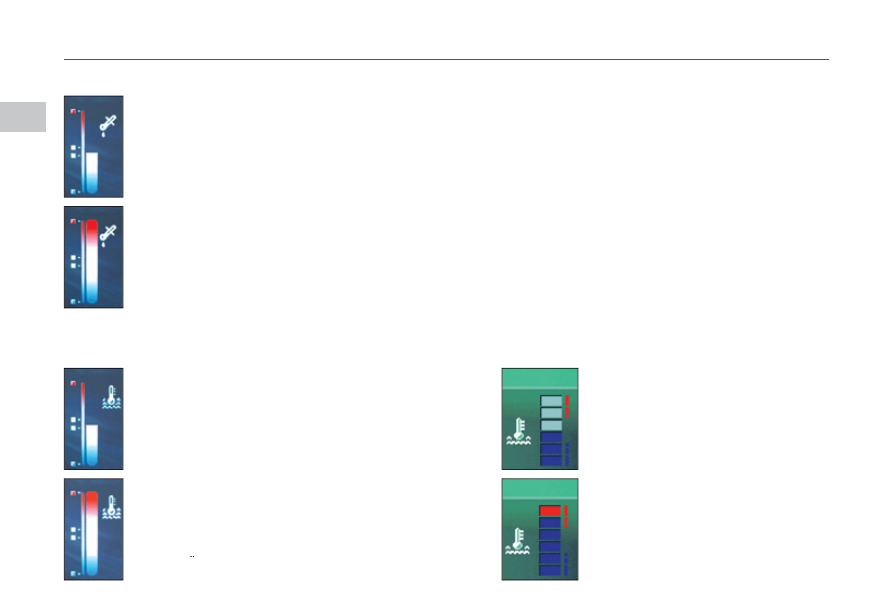

This gauge informs you of the temperature of the oil in your

engine.

OIL TEMPERATURE (NAVIDRIVE COLOUR DISPLAY)

If the temperature is too high, the gauge indicates the maximum

level and the last, red bar fl ashes.
Contact a CITROËN dealer or a qualifi ed workshop.

This gauge informs you of the temperature of the

coolant fl uid in your engine.

If the temperature is excessive, the gauge indicates

a maximum level, the "STOP" warning lamp comes

on in the instrument panel as well as on the Head-

Up display.
Stop as soon as it is safe to do so and contact a

CITROËN dealer or a qualifi ed workshop.

COOLANT TEMPERATURE

Colour screen C

NaviDrive colour display

Content .. 1 2 3 4 ..
