Citroen C5 (2017 year). Instruction - part 16

In the event of a breakdown

239

C5_en_Chap08_en-cas-de-panne_ed01-2016

Towing the vehicle

Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.

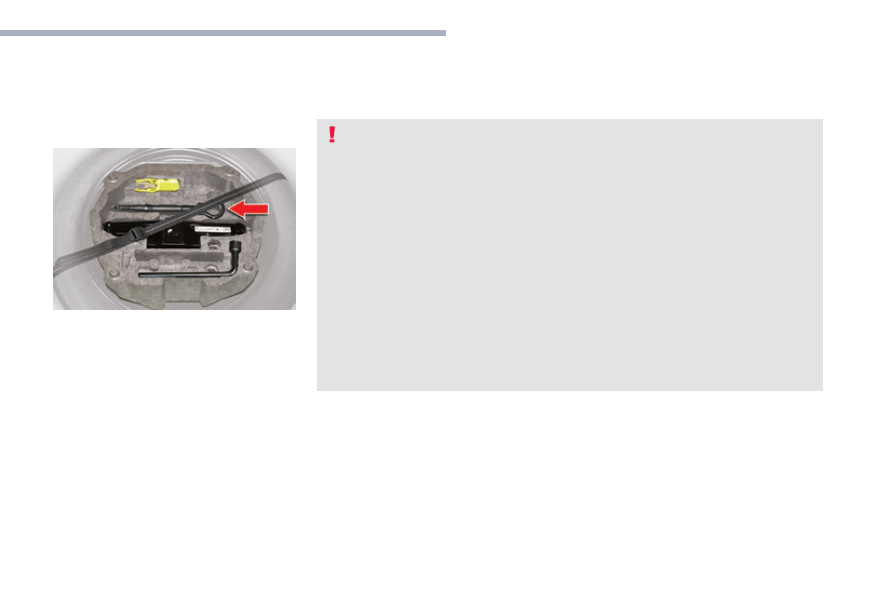

The towing eye is installed in the jack box
placed in the spare wheel.
For access to it:
F open the boot,
F raise the floor,
F

remove the towing eye from the jack box.

Access to the tools

General recommendations

Observe the legislation in force in your country.
Ensure that the weight of the towing vehicle is higher than that of the towed vehicle.
The driver must remain at the wheel of the towed vehicle and must have a valid driving licence.
When towing a vehicle with all four wheels on the ground, always use an approved towing
arm; rope and straps are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine off, there is no longer any power assistance for
braking or steering.
In the following cases, you must always call on a professional recovery service:
- vehicle broken down on a motorway or fast road,
-

four-wheel drive vehicle,

- when it is not possible to put the gearbox into neutral, unlock the steering, or release

the parking brake,

- towing with only two wheels on the ground,
- where there is no approved towing arm available...

In the event of a breakdown

240

C5_en_Chap08_en-cas-de-panne_ed01-2016

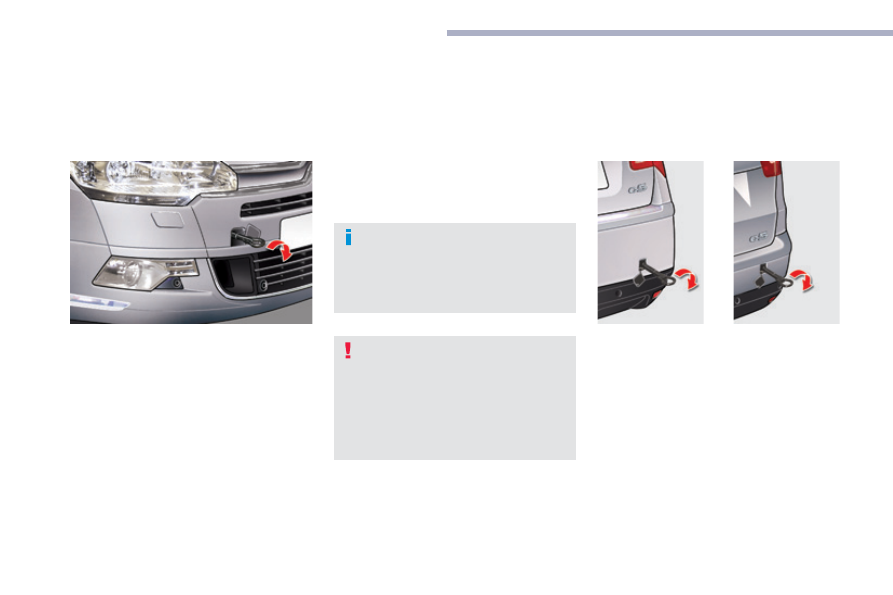

On the front bumper, unclip the cover by

levering at the bottom with the flat end of
the towing eye.

Screw the towing eye in fully.

Attach a towing arm.

Switch on the hazard warning lamps on

both vehicles.

Towing your vehicle

Failure to observe this advice could
result in damage to certain braking
components and the absence of
braking assistance the next time the
engine is started.

In the event of a problem or malfunction
with the automatic gearbox, the
vehicle can be immobilised with a gear
engaged. In this case, the front of the
vehicle must be lifted for towing.

On the rear bumper, unclip the cover:

● by pressing at the bottom,
● then by levering at the top using the flat

end of the towing eye.

Screw the towing eye in fully.

Attach a towing arm.

Switch on the hazard warning lamps on

both vehicles.

Towing another vehicle

Place the gear lever in neutral (position N

with an automatic gearbox).

Technical data

241

C5_en_Chap09_caracteristiques-techniques_ed01-2016

Engines and gearboxes

Petrol engine

THP 160
THP 150

Gearbox

Automatic (6-speed)

Model code:
RD... RW...

5FM-A

5FE-A/D**

Cubic capacity (cc)

1 598

Bore x stroke (mm)

77 x 85.8

EU standard maximum power (kW)* / hp DIN

120 / 110**

Maximum power engine speed (rpm)

6 000

EU standard maximum torque (Nm)

240

Maximum torque engine speed (rpm)

1 400

Fuel

Unleaded

Catalytic converter

Yes

Engine oil capacity (in litres) (with filter
replacement)

4.25

* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation (directive 1999/99/EC).
** In Russia, the maximum power is 110 kW and in Brazil, the maximum power is 120 kW.

RD...: Saloon.
RW...: Tourer.

Technical data

242

C5_en_Chap09_caracteristiques-techniques_ed01-2016

Weights and towed loads (in kg)

Petrol engine

THP 160
THP 150

Gearbox

Automatic (6-speed)

Model code

RD 5FM-A

RD 5FE-A/D

RW 5FM-A

RW 5FE-A/D

Body

Saloon

Tourer

Unladen weight

1 515

1 534

Kerb weight

1 590

1 609

Gross vehicle weight (GVW)

2 026

2 200

Gross train weight (GTW)

2 526

2 700

Braked trailer (within GTW limit)
- on a 10% or 12% slope

500

Braked trailer* (with load transfer within GTW
limit)

710

790

Unbraked trailer

500

Recommended nose weight

The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when the exterior temperature is
higher than 37 °C, limit the weight towed.

* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same

amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

Technical data

243

C5_en_Chap09_caracteristiques-techniques_ed01-2016

RD...: Saloon.
RW...: Tourer.

* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation

(directive 1999/99/EC).

Engines and gearboxes

Diesel engine

BlueHDi 150 S&S

BlueHDi 180 S&S

Gearbox

Manual (6-speed)

EAT6 automatic (6-speed)

Model code:
RD... RW...

AHR-M/S

AHW-T/S

Cubic capacity (cc)

1 997

Bore x stroke (mm)

85 x 88

EU standard maximum power (kW)*

110

133

Maximum power engine speed (rpm)

4 000

3 750

EU standard maximum torque (Nm)

370

400

Maximum torque engine speed (rpm)

2 000

Fuel

Diesel

Catalytic converter

Yes

Particle filter (FAP)

Yes

Engine oil capacity (in litres) (with filter
replacement)

5.1

.../S: model fitted with Stop & Start.

Technical data

244

C5_en_Chap09_caracteristiques-techniques_ed01-2016

Diesel engine

BlueHDi 150 S&S

BlueHDi 180 S&S

Gearbox

Manual (6-speed)

EAT6 automatic (6-speed)

Model code

RD AHR-M/S

RW AHR-M/S

RD AHW-T/S

RW AHW-T/S

Body

Saloon

Tourer

Saloon

Tourer

Unladen weight

1 540

1 575

1 620

1 655

Kerb weight

1 615

1 650

1 695

1 730

Gross vehicle weight (GVW)

2 160

2 235

2 190

2 290

Gross train weight (GTW)

3 660

3 635

3 290

Braked trailer (within GTW limit)

- on a 10% or 12% slope

1 500

1 400

1 100

1 000

Braked trailer* (with load transfer within GTW

limit)

1 750

1 650

1 350

1 250

Unbraked trailer

750

Recommended nose weight

* The weight of the braked trailer can be increased within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same

amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

Weights and towed loads (in kg)

Technical data

245

C5_en_Chap09_caracteristiques-techniques_ed01-2016

Dimensions (in mm)

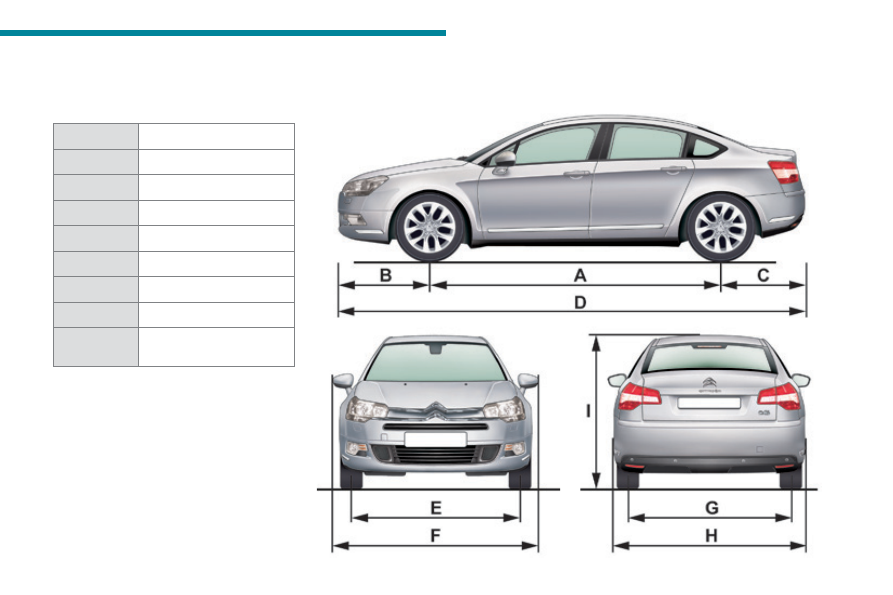

Exterior (Saloon)

2 815

1 054

910

4 779

1 586

2 096

1 557

1 860

1 451

1 458**

* Without roof bars.
** With metal spring suspension.

Technical data

246

C5_en_Chap09_caracteristiques-techniques_ed01-2016

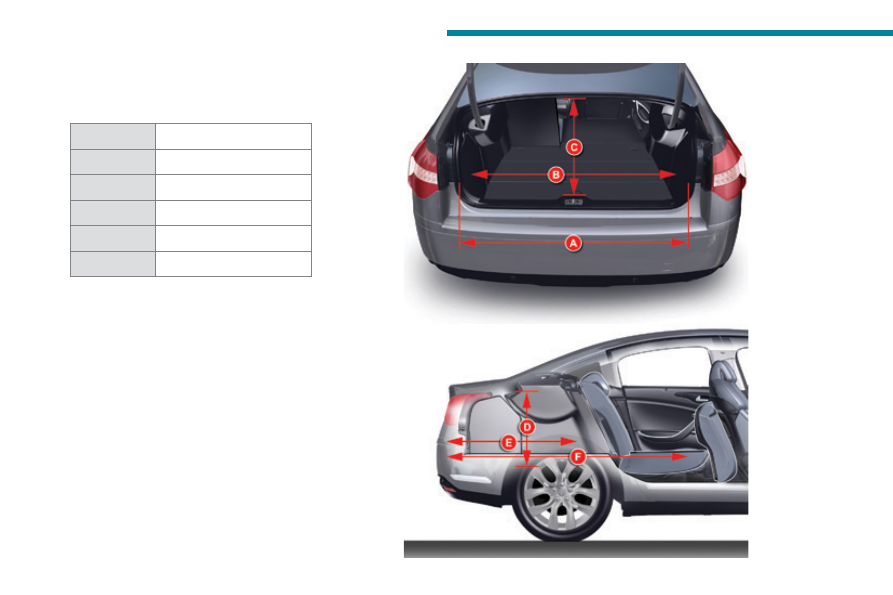

Interior (Saloon)

1 030

1 115

566

504

1 040

1 705

Technical data

247

C5_en_Chap09_caracteristiques-techniques_ed01-2016

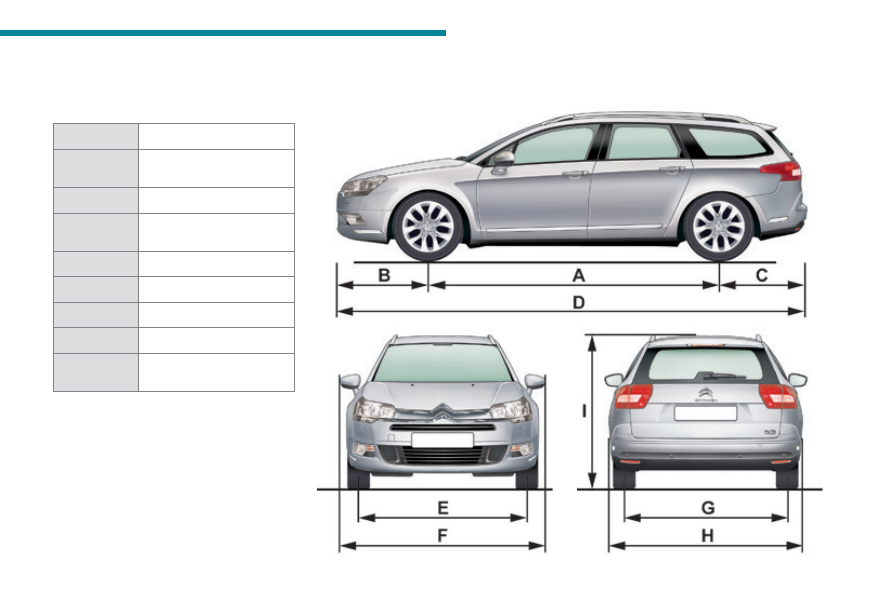

Exterior (Tourer)

2 815

1 054

1 065***

959

4 829

4 840***

1 586

2 096

1 557

1 860

1 479

1 483**

* Without roof bars.
** With metal spring suspension.
*** Tourer XTR version.

Technical data

248

C5_en_Chap09_caracteristiques-techniques_ed01-2016

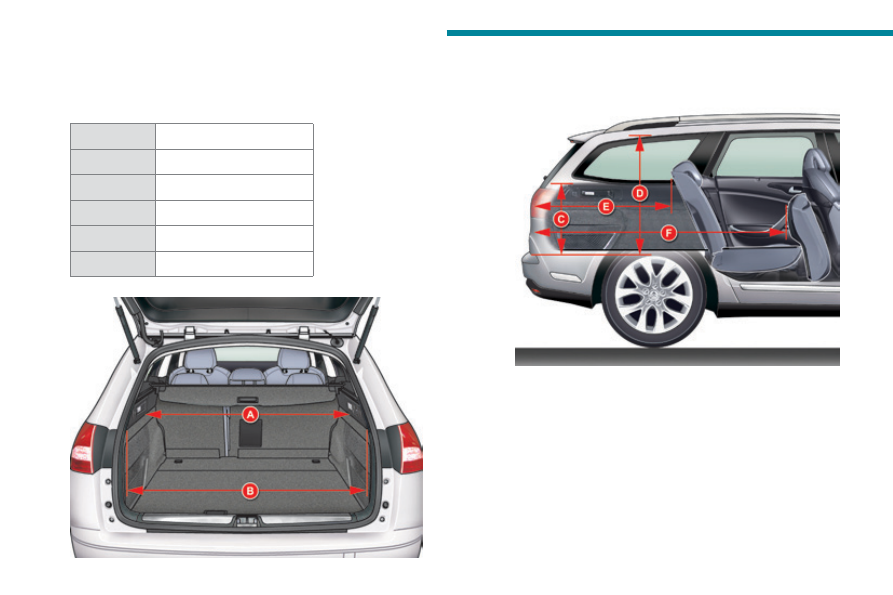

Interior (Tourer)

1 060

1 115

510

851

1 058

1 723

Technical data

249

C5_en_Chap09_caracteristiques-techniques_ed01-2016

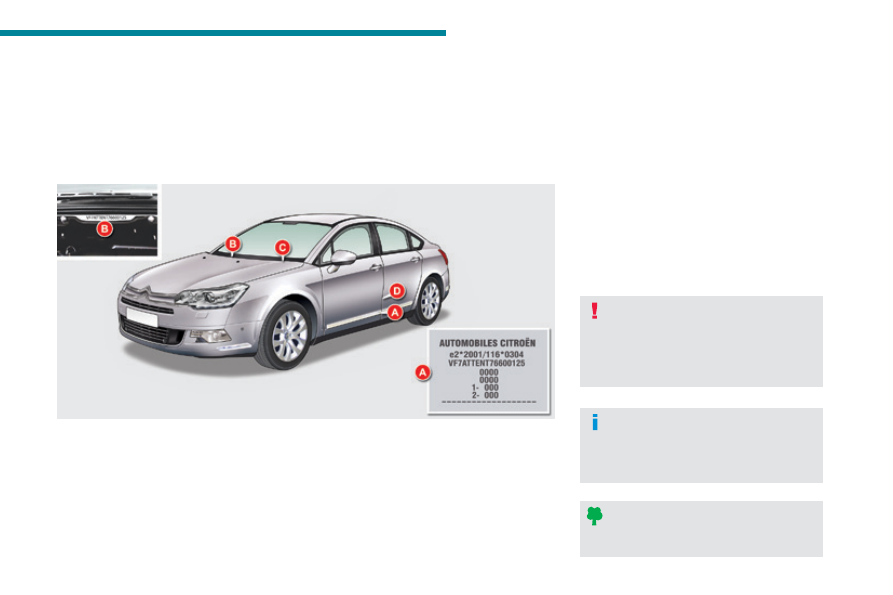

Identification markings

Various visible markings for identification of the vehicle.
Refer also to the registration document for your vehicle for the vehicle type, serial number, weights...
All genuine CITROËN replacement parts are available exclusively within the dealer network.
For your safety and in order to remain within the terms of the warranty, you are advised to use only
CITROËN replacement parts.

D. Tyre / paint label

Affixed to the left-hand centre door pillar, it
bears the following information:
- Tyre pressures, laden and unladen.
- Tyre sizes (including the load index and

speed rating).

- Tyre pressure for the spare wheel.
- Paint colour code.

Observe the tyre pressures indicated by
CITROËN.
Check the tyre pressures at least
monthly, when cold.

A. Manufacturer's label

-  Gross train weight (GTW).
-  Maximum weight on front axle.
-  Maximum weight on rear axle.

B. Vehicle Identification Number (VIN)

under the bonnet

C. Vehicle Identification Number (VIN) at

the bottom of the windscreen aperture

Low tyre pressures increase the fuel
consumption of your vehicle.

Affixed to the left-hand centre door pillar, it
bears the following information:
-  Manufacturer's name.
-  EU type approval number.
-  Vehicle Identification Number (VIN).
-  Gross vehicle weight (GVW).

The original tyres fitted to the vehicle
may have a load index or speed rating
higher than those given on the label;
this has no effect on the inflation
pressures.

Audio and Telematics

250

C5_en_Chap10a_BTA_ed01-2016

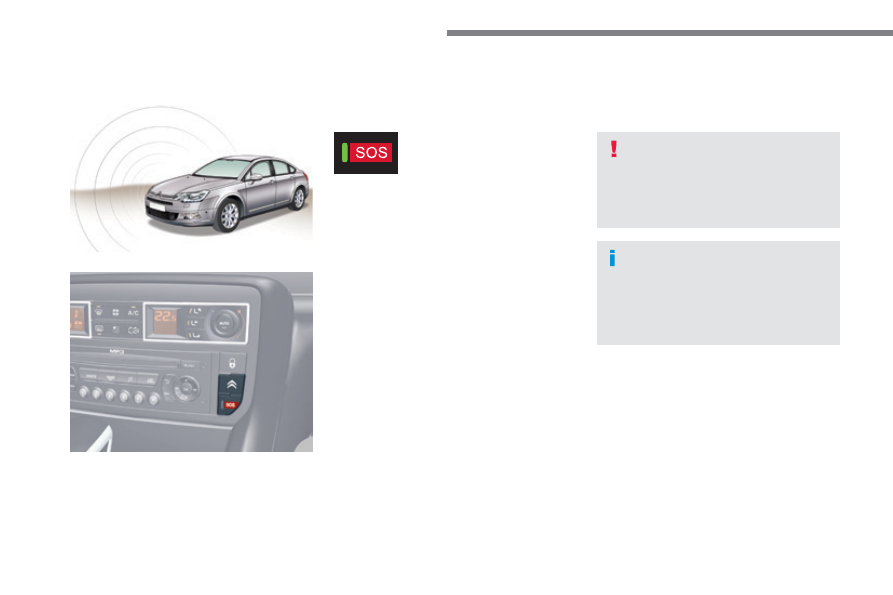

Emergency or assistance call

Localised Emergency Call

In an emergency, press this
button for more than 2 seconds.
Flashing of the green indicator
lamp and a voice message
confirm that the call has
been made to the "Localised
Emergency Call"* centre.

Pressing this button again immediately cancels
the call.
The green indicator lamp goes off.

The green indicator lamp remains on (without
flashing) when communication is established.
It goes off at the end of the call.

Localised Emergency Call immediately locates
your vehicle, makes contact with you in your
language** and - if necessary - organises
sending of the appropriate emergency
services**. In countries where the service is not
operational, or if the locating service has been
expressly declined, the call is directed straight
to the emergency services (112) without
location.

** Depending on the geographic cover for

"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.

The list of countries covered by Telematic
services is available at dealers or
at www.citroen.co.uk.

* Depending on the terms and conditions for

the service, available from dealers, and
technological and technical limits.

If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.

If you benefit from the CITROËN
Connect Box offer with the SOS and
assistance pack included, there are
additional services available to you in
your MyCITROËN personal space, via
the Internet website for your country.

Audio and Telematics

251

C5_en_Chap10a_BTA_ed01-2016

Localised Assistance Call

The fault with the system does not
prevent the vehicle being driven.

Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been made**.

Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.

Geo-location

You can deactivate geo-location by
simultaneously pressing the "Localised
Emergency Call" and "Localised Assistance
Call" buttons, followed by a press on "Localised
Assistance Call" to confirm.

To reactivate geo-location, simultaneously
press the "Localised Emergency Call" and
"Localised Assistance Call" buttons again,
followed by a press on "Localised Assistance
Call" to confirm.

If the orange indicator lamp is on fixed: the
back-up battery should be replaced.
In both cases, the emergency and assistance
calls service may not work.
Contact a qualified repairer as soon as
possible.

Operation of the system

When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.

If the orange indicator lamp
flashes then goes off: the system
has a fault.

If you purchased your vehicle outside
the CITROËN dealer network, we
suggest that you have a dealer check
and, if desired, modify the configuration
of these services.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.

For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to
carry out updates to the vehicle's
on-board telematic system.

** Depending on the geographic cover for

"Localised Emergency Call", "Localised
Assistance Call" and the official national
language selected by the owner of the
vehicle.

The list of countries covered by Telematic
services is available at dealers or
at www.citroen.co.uk.

Audio and Telematics

253

C5_en_Chap10b_SMEGplus_ed01-2016

7-inch touch screen tablet

GPS satellite navigation - Multimedia audio - Bluetooth

telephone

Contents

First steps

254

Steering mounted controls

Navigation - Guidance

DAB (Digital Audio Broadcasting) radio

Frequently asked questions

306

The system is protected in such a way that it will only operate in
your vehicle.

As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.

Audio and Telematics

254

C5_en_Chap10b_SMEGplus_ed01-2016

First steps

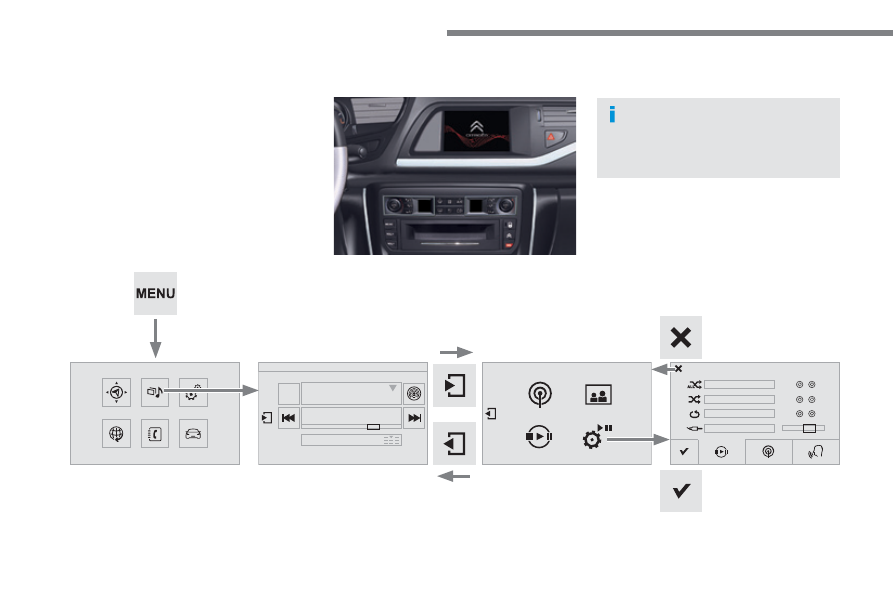

Use the buttons arranged below the touch
screen tablet for access to the menu carousel,
then press the virtual buttons in the touch
screen tablet.
Each menu is displayed in one or two pages
(primary page and secondary page).

Secondary page

Primary page

In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.

Content .. 14 15 16 17 ..
