In addition to the rear parking sensors, the front
parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle is
still below 6 mph (10 km/h).
The front parking sensors are interrupted if the
vehicle stops for more than three seconds in
forward gear, if no further obstacles are detected
or when the speed of the vehicle exceeds 6 mph
(10 km/h).

Front parking sensors

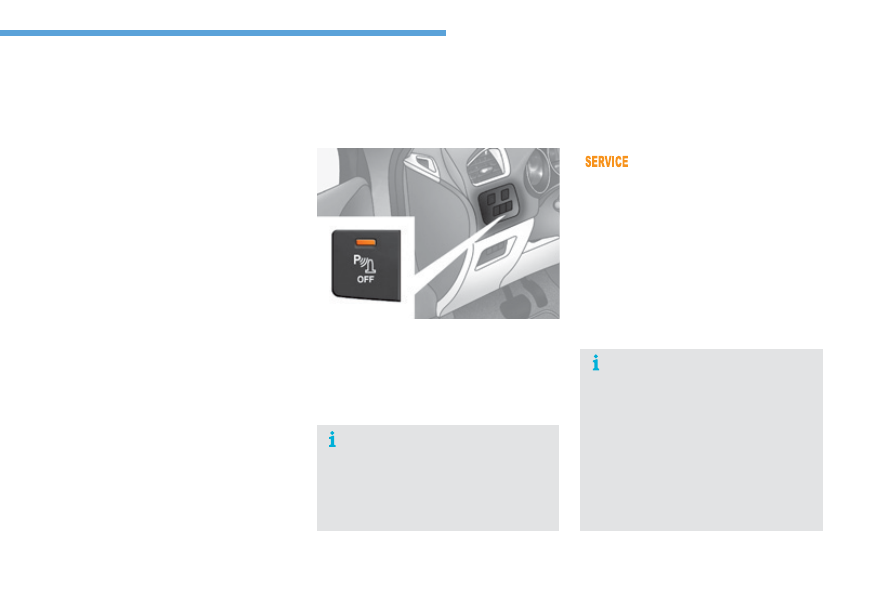

The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.
Pressing this button again reactivates the
function. The indicator lamp in the button
goes off.

Operating fault

In the event of a malfunction of
the system, when reverse gear
is engaged this warning lamp is
displayed in the instrument panel
and/or a message appears in the
screen, accompanied by an audible
signal (short beep).
Contact a CITROËN dealer or a
qualified workshop.

The sound emitted by the speaker (front or
rear) indicates whether the obstacle is in front
or behind.

The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN).

In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.

Deactivation/Activation of the
front and rear parking sensors

Practical information

208

C4-2_en_Chap07_infos-pratiques_ed02-2015

TOTAL & CITROËN

Partners in performance and
protecting the environment

Innovation in the search for
performance

For over 40 year, the TOTAL Research and
Development departments have developed
lubricants for CITROËN, to match the latest
technical innovations on CITROËN vehicles, both for
competition and for everyday motoring.
For you, this is an assurance that you will obtain the
best performance from your engine.

Optimum protection for
your engine

By having your CITROËN vehicle
serviced with TOTAL lubricants, you are
contributing towards improving the life
and performance of your engine, while
also protecting the environment.

Practical information

209

C4-2_en_Chap07_infos-pratiques_ed02-2015

Fuel

Capacity of the tank: approximately 60 litres.

When the low fuel level in the
tank is reached, this warning lamp
comes on in the instrument panel,
accompanied by an audible warning
and the display of an alert message.
When it first comes on, around
6 litres

of fuel remain in the tank.

Low fuel level

Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.
Opening the filler cap may result in an inrush of
air. This vacuum is entirely normal and results
from the sealing of the fuel system.

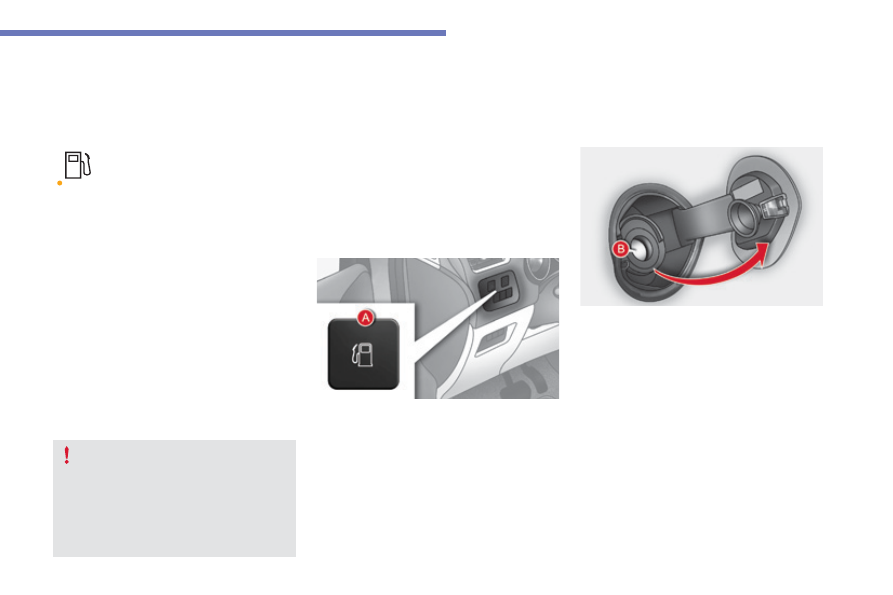

F Press control A

until the automatic opening

of the fuel flap is heard.

This control remains active for a few
minutes after switching off the ignition. If
necessary, switch the ignition on again to
reactivate it.

Take care to select the pump that delivers

the correct fuel for your vehicle.

If you are filling your tank to the top, do not
persist after the third cut-off; this could
cause your vehicle to malfunction.

F Introduce the nozzle so as to push in the

metal non-return flap B.

Make sure that the nozzle is pushed in as

far as possible before starting to refuel (risk
of blowback).

Maintain this position while refuelling.

Push the fuel flap to close it.

With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key, or the
START/STOP button if your vehicle has
Keyless Entry and Starting.

Until sufficient fuel has been added, every time
the ignition is switched on, this warning lamp
appears, accompanied by an audible signal
and an alert message. When driving, this
audible signal and alert message are repeated
with increasing frequency, as the level drops
towards 0

You must refuel as soon as possible to avoid
running out.
If you run out of fuel (Diesel), refer to the
corresponding section.

Refuelling

Practical information

210

C4-2_en_Chap07_infos-pratiques_ed02-2015

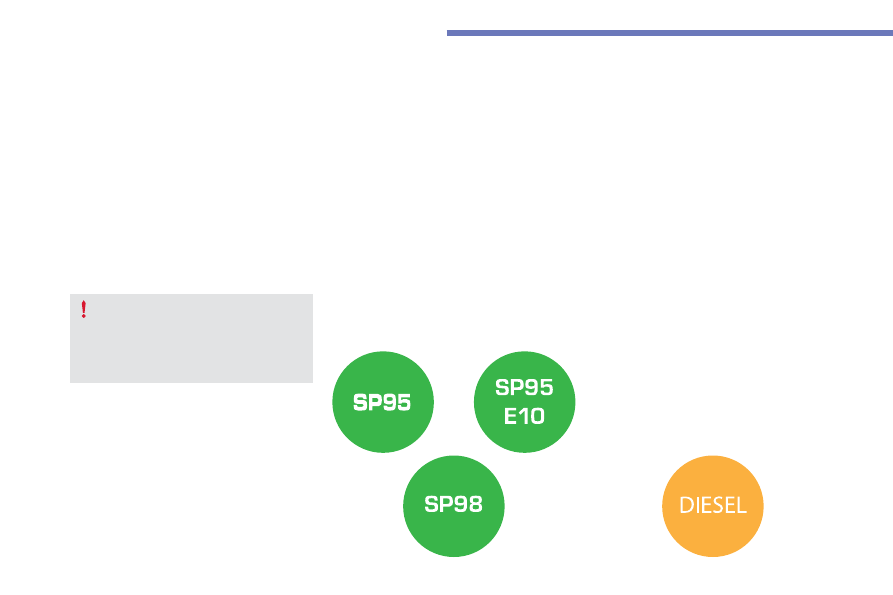

Fuel used for petrol
engines

The petrol engines are compatible with
E10 bio-petrol (containing 10 % ethanol),
conforming to European standards EN 228
and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.

Fuel used for Diesel
engines

The Diesel engines are compatible with
biofuels which conform to current and future
European standards (Diesel fuel which
complies with standard EN 590 mixed with
a biofuel which complies with standard
EN 14214) available at the pumps (containing
up to 7 % Fatty Acid Methyl Ester).
B30 biofuel can be used in certain Diesel
engines. However, this use, even occasional,
requires strict application of the special
servicing conditions. Contact a CITROËN
dealer or a qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

The petrol or Diesel engine of your vehicle is
fitted with a catalytic converter, a device which
helps to reduce the level of harmful emissions
in the exhaust gases.
For petrol engines, the use of unleaded fuel
is compulsory.
The filler neck is narrower, admitting unleaded
petrol nozzles only.

Fuel supply cut-off

Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a
collision.

If you have put in the wrong fuel for
your vehicle, you must have the tank
drained and refilled with the correct
fuel before you start the engine.

Practical information

211

C4-2_en_Chap07_infos-pratiques_ed02-2015

Misfuel prevention (Diesel)*

Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.

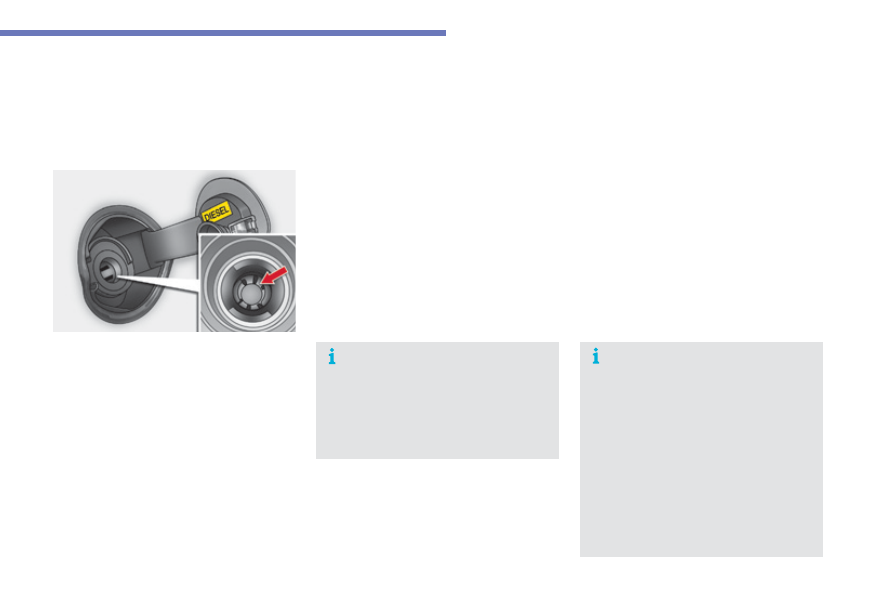

Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.

When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle.

* Depending on the country of sale.

It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
slowly.

Travelling abroad

As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
Not all Diesel vehicles are fitted with
misfuel protection, so before travelling
abroad, we recommend that you check
with the CITROËN dealer network,
whether your vehicle is suitable for the
fuel pumps in the country in which you
intend to travel.

Operation

Practical information

212

C4-2_en_Chap07_infos-pratiques_ed02-2015

Snow chains

In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when
braking.

Advice on installation

If you have to fit the chains during a

journey, stop the vehicle on a flat surface
on the side of the road.

Apply the parking brake and position any

wheel chocks to prevent movement of your
vehicle.

Fit the chains following the instructions

provided by the manufacturer.

Move off gently and drive for a few

moments, without exceeding 30 mph
(50 km/h).

Stop your vehicle and check that the snow

chains are correctly tightened.

Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:

Original

tyre size

Maximum link

size.

195/65 R15

9 mm

205/55 R16

225/45 R17

225/40 R18

cannot be fitted with chains

For more information on snow chains, contact a
CITROËN dealer or a qualified workshop.

It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry surface.

The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.

Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.

Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road surface. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.

Practical information

213

C4-2_en_Chap07_infos-pratiques_ed02-2015

Towing a trailer

Your vehicle is primarily designed for
transporting people and luggage, but it may
also be used for towing a trailer.

We recommend the use of genuine
CITROËN towbars and their harnesses
that have been tested and approved
from the design stage of your vehicle,
and that the fitting of the towbar is
entrusted to a CITROËN dealer or a
qualified workshop.
If the towbar is not fitted by a
CITROËN dealer, it must still be
fitted in accordance with the vehicle
manufacturer's instructions.

Very cold climate screen*

* Depending on the country of sale.

Fitting

Offer up the very cold climate screen to

the front of the lower section of the front
bumper.

Press around its edge to engage its fixing

clips one by one.

Removal

Use a screwdriver as a lever to release

each fixing clip in turn.

Removable protective screen which prevents
the accumulation of snow at the radiator
cooling fan.

Do not forget to remove the very cold
climate screen when:
- the ambient temperature exceeds

10 °C,

- towing,
- driving at speeds above 75 mph

(120 km/h).

Driving with a trailer places greater
demands on the towing vehicle and the
driver must take particular care.
For more advice on driving when
towing, refer to the corresponding
section.

For more information on weights (and
the towed loads which apply to your
vehicle) refer to the corresponding
section.

Practical information

214

C4-2_en_Chap07_infos-pratiques_ed02-2015

Towbar with quickly detachable towball

Presentation

This towbar allows the towball to be fitted and
removed quickly and easily without the use
of tools. Installed behind the rear bumper, the
towbar is invisible after removing the towball
and folding the trailer harness socket carrier.

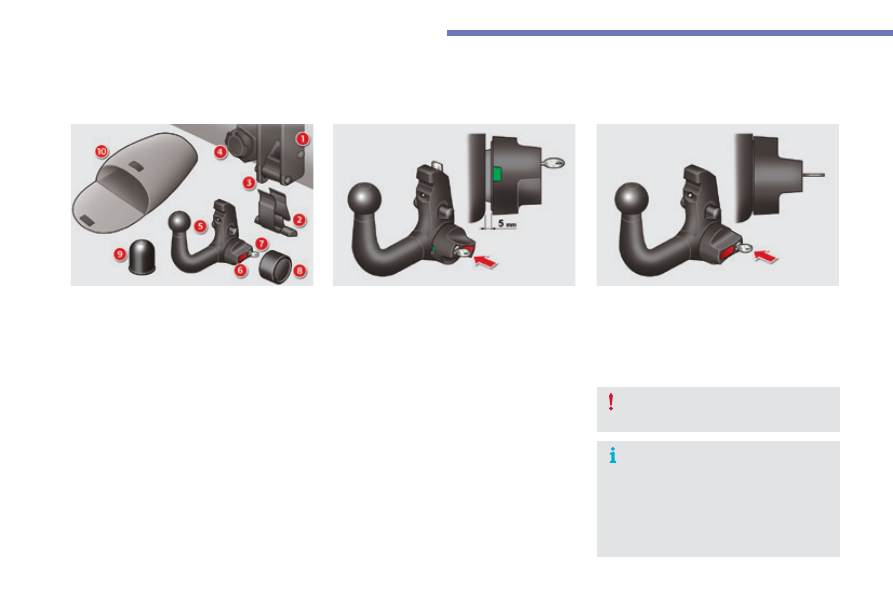

1. Carrier
2.

Protective blanking plug.

Security ring.

Folding trailer harness socket.

Detachable towball.

Locking / unlocking wheel.

Security key lock.

Locking wheel protector.

Ball protector.

10.

Storage bag.

A. Locked position

The locking wheel is not in contact with the
towball (gap of about 5 mm).
The green mark is visible.
The lock for the locking wheel is facing
rearward.

B. Unlocked position

The locking wheel is in contact with the towball.
Then green mark is hidden.
The lock for the locking wheel is facing forward.

Observe the legislation in force in the
country in which you are driving.

For information on the maximum trailer
weight and the recommended nose
weight, refer to the "Technical data"
section.
For information on safely towing a
trailer, refer to the "Towing a trailer"
section.

Practical information

215

C4-2_en_Chap07_infos-pratiques_ed02-2015

Before each use

Check that the towball is correctly fitted by verifying the following points:
- the towball is correctly locked in place (position A),
- the security key lock is on and the key removed; the locking wheel can no longer be

operated,

- the towball must no longer move at all in its carrier; try to shake it by hand.

During use

Never unlock the device when a trailer or load carrier is fitted to the towball.
Never exceed the maximum authorised weight for the vehicle plus trailer (Gross Train
Weight - GTW).
Before driving, check the adjustment of the headlamp beam height.
For more information on adjusting the headlamps, refer to the corresponding section.

After use

For journeys made without a trailer or load carrier, the trailer harness socket must be folded
away, the towball removed and the blanking plug inserted in the carrier. This measure
applies particularly if the towball could hinder visibility of the number plate or lighting.

Practical information

216

C4-2_en_Chap07_infos-pratiques_ed02-2015

Fitting the towball

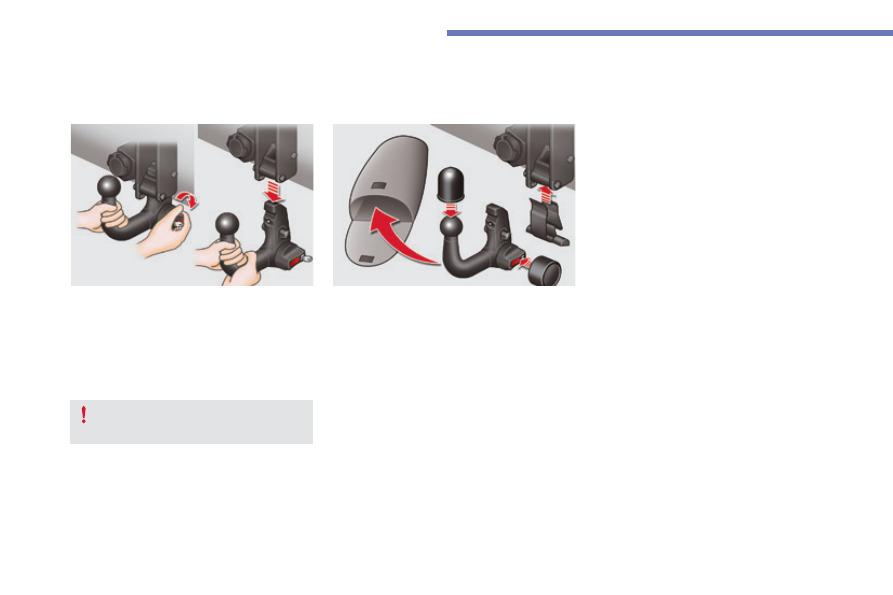

Remove the protective plug from the carrier
and check the condition of the fixing system.
If necessary, clean the carrier with a brush or
clean cloth.
Take the towball from the storage bag.
Remove the protective cover from the ball and
the protective cap from the locking wheel.
Stow the plug, cover and cap in the
storage bag.
Check that the towball is unlocked (position B).
If not, insert the key in the lock and turn the key
anti-clockwise to unlock the mechanism.

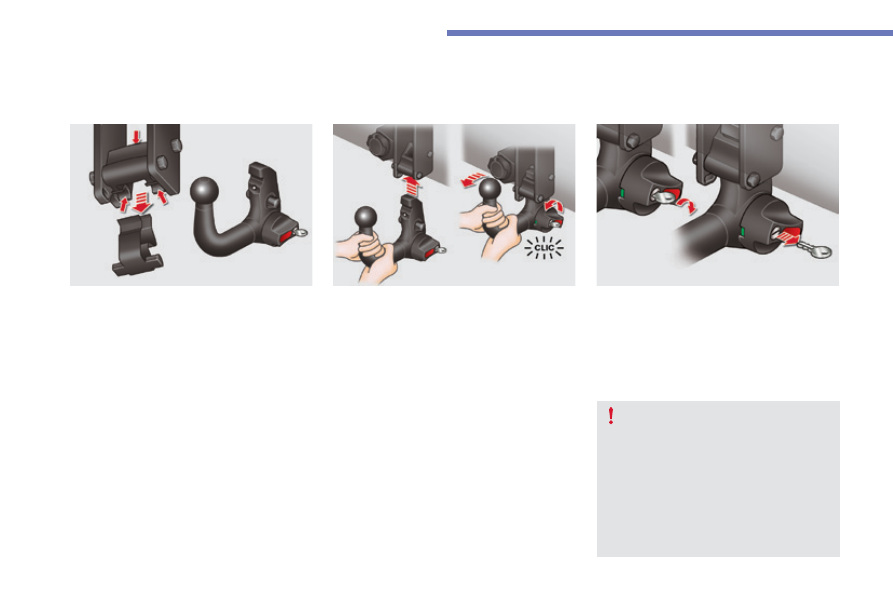

Take the towball in both hands; insert the end
of the towball into the carrier by lifting it, then,
to ensure that it has correctly locked in place,
pull firmly down on the ball end of the towball.
The locking wheel automatically turns a quarter
of a turn anti-clockwise, making a perceptible
click; take care to keep your hands clear.

Check that the towball has correctly locked in
place (position A).
Turn the key clockwise to lock the towball fixing
mechanism.
Always remove the key and keep it in a safe
place.

If the key cannot be turned or removed,
this means that the towball is not fitted
correctly; start the procedure again.
If one of the locking conditions is not
met, start the procedure again.
In all cases, if the marking remains
red, do not use the towbar and contact
a CITROËN dealer or a qualified
workshop.

Practical information

217

C4-2_en_Chap07_infos-pratiques_ed02-2015

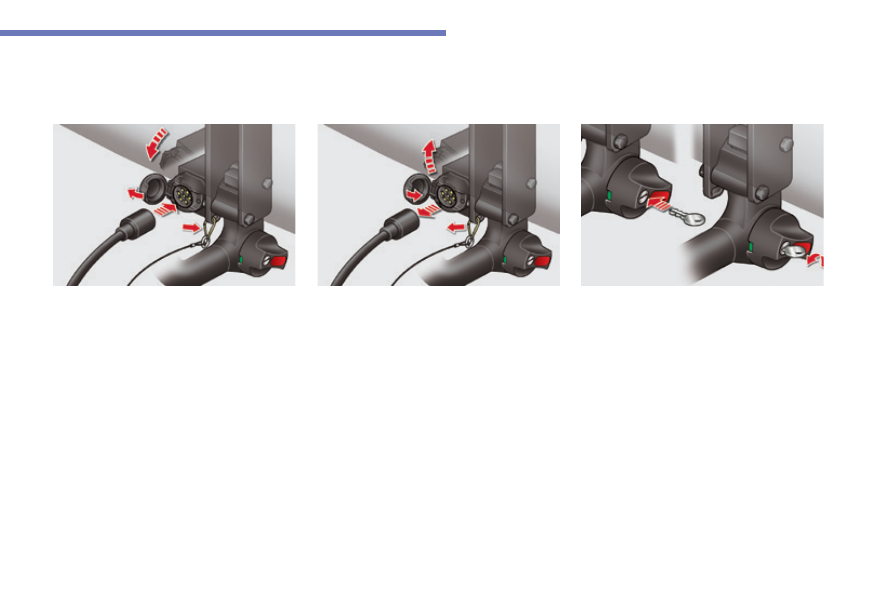

Attach the trailer to the towball.
Attach the cable on the trailer to the security
ring located on the carrier.
Lower the trailer harness socket carrier by
pulling down on the ring visible below the
bumper.
Remove the protective cover from the socket
and connect the trailer wiring harness.

Removing the towball

Disconnect the trailer harness from the socket
on the carrier.
Detach the cable on the trailer from the security
ring on the carrier.
Unhook the trailer from the towball.
Return the trailer harness connector carrier to
the folded position.

Insert the key into the lock.
Turn the key anti-clockwise to unlock the
towball fixing mechanism.

Practical information

218

C4-2_en_Chap07_infos-pratiques_ed02-2015

Maintenance

Correct operation is only possible if the towball
and its carrier remain clean.
Before cleaning the vehicle with a high pressure
jet wash, the towbar harness socket carrier must
be folded away, the towball removed and the
blanking plug inserted in the carrier.

For any work on the towbar, got to a CITROËN
dealer or a qualified workshop.

Refit the protective cover for the ball and the
protective cover for the locking wheel.
Stow the towball in its bag.
Refit the protective blanking plug to the carrier.

Grasp the towball firmly with one hand; with
the other hand, press and turn the locking
wheel clockwise as far as it will go.
Extract the towball downward.

Be ready for the weight of the towball
(around 3.5 kg). Risk of injury!

Practical information

219

C4-2_en_Chap07_infos-pratiques_ed02-2015

Load reduction mode Energy economy mode

Switching to economy mode

Once this period has elapsed, a message
appears in the screen indicating that the
vehicle has switched to economy mode and the
active functions are put on standby.

Exiting economy mode

These functions are reactivated automatically
the next time the vehicle is driven.
F

In order to resume the use of these

functions immediately, start the engine and
let it run for a few minutes.

The time available to you will then be double
the period for which the engine is left running.
However, this period will always be between
five and thirty minutes.

System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

System which manages the period of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen
wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined period of
thirty minutes.

A flat battery prevents the engine from
starting.
For more information on the 12 V
battery, refer to the corresponding
section.

This period may be greatly reduced if
the battery is not fully charged.

If the telephone is being used at the
same time with the touch screen tablet,
it will be interrupted after 10 minutes.

Practical information

220

C4-2_en_Chap07_infos-pratiques_ed02-2015

Audio pre-equipment

Fitting an audio unit

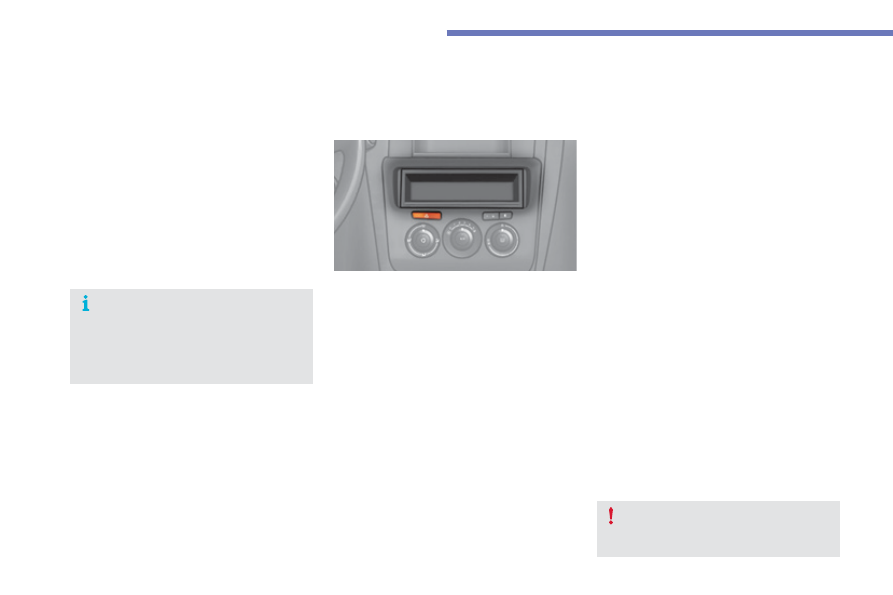

The audio unit is fitted in place of one of the
storage boxes located above the heating and
air conditioning control panel.
F

Unclip the storage box on each side using

a screwdriver and pull out.

You will then have access to an aerial
coaxial cable and two 8-way connectors.
Then refer to the instructions provided with
your audio unit.

Fitting speakers

It is possible to fit:
- 165 mm diameter speakers in the front

doors,

- 130 mm diameter speakers in the rear

doors,

- 22.5 mm diameter tweeters in the top of the

dashboard.

Connectors

8-way connector (A)
A1: -
A2: -
A3: -
A4: -
A5: -
A6: (+) Ignition positive (in this case, the audio

equipment only operates when the ignition is on)

A7: (+) Permanent
A8: Earth

8-way connector (B)
B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker and tweeter
B4: (-) Front right speaker and tweeter
B5: (+) Front left speaker and tweeter
B6: (-) Front left speaker and tweeter
B7: (+) Rear left speaker
B8: (-) Rear left speaker

Never use a separate wire to connect
the (+) of your audio equipment (risk of
discharging of the battery).

Before installing a radio unit or
speakers in your vehicle, contact
a CITROËN dealer or a qualified
workshop to obtain a suitable wiring
harness.

Your vehicle is equipped with certain factory-
fitted audio equipment:
-

a dual-function aerial at the rear of the roof,

- a coaxial aerial cable,
-

basic interference suppression,

- cabling for speakers in the front doors and

tweeters in the dashboard,

- cabling for speakers in the rear doors,
- two 8-way connectors.

Practical information

221

C4-2_en_Chap07_infos-pratiques_ed02-2015

Changing a wiper blade

Before removing a front
wiper blade

Within one minute after switching off

the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.

Removing

Raise the corresponding wiper arm.

Unclip the wiper blade and remove it.

Fitting

Put the corresponding new wiper blade in

place and clip it.

Fold down the wiper arm carefully.

After fitting a front wiper
blade

Switch on the ignition.

Operate the wiper stalk again to park the

wiper blades.

Practical information

222

C4-2_en_Chap07_infos-pratiques_ed02-2015

Fitting roof bars

For safety reasons and to avoid damaging the roof, it is essential to use the transverse bars
approved for your vehicle.

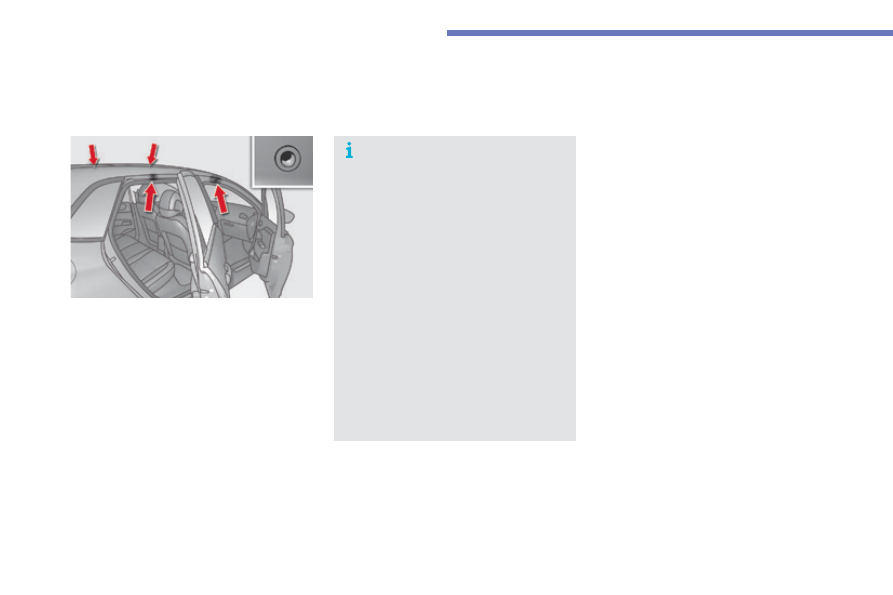

When fitting roof bars, use only the four fixing
points located in the roof frame. The points are
masked by the vehicle doors when closed.
The roof bar fixings include a stud to be fitted to
the hole at each fixing point.
Observe the fitting instructions and the
conditions of use in the guide supplied with the
bars.

Maximum load distributed over the roof
bars, for a load height not exceeding
40 cm (except bicycle carriers):
-

for roof bars with pads
at 90 mm

: 50 kg,

for roof bars with pads
at 150 mm

: 80 kg.

For more information, contact a
CITROËN dealer or a qualified
workshop.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of the
road to avoid damaging the roof bars
and the fixings on the vehicle.
Be sure to refer to local legislation in
order to comply with the regulations for
transporting objects which are longer
than the vehicle.

Citroen C4 (2016 year). Instruction - part 14
