Citroen C4 (2016 year). Instruction

C4-2_en_Chap00_couv-debut_ed02-2015

On-line handbook

If the "MyCITROËN" function is not available on the CITROËN public website for your country,

you can find your handbook at the following address:
http://service.citroen.com/ddb/

Find your handbook on the CITROËN website, under "MyCITROËN".

Select:

Select one of the following means of access to

view your handbook on-line...

This personal and customisable space allows you to establish direct and special contact with the

manufacturer.

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registration of your vehicle.

Scan this code for direct access to your handbook.

Referring to the handbook on-line also gives

you access to the latest information available,

easily identified by the bookmark, associated

with this symbol:

This handbook has been designed to help to make the
most of your C4 in all circumstances and in complete
safety.
Take the time to read through it so as to familiarise
yourself with your vehicle.

This handbook covers all of the variations in equipment
available across the whole C4 range.
Your vehicle will be fitted with only some of the
equipment described in this document, depending on its
trim level, version and the specification for the country in
which it was sold.

The descriptions and illustrations are given as indications
only.
Automobiles CITROËN reserves the right to modify the
technical characteristics, equipment and accessories
without having to update this edition of the handbook.

CITROËN has a presence on every continent,

a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.

Happy motoring!

Key

safety warning

contributes to the protection of the environment

At the wheel of your new vehicle,

getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.

additional information

This document forms an integral part of your vehicle.
Remember to pass it on to the new owner in the event of
the sale of the vehicle.

Contents

C4-2_en_Chap00a_sommaire_ed02-2015

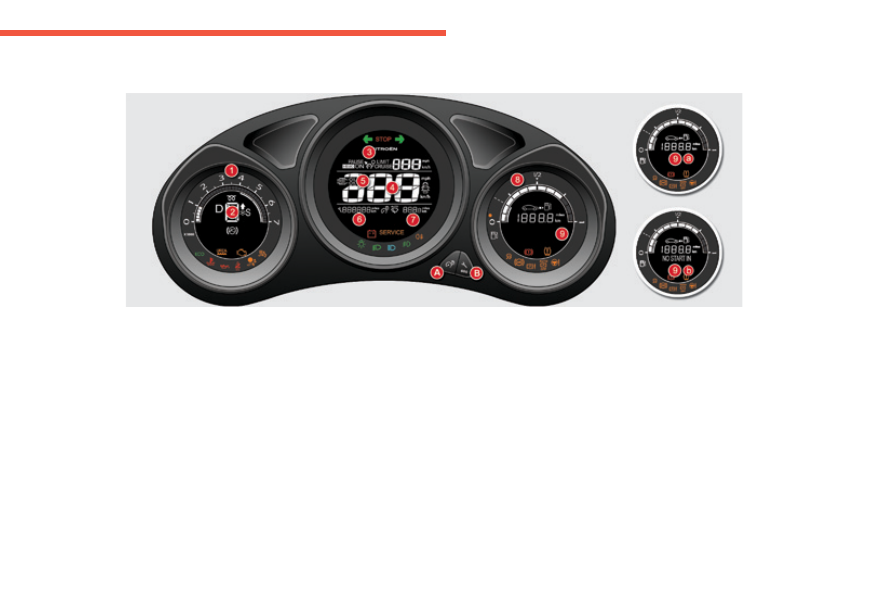

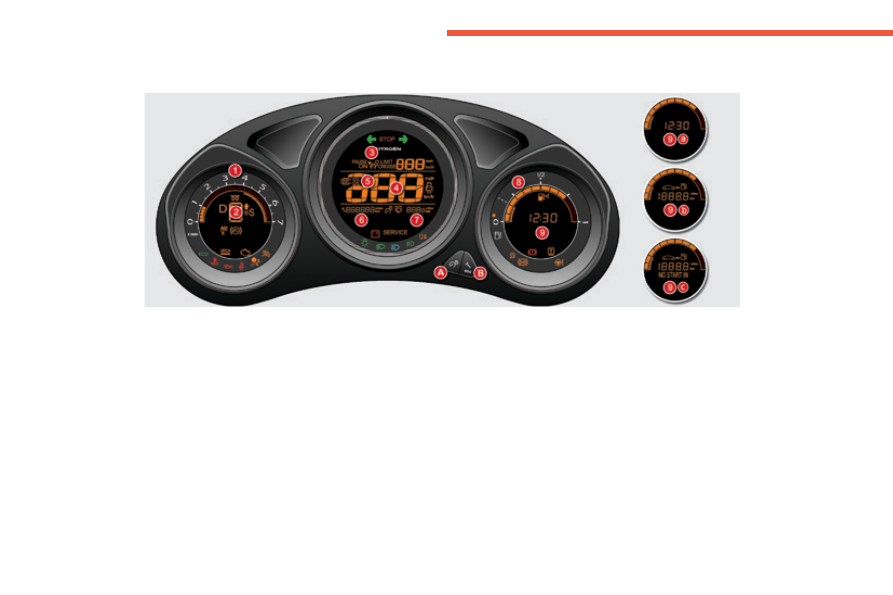

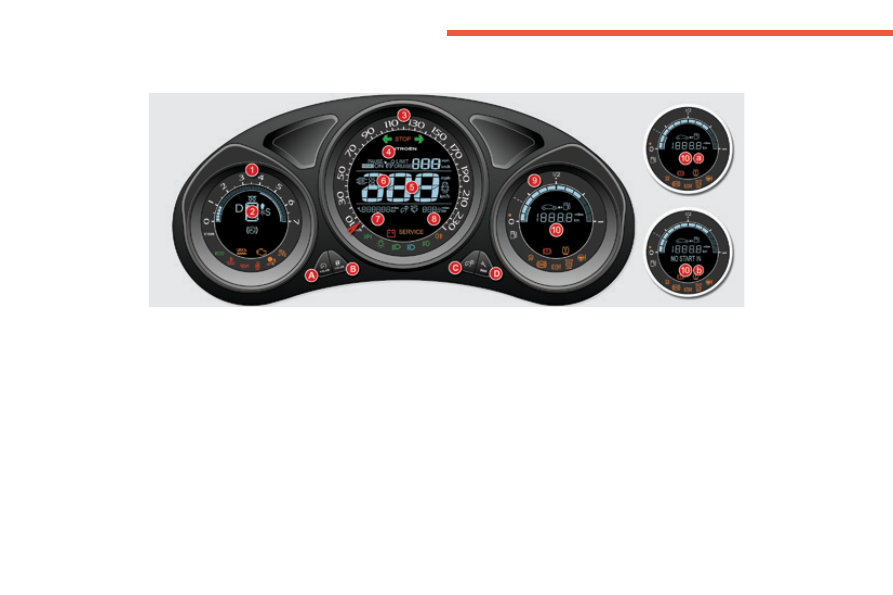

Instrument panels

Rev counter

Warning and indicator lamps

Indicators 29
Time and units

Customising the instrument

"Keyless Entry and Starting"

Steering wheel adjustment

Mirrors

Ventilation / Heating

Manual air conditioning

Dual-zone digital air conditioning

Front demist - defrost

Interior mood lighting

Luggage cover (enterprise version)

123

Ease of use and comfort

Lighting controls

124

Automatic illumination of headlamps

Headlamp beam height adjustment

Automatic rain sensitive wipers

136

Lighting and visibility

Emergency or assistance call

139

Braking assistance systems

140

Trajectory control systems

Deactivating the passenger's front airbag 153

Overview

C4-2_en_Chap00b_vue-ensemble_ed02-2015

Exterior

Keyless Entry

and Starting

62-68

Remote control

56-61, 68

- opening / closing

- back-up control
- battery

Alarm

71-74

Wiper controls

135-138

Changing a wiper blade

Door mirrors

Blind spot sensors

Boot

Temporary puncture repair kit 239-243

Changing a wheel

244-250

- tools

- removing / refitting

Topping up the AdBlue

additive

33-36, 232-235

Changing bulbs

257-259

- rear lamps

- 3rd brake lamp

- number plate lamp

Parking sensors

206-207

Towbar

167, 213

Quickly detachable

towballl

Towing

Accessories

Roof bars

Panoramic sunroof

Braking assistance

Trajectory control

Tyre under-inflation detection 192-193

Tyre pressures

Snow chains

Lighting controls

Headlamp adjustment

Welcome lighting

Directional lighting systems

133-134

Changing bulbs

251-256

- front lamps

- front foglamps
-

side repeaters

Doors

69-70, 78

Keyless Entry

and Starting

62-68

- opening / closing

- emergency control

Child lock

Electric windows

Fuel tank

Misfuel prevention

Overview

C4-2_en_Chap00b_vue-ensemble_ed02-2015

Interior

Boot fittings

118-122

rear parcel shelf

- hooks

- 12 V socket
- torch

- lashing eyes

- storage compartment

Luggage cover (C4 enterprise)

123

Rear seats

115-116

Rear fittings

117

- 12 V socket

- rear armrest

- ski flap

Child seats

ISOFIX mountings

Front seats

Seat belts

Airbags

Front fittings

- auxiliary socket / USB port

- 12 V socket

- front armrest

- 230 V / 50 Hz socket

- mats

- storage drawers

Glove box

103

Deactivating the passenger's front

airbag

148, 153-155

Overview

C4-2_en_Chap00b_vue-ensemble_ed02-2015

Instruments and

controls

Instrument panels

Warning lamps

Indicators

Setting buttons

trip distance recorder

- dashboard lighting

dimmer / black panel

- customisation of dials and screens

Adjusting headlamps

Door mirrors

Electric windows

Dashboard fuses

Opening the bonnet

Audio system

Setting the date / time

41, 46

Touch screen tablet

283-352

Setting the date / time

Manual gearbox

181

Automatic gearbox

182-186

Parking brake

174, 175-180

Rear view mirror

Courtesy lamps

105

Interior mood lighting

106

Blind for panoramic sunroof

107

Multifunction screens

40-51

Ventilation 90-92

Manual air conditioning

93-94, 100

Digital air conditioning

95-99, 100

Demisting / Defrosting

the rear screen

101

Ignition switch / Steering lock /

Starting using the key

168-170

Steering lock / Starting using the

START/STOP button

168, 171-173

Overview

C4-2_en_Chap00b_vue-ensemble_ed02-2015

Instruments and controls

Multifunction steering wheel

Speed limiter

198-200

Cruise control

201-203

Memorising speeds

204-205

Audio and telephone controls

for the Audio system

355

Audio and telephone controls

for the Touch screen tablet

286

Lighting controls

124-131

Adjusting the steering wheel

Wiper controls

135-138

Trip computer

52-55

Horn

139

Overview

C4-2_en_Chap00b_vue-ensemble_ed02-2015

Instruments and controls

Central switch panels

Emergency call

139, 280-281

Seat belt / front passenger airbag

warning lamp display

144-145, 148

Access to CITROËN

services

139, 280-281

Hazard warning lamps

139

Central locking

69-70

Black panel (comfortable night driving

display)

Side switch panels

Fuel filler flap

209-210

DSC/ASR system

141-142

Lane departure

warning system

194

Alarm volumetric

monitoring

Parking sensors

Stop & Start

Blind spot sensors

Overview

C4-2_en_Chap00b_vue-ensemble_ed02-2015

Technical data - Maintenance

Running out of Diesel fuel

238

Checking levels

226-229

- oil

- brake fluid
- coolant

- power steering fluid

- screenwash / headlamp wash fluid

- additive (Diesel with particle filter)

AdBlue additive

232-235

Changing bulbs

251-259

- front
- rear

Petrol engines

271-272

Diesel engines

273-277

Dimensions

278

Identification markings

Bonnet

Petrol underbonnet

Diesel underbonnet

Checking components

- battery

- air filter / passenger

compartment filter

oil filter

- particle filter (Diesel)

- brake pads / discs

Battery

265-268

Energy economy mode

219

Changing /

Replacing a fuse

260-261

Engine compartment fuses

264

Eco-driving

C4-2_en_Chap00c_eco-conduite_ed02-2015

Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

emissions.

Optimise the use of your gearbox

With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.

With an automatic gearbox, give preference to automatic mode and
avoid pressing the accelerator pedal heavily or suddenly.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. These
practices contribute towards a reduction in fuel consumption and CO

emissions and also helps reduce the background traffic noise.

If your vehicle has cruise control, make use of the system at speeds
above 25 mph (40 km/h) when the traffic is flowing well.

Control the use of your electrical
equipment

Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

Eco-driving

The gear shift indicator invites you engage the most suitable gear: as
soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an automatic gearbox, this indicator appears
only in manual mode.

Eco-driving

C4-2_en_Chap00c_eco-conduite_ed02-2015

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance (roof
bars, roof rack, bicycle carrier, trailer...). Use a roof box in preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.

Observe the recommendations on
maintenance

Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-  before a long journey,
-  at each change of season,
-  after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the manufacturer's service schedule.

With a BlueHDi Diesel engine, if the SCR system is faulty your vehicle
becomes polluting; go to a CITROËN dealer or a qualified workshop
without delay to have the emissions of nitrous oxides brought back to
the legal level.

When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Type 1 instrument panel

Dials and screens

Rev counter (x 1 000 rpm or tr/min).

Gear shift indicator or gear selector

lever position and gear for an automatic
gearbox.

Cruise control or speed limiter setting.

Digital speedometer (mph or km/h).

Engine oil level indicator.

6. Service indicator

(miles or km) then,

total mileage recorder.

These two functions are displayed
successively on switching on the ignition.

Lighting dimmer setting (when making an
adjustment).

Trip mileage recorder (miles or km).

Fuel gauge and associated low fuel level

warning lamp.

Time (a) / range (miles or km) for fuel (b) or

the AdBlue additive and SCR system (c).

Control buttons

Lighting dimmer (available in night mode).

Reset service indicator or trip mileage

recorder.

A and B.

Setting the time and selecting units.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Type 2 instrument panel

Dials and screens

Lighting dimmer (available in night mode).

B. Reset the service indicator or the trip

mileage recorder.

6. Service indicator

(miles or km) then,

total mileage recorder.

These two functions are displayed
successively on switching on the ignition.

Lighting dimmer setting (when making an
adjustment).

Trip mileage recorder (miles or km).

Fuel gauge and associated low fuel level

warning lamp.

Range (miles or km) for the remaining

fuel (a) or the AdBlue additive and the SCR
system (b).

Control buttons

Rev counter (x 1 000 rpm or tr/min).

Gear shift indicator or gear selector

lever position and gear for an automatic
gearbox.

Cruise control or speed limiter setting.

Digital speedometer (mph or km/h).

Engine oil level indicator.

Instruments

C4-2_en_Chap01_instruments-de-bord_ed02-2015

Customisable colour instrument panel

Rev counter (x 1 000 rpm or tr/min).

Gear shift indicator or gear selector

lever position and gear for an automatic
gearbox.

Analogue speedometer (mph or km/h).

Cruise control or speed limiter setting.

Digital speedometer (mph or km/h).

Engine oil level indicator.

Dial COLOUR: customisation of the

background colour of the dials.

Screen COLOUR: customisation of the

background colour of the screens.

Lighting dimmer (available in night mode).

D. Reset the service indicator or the trip

mileage recorder.

Dials and screens

7. Service indicator

(miles or km) then,

total mileage recorder.

These two functions are displayed
successively on switching on the ignition.

Lighting dimmer setting (when making an
adjustment).

Trip mileage recorder (miles or km).

Fuel gauge and associated low fuel level

warning lamp.

10.

Range (miles or km) for the remaining

fuel (a) or the AdBlue additive and the SCR
system (b).

Control buttons

Citroen C4 (2016 year). Instruction - part 1
