Citroen C4 Picasso (2017 year). Instruction - part 2

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Driving functions tab

Corresponding function

Comments

Adjusting Speeds

Memorisation of speed settings for the speed limiter, cruise control or dynamic cruise control.

Under-inflation initialisation

Reinitialisation of the under-inflation system.

Diagnostic

List of current alerts.

Lane assist

Activation/deactivation of the "active lane departure warning" function.

Parking sensors

Activation/deactivation of the function.

Automatic headlamp dipping

Activation/deactivation of the "Automatic headlamps" function.

Stop & Start

Activation/deactivation of the function.

Blind spot sensors

Activation/deactivation of the function.

Panoramic visual aid

Activation/deactivation of the function then choice of options.

Active cruise control

Choice of the standard cruise control or the dynamic cruise control.

Traction control

Activation/deactivation of the function.

For more information on one of these functions, refer to the corresponding section.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Button

Comments

Turn off the screen.

Adjustment of brightness.

Choice and settings for three personalised profiles and one shared profile.

Settings for the touch screen and instrument panel...

Activation and adjustment of Wi-Fi settings.

Configuration

The functions available through the upper bar are detailed in the table below. Certain adjustments are accessible in the secondary page.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Button

Comments

Adjustment of the display settings (scrolling of text, animations, etc.) and brightness.

Select a colour scheme for the 12 inch colour instrument panel.

Select the type of information displayed in the 12 inch colour instrument panel.

Choice of units:
- temperature (°Celsius or °Fahrenheit)
- distance and fuel consumption (l/100 km, mpg or km/l).

Choice of language used for the touch screen and the 12 inch colour instrument panel.

Setting the date and time.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

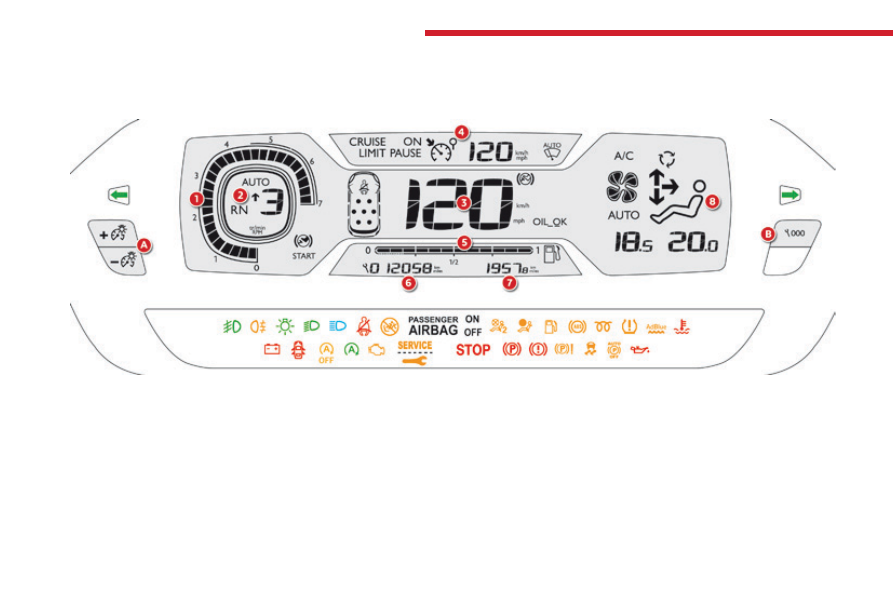

Monochrome digital instrument panel

Rev counter (x 1 000 rpm or tr/min),

graduation depending on engine (petrol or
Diesel).

Gear efficiency indicator, selector position

and gear for an automatic gearbox.

Digital speedometer (mph or km/h).

Cruise control or speed limiter settings.

Dials and screens

Fuel gauge.

Service indicator, then total mileage

recorder (miles or km).

These functions are displayed in turn when
the ignition is switched on.

Trip recorder (miles or km).

Recall of heating and air conditioning

settings.

Main lighting dimmer buttons.

Recall of servicing information.

Resetting of the function selected to zero
(service indicator or trip recorder).

Recall of the remaining driving range with
the SCR system and the AdBlue

Warning log (current warnings).

Control buttons

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

This instrument panel can be personalised. Depending on the display mode selected, some information can be hidden.

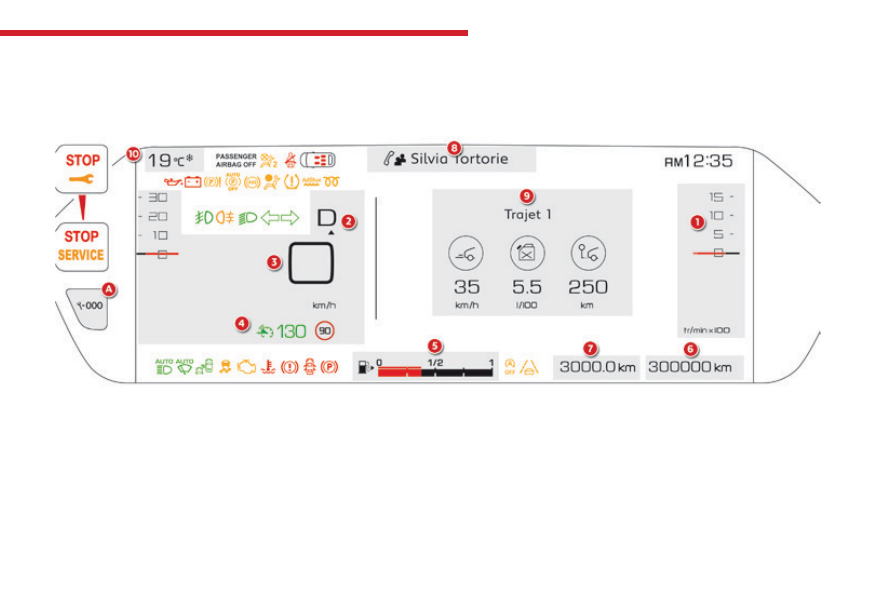

12-inch HD colour instrument panel

Rev counter (x 1000 tr/min or rpm)

("Dials" mode).

Gear efficiency indicator, selector position

and gear for an automatic gearbox.

Digital speedometer (mph or km/h).

Cruise control or speed limiter setting.

Recall of servicing information.

Recall of the remaining driving range with
the SCR system and the AdBlue

Resetting of the function selected to zero
(service indicator or trip recorder).

Control button

Dials and screens

Fuel gauge.

Total distance recorder (miles or km).

Trip recorder (miles or km).

Repeat of the current media or telephone

information.

Repeat of the trip computer information.

10.

Exterior temperature (a blue warning lamp

comes on if there is a risk of ice).

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

You can modify the appearance of the
instrument panel, by choosing:
- a colour scheme,
- a display mode.

Choosing the language

This depends on the setting in the touch
screen.
Certain languages are not available for this
instrument panel; English is selected by default.

Each mode corresponds to the type of
information displayed in the configurable area.
F

Turn the thumbwheel on the left of the

steering wheel to display and run through
the different modes in the right-hand part
of the instrument panel,

Once the display mode required has been

selected, press the thumbwheel to confirm.

Personalisation of the 12 inch colour instrument panel

Choice of display mode

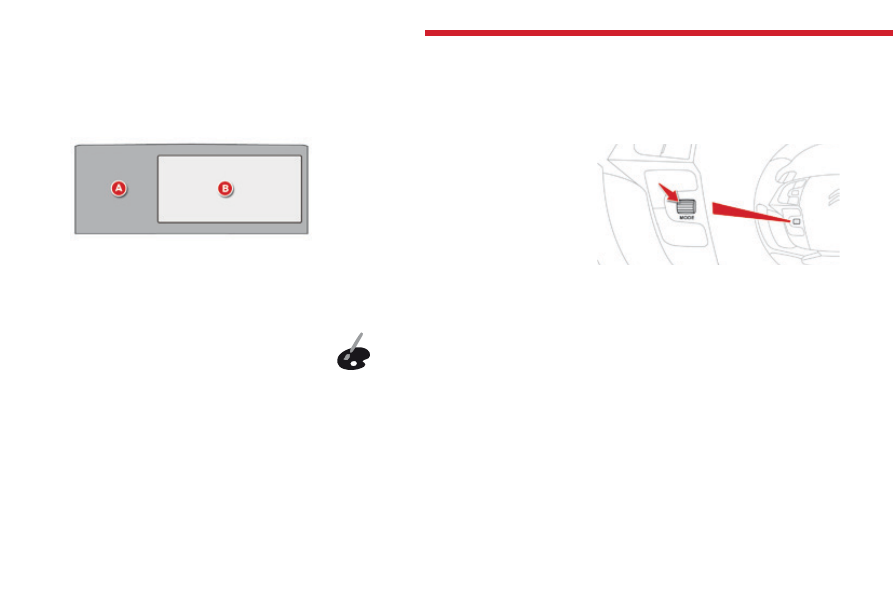

Display zones

Whatever the display mode or colour scheme
chosen, the instrument panel contains:
- a fixed display zone A with:

●  the speedometer,
●  the warning lamps,
●  the fuel gauge,
●  the various repeated information and

alert messages.

- a configurable display zone B.

Most of the warning lamps do not have a fixed
position.
The warning and indicator lamps are displayed
from left to right in order of importance.
For certain functions that have indicator lamps
for both on and off, there is just one dedicated
location.

Choosing the colour scheme

To modify it, with the vehicle stationary:

Press the end of the lighting control stalk

to display and run through the different
modes in the right-hand part of the
instrument panel,

Once the display mode required has been

selected, it is applied automatically after
a few moments without any action on the
control.

F Press this button in the

"Configuration

" menu of the

touch screen.

The system restarts to take account of the
modifications to the touch screen and the
instrument panel.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

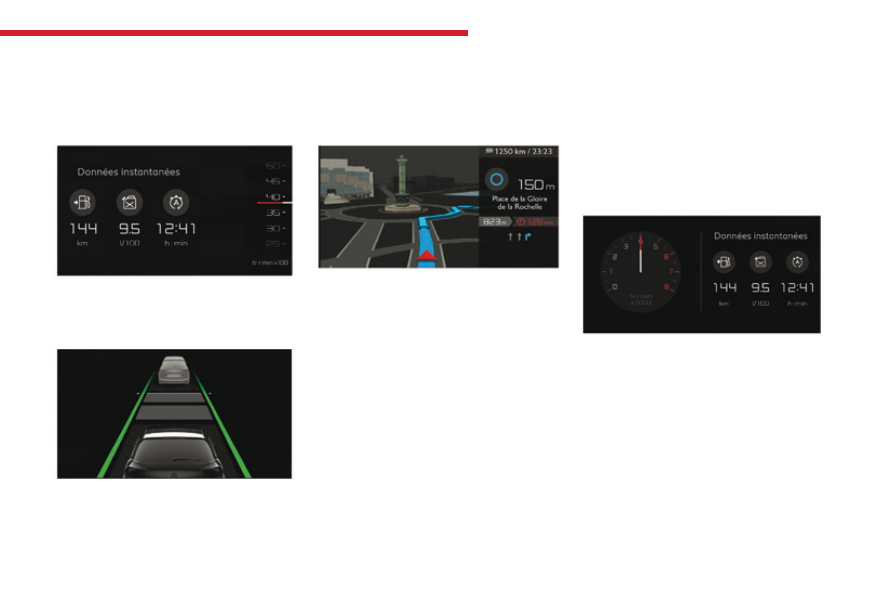

- "Driving": display of the rev counter and

information related to driving (inter-vehicle
time, etc.).

- "Navigation": display of information related

to the navigation in progress (map and
instructions).

- "Minimal": no information displayed.

- "Personal": choice of information to be

displayed in each of the 2 display zones
(centre 1/3 and right-hand 1/3) from:
●  trip computer,
●  media,
●  navigation,
●  driving assistance,
●  rev counter,
●  coolant temperature indicator,
●  no information (empty).

- "Dials": permanent display of the trip

computer and rev counter.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

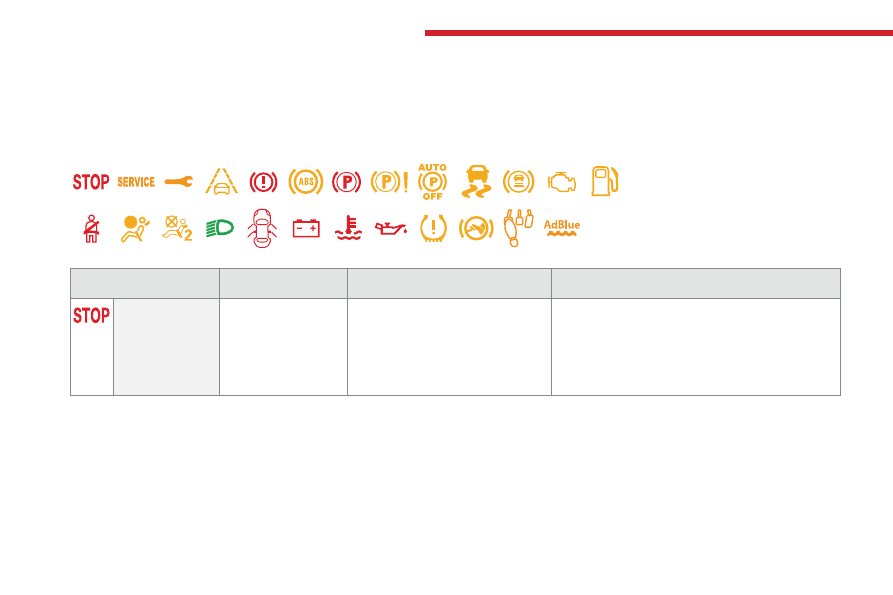

Indicator and warning lamps

Certain warning lamps may come on in
one of two modes: fixed (continuous) or
flashing.
Only by relating the type of illumination
to the operation of the vehicle can it
be determined whether the situation is
normal or a fault has occurred. In the
event of a fault, the illumination of the
warning lamp may be accompanied by
a message.
Refer to the tables on the following
pages for more information.

Visual indicators informing the driver of the status of a system (operation or deactivation indicator
lamp) or the existence of a fault (warning lamp).

When the ignition is switched on

Certain warning lamps come on for a few
seconds in the instrument panel when the
vehicle's ignition is switched on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off, refer to the
information on the warning lamp concerned.

Associated warnings

The illumination of certain warning lamps may
be accompanied by an audible signal and a
message.
The warning lamps may come on continuously
(fixed) or flash.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

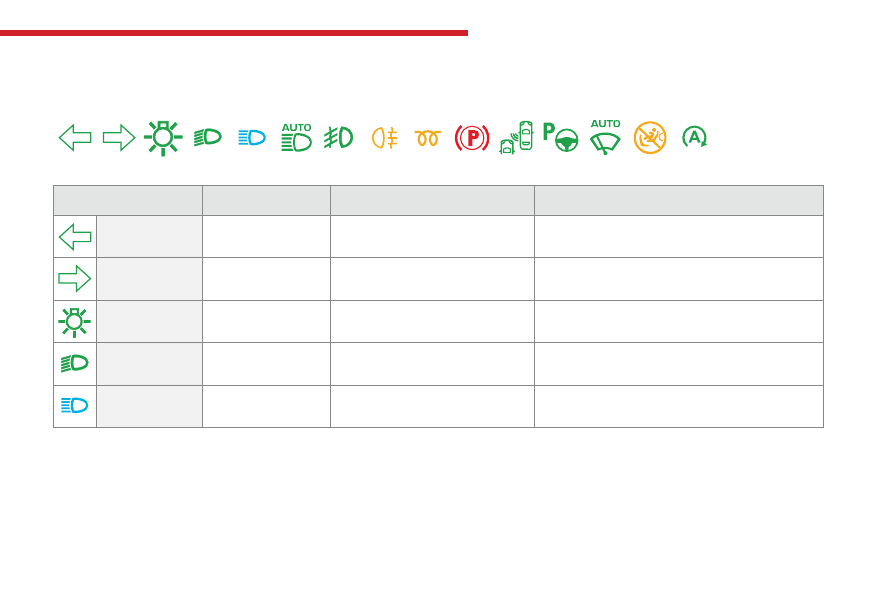

Operation indicator lamps

If one of the following indicator lamps comes on in the instrument panel, this confirms that the corresponding system has come into operation.

Warning / indicator lamp

State

Cause

Action / Observations

Left-hand
direction indicator

flashing with buzzer.

The lighting stalk has been pushed
down.

Right-hand
direction indicator

flashing with buzzer.

The lighting stalk has been pushed
up.

Sidelamps

fixed.

The lighting stalk is in the
"Sidelamps" position.

Dipped beam
headlamps

fixed.

The lighting stalk is in the "Dipped
beam headlamps" position.

Main beam
headlamps

fixed.

The lighting stalk has been pulled
towards you.

Pull the stalk to return to dipped beam headlamps.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Automatic
headlamp
dipping

fixed.

The lighting control stalk is in the
"AUTO" position, pulled towards you,
and the function is activated (Driving
menu).
The system is in dipped beam mode
as there is sufficient ambient light
and/or the traffic conditions do not
allow illumination of main beams.

The camera, located at the top of the windscreen,
authorises or prohibits the switch between dipped
beams and main beams, depending on the ambient
lighting and driving conditions.
Pull the lighting stalk again to deactivate.
For more information on Automatic headlamp
dipping

, refer to the corresponding section.

fixed.

The lighting control stalk is in the
"AUTO" position, pulled towards you,
and the function is activated (Driving
menu).
The system is in main beam mode
as the ambient lighting and traffic
conditions allow it.

Warning / indicator lamp

State

Cause

Action / Observations

Rear foglamps

fixed.

The rear foglamps have been
switched on using the ring on the
lighting control stalk.

Turn the ring on the lighting control stalk rearwards to
switch off the rear foglamps.

Front foglamps

fixed.

The front foglamps are switched on
using the ring on the lighting control
stalk.

Turn the ring on the lighting control stalk rearward
once to switch off the front foglamps.

For more information on the Lighting control stalk, refer to the corresponding section.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Warning / indicator lamp

State

Cause

Action / Observations

Electric parking
brake

fixed.

The electric parking brake is applied.

Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal,
briefly push the electric parking brake control lever.
Observe the safety recommendations.
For more information on the Electric parking brake,
refer to the corresponding section.

Diesel engine
pre-heating

fixed.

The "START/STOP" switch has been
pressed (ignition on).

Wait until the indicator lamp goes off before starting.
Once it goes off, starting is immediate, on condition
that you maintain pressure on the brake pedal for an
automatic gearbox, or the clutch pedal is pressed fully
down for a manual gearbox.
The period of illumination of the indicator lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.

Blind Spot
Monitoring
System

fixed.

The system has been activated.

For more information on the Blind Spot Monitoring
System

, refer to the corresponding section.

Park Assist

fixed.

The Park Assist function has been
activated.

For more information on Park Assist, refer to the
corresponding section.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Warning / indicator lamp

State

Cause

Action / Observations

Automatic
wiping

fixed.

The wiper control stalk has been
pushed down.
Automatic front wiping is activated.

To deactivate automatic wiping, push the wiper control
stalk down again or put the wiper control stalk in
another position.

Passenger's
airbag system

fixed.

The control switch, located at the
passenger's end of the dashboard, is at
the "ON"

position.

The passenger's front airbag is activated.
In this case, do not install a rearward
facing child seat on the front
passenger seat.

Turn the control switch to the "OFF" position to
deactivate the passenger's front airbag.
You can install a rearward facing child seat, unless there
is a fault with the airbags (airbag warning lamp on).

Stop & Start

fixed.

When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start system
has put the engine into STOP mode.

The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes off.

STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically.

For more information on Stop & Start, refer to the
corresponding section.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Warning / indicator lamp

State

Cause

Action / Observations

Passenger's
airbag system

fixed.

The control switch, located at the
right hand end of the dashboard is
set to the OFF

position.

The passenger's front airbag is
deactivated.
You can install a rearward facing
child seat, unless there is an
operating fault with the airbags
(Airbag warning lamp on).

Turn the control switch to the "ON" position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rearward
facing position on the front passenger seat.

Collision Risk
Alert / Active
Safety Brake

fixed, accompanied by
a message.

The system has been deactivated,
via the vehicle configuration menu in
the screen.

For more information on the Collision Risk
Alert / Active Safety Brake

system, refer to the

corresponding section.

Stop & Start

fixed.

The Stop & Start has been
deactivated.

Reactivate the function in the Driving

menu.

Deactivation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and the display of a message.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Warning lamps

When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further using the associated message.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.

Warning / indicator lamp

State

Cause

Action / Observations

STOP

fixed, associated with
another warning lamp,
accompanied by an
audible signal and a
message.

Illumination of this warning lamp is
related to a serious fault detected
with the engine, the braking system,
the power steering, etc., or a major
electrical fault.

You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Warning / indicator lamp

State

Cause

Action / Observations

Service

temporarily,
accompanied by the
display of a message.

One or more minor faults for which
there is no specific warning lamp
have been detected.

Identify the cause of the fault using the message
displayed in the instrument panel.
You can deal with some problems yourself, such as a
door open or the start of saturation of the particle filter
(as soon as the traffic conditions allow, regenerate
the filter by driving at a speed of at least 40 mph
(60 km/h), until the warning lamp goes off).
For any other problems, such as a fault with the tyre
under inflation detection system, contact a CITROËN
dealer or a qualified workshop.

fixed, accompanied
by the display of a
message.

One or more major faults for which
there is no specific warning lamp
have been detected.

Identify the cause of the fault using the message
displayed in the instrument panel; you must then
contact a CITROËN dealer or a qualified workshop.

fixed, associated with the
flashing and then fixed
display of the service
indicator spanner.

The servicing interval has been
exceeded.

Only on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.

Instruments

C4-Picasso-II_en_Chap01_instruments-bord_ed02-2016

Assisted Lane
Departure
Warning System

fixed.

The system is not available

The system has been deactivated or is on automatic
standby.
For more information on the Assisted Lane Departure
Warning System

, refer to the corresponding section.

flashing.

You are about to cross a solid lane
marking without operating the
direction indicators.

The system is activated, then corrects the trajectory
on the side of the lane marking detected.

fixed, accompanied
by the display of a
message, an audible
signal and the Service
warning lamp.

The system has a fault.

Be vigilant and drive carefully.
Have the system checked by a CITROËN dealer or a
qualified workshop.
For more information on the Assisted Lane
Departure Warning System, refer to the
corresponding section.

Warning / indicator lamp

State

Cause

Action / Observations

Braking

fixed.

The brake fluid level has dropped
significantly.

You must stop as soon as it is safe to do so.
Top-up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by
a CITROËN dealer or a qualified workshop.

fixed, associated
with the ABS warning
lamp.

The electronic brake force distribution
(EBFD) system has a fault.

You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.

Anti-lock
Braking System
(ABS)

fixed.

The anti-lock braking system has a
fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a
CITROËN dealer or a qualified workshop without
delay.

Content .. 1 2 3 ..
