Ventilation

Air intake

The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.

Air treatment

The incoming air follows various routes
depending on the controls selected by the
driver:
- direct arrival in the passenger

compartment (air intake),

- passage through a heating circuit (heating),
- passage through a cooling circuit (air

conditioning).

Control panel

The controls of this system are grouped
together on control panel A on the centre
console.

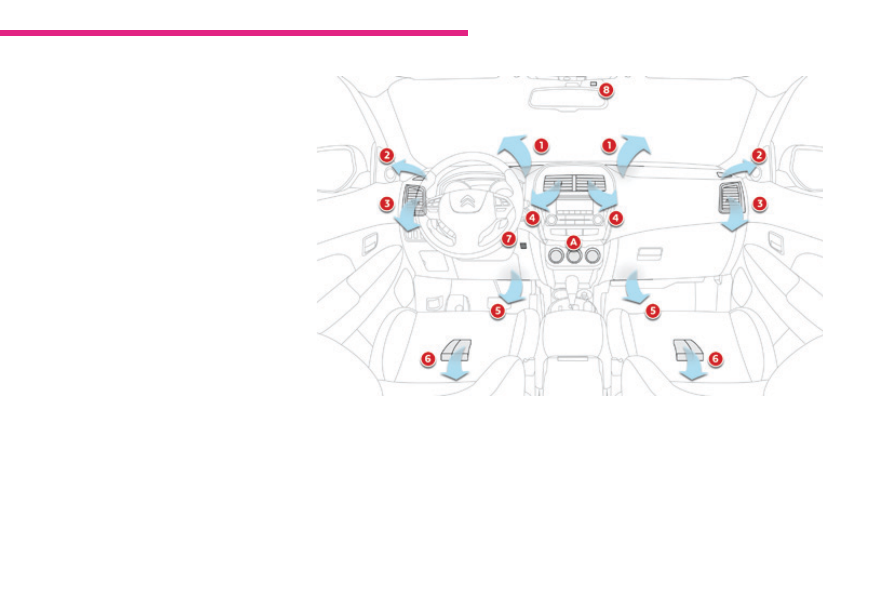

Windscreen demisting-defrosting vents.

Front side window demisting-defrosting

vents.

Side adjustable air vents.

Central adjustable air vents.

Air outlets to the front footwells.

Air outlets to the rear footwells.

Temperature sensor.

Sunshine / rain sensor.

Air distribution

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

To obtain an even air distribution, take care not to obstruct the exterior air intake grilles

located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.

Do not cover the sunshine sensor, located on the dashboard; this is used for regulation

of the air conditioning system.

Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month

to keep it in perfect working order.

Ensure that the passenger compartment filter is in good condition and have the filter

elements replaced regularly.

We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).

To ensure correct operation of the air conditioning system, you are also advised to have

it checked regularly as recommended in the maintenance and warranty guide.

If the system does not produce cold air, switch it off and contact a CITROËN dealer or a

qualified workshop.

Recommendations for ventilation and air conditioning

If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.

Humid air cooled quickly by the
vehicle's air conditioning system may
produce condensation at the vent
outlets.
This phenomenon disappears after a
few seconds.

When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.

The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

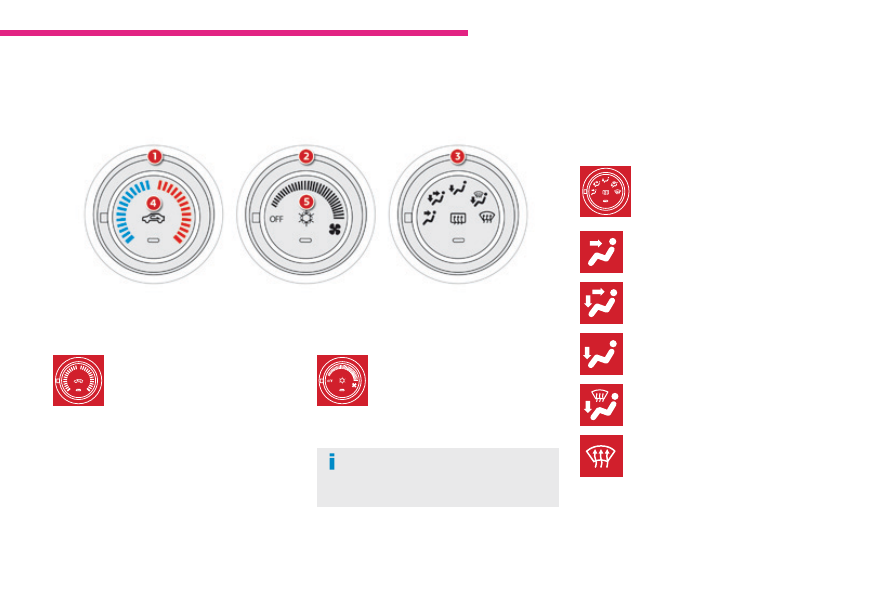

Manual heating / air conditioning

The system operates with the engine running.

1. Temperature setting

Turn the temperature control

dial to the right to raise the
temperature, and to the left to
lower it.

To avoid misting and deterioration of the air
quality in the passenger compartment, ensure
that an adequate air flow is maintained.

3. Air distribution setting

Place the dial in the desired

position, to direct air towards:

the centre and side vents,

The air distribution can be modulated by
placing the dial in intermediate positions.

2. Air flow setting

Turn the dial to the right to

increase and to the left to
reduce the air flow.

the centre, side and footwell
vents,

the footwells,

the windscreen, side windows
and footwells,

the windscreen and side
windows.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

4. Exterior air intake /

Recirculation of interior air

F Press button 4 to select the air

entry mode.

This function allows the passenger
compartment to be isolated from exterior
odours and smoke.
When the warning lamp in button 4 is off, the
intake of exterior air is active.
When the warning lamp in button 4 is on, the
intake of exterior air is deactivated, and you are
in air recirculation.
Do not drive for long with interior air
recirculation, except in truly exceptional
atmospheric conditions.

The air conditioning is designed to operate
effectively in all seasons, with the windows closed.
It enables you to:
- lower the temperature, in summer,
- increase the effectiveness of the demisting

in winter, above 3 °C.

5. Air conditioning On / Off

Switching on

Switching off

F Press button 5

again, the lamp in the

button goes off.

Switching off may affect comfort levels
(humidity, condensation).

If your vehicle is not fitted with air
conditioning, the button is not active.

F Press button 5

, the lamp in the

button comes on.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

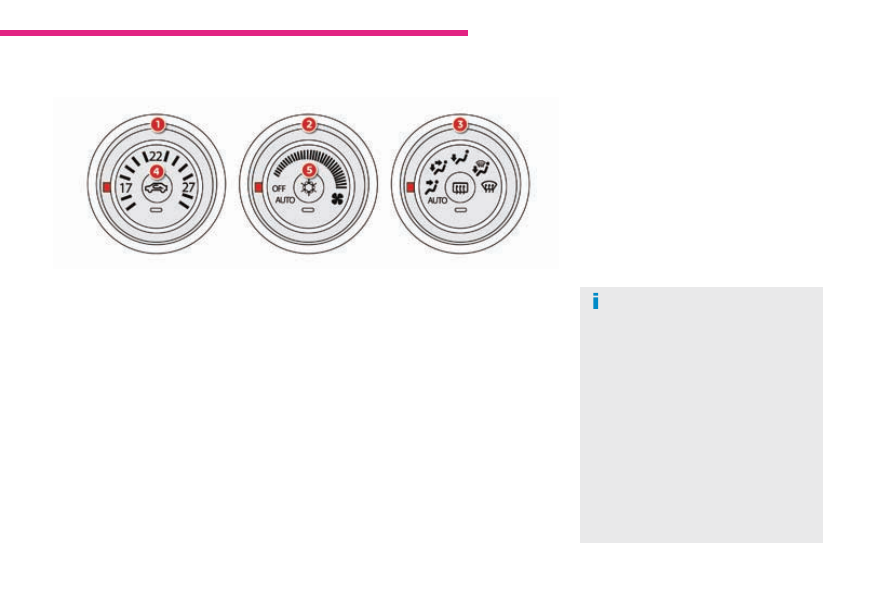

Automatic air conditioning

Temperature adjustment

Air flow adjustment

Air distribution adjustment

Intake of exterior air / Recirculation of

interior air

Air conditioning On / Off

Automatic operation

Set the temperature control dial 1 to the

temperature required.

Place the air flow control dial 2 in

the "AUTO"

position.

Place the air distribution adjustment dial 3

in the "AUTO"

position.

When the engine is cold, to avoid an
excessive distribution of cold air, the
ventilation will reach its optimum level
gradually.
On entering the vehicle, the interior
temperature may be much colder
(or warmer) than the temperature
setting. There is no need to change the
temperature setting in order to reach
the comfort required rapidly.
The automatic regulation of the air
conditioning will operate to correct the
temperature difference as quickly as
possible.

In automatic mode:
F

when the temperature is set to maximum

(Rapid heating), the intake of exterior air is
activated and the air conditioning stops.

when the temperature is set to minimum

(Rapid cooling), air recirculation is
activated and the air conditioning operates.

The system controls the air distribution, the flow,
the temperature and the air intake to ensure
the level of comfort selected and adequate air
circulation in the passenger compartment. No
further action on your part is required.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

Manual settings

1. Temperature setting

2. Air flow setting

the central and side vents and
the footwells,

Turn the temperature control

dial to the right to increase the
temperature and to the left to
decrease it.

Turn the dial to the right to

increase the air flow or to the
left to decrease it.

To avoid condensation and deterioration
of the quality of the air in the passenger
compartment, ensure that a sufficient flow of
air is maintained.

3. Air distribution setting

Place the dial in the position

required to direct the air
towards:

the central and side vents,

the footwells,

the windscreen, the side
windows and the footwells,

the windscreen and the side
windows.

The air distribution can be adapted by placing
the adjustment dial in the intermediate
positions.

It is possible to set one or more functions
manually while leaving the other functions in
automatic mode.
Switching to manual mode may result in
discomfort (temperature, humidity, odour,
condensation) and does not offer optimum
comfort.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

Personalisation of the
Exterior air intake / Interior air
recirculation function

This function is controlled automatically.
However, you can deactivate its automatic
control if you wish to change the air intake
mode at any time.

Changing the status

Press the Air intake / Interior air recirculation
button for at least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp flashes three times.
When the status changes from inactive to
active, two bleeps are heard and the indicator
lamp flashes three times.

Automatic control active

If the air distribution adjustment dial and the air
flow adjustment dial are placed in the "AUTO"
position, the Air intake / Interior air recirculation
function is also controlled automatically.

Automatic control inactive

Even if the air distribution adjustment dial and
the air flow adjustment dial are placed in the
"AUTO" position, the Air intake / Interior air
recirculation function is no longer controlled
automatically.
The settings are retained, even after switching
off the ignition.

4. Intake of exterior air /

Recirculation of interior air

This function insulates the passenger
compartment from exterior odours and smoke.

F Press button 4 to select the air

intake mode.

When the indicator lamp on button 4 is off, the
exterior air intake function is on.
When the indicator lamp on button 4 is on, the
intake of exterior air is off and the system is in
air recirculation mode.

Do not drive for long periods in interior
air recirculation mode, except in truly
exceptional atmospheric conditions.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

5. Air conditioning On / Off

F Press button 5 to activate the air

conditioning.

The indicator lamp comes on.

Personalisation of the Air
Conditioning On / Off function

This function is controlled automatically.
However, you can deactivate its automatic
control if you wish to activate or deactivate the
air conditioning at any time.

Changing the status

Press the Air Conditioning On / Off button for at
least 10 seconds.
When the status changes from active to
inactive, three bleeps are heard and the
indicator lamp flashes three times.
When the status changes from inactive to
active, two bleeps are heard and the indicator
lamp flashes three times.

Automatic control active

If the air distribution adjustment dial and the
air flow adjustment dial are placed in the
"AUTO" position, or if the temperature control
dial is set to the minimum temperature, the air
conditioning system is controlled automatically.

Automatic control inactive

The air conditioning system is no longer
controlled automatically.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

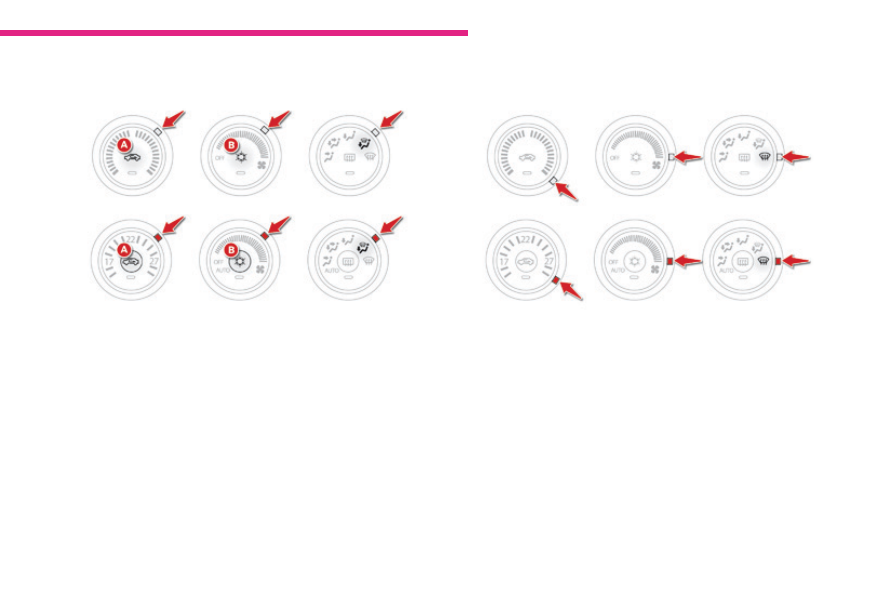

Front demist - defrost

1. Press button A

, to select "exterior air intake". The lamp in the button

is off.

Place the air distribution dial in the "windscreen, side windows and

footwells" position.

Select the desired level of air flow.

Select the desired temperature.

If your vehicle has air conditioning, switch it on by pressing button B.

The lamp in this button comes on.

Rapid demisting

Place the distribution control on the "windscreen and side window"

position.

Select maximum air flow.

Select maximum temperature.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

Rear screen demist - defrost

Switching on

The rear screen demisting/defrosting can only
operate when the engine is running.

Switching off

The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.
F

It is possible to stop the demisting/

defrosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated with
the button goes off.

Switch off the demisting/defrosting of the

rear screen and door mirrors as soon as
appropriate, as lower current consumption
results in reduced fuel consumption.

The control button is located on the air conditioning system control panel.

Press this button to demist/defrost

the rear screen and (depending
on version) the door mirrors. The
indicator lamp associated with the
button comes on.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

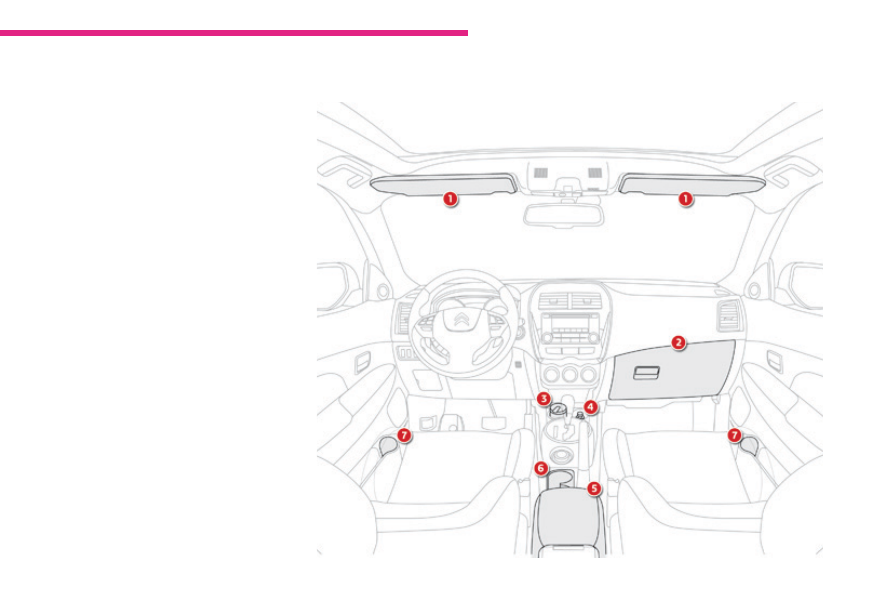

Front fittings

Sun visor.

Glove box.

Portable ashtray.

Cigarette lighter

12 V socket (120 W max).

Armrest with storage compartments.

Cup holder.

Bottle holder.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

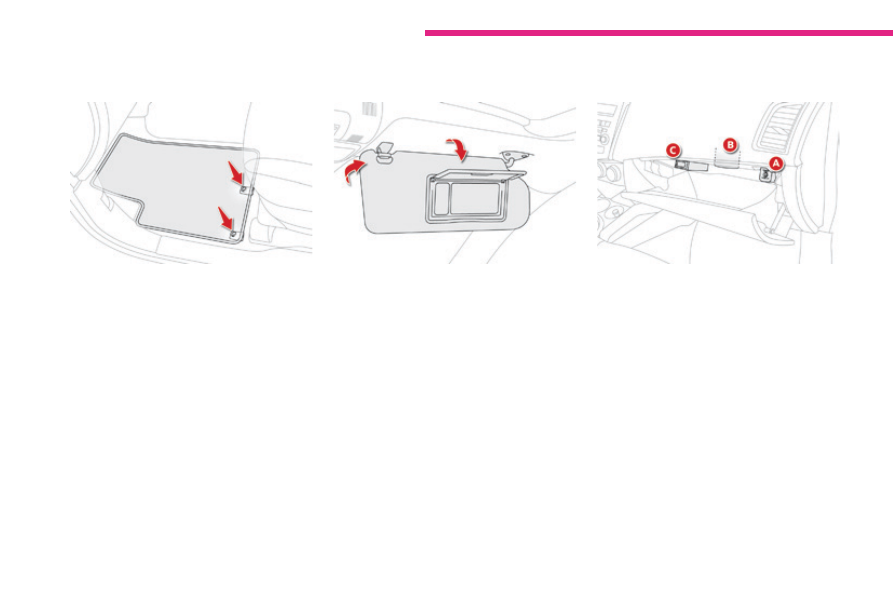

Mat

When removing the mat on the driver's side,
move back the seat as far as possible and
remove the fixings.
When refitting, position the mat correctly on the
pins and clip the fixings. Check that the mat is
secured firmly.
To prevent any risk of jamming under the
pedals:
- only use mats suited to the fixings already

present in the vehicle; it is imperative that
these fixings are used.

- never fit one mat on top of another.

Sun visor

Glove box

It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
F

To open the glove box, raise the handle.

It is illuminated when the lid is opened.
It houses the front passenger airbag
deactivation switch A.
If the vehicle is fitted with air conditioning,
it has a ventilation nozzle B

, distributing the

same conditioned air as the vents in the
passenger compartment.
If your vehicle is fitted with the "Keyless Entry
and Starting" system, it contains the back-up
starting unit C.

The sun visors fold forwards, and to the side
when they are unhooked.
They are fitted with a courtesy mirror and a
ticket holder.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

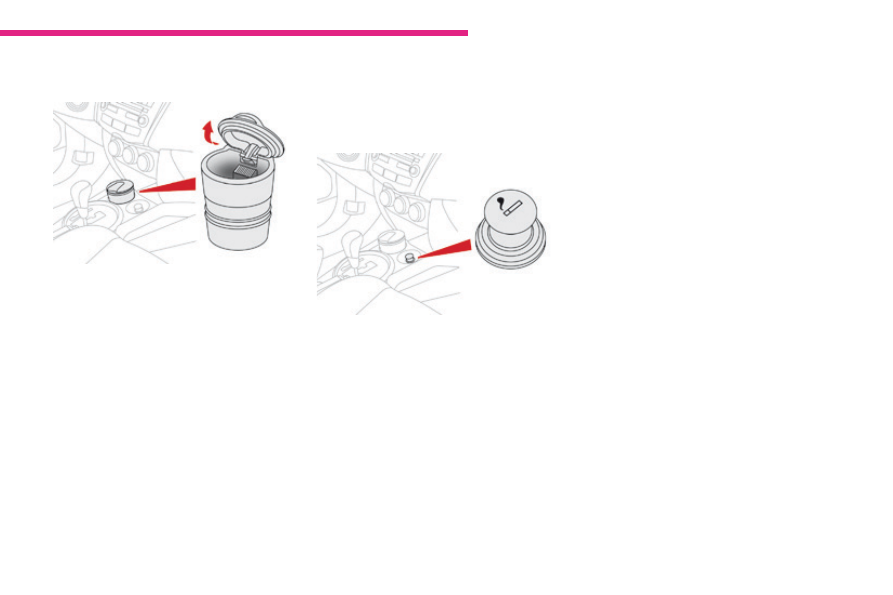

Portable ashtray

Pull the cover to open the ashtray.

To empty it, remove the ashtray by pulling it

upwards.

Cigarette lighter /

12 V accessory

socket

To use the cigarette lighter, press it in

and wait a few seconds until it pops out
automatically.

To connect a 12 V accessory (max power:

120 W), remove the cigarette lighter and
connect a suitable adaptor.

You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back into
place straight away.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

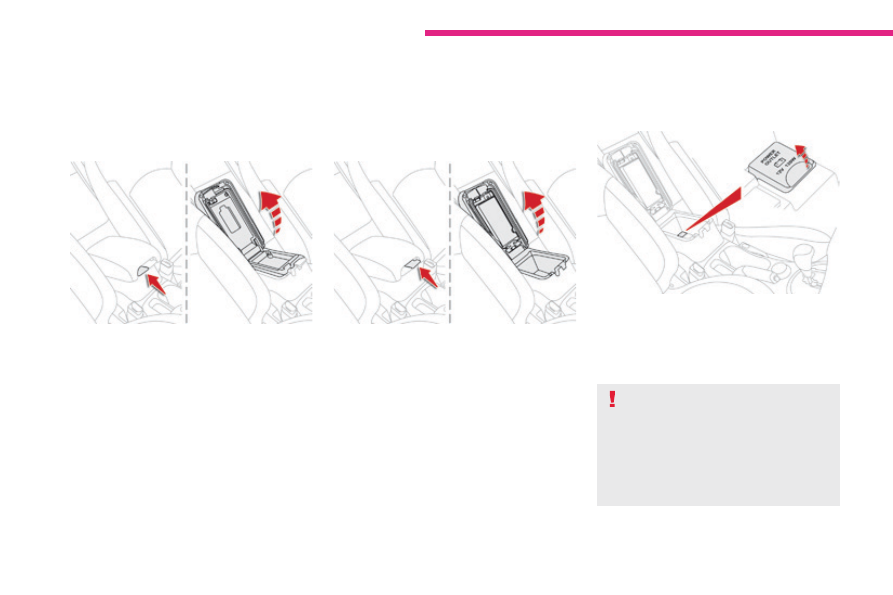

Front armrest

Pull the right-hand lever to open the storage
compartment lid, which serves as an armrest.
To close, fold down the lid until it locks.

Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
This storage compartment may contain up
to 3 accessory sockets.

This operates when the ignition switch is in the
"LOCK", "ACC" or "ON" position.
Open the cover of the front armrest to gain
access to the socket.

Upper storage compartment

Lower storage compartment

Check that the electrical equipment
operates on 12 V and that its maximum
electrical power is 120 W.
The prolonged use of electrical
equipment without running the engine
may discharge the battery.

12 V socket

(120 W max)

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

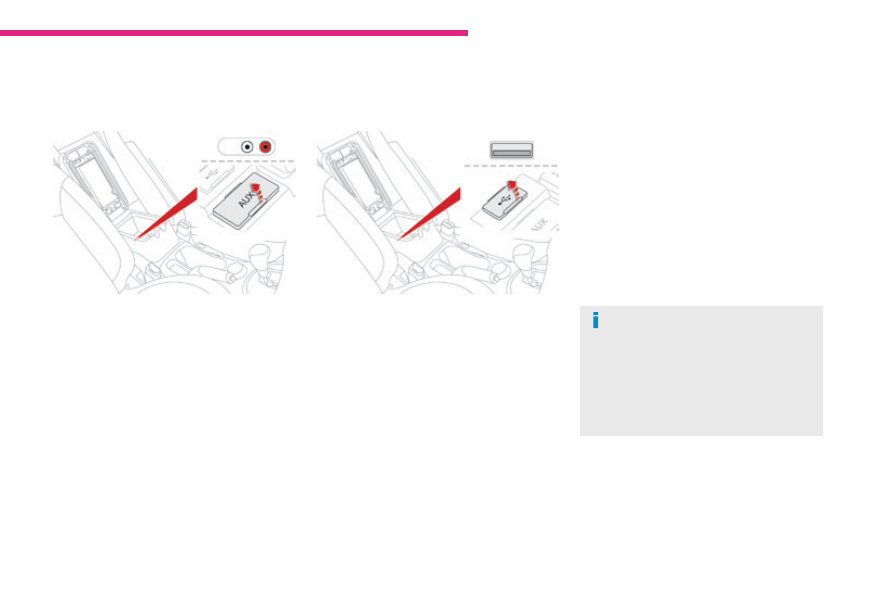

It permits the connection of a portable device,
such as a digital audio player of the iPod

USB memory stick type.
Open the front armrest cover for access to the
port.
It reads certain audio file formats allowing them
to be heard via the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel.

For more information on Audio and
Telematics

and in particular the use of this

equipment, refer to the corresponding section.

USB port

Connected to the USB port, the
portable device charges automatically
while in use.
During charging, a message is
displayed if the consumption of the
portable device is higher than the
amperage supplied by the vehicle.

Auxiliary sockets

(RCA)

They are used to connect a portable device
(MP3 player, etc.).
Open the front armrest cover for access to the
sockets.
For more information on Audio and
Telematics

and in particular the use of this

equipment, refer to the corresponding section.

Ease of use and comfort

C4-Aircross_en_Chap03_Ergonomie-et-confort_ed01-2016

Rear fittings

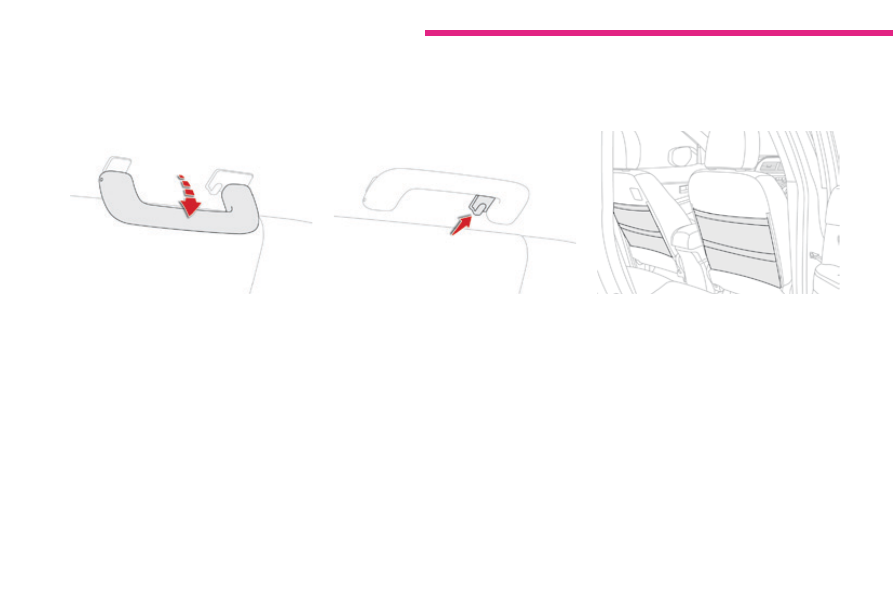

Pull the handle downwards to lower it.

Grab handle

The rear left grab handle is fitted with a coat
hook.

Coat hook

Seat pockets

Content .. 4 5 6 7 ..
