Citroen Nemo (2015 year). Instruction - part 5

READY

O GO

Starting and stopping

Deactivation

To give precedence to the control

of the temperature in the passenger
compartment, the Stop & Start
system should be deactivated to
allow continuous operation of the air
conditioning.

The system retains the same state
(active or inactive) after switching of

and restarting the engine with the key.

at any time, press the "S - OFF" switch to
deactivate the system.
This is confirmed by the switch warning lamp

coming on accompanied by a message in
the instrument panel screen.

If the system has been deactivated
in STOP mode, the engine restarts
immediately.

Operating fault

Maintenance

In the event of a fault with the
system, the Stop & Start system
is deactivated and this warning
lamp comes on in the instrument
panel, accompanied by a
message in the instrument panel
screen
Have it checked by a CITROËN

dealer or a qualified workshop.

In the event of an operating fault with STOP

mode, it is possible to restart the engine by

depressing the clutch pedal fully and putting

the gear lever into neutral.

Before working under the bonnet, you

must switch off the ignition with the

key to avoid any risk of injury resulting from
automatic operation of STaRT mode.

This system requires a specific battery
with a special specification and technology
(reference numbers available from a
CITROËN dealer or a qualified workshop).

Fitting a battery not listed by

CITROËN introduces the risk of malfunction
of the system.

The Stop & Start system makes use

of advanced technology. Specialist

knowledge is needed for any work on the
system, which can only be assured by
CITRoËn dealers.

Reactivation

Press the "S - OFF"

switch again.

The system is active again; this is confirmed

by the switch warning lamp going off and a

message in the instrument panel screen.

Seats

FRONT SEATS

Head restraints

Head restraint height adjustment: to raise or

lower the head restraint, slide it by pressing

the lug.

The adjustment is correct when the upper

edge of the head restraint is level with the
top of the head.
To remove the head restraint, release the
base of the rod to press the tab and raise
the head restraint to the highest position.
To refit the head restraint, press the tab of
the lug and engage the head restraint rods

in the openings keeping them in line with the

seat back.

never drive with the head restraints
removed. They must be in place and
adjusted correctly.

EASE OF USE and COMFORT

Seats

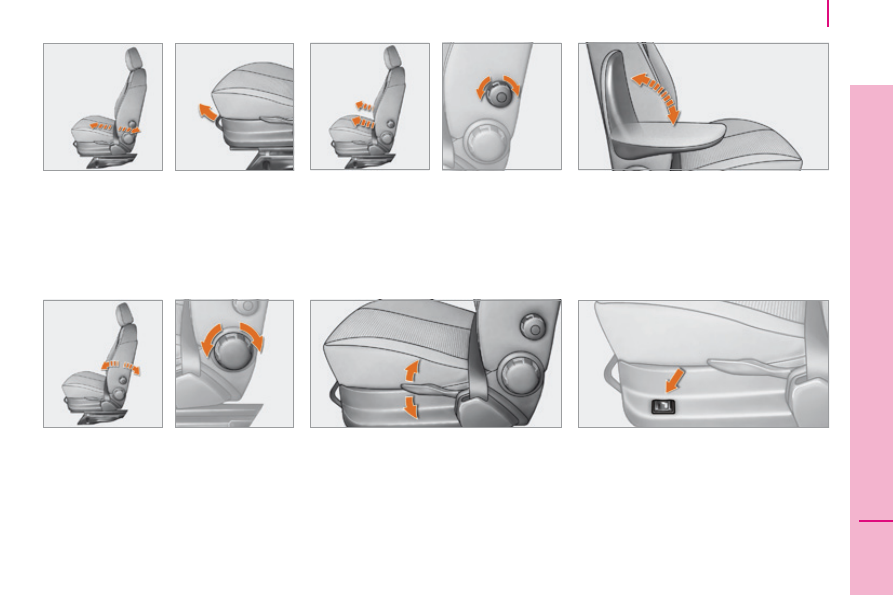

Seat cushion height

To adjust the height of the driver's seat
cushion, pull the control upwards as many
times as necessary to raise.
To lower, push the control downwards as
many times as necessary.

Forwards-backwards adjustment

Heated seat control

Press the control.
The temperature is controlled automatically.
Pressing a second time stops operation.

Lift the control bar and slide the seat
forwards or backwards to the required
position.

Lumbar support

Seat back angle

Turn the control to adjust the angle of the

seat back.

Turn the control.

Armrest

The driver's seat may be fitted with an
armrest on the centre console side.
Raise or lower completely the armrest to
obtain the most comfortable driving position.

Seats

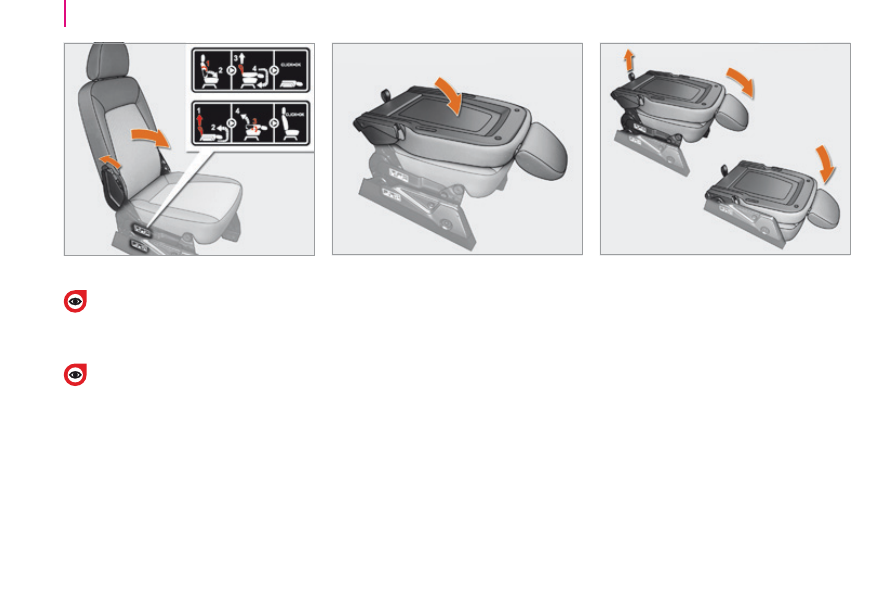

FOLDING FRONT PASSENGER SEAT

Table position

Press the head restraint to place it in the
lowest position.
Push one of the controls rearwards, located
on each side of the seat back.

Lower the seat back onto the seat cushion
to the table position.

Folded position

After placing the seat back in the table
position, pull the seat's rear strap while
guiding the folded seat back forwards and
towards the floor.

Returning the seat to the sitting position

Pull the seat's rear strap to unlock the seat.
Lift the seat from the front and the rear
then guide it forwards to bring it to the table
position.
Push one of the controls, located on each
side of the seat back, rearwards while

pressing on the seat back, then place the

seat back in the upright position.

Press on the seat back firmly to trigger the

locking of the seat on the floor.

Adjust the head restraint using the button on
the side.

only move the seat when the rear
seats are not occupied.

Before moving the seat backwards,

ensure that there is nothing that might

prevent the full travel of the seat, so as to
avoid the risk of of jamming the seat caused

by the presence of objects on the floor

behind the seat or rear passengers. If the

seat jams, stop the movement immediately.

EASE OF USE and COMFORT

Seats

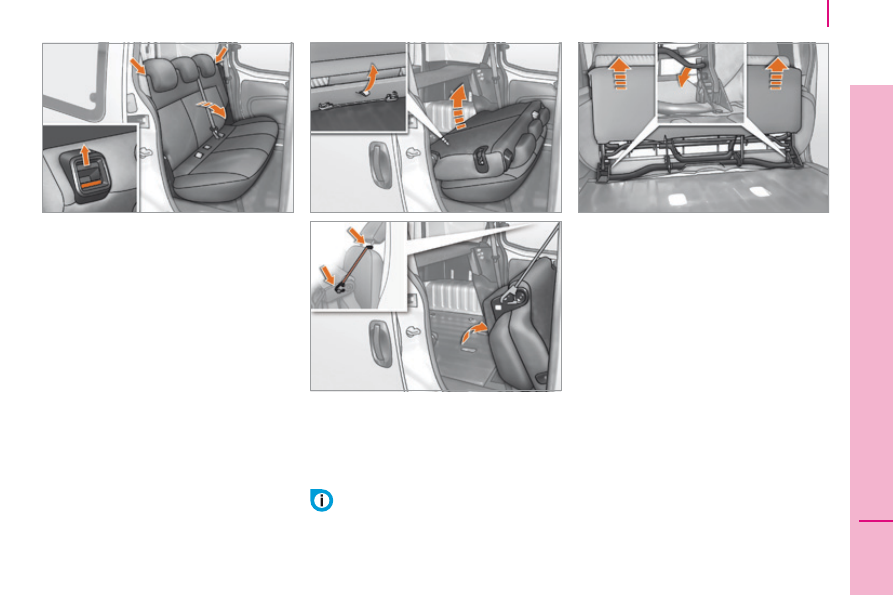

ONE-PIECE REAR BENCH SEAT

Table position

Press the head restraint and its lug
simultaneously to place the head restraint in
the low position.
Unlock the seat back by pushing the two
side controls. The red indicator becomes
visible.
Fold the seat back onto the seat cushion.

Fully folded position

After placing the seat back in the table

position, pull the central strap to unlock the
rear feet of the seat.
Lift the seat fully to secure it in the fully
folded position.

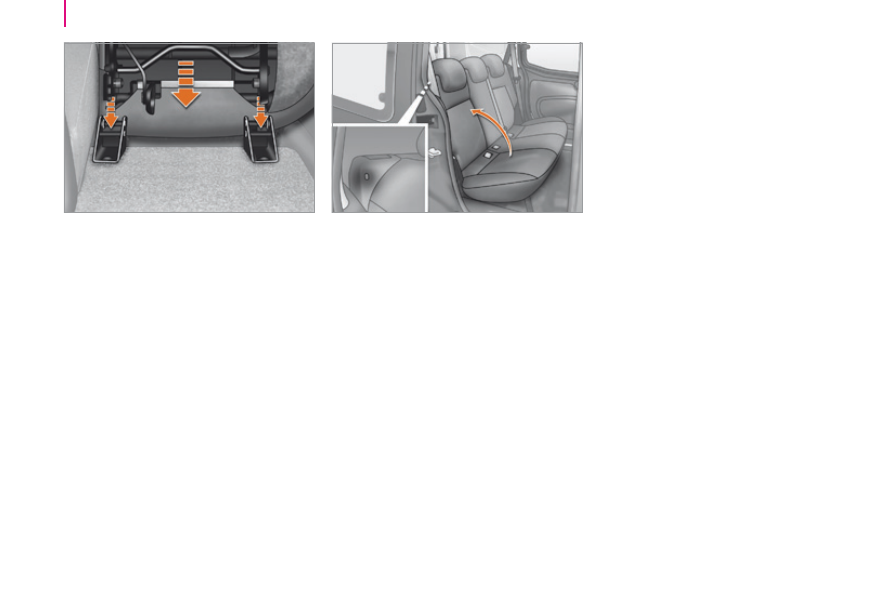

Removing the bench seat

After placing the bench seat in the fully
folded position, lower the transverse bar to
unlock the front feet of the seat.
Lift the bench seat to detach it from its front
anchorages.

When driving, to secure the bench,

detach the red retaining strap, located

on the back of the bench seat cushion, and
fix one end to a front head restraint spindle
and the other to the side of the seat cushion.

Seats

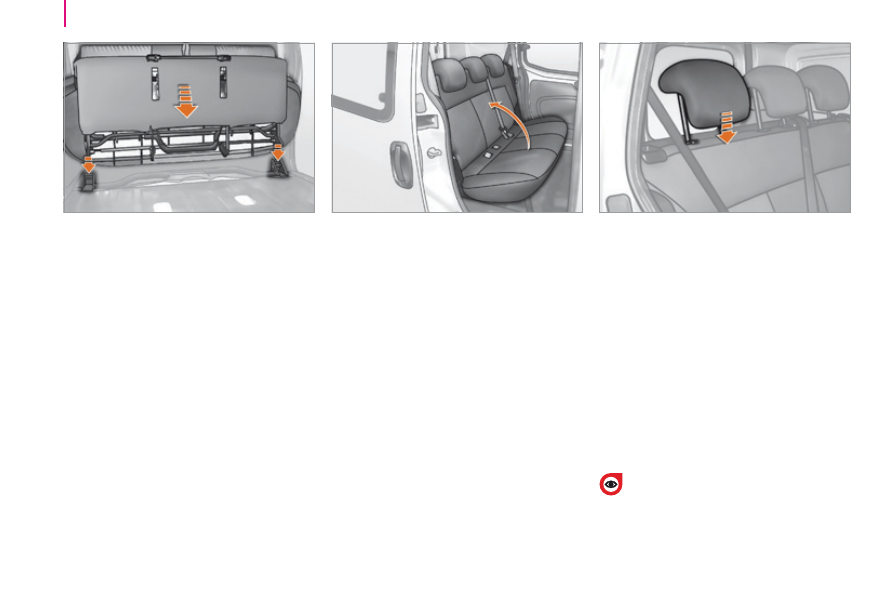

Returning the bench seat to its
position

Put the bench seat in place in its front
anchorages in the fully folded position.
Fold the bench seat to the table position,
the front and rear feet of the seat lock
automatically.

Returning the bench seat to the sitting
position

Lift the bench seat back.

Take care not to trap the seat belts.

Lock the seat back by pushing it fully
towards the rear. The red indicator is no
longer visible.

Rear head restraints

The rear head restraints can be removed
and have two positions:
4

high, position for use,

low, storage position.

To raise or lower a head restraint, pull it
forwards sliding it at the same time.

To remove it, place it in the high position,

push the lug and pull it forwards and
upwards.
To refit it, engage the head restraint rods

in the holes taking care to remain in the

centreline of the seat back.

never drive with the head restraints
removed, they must be in place and
correctly adjusted.

EASE OF USE and COMFORT

Seats

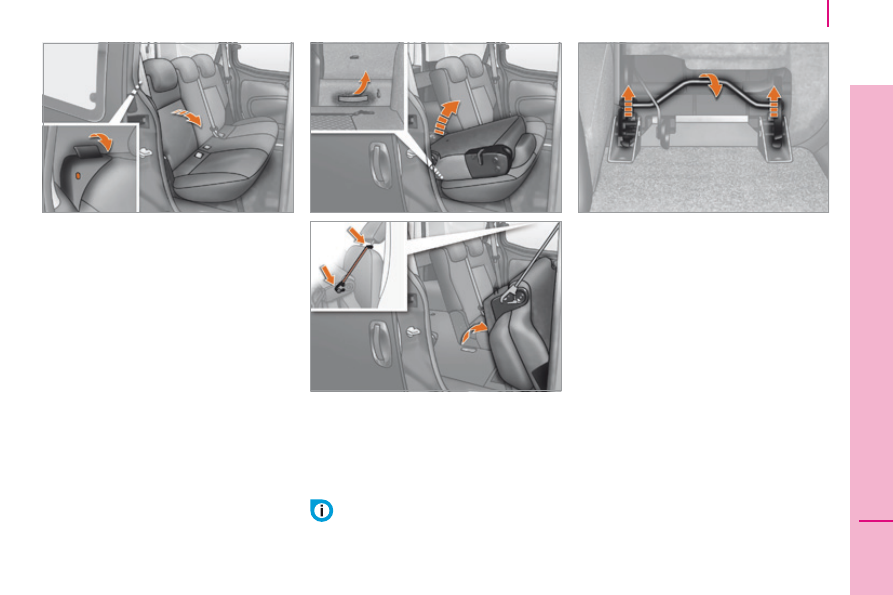

SPLIT REAR BENCH SEAT

The left-hand side (2/3) or right-hand side

(1/3) of this bench seat can be folded to
adapt the load space in the boot.

Table position

Press the head restraint and its lug
simultaneously to place the head restraint in
the low position.
Unlock the seat back by pulling the

corresponding side control towards you. The
red indicator becomes visible.
Fold the corresponding seat back onto the
seat cushion.

Fully folded position

After placing the seat back in the table

position, pull the corresponding strap to

unlock the rear feet of the seat.
Lift the seat fully to secure it in the fully
folded position.

Removing the bench seat

After placing the bench seat in the fully

folded position, lower the corresponding

transverse bar to unlock the front feet of the
seat.
Lift the bench seat to detach it from its front
anchorages.

When driving, to secure the bench,

detach the red retaining strap, located on

the back of the bench seat cushion, and fix one
end to a front head restraint spindle and the
other end to the side of the seat cushion.

Seats

Returning the bench seat to its
position

Put the bench seat in place in its front
anchorages in the fully folded position.
Fold the bench seat to the table position,
the front and rear feet of the seat lock
automatically.

Returning the bench seat to the sitting
position

Lift the bench seat back.

Take care not to trap the seat belts.

Lock the seat back by pushing it fully
towards the rear. The red indicator is no
longer visible.

Repeat all of these operations for the other
part of the rear bench seat.

EASE OF USE and COMFORT

Ventilation

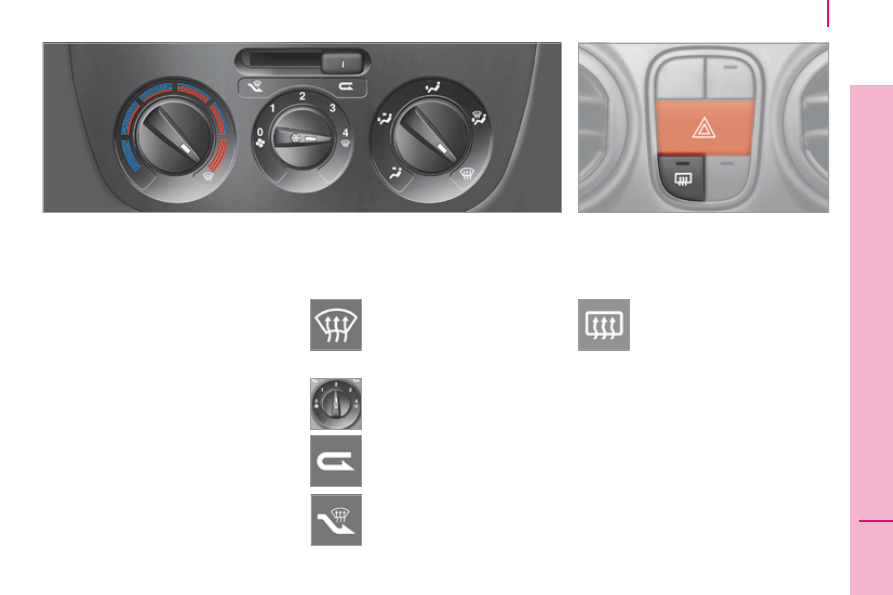

DEMISTING AND DEFROSTING

Windscreen

The vents located at the base of the
windscreen and the side vents for the side
windows increase the effectiveness of the
demisting and defrosting. Do not obstruct

these eight vents.

The manual air conditioning includes a
pollen filter and air recirculation.
The pollen filter permits continuous and
effective filtering of dust.
air recirculation (which can be operated by
the driver or the passenger) isolates the

passenger compartment from the exterior
atmosphere. However, this position should
only be used temporarily, you should
normally drive with the control in the exterior
air intake position.

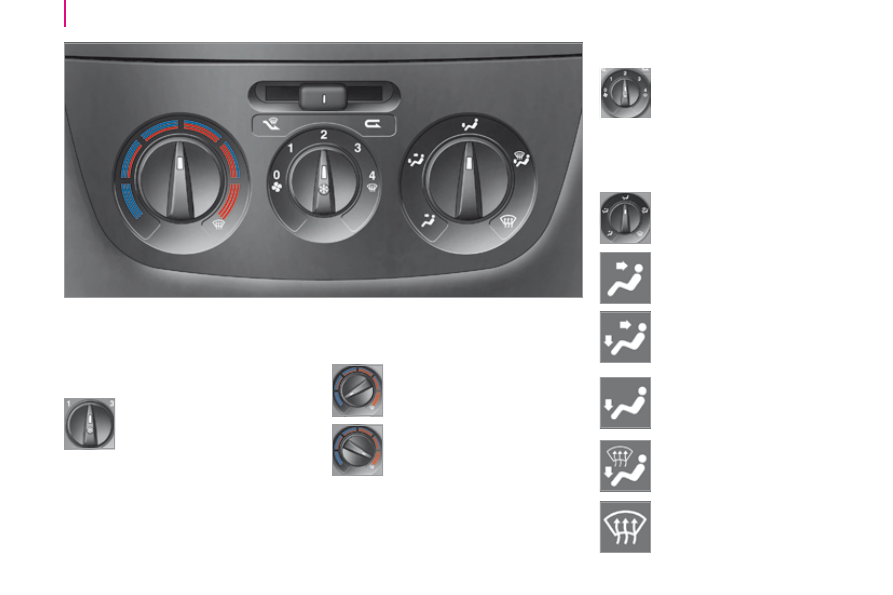

Manual mode

Turn the control to this air
distribution setting.
For faster and more effective
demisting and defrosting of the

windscreen:

- increase the air flow setting,

Return to the exterior air intake
position as soon as possible to
allow renewal of the air in the
passenger compartment.

Rear screen and mirrors defrosting

This function only operates when
the engine is running. Pressing
this button activates the rapid
demisting/defrosting of the rear

screen and mirrors. This function switches
off automatically to prevent an excessive
consumption of energy. It switches off when

the engine is switched off. Pressing this
button switches the function off.

- move the exterior air intake

control temporarily to air
recirculation.

Ventilation

VENTILATION

Recommended interior settings

I require...

Heating or Manual air conditioning

Air distribution

Air flow

Air recirculation/Intake of

exterior air

Temperature

Manual AC

HOT

COLD

DEMISTING

DEFROSTING

EASE OF USE and COMFORT

Ventilation

CORRECT USE OF THE AIR
CONDITIONING

Operate the air conditioning system for

5 to 10 minutes, once or twice a month,

to keep it in perfect working order.
Have the filter elements (air filter and
passenger compartment filter) replaced

regularly. If you drive in a dusty environment,
have them replaced twice as often.
It is normal that the condensation created by
the air conditioning system results in a flow
of water which may form a puddle under the
vehicle when parked.
If the system does not produce cold air, do
not use it and contact a CITRoËn dealer or
a qualified workshop.

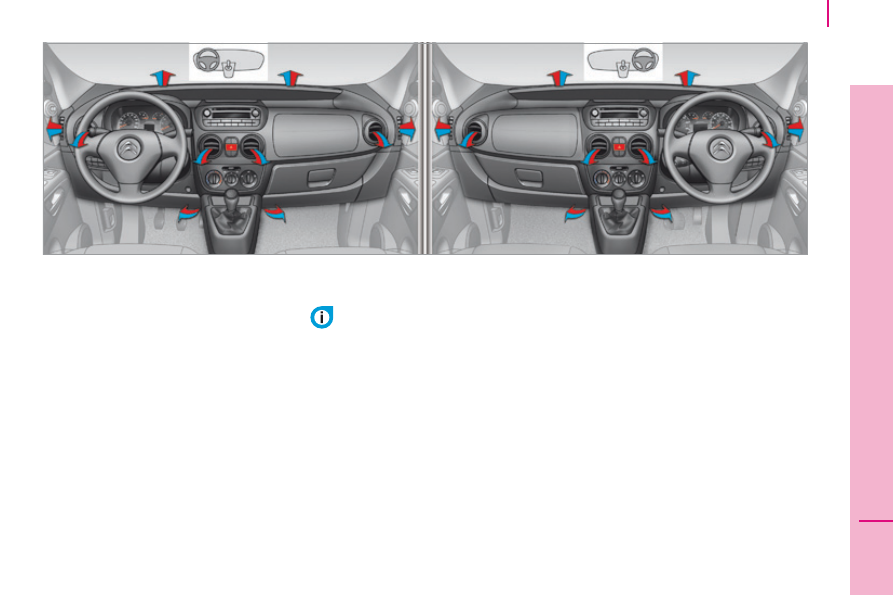

VENTS

For optimum distribution and diffusion of hot
or cool air in the passenger compartment,

there are:

-  2 adjustable central vents,
-  2 adjustable and closing side vents,
-  2 vents directed towards the floor of

the vehicle.

In order to be effective, the air conditioning
should only be used with the windows
closed. However, if the interior temperature
is high after a prolonged period parked

in the sun, first ventilate the passenger
compartment for a few minutes.
For even air distribution, ensure that the
exterior air intake grille located at the base
of the windscreen is not obstructed and that
the side and central vents, the air outlets on
the floor and the air extractor at the rear are
open.
The air conditioning is useful in all seasons
as it eliminates condensation and air
humidity.

Ventilation

These controls are located on the centre console.

Air conditioning

The air conditioning mode is operational

when the engine is running. The LED is on.

Temperature adjustment

Control positioned:

- in the blue zone delivers cool

air,

Air flow

The air flow fan setting varies
from 1

to the strongest 4. Adjust

this control in order to reach the
desired level of comfort. To switch

off the fan, place the control in position 0.

The air distribution is varied
by turning the control turned

towards:

the side vents and the central
vents,

the side vents, the central vents
and the footwells,

the footwells,

the windscreen, the front side
windows and the footwells,

the windscreen.

Press the air flow fan control. The
LEd comes on.
The air flow fan control must not
be in position 0 (zero flow) for air

conditioning to be obtained.
Turn the control to the position required.

- in the red zone delivers

heating of the interior air.

Air distribution

EASE OF USE and COMFORT

Ventilation

Intake of exterior air

This is the preferred operating
position.

Recirculation of interior air

This position should only be
temporary.
Used with the air conditioning

switched on and using the

appropriate air fan setting (from 1 to 4),
recirculation enables you to obtain the
desired level of comfort with either hot or
cold settings.
Recirculation prevents exterior odours
and smoke from entering the passenger

compartment. Defrosting is faster in
this position.

once the required level of comfort has been
reached, return to the intake of exterior air
position to permit renewal of the air in the
passenger compartment and demisting. This

is the preferred operating position.

Practical information

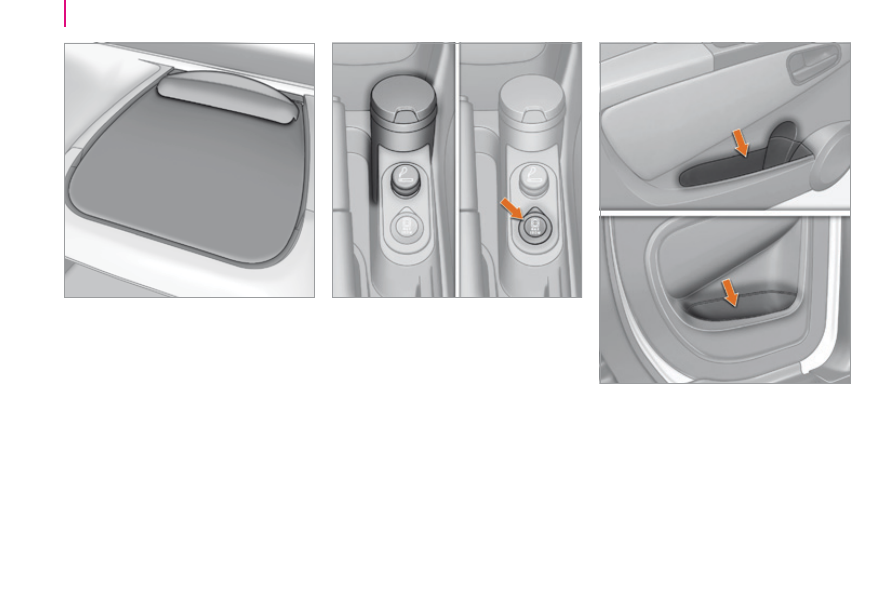

Smoker's kit

Located at the base of the centre console,
this consists of a cigarette lighter and an
ashtray.

12 V socket (180 W max)

An accessory socket is provided next to the

cigarette lighter.

FRONT FITTINGS

Folding writing table (Light van)

This is located in the centre of the
dashboard. In the absence of a table, the
vehicle is fitted with a storage compartment.
The clip can be used to secure a5 format
documents, slips, etc.
Pull the top of the table to unfold it, push to
fold it.

Door pockets

With recess for storing a 1 litre bottle.

EASE OF USE and COMFORT

Practical information

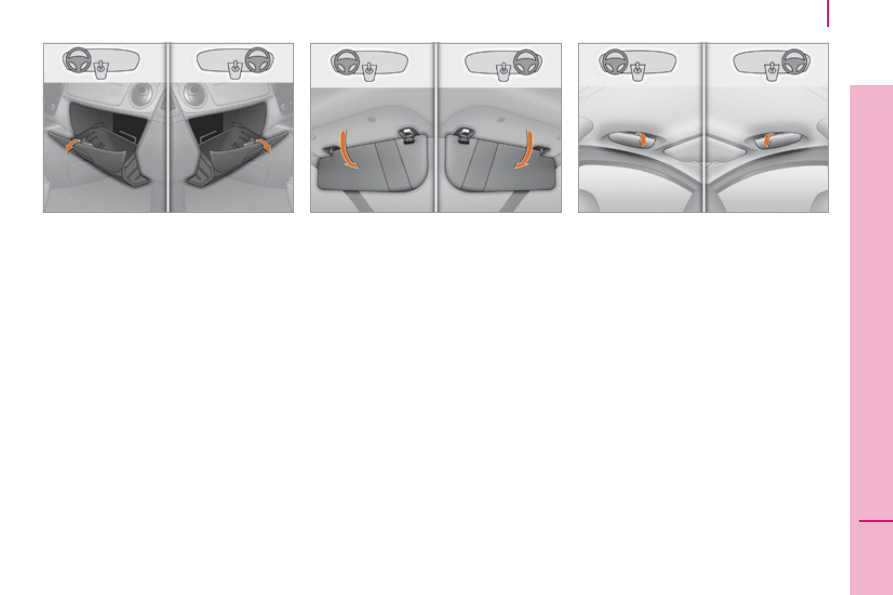

Sun visor

To avoid glare from ahead, fold and direct
the sun visor down.
Toll cards, tickets, etc. can be slipped into
the sun visor on the driver's side.
The sun visor on the passenger's side may
be fitted with a courtesy mirror.

Glove box

To open it raise the handle.
It can accommodate a laptop computer.
It provides storage for the handbook pack.

Spectacles storage (Combi)

There is a spectacles storage compartment
on the driver's side, above the door.
To open it, unclip the cover pulling at
the centre.

Practical information

LOAD SPACE FITTINGS

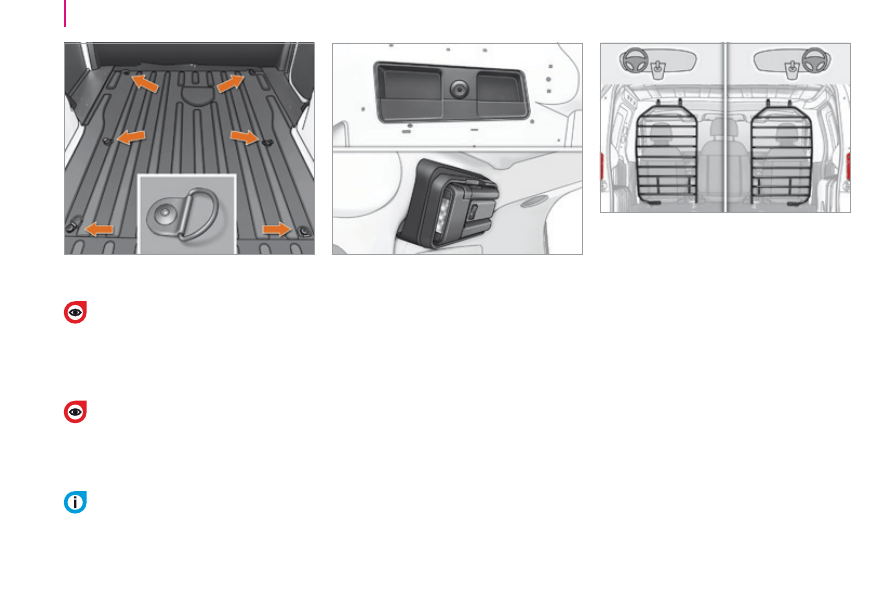

Stowing rings

There are 6 stowing rings on the rear floor to
secure your loads.

as a safety precaution in case of sharp
braking, you are advised to place

heavy objects as far forwards towards the
driver's seat as possible.

Storage pocket

A storage pocket is provided at the rear left
of the load space.

Torch

A magnetic torch is provided at the rear right
of the load space.
Remove the torch from its base by
pressing the button then pivoting the torch

downwards by 90 degrees.
To switch on the torch, slide the switch
forwards.
To change the 4 rechargeable batteries
(niMH type), remove the protective cover
from the torch.
To put the torch back in place, engage
it in the notches on the base and pivot it
upwards.

Ladder type vertical partition

behind the driver's seat, a ladder type
vertical partition protects the driver against

the risk of load movement.

Partitions

Panel, glazed, mid-height panel with grille

and modular vertical grille type partitions are

available for your light van.

Carrying passengers in the load space
is not permitted.

It is advisable to immobilise the load
by securing it firmly using the stowing

rings on the floor.

The torch's storage batteries recharge

automatically while driving.
an additional lamp is fitted in the middle
of the torch housing (refer to the "Interior

lighting" section).

Content .. 3 4 5 6 ..
