Citroen Nemo Dag (2010 year). Instruction - part 10





1

2

9

7

Q

U

IC

K

 H

EL

P

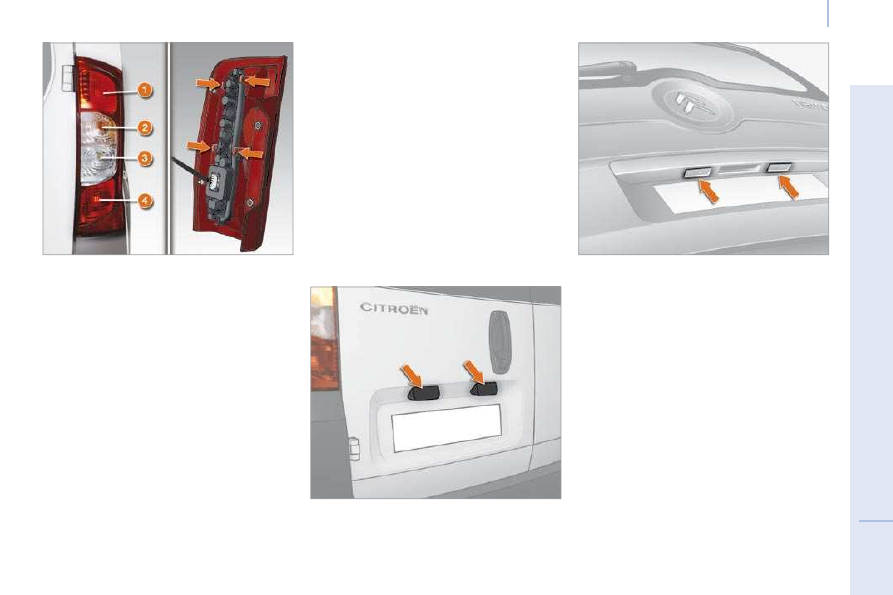

   Changing a bulb

  Rear lamps

   -   Identify the faulty bulb then open the rear

doors.

  -   Unscrew the two screws using the

screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.

  -   Release the lamp unit.

  -   Disconnect the electrical connector.

  -   Remove the support by moving aside

the tabs.

  -   Change the bulb.

  Number plate lamps

  Type A,  C 5 W - 5 W
   -   Unclip the transparent cover using

the screwdriver supplied in the tool kit
(behind the driver's seat) and extract the
bulb holder.

  -   Change the bulb by moving aside the two

contacts.

  -   Ensure that the new bulbs are secured

correctly between the two contacts.

  -   Replace the plastic lens and press on it.

 For further information concerning the bulbs,
refer to the table "Types of bulb".

   1.    Brake lamps



 Type B,  P21 W - 21 W

  2.    Direction indicators



 Type B,  PY 21 W - 21 W amber

  3.    Reversing lamps



 Type B,  P21 W - 21 W

  4.    Sidelamps/Foglamps



 Type B , P4/21 W - 4 W/21 W

  On the hinged rear doors

  On the tailgate

1

3

0

Changing a bulb

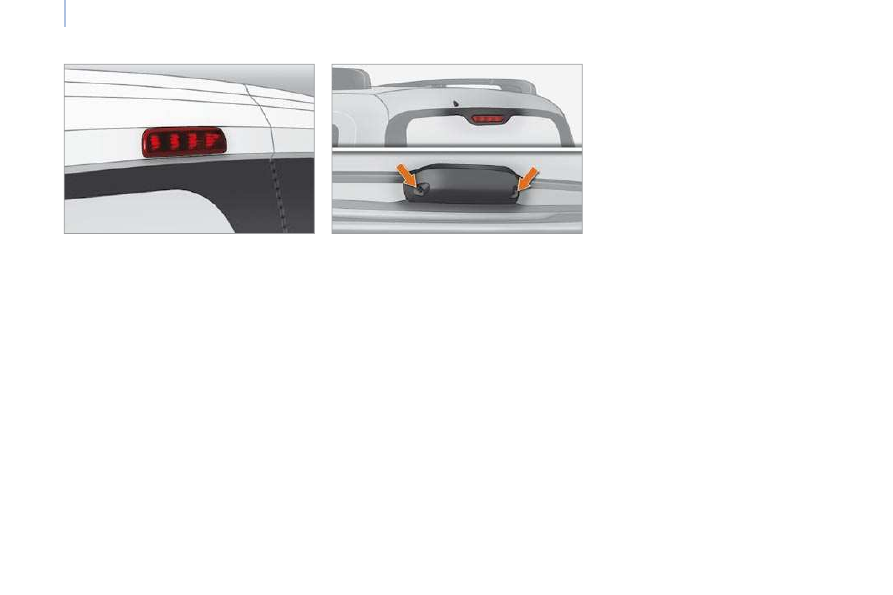

  Third brake lamp

  On the hinged rear doors

  Type B , W 5 W - 5 W (4 bulbs)
   -   Unclip the transparent cover using the

screwdriver located in the tool kit.

  -   Disconnect the electrical connector.

  -   Remove the bulb holder by squeezing the

two tabs.

  -   Remove the faulty bulb.

  -   Change the bulb.

  On the tailgate

  Type B,  W 5 W - 5 W (5 bulbs)
   -   Open the tailgate.

  -   Remove the two cover retaining screws,

then the cover.

  -   Remove the bulb holder by squeezing the

two tabs.

  -   Remove the faulty bulb.

  -   Change the bulb.

 If you encounter any difficulty, consult a
CITROËN dealer.

1

3

1

7

Q

U

IC

K

 H

EL

P

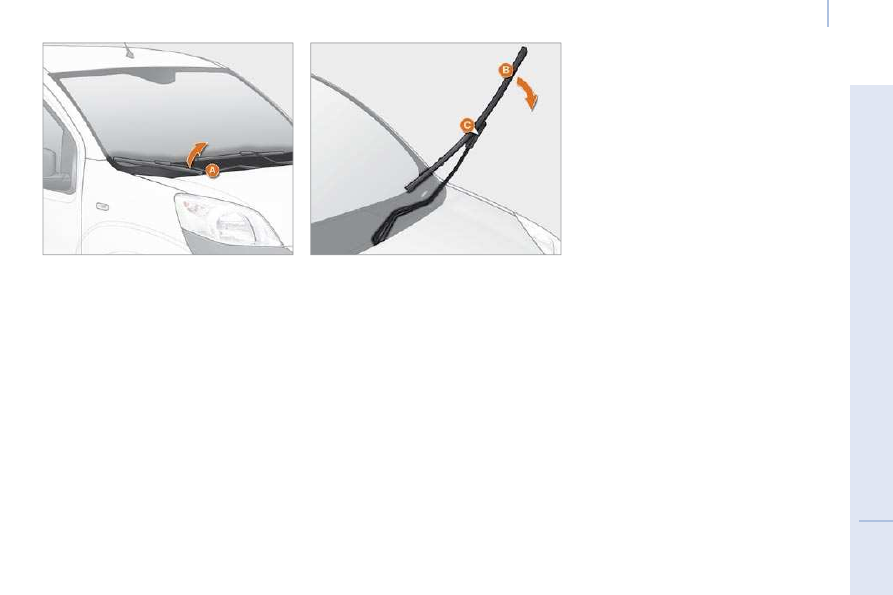

   Changing a wiper blade

   CHANGING A WIPER BLADE

  Changing a front or rear wiper blade

 Instructions for removing the blade:
 Lift the wiper arm   off the windscreen.
 Turn the blade   90° around the pivot   on
the end part of the arm.
 Remove the pivot from the blade

 Instructions for fitting the blade:
 Fit the pivot   in the hole in the central part
of the blade
 Place the arm with the blade on the
windscreen.

1

3

2

Changing a fuse

 CHANGING A FUSE

 The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet.

  Removing and fitting a fuse

 Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
 Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
  Always replace a faulty fuse with a fuse
of the same rating.

 If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer.

  Access to fuses in the dashboard

   -   To gain access to the dashboard fuses,

remove the 2 screws using the ignition
key and tilt the housing.

 CITROËN will not accept responsibility
for the cost incurred in repairing your

vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

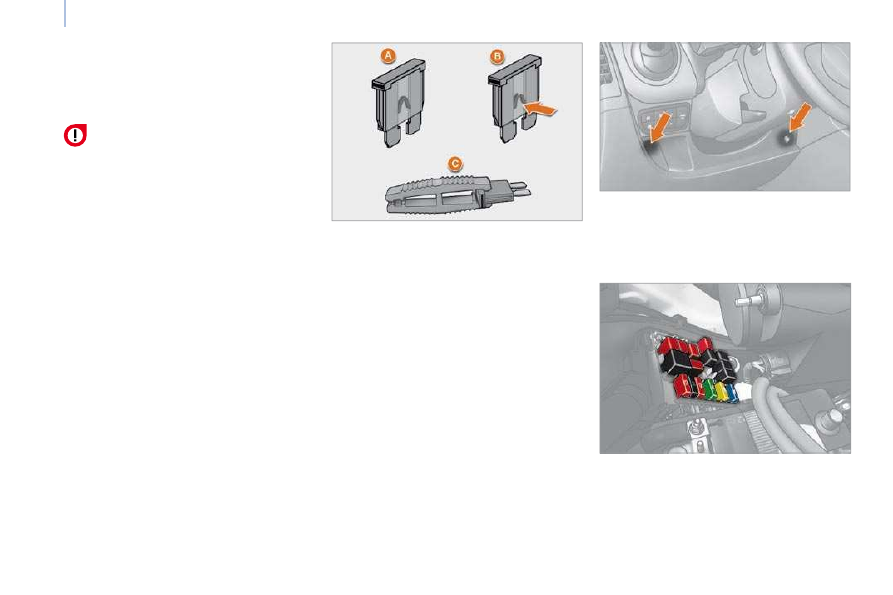

   A.   Good.

  B.   Failed.

  C.   Tweezer.

  Access to fuses in the engine
compartment

   -   For access to the fuses in the engine

compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

1

3

2

Changing a fuse

 CHANGING A FUSE

 The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet.

  Removing and fitting a fuse

 Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
 Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
  Always replace a faulty fuse with a fuse
of the same rating.

 If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer.

  Access to fuses in the dashboard

   -   To gain access to the dashboard fuses,

remove the 2 screws using the ignition
key and tilt the housing.

 CITROËN will not accept responsibility
for the cost incurred in repairing your

vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

   A.   Good.

  B.   Failed.

  C.   Tweezer.

  Access to fuses in the engine
compartment

   -   For access to the fuses in the engine

compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

1

3

3

7

Q

U

IC

K

 H

EL

P

   Changing a fuse

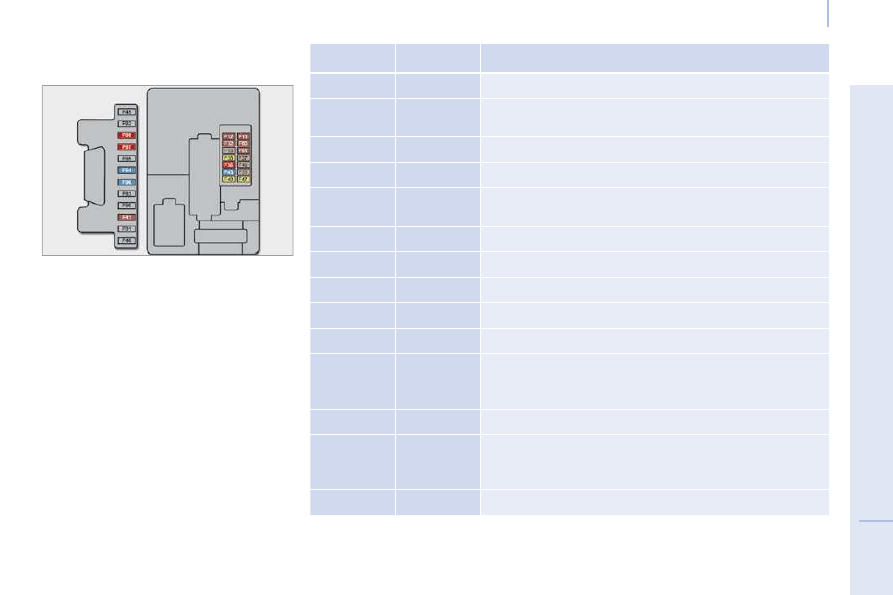

  Table of dashboard fuses, driver's side

   Mark  ing

   Rating

   Functions

  F12

  7.5 A

 Right-hand dipped beam headlamp supply

  F13

  7.5 A

 Left-hand dipped beam headlamp supply - headlamp height
adjuster

  F31

  5 A

 Engine control unit supply switch

  F32

  7.5 A

 Front lamp - front courtesy lamp - rear courtesy light lamp

  F36

  10 A

 Audio system - mobile telephone pre-equipment -
air conditioning control panel - EODB diagnostic socket

  F37

  5 A

 Brake lamp - instrument panel

  F38

  20 A

 Door locking

  F43

  15 A

 Screenwash pump

  F47

  20 A

 Driver's electric window motor supply

  F48

  20 A

 Passenger's electric window motor supply

  F49

  5 A

 Parking sensors control unit - rear lighting switch - electric
door mirrors - volumetric alarm control unit

  F50

  7.5 A

 Airbags control unit

  F51

  7.5 A

 Switch on brake pedal - switch on clutch pedal - door mirror
controls - central Bluetooth system

  F53

  5 A

 Instrument panel - rear foglamps

Changing a fuse

   Marking

   Rating

   Functions

  F41

  7.5 A

 Door mirror demisting.

  F94

  15 A

 Cigar lighter.

  F96

  15 A

 12 V accessory socket.

  F97

  10 A

 Heated seat, driver's side.

  F98

  10 A

 Heated seat, passenger's side.

1

3

2

Changing a fuse

 CHANGING A FUSE

 The two fuseboxes are placed on the
dashboard on the driver's side and under the
bonnet.

  Removing and fitting a fuse

 Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fusebox.
 Always use the special tweezer to extract
the fuse from its housing and check the
condition of its filament.
  Always replace a faulty fuse with a fuse
of the same rating.

 If a fuse fails again soon after replacement,
have the electrical system of your vehicle
checked by a CITROËN dealer.

  Access to fuses in the dashboard

   -   To gain access to the dashboard fuses,

remove the 2 screws using the ignition
key and tilt the housing.

 CITROËN will not accept responsibility
for the cost incurred in repairing your

vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
CITROËN dealers and not installed in
accordance with its instructions, in particular
when the combined consumption of all of
the additional equipment connected exceeds
10 milliamperes.

   A.   Good.

  B.   Failed.

  C.   Tweezer.

  Access to fuses in the engine
compartment

   -   For access to the fuses in the engine

compartment, remove the left hand front
headlamp connector, then unclip the
fusebox cover.

1

3

5

7

Q

U

IC

K

 H

EL

P

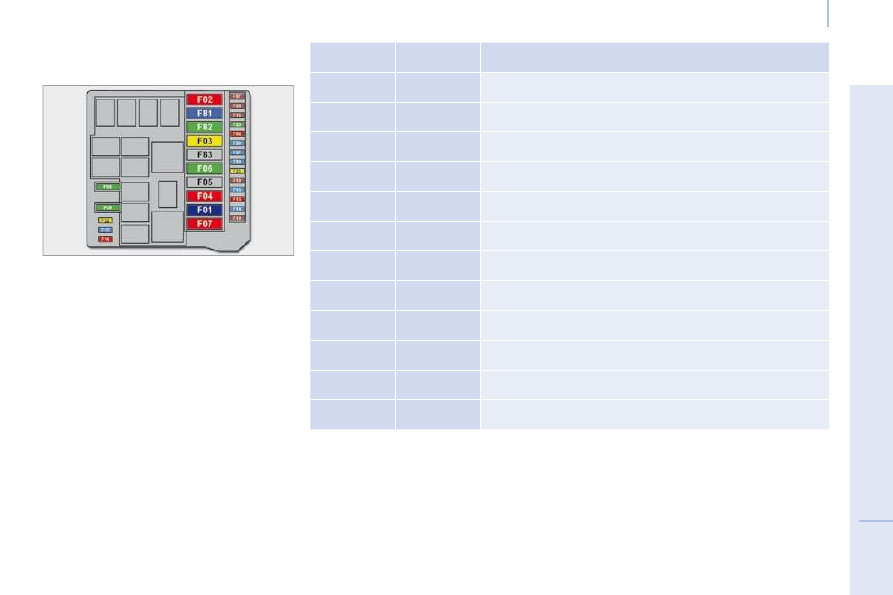

   Changing a fuse

   Mark  ing

   Rating

   Functions

  F01

  60 A

 Control unit

  F02

  40 A

 Passenger compartment fan.

  F03

  20 A

 Starter motor supply

  F04

  40 A

 ABS hydraulic block pump supply

  F06

  30 A

 Single speed cooling fan control

  F07

  40 A

 High speed cooling fan control

  F08

  30 A

 Air conditioning compressor

  F09

  15 A

 Towbar harness.

  F10

  10 A

 Horn

  F11

  10 A

 Engine management secondary load supply

  F14

  15 A

 Main beam headlamps

  F15

  15 A

 12 V accessory socket.

  Table of fuses in the engine
compartment

1

3

6

Changing a fuse

   Marking

   Rating

   Functions

  F16

  7.5 A

 Engine management control unit - electronic gearbox control unit and gear lever -
T20 relay coil

  F17

  15 A

 Supply for ignition coil - injectors - engine management control unit (1.3 HDi)

  F18

  7.5 A

 Engine management control unit (1.3 HDi) - T09 relay coil

  F19

  7.5 A

 Air conditioning compressor

  F20

  30 A

 Supply for heated rear screen, electric door mirrors heater elements

  F21

  15 A

 Fuel pump (1.4 petrol and 1.3 HDi)

  F22

  20 A

 Engine management control unit (1.3 HDi)

  F23

  20 A

 ABS hydraulic block electrovalves supply

  F24

  7.5 A

 ABS

  F30

  15 A

 Foglamps

  F81

  60 A

 Pre-heat unit (1.3 HDi)

  F82

  30 A

 Electronic gearbox pump - electronic gearbox supply

  F84

  10 A

 Electronic gearbox control unit and electrovalves

  F85

  30 A

 Cigar lighter - 12 V accessory socket

  F87

  7.5 A

 Reversing lamps - water in Diesel sensor - airflow sensor - T02, T05, T14, T17 and T19 relay coils
(except 1.3 HDi)

  5 A

 Reversing lamps - water in Diesel sensor - airflow sensor -
T02, T05, T14, T17 and T19 relay coils - battery state of charge sensor (except 1.3 HDi)

1

3

7

7

Q

U

IC

K

 H

EL

P

   Having your vehicle towed

 BEING TOWED

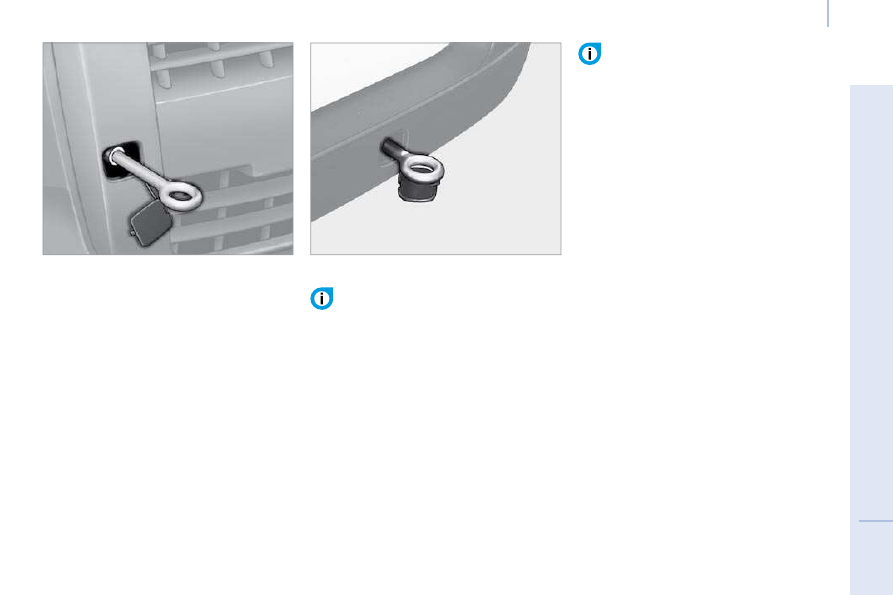

  The removable towing eye is located in the
tool kit behind the driver's seat (Light van) or
behind the rear bench seat (Combi).

  From the front

 In the front bumper, unclip the cover on the
right using a flat tool.
 Screw the removable towing eye in fully.
 Then hook the towbar on the towing eye.
 Unlock the steering by turning the the
ignition key one notch and release the
parking brake.
 Switch on the hazard warning lamps on both
vehicles.
 Move off gently and drive slowly, towing for
a short distance only.

  On the towed vehicle, the gear
lever must be put in neutral; failure
to observe this special condition

may result in damage to certain braking
components (brakes, transmission...) and
the absence of braking assistance when the
engine is started.

  From the rear

 In the rear bumper, unclip the cover at the
bottom using a flat tool.
 Screw the removable towing eye in fully.
 Then hook the towbar on the towing eye.
 Switch on the hazard warning lamps on both
vehicles.
 Move off gently and drive slowly, towing for
a short distance only.

  General recommendations

 Observe the legislation in force in your
country.

 Ensure that the weight of the towing vehicle
is higher than that of the towed vehicle.
 The driver must stay at the wheel of the
towed vehicle.
 Driving on motorways and fast roads is
prohibited when towing.
 When towing a vehicle with all four wheels
on the ground, always use an approved
towing bar; rope and straps are prohibited.
 When towing a vehicle with the engine off,
there is no longer any power assistance for
braking or steering.
 In the following cases, you must always call
on a professional recovery service:
   -   vehicle broken down on a motorway or

fast road,

  -   when it is not possible to put the gearbox

into neutral, unlock the steering, or
release the parking brake,

  -   towing with only two wheels on the

ground,

  -   where there is no approved towing bar

available...

1

3

8

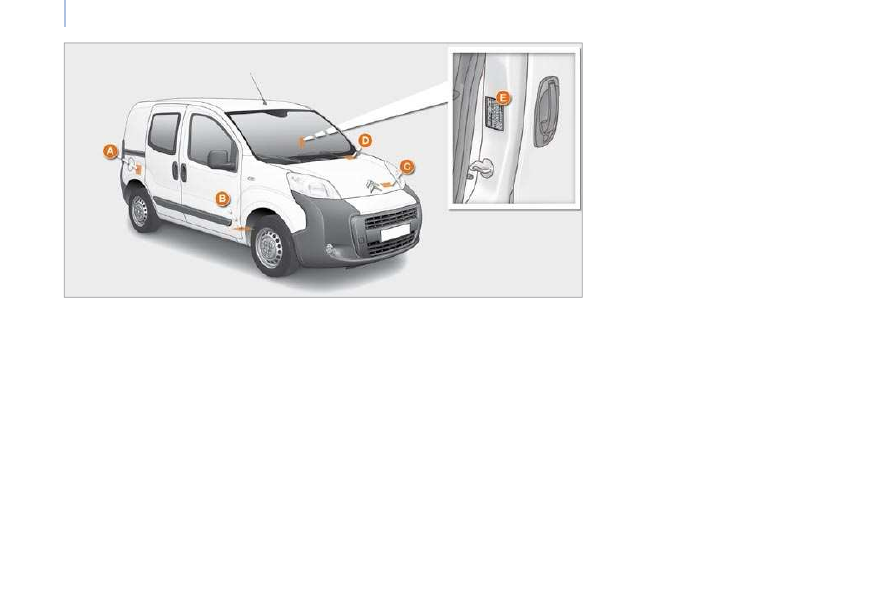

Identifi cation markings

 IDENTIFICATION FEATURES

   A.  Manufacturer's plate
   1.   VF Type serial number.

  2.   Gross vehicle weight (GVW).

  3.   Gross train weight (GTW).

  4.   Maximum weight on front axle.

  5.   Maximum weight on rear axle.

  B. Serial number on the body
  C. Paint reference
  D. Serial number on the fascia
  E. Tyre pressures

1

3

9

7

Q

U

IC

K

 H

EL

P

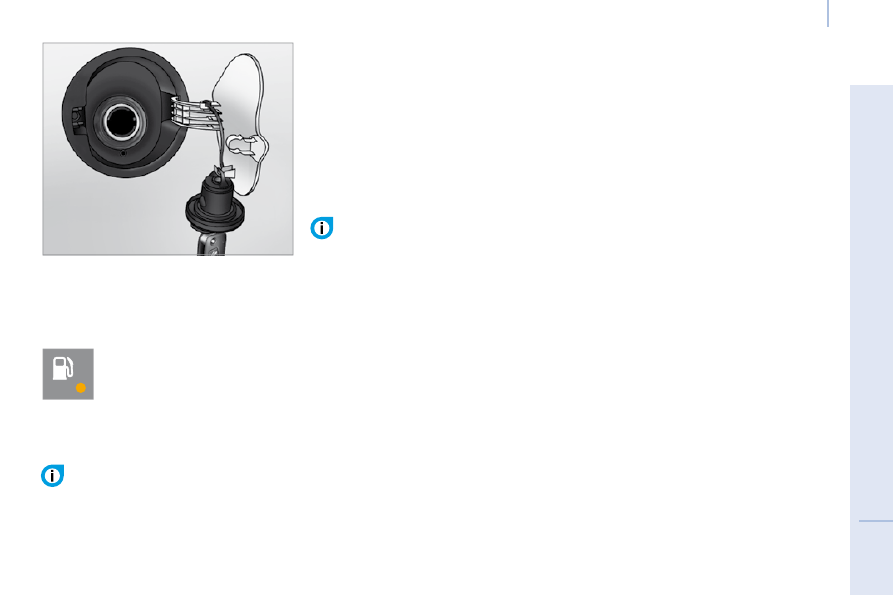

   Fuel

 FILLING WITH FUEL

 Capacity of the fuel tank: approximately
45  litres

  Low fuel level

 When the minimum fuel tank level
is reached, this warning lamp
comes on. When it first comes on,
you have approximately   litres

of fuel remaining. Refuel without delay to
avoid running out of fuel.

 Refuelling must be done  with the engine
off.

   -   Open the fuel filler flap.

  -   Hold the filler cap with one hand.

  -   With the other hand, insert the key, then

turn it a third of a turn.

  -   Remove the fi ller cap and hang it on the

hook, located on the inside of the fi ller fl ap.

 FUEL CIRCUIT DEACTIVATED

 In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
 It also triggers the automatic unlocking of
the doors and switching on of the courtesy
lights. A message appears on the instrument
panel display according to version.
 Turn the key to the  STOP  position to prevent
discharging of the battery.
 Check that there is no smell or leak of fuel
outside the vehicle.

       With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.

  When the fuel filler flap is open, a
safety system prevents sliding of the
side door.

 A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
 Opening the filler cap may cause a noise
resulting from the inrush of air. This vacuum
is quite normal and results from the sealing
of the fuel system.
 When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle; this could
cause malfunctions.
 After filling the fuel tank, lock the filler cap
and close the flap.

1

3

9

7

Q

U

IC

K

 H

EL

P

   Fuel

 FILLING WITH FUEL

 Capacity of the fuel tank: approximately
45  litres

  Low fuel level

 When the minimum fuel tank level
is reached, this warning lamp
comes on. When it first comes on,
you have approximately   litres

of fuel remaining. Refuel without delay to
avoid running out of fuel.

 Refuelling must be done  with the engine
off.

   -   Open the fuel filler flap.

  -   Hold the filler cap with one hand.

  -   With the other hand, insert the key, then

turn it a third of a turn.

  -   Remove the fi ller cap and hang it on the

hook, located on the inside of the fi ller fl ap.

 FUEL CIRCUIT DEACTIVATED

 In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle's electrical supply.
 It also triggers the automatic unlocking of
the doors and switching on of the courtesy
lights. A message appears on the instrument
panel display according to version.
 Turn the key to the  STOP  position to prevent
discharging of the battery.
 Check that there is no smell or leak of fuel
outside the vehicle.

       With Stop & Start, never refuel with the
system in STOP mode; you must switch
off the ignition with the key.

  When the fuel filler flap is open, a
safety system prevents sliding of the
side door.

 A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
 Opening the filler cap may cause a noise
resulting from the inrush of air. This vacuum
is quite normal and results from the sealing
of the fuel system.
 When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle; this could
cause malfunctions.
 After filling the fuel tank, lock the filler cap
and close the flap.

1

4

0

Fuel

  Re-activation

 To set off again, restore the fuel supply and
the electrical supply manually:
   -   with the key in the  STOP  position, turn

the key to the  RUNNING  position,

  -   push the direction indicators control up

fully,

  -   place it in the "Off" position,

  -   press the direction indicators control

down fully,

  -   return it to the "Off" position,

  -   push it up fully again,

  -   return it to the "Off" position,

  -   press it down fully again,

  -   return it to the "Off" position,

  -   turn the key to the  STOP  position.

           Quality of the fuel used for petrol
engines

  The petrol engines are perfectly compatible
with E10 type petrol biofuels (containing
10 % ethanol), conforming to European
standards EN 228 and EN 15376.
 E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for
vehicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
 For Brazil only, special vehicles are
marketed to run on fuels containing up to
100 % ethanol (E100 type).

             Quality of the fuel used for Diesel
engines

  The Diesel engines are perfectly compatible
with biofuels which conform to current
and future European standards (Diesel
fuel which complies with standard EN 590
mixed with a biofuel which complies with
standard EN 14214) available at the pumps
(containing up to 7 % Fatty Acid Methyl
Ester).
 The B30 biofuel can be used in certain
Diesel engines; however, this use is subject
to strict application of the special servicing
conditions. Consult a CITROËN dealer.
 The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

1

4

2

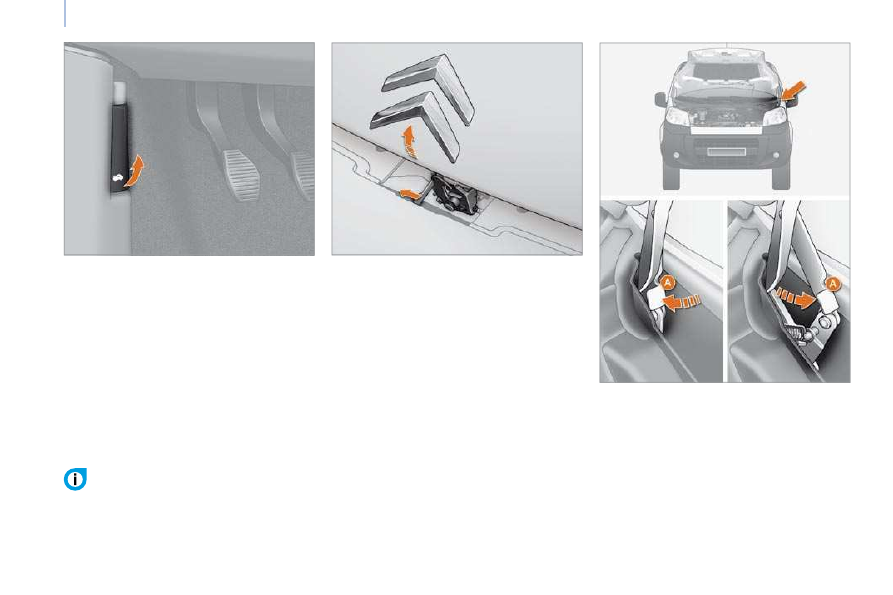

Opening the bonnet

   OPENING THE BONNET

  On the inside

 Pull the lever under the fascia panel
towards you.

  On the outside

 Raise the bonnet slightly, placing your hand
flat under the bonnet to make the operation
easier.
 Push the lever to the left, then open the
bonnet fully.
 While holding the bonnet open, check that the
locking control   is engaged by pressing it.

  To close

 Lift the bonnet slightly and pull the release
control   to release it.
 Lower the bonnet and release it at the end
of its travel. Check that the bonnet is locked.
 Avoid manoeuvring the bonnet in strong
winds.

       Before doing anything under the
bonnet, switch off the ignition with the

key to avoid any risk of injury resulting from
an automatic change to START mode.















Content   ..  8  9  10  11   ..
