Familiarisation

EXTERIOR

Roof rack and roof bars

Fixing points are provided on each side of the
roof for securing the roof rack or the transverse
roof bars.
 116

Opening the hinged rear doors to 180°

Once the vehicle has been unlocked, the
hinged rear doors can be opened to 180° to
make unloading/loading operations easier.
 35

Rear parking sensors

This system warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.
 70

Stop & Start

This system puts the engine temporarily into standby
during stops in the trafﬁ c (red lights, trafﬁ c jams, etc...). The
engine restarts automatically as soon as you want to move
off. Stop & Start reduces fuel consumption and exhaust
emissions, and gives the comfort of total silence when
stationary.
 53

ISA

Familiarisation

OPENING

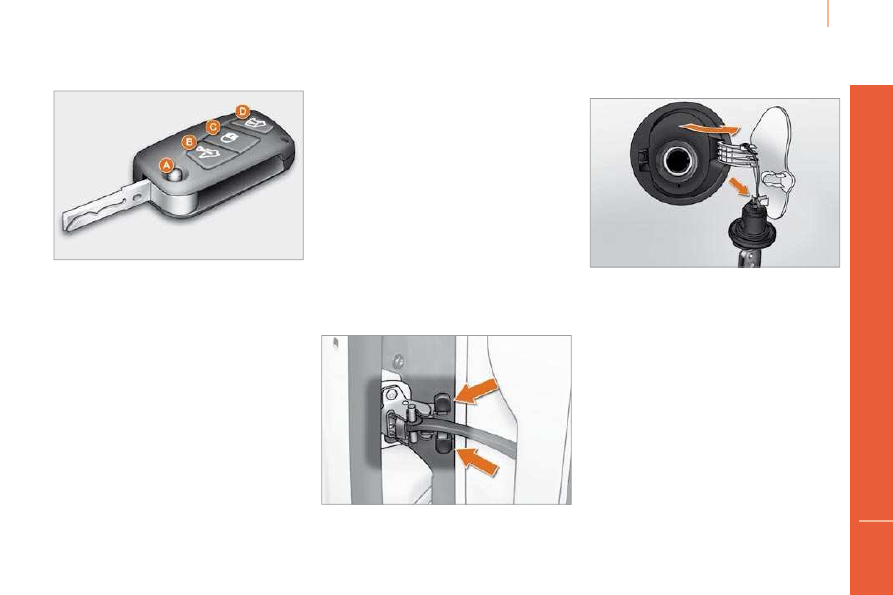

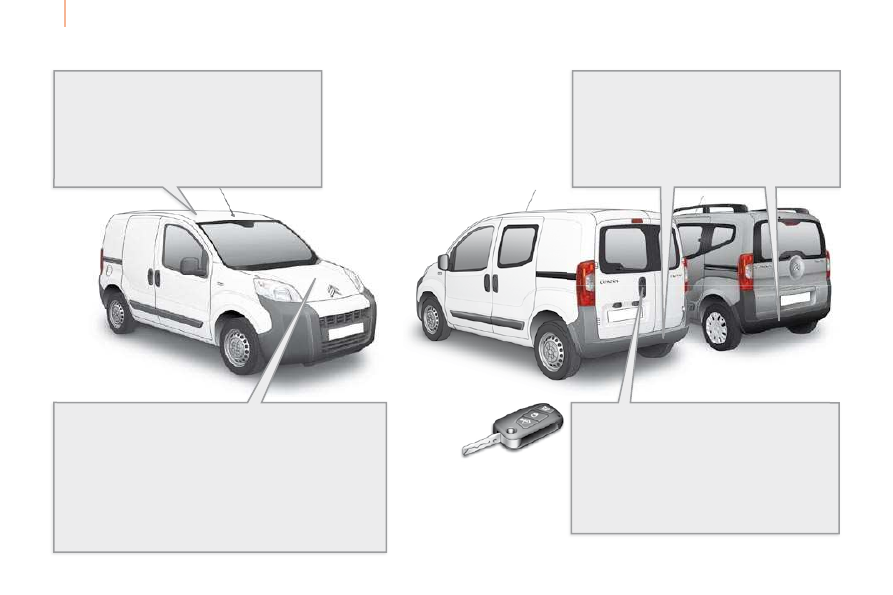

Remote control key

A. Unfolding/Folding the key.
B.

Unlocking the front doors only (Light van)

or of all of the doors (Combi)

(two ﬂ ashes of the direction indicators).

Central locking the vehicle

(one press; one ﬂ ash of the direction

indicators).

Deadlocking the vehicle

(two consecutive presses; one ﬂ ash of the

direction indicators).

Unlocking the load space (Light van) or

of the hinged rear doors or tailgate only

(Combi).

If a door is open or has not been closed
properly, the failed locking is indicated by three
ﬂ ashes of the direction indicators.
 29

Fuel tank

Opening the fuel ﬁ ller ﬂ ap.

Opening and hooking the ﬁ ller cap.

Capacity of the tank: approximately 45 litres.

 139

Opening the rear doors to 180°

Press the catch while opening the side-hinged
door.
 35

Opening/Closing windows using the
remote control

Press button  B  for more than three seconds
to start opening the windows. Hold the button
down until the desired position is obtained,
then release the button, the window stops.
Press button  C  for more than three seconds
to start closing the windows. Hold the button
down until the desired position is obtained,
then release the button, the window stops.
These operations can also be carried out by by
inserting and turning the key in the front door
lock barrels.
     30

INTERIOR

Trip computer

Using the MENU button, this system
allows you to see the setting of various
vehicle conﬁ gurations/information, such
as deactivation of the passenger's airbag,
automatic door locking, language, etc.
 66

Folding multifunction passenger seat

This passenger seat can be placed in one of
three conﬁ gurations:

a seat for carrying a passenger,

a table to accommodate your various
documents...,

- folded for transporting long objects.
 80

Audio system
These systems beneﬁ t from the latest

technology: MP3 compatible audio system
and Bluetooth

hands-free kit with steering

mounted controls.
 71

Cruise control

This system maintains the speed of the vehicle
at the programmed value.
 42

Electronic gearbox

This system provides perfect driving by
combining a fully automatic mode and a
manual mode.
 48

Familiarisation

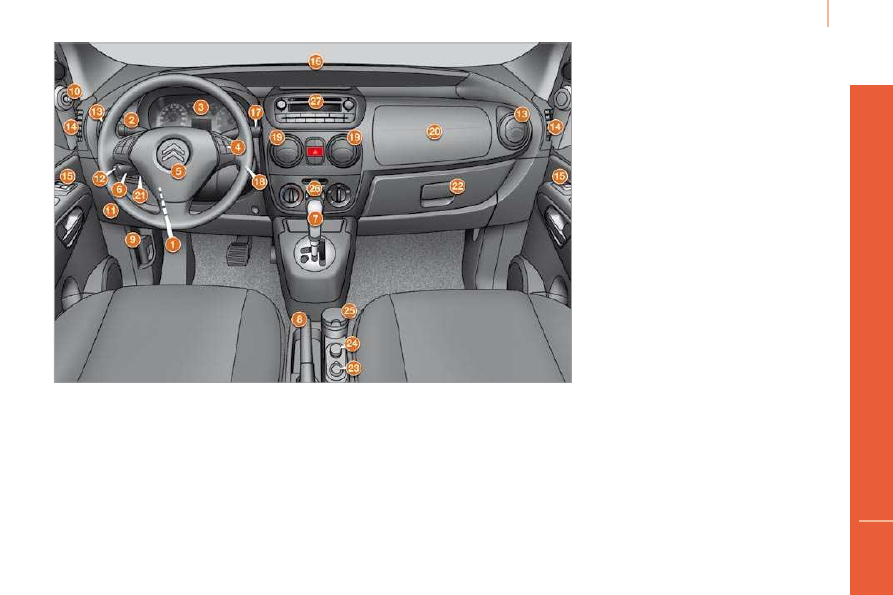

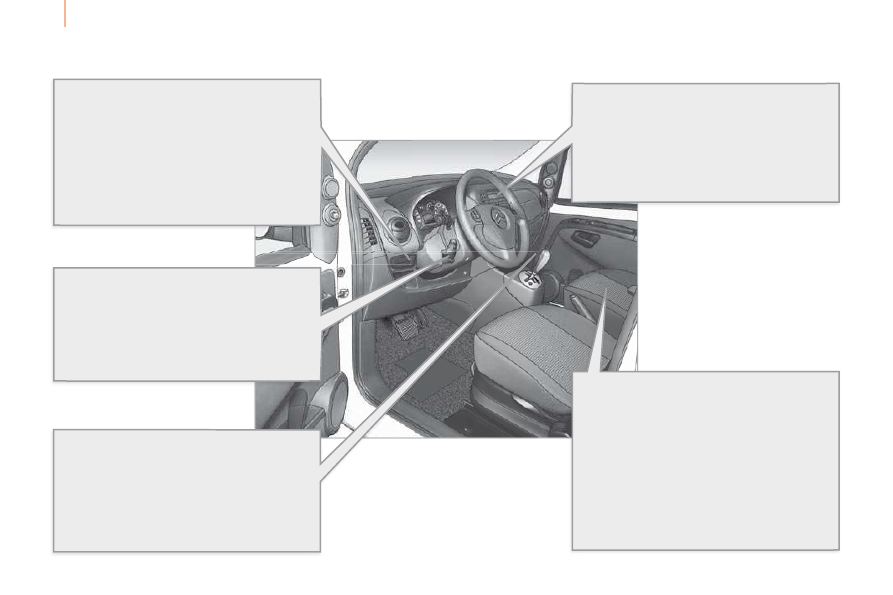

INSTRUMENTS AND CONTROLS

Steering wheel adjustment control.

Lighting and direction indicator control

stalk.

3. Instrument panel.
4. Audio system steering mounted controls.

Bluetooth hands-free system.

5. Driver's airbag.

Horn.

Cruise control switches.

  7.   Gear lever.
  8.   Parking brake.
  9.   Bonnet release.
  10.   Door mirror controls.
  11.   Fusebox.
  12.

Manual headlamp height adjustment.

13.

Side adjustable air vent.

  14.   Front side window demisting vent.
  15.   Electric window controls.
  16.   Windscreen demisting vent.
  17.   Wipers/screenwash/trip computer control

stalk.

18. Steering lock and ignition.
19.

Central adjustable air vents.

  20.   Passenger's airbag.
  21.   MENU button.
  22.   Glove box.
  23.   12 V accessory socket.
  24.

Cigar lighter.

  25.   Ashtray.
  26.   Heating/air conditioning controls.
  27.   Audio system.

ISA

Familiarisation

Familiarisation

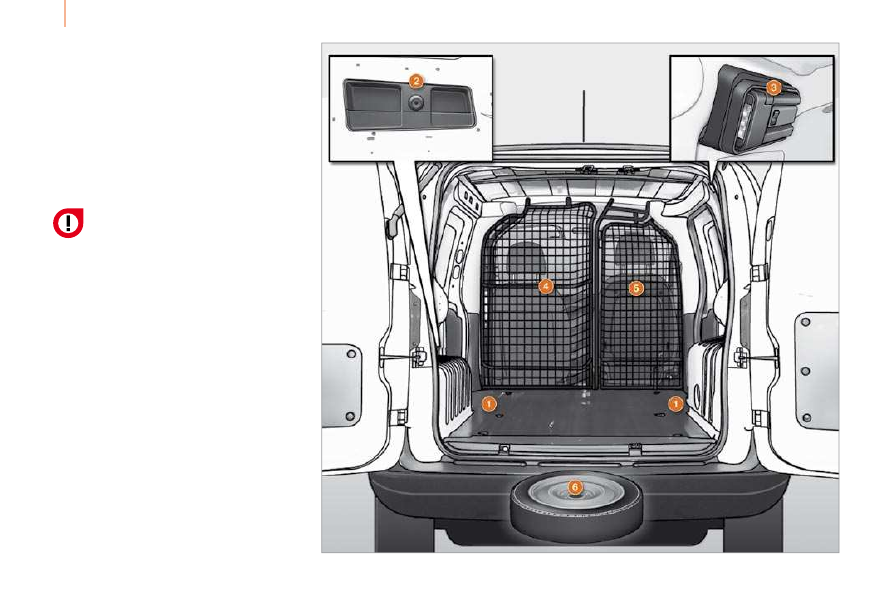

LOAD SPACE (LIGHT VAN)

   1.   Stowing rings.
  2.   Storage tray.
  3.   Torch.
  4.   Partition.
  5.   Modular vertical grille.
  6.   Spare wheel.

 91

It is advisable to immobilise the load
by ﬁ xing it securely using the stowing
rings 1

on the ﬂ oor.

ISA

Familiarisation

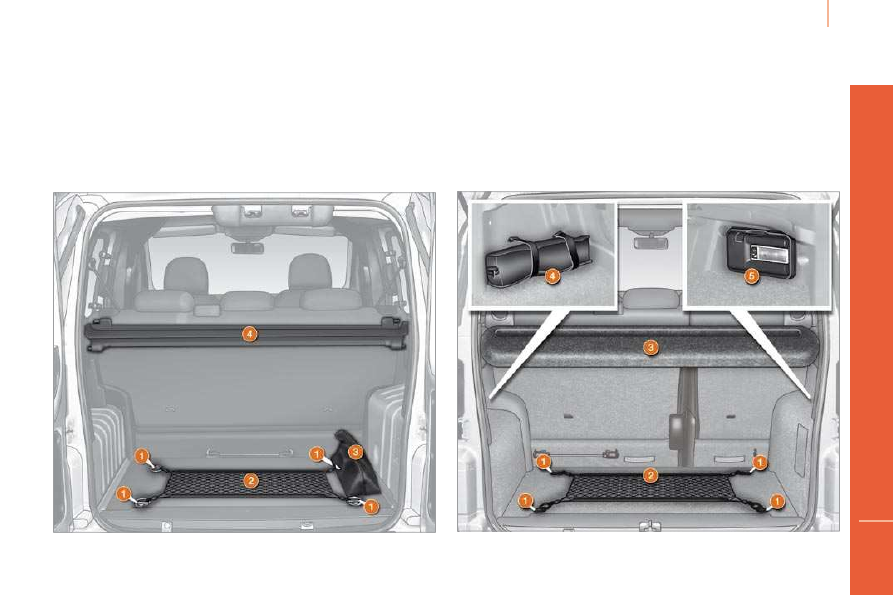

REAR FITTINGS (COMBI)

 93

With side-hinged rear doors

1. Stowing rings.
2.

Luggage retaining net.

3. Tool kit.
4. Rear parcel shelf.

With tailgate

1. Stowing rings.
2.

Luggage retaining net.

  3.   Rear parcel shelf.
  4.   Retaining straps/Tool kit.
  5.   Torch/Boot lamp.

Familiarisation

SITTING COMFORTABLY

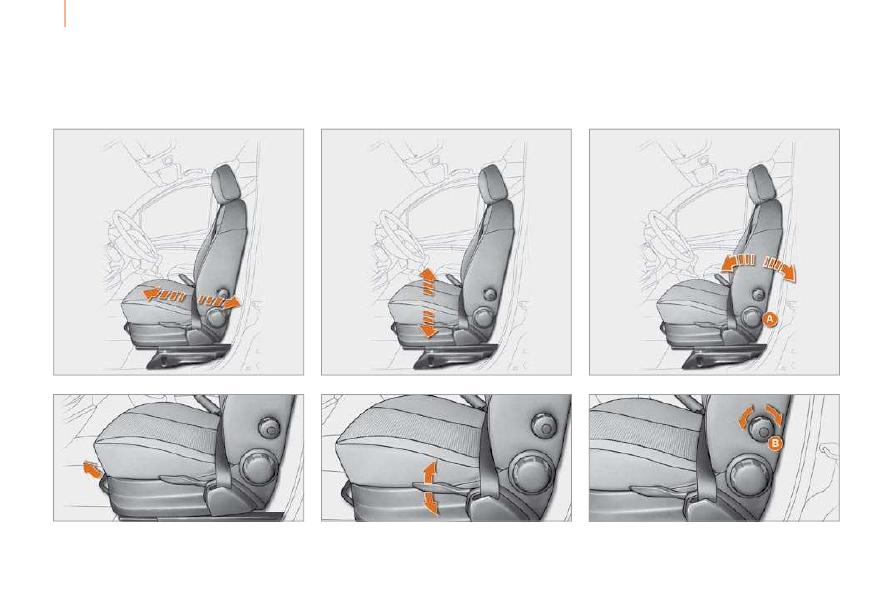

Driver's seat adjustment

Forwards-backwards

Height

Seat back angle (A)

Lumbar support (B)

 78

ISA

Familiarisation

Front seat belts

A. Fastening.

 101

SITTING COMFORTABLY

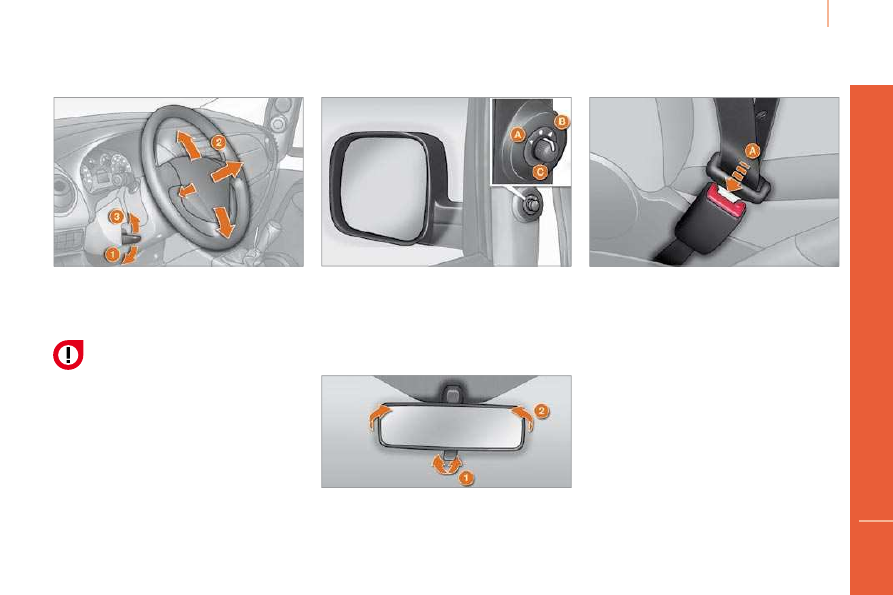

Steering wheel adjustment

Release the adjustment mechanism.

Adjust for height and reach.

Lock the adjustment mechanism.

As a safety precaution, these operations
must only be carried out while
stationary.

 46

Electric door mirror adjustment

  A.   Selection of the driver's mirror.
  B.   Selection of the passenger's mirror.
  C.

Adjustment of the position of the mirror.

 44

Rear view mirror adjustment

1. Selection of the "day/night" position of the

mirror.

Adjustment of the mirror.

 44

Familiarisation

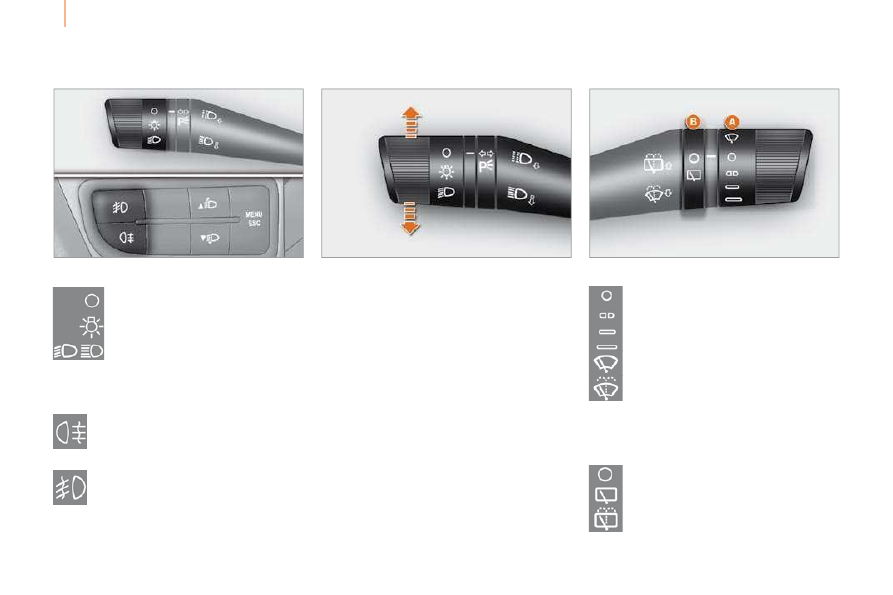

SEEING CLEARLY

Ring

Lighting off.

Sidelamps.

Dipped/main beam headlamps.

Foglamps

Rear foglamp.

Front and rear foglamps.

 39

Direction indicators

"Motorway" function

Press the lighting stalk up or down once,
without passing the point of resistance; the

corresponding direction indicators will ﬂ ash
three times.

 39

Wipers

Ring A: windscreen wipers

 41

Ring B: rear wiper

 41

Single wipe.

Intermittent wipe.

Screenwash.

Park.

Lighting

Park.

Intermittent.

Slow continuous.
Rapid continuous.

Raise or lower the lighting stalk passing the
point of resistance; the corresponding direction

indicators will ﬂ ash until the lighting stalk is
moved out of this position.

ISA

Familiarisation

 86

VENTILATION

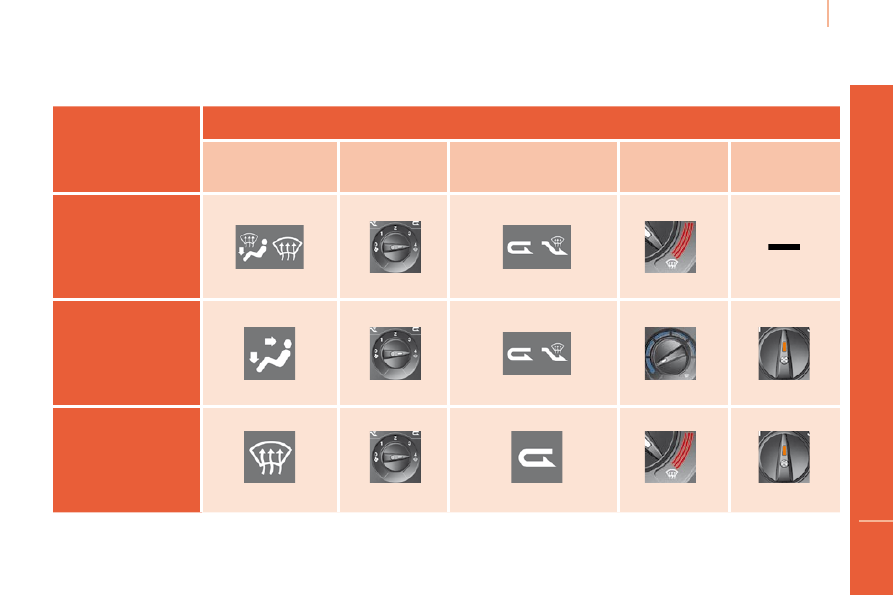

Recommended interior settings

I require...

Heating or Manual Air Conditioning

Air distribution

Air ﬂ ow

Air recirculation/

Intake of outside air

Temperature

Manual A/C

HOT

COLD

DEMISTING

DEFROSTING

Familiarisation

MONITORING

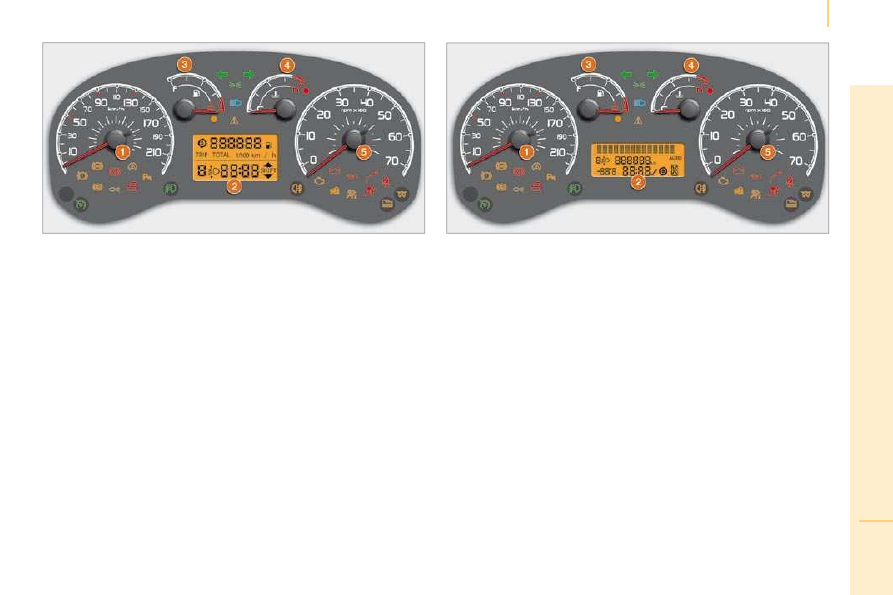

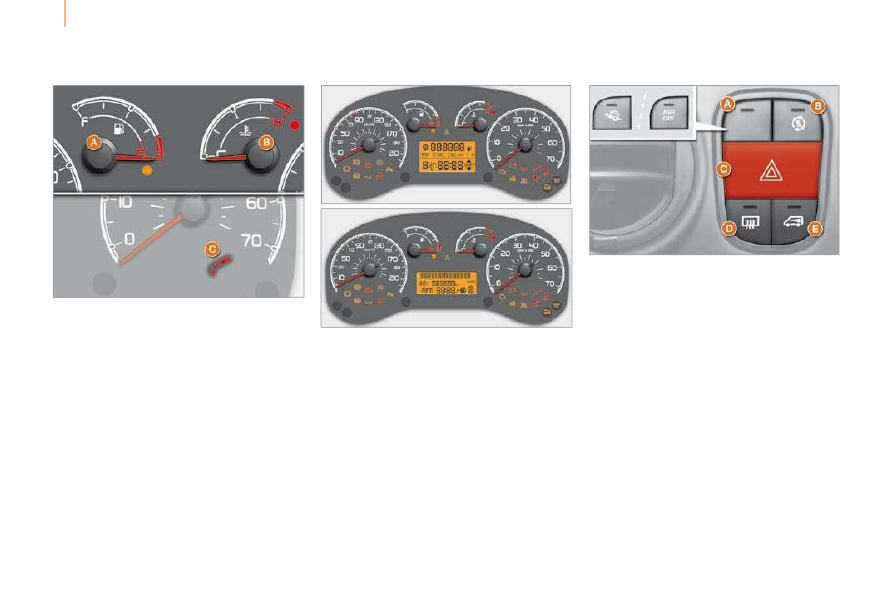

Instrument panel

Switch panel

A. With the ignition on, the needle indicates

the level of fuel remaining.

With the engine running, its associated
warning lamp goes off. If it remains on, this
indicates that you have reached the low
level in the tank.

B. With the ignition on, the needle indicates

the coolant temperature.

With the engine running, its associated
warning lamp goes off.

C. With the ignition on, the oil level warning

lamp does not remain on.

If the levels are not correct, top up the levels
which are low.

A. Intelligent traction control.
 100

1. With the ignition on, the orange and red

warning lamps come on.

2. With the engine running, these warning

lamps should go off.

If warning lamps remain on, refer to the section
concerned.

Warning lamps

 27

Anti-slip regulation.

 98

B. Stop & Start.
 53

C. Hazard warning lamps.
 96

D. Rear screen and mirrors demisting.
 85

Locking/Unlocking the load space

(Light van).

 37

 20

ISA

Familiarisation

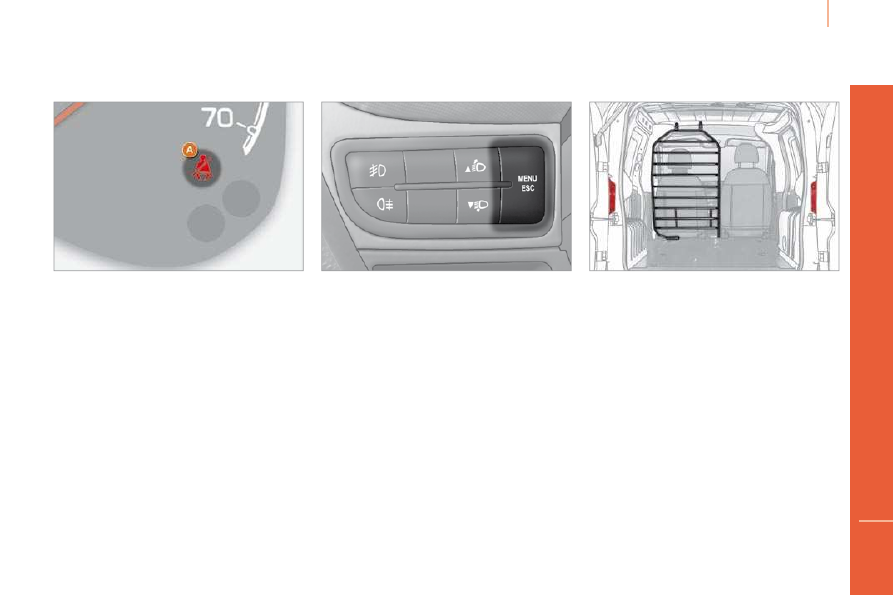

PASSENGER SAFETY

Passenger's front airbag

The passenger's front air bag is deactivated by
means of the MENU button, located to the left
of the steering wheel.

Seat belt not fastened

A. Driver's seat belt not fastened warning

lamp.

 101

 105

Ladder type vertical partition
(Light van)

A ladder type vertical partition protects the
driver against the risk of load movement.

 91

1. Press the MENU button.
2.

Select "Bag" and conﬁ rm by pressing the

MENU button.

Select "OFF" and conﬁ rm by pressing the

MENU button.

Select "YES" and conﬁ rm by pressing the

MENU button.

Familiarisation

DRIVING SAFELY

Electronic gearbox

Display in the instrument panel

Moving off

 48

This ﬁ ve-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual gear
changing.
  N.  neutral.
  R.  reverse.
  M +/-.  sequential mode.
  A.  automated mode.
  E.  economy programme.

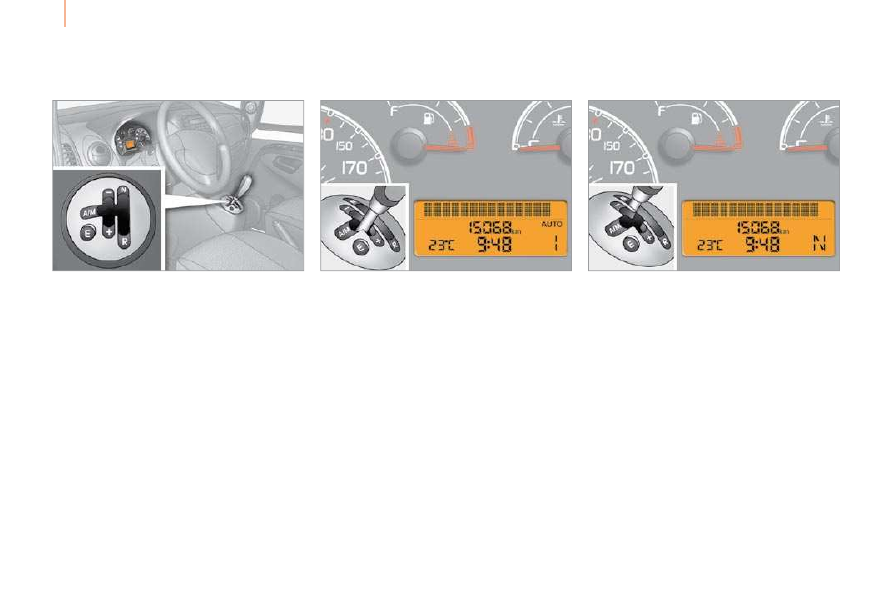

The gear and the driving mode selected
appear in the instrument panel screen.
  N:  neutral.
  R:  reverse gear.
  1 2 3 4 5:  gears engaged.
  AUTO:  automatic mode.
  E:  economy programme.

Select position N and press the brake pedal
ﬁ rmly while starting the engine.
Start the engine.
Engage ﬁ rst gear (move from the middle
position towards +

) or reverse (position R )

using the gear lever.
Release the parking brake.
Release the brake pedal, then move off.

ISA

Familiarisation

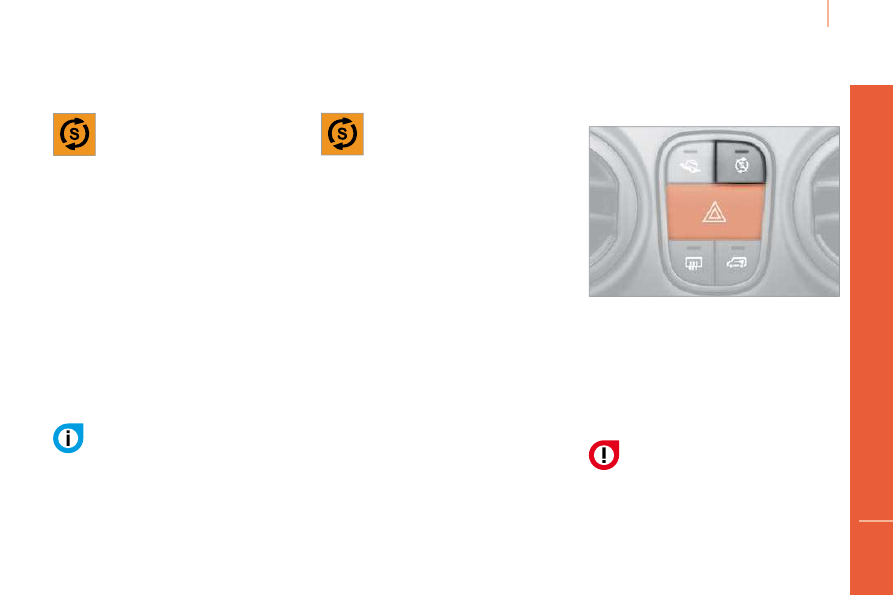

Going into engine STOP mode

Stop & Start

with a manual gearbox; press the clutch
pedal,

with an electronic gearbox;

gear lever in position A or M , release

the brake pedal,

or gear lever in position N and the brake

pedal released, move the gear lever to
position A or M ,

or engage reverse.

Going into engine START mode

DRIVING SAFELY

Deactivation/Reactivation

with a manual gearbox; with the vehicle
stationary, put the gear lever into neutral,
then release the clutch pedal,

with an electronic gearbox; with the
vehicle stationary, maintain pressure on
the brake pedal or put the gear lever in
position N .

You can deactivate the system at any time by
pressing the "S - OFF"

button; the warning

lamp in the button comes on, accompanied by
a message in the instrument panel screen.
The system is automatically reactivated every
time the engine is started with the key.

In certain circumstances, START mode may be
invoked automatically; a message appears in
the instrument panel screen, accompanied by
the "S"

warning lamp, which ﬂ ashes for a few

seconds then goes off.

Before refuelling, before doing anything
under the bonnet or before leaving the
vehicle, you must switch off the ignition
with the key.

In certain circumstances, STOP mode may
not be available; a message appears in the
instrument panel screen, accompanied by the
"S"

warning lamp, which ﬂ ashes for a few

seconds then goes off.

 53

 54

 55

The "S" warning lamp comes on in
the instrument panel and the engine
goes into standby:

The "S" warning lamp goes off and
the engine restarts:

Automatic stopping of the engine is only
possible after a speed of about 6 mph
(10 km/h) has been exceeded, to avoid
repeated stopping of the engine when
driving slowly.

Familiarisation

DRIVING SAFELY

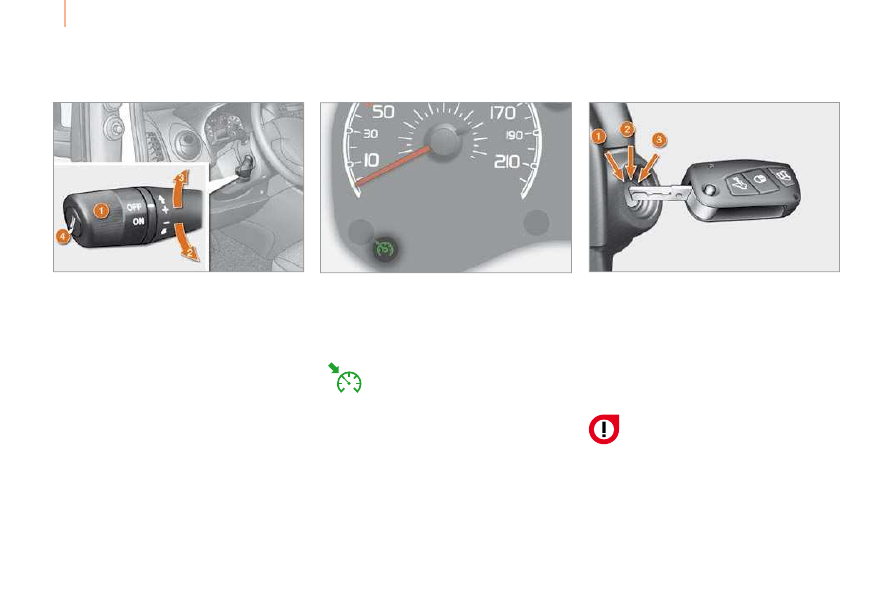

Cruise control

Cruise control mode Selection/Off.

2. Decreasing of the programmed value.
3. Programming of a speed/Increasing of the

programmed value.

Cruise control resume.

In order to be programmed or activated, the
speed of the vehicle must be higher than
18 mph (30 km/h), with at least second gear
engaged in the gearbox.

 42

   1.    STOP  position - Off.
  2.    MAR  position - Ignition on.
  3.    AVV  position - Start.

Ignition switch

The cruise control mode appears in the
instrument panel when selected.

Display in the instrument panel

Cruise control

STARTING

Avoid attaching heavy objects to the
key which could weigh on the key when
in the ignition switch; this could cause
malfunctions.

 32

Instruments and controls

INSTRUMENT PANELS

1. Distance recorder in miles/kilometres.

2. Screen.

3. Fuel gauge.

4. Coolant temperature.

5. Rev counter.

Instrument panel with level 1 screen

Instrument panel with level 2 screen

Instrument panel level 1 screen

- Time.

- Miles/Kilometres travelled.

- Trip computer/range, fuel consumption,

average speed.

- Headlamp beam height.

- Programmable overspeed warning.

- Gear shift indicator.

- Stop & Start.

- Activating or deactivating the passenger's

airbag.

Instrument panel level 2 screen

- Time.

- Date.

- Radio.

- Miles/Kilometres travelled.

- Ambient temperature.

- Modes and gear engaged on the

electronic gear control gearbox,

- Trip computer/range, fuel consumption,

average speed

- Headlamp beam height,

- Programmable overspeed warning,

- Selection of the display language,

- Gear shift indicator.

- Stop & Start.

- Activating or deactivating the passenger's

airbag,

- Activation or deactivation of automatic

door locking on moving off.

Content .. 1 2 ..
