319

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

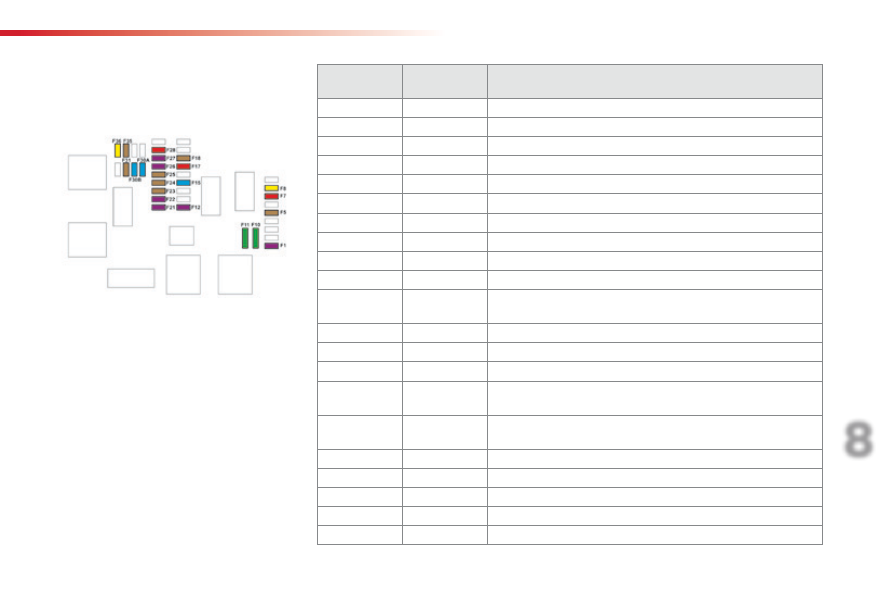

Fuse

N°

Rating

(A)

Functions

"Keyless Entry and Starting" system or ignition switch.

Touch screen, reversing camera and parking sensors.

Rear air conditioning controls, Hi-Fi amplifier.

Single or double rear wiper.

F10/F11

Front and rear, exterior, interior locks.

F12

Alarm.

F17

Rear 12 V accessory socket.

F18

Emergency and assistance calls.

F21

Torch charger, rear courtesy lamp.

F22

Glove box lamp, rear courtesy lamps.

F23

Blind spot monitoring system, door mirror electric

controls.

F24

Steering mounted controls.

F25

Headlamp beam height control.

F26

Seat belt unfastened or not fastened display screen.

F27

Rain and sunshine sensor, multifunction detection

camera.

F28

Front air conditioning controls, radio controls, gear lever,

head-up display.

F30A or B

Audio system (battery +).

F31

Airbags.

F33

Front 12 V accessory socket.

F35

Instrument panel.

F36

Audio system, touch screen, CD player, navigation.

Version 2 (Full)

The fuses described hereafter vary according
to the equipment in your vehicle.

320

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

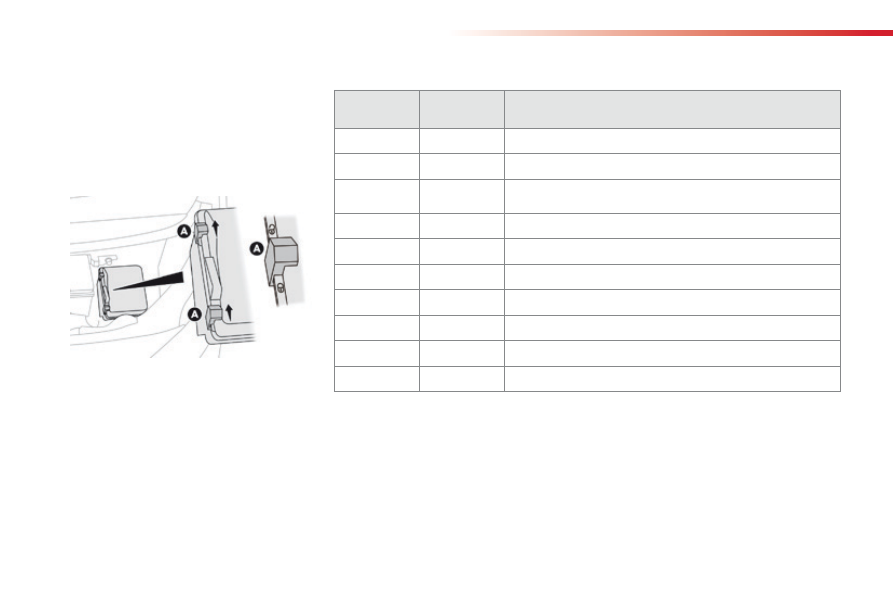

Engine compartment
fuses

F Release the two latches A

Remove the cover.

Change the fuse.

F When you have finished, close the cover

carefully then engage the two latches A, to
ensure correct sealing of the fusebox.

Fuse

N°

Rating

(A)

Functions

F12

Heated washer jets.

F14

Front and rear screenwash pump.

F15

Front radar and emergency braking, electric power
steering.

F17

Built-in systems interface.

F19

Front wiper motor.

F20

Front and rear screenwash pump.

F21

Headlamp wash pump.

F22

Horn.

F23

Right hand main beam headlamp.

F24

Left hand main beam headlamp.

The fusebox is located in the engine
compartment near the battery.

The fuses described hereafter vary according to the equipment in your vehicle.

Access to the fuses

321

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

12 V battery

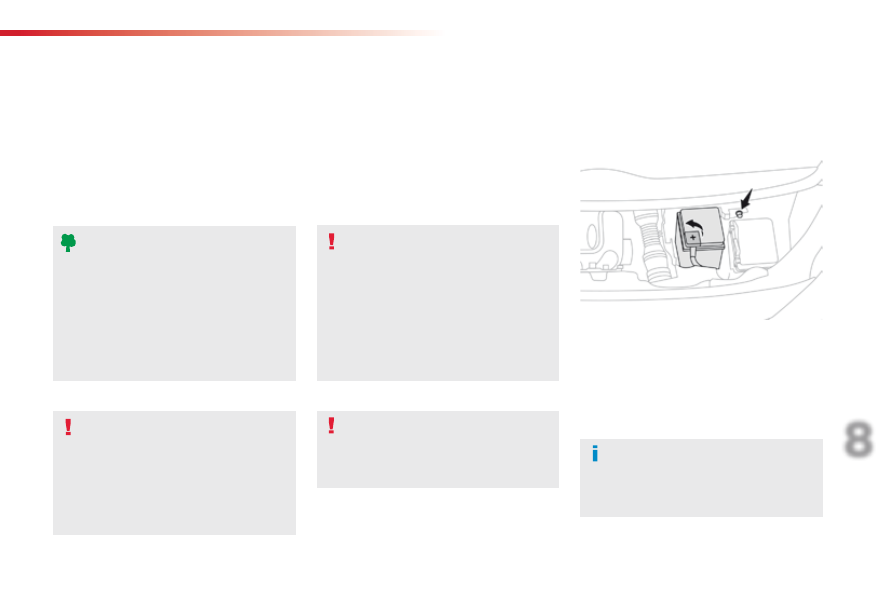

The battery is located under the bonnet.
F

Open the bonnet using the interior release

lever, then the exterior safety catch.

Secure the bonnet stay.

Access to the battery

Procedure for starting the engine using another
battery or charging a discharged battery.

General points

Lead-acid starter batteries

Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.

Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.

If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.

Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.

For more information on the Bonnet
and Engine

, refer to the corresponding

section(s).

F If fitted to your vehicle, remove the plastic

cover to access the (+) terminal.

The battery (-) terminal is not accessible.
A remote earth point is provided at the front of
the vehicle.

322

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

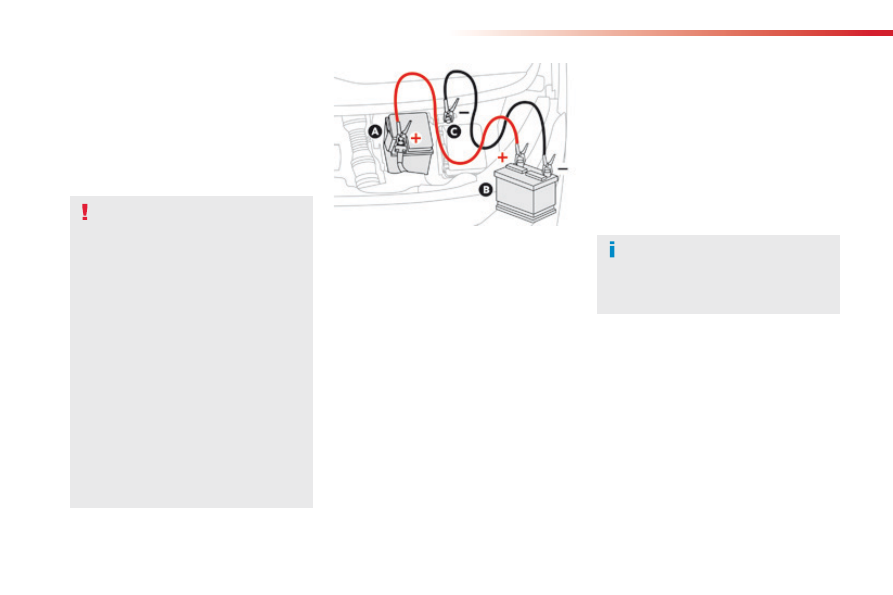

Starting using another
battery

Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
booster.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.

Raise the plastic cover on the (+) terminal,

if your vehicle has one.

F Connect the red cable to the positive

terminal (+) of the flat battery A (at
the metal elbow) then to the positive
terminal (+) of the slave battery B or the
booster.

Connect one end of the green or black

cable to the negative terminal (-) of the
slave battery B

or the booster (or earth

point on the other vehicle).

Connect the other end of the green or black

cable to the earth point C

on the broken

down vehicle.

Start the engine of the vehicle with the

good battery and leave it running for a
few minutes.

Operate the starter on the broken down

vehicle and let the engine run.

If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.

When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.

Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

Wait until the engine returns to idle then

disconnect the jump lead cables in the
reverse order.

Refit the plastic cover to the (+) terminal,

if your vehicle has one.

Allow the engine to run for at least

30 minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

323

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
-

if you use your vehicle essentially for short
journeys,

- if the vehicle is to be taken off the road for

several weeks.

Contact a CITROËN dealer or a qualified
workshop.

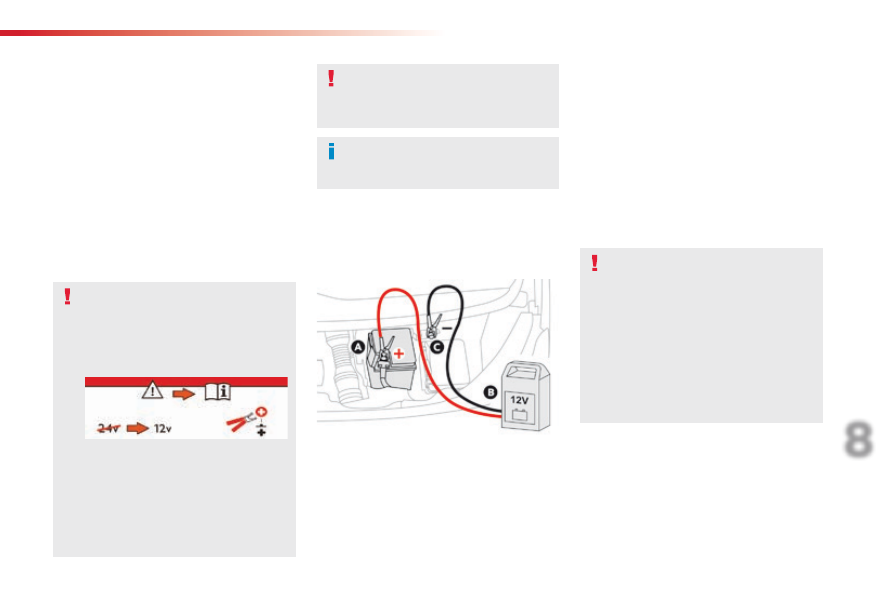

Charging the battery using
a battery charger

Switch off the ignition.

Switch off all electrical consumers (audio

system, lighting, wipers, ...).

If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.

Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.

Never try to charge a frozen battery.
If the battery has been frozen, have
it checked by a CITROËN dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.

It is not necessary to disconnect the
battery.

Switch off the charger B before connecting

the cables to the battery, so as to avoid any
dangerous sparks.

Ensure that the charger cables are in good

condition.

F Raise the plastic cover, if your vehicle has

one, on the (+) terminal.

Connect the charger B cables as follows:

- the positive (+) red cable to the (+)

terminal of the battery A,

- the negative (-) black cable to the earth

point C

on the vehicle.

At the end of the charging operation, switch

off the charger B before disconnecting the
cables from the battery A

324

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

Do not force the lever as locking will
not be possible if the clamp is not
positioned correctly; start the procedure
again.

Disconnecting the battery

In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
F close the windows and the doors before

disconnecting the battery,

F switch off all electrical consumers

(audio system, wipers, lighting, ...),

switch off the ignition and wait for

four minutes.

Having exposed the battery, it is only
necessary to disconnect the (+) terminal.

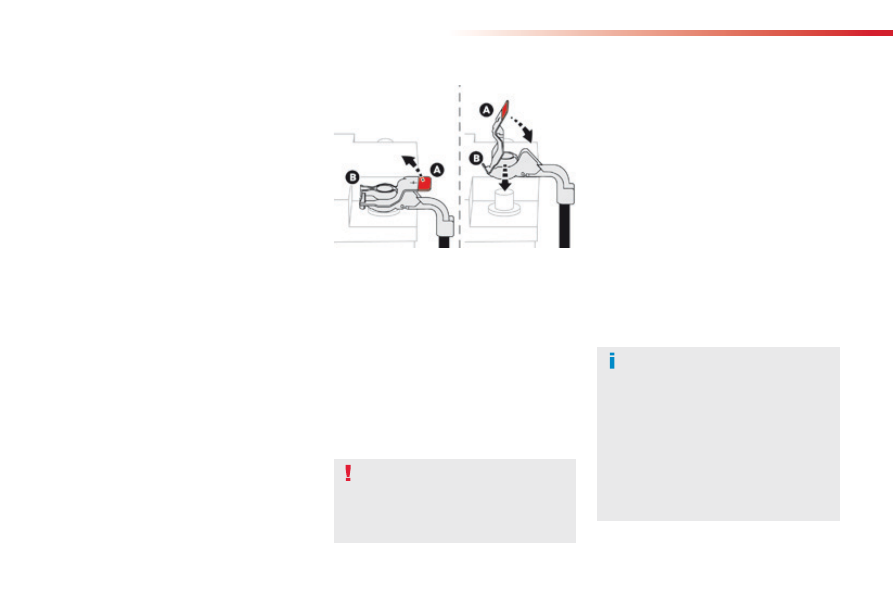

Quick release terminal

Disconnecting the (+) terminal

F Raise the lever A fully to release the

clamp B

Following reconnection of the battery

Reconnecting the (+) terminal

F Position the open clamp B of the cable on

the positive post (+) of the battery.

F Press down on the clamp to position it

correctly on the battery post.

Lock the clamp by lowering the lever A.

After reconnecting the battery, switch on the
ignition and wait 1 minute before starting to
allow initialisation of the electronic systems.
However, if minor problems persist following
this operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise or reset certain
systems, such as:
- the remote control or electronic key

(depending on version),

the electric windows,

the date and time,

- the radio preset stations.

The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).

325

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

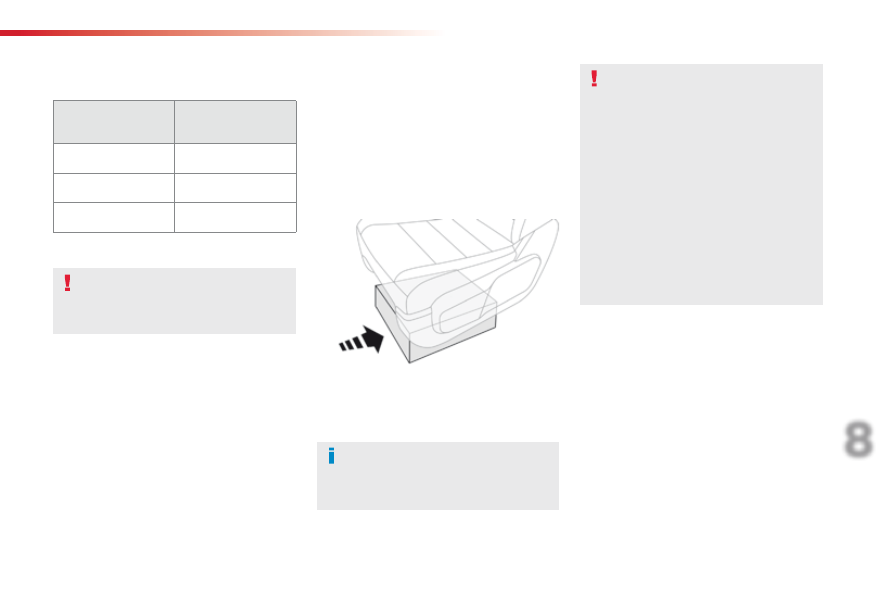

Battery capacity

Vehicle length

Rating in Ah

(Ampere hours)

Compact (L1)

480

Standard (L2)

640

Long (L3)

720 / 800

Always replace the battery by one of
equivalent specification.

Towing

Access to the tools

The towing eye is stowed in the tool box.

For more information on the Tool box,
refer to the corresponding section.

Procedure for having your vehicle towed or
for towing another vehicle using a removable
towing eye.

If your vehicle is fitted with a manual
gearbox, put the gear lever into neutral.

If your vehicle has an automatic or
electronic gearbox, place the gear
selector at position N

The failure to observe this special point
may lead to damage to components
of the braking system and the lack of
braking assistance on restarting the
engine.

326

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

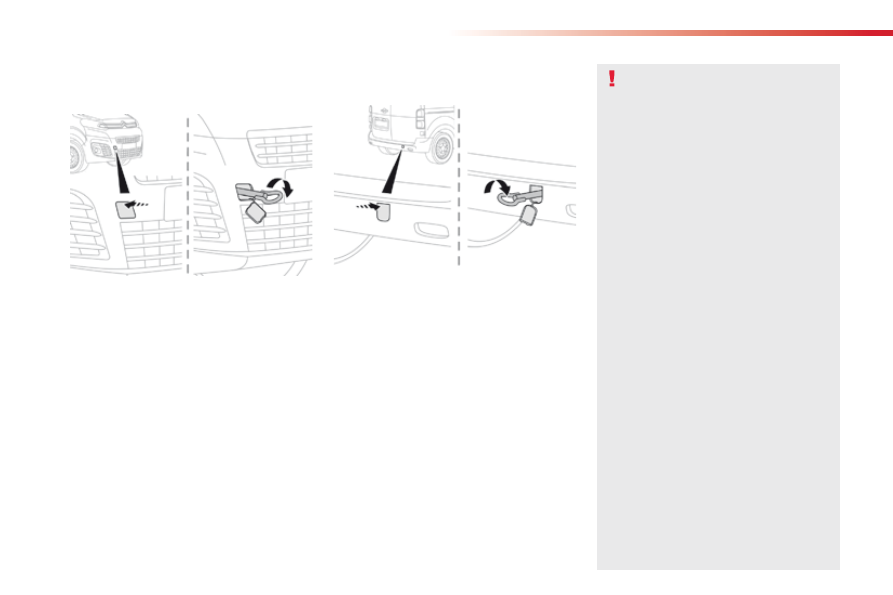

F On the front bumper, press the cover

(as shown above) to unclip it.

Screw the towing eye in fully.

Install the towing arm.

Switch on the hazard warning lamps on the

towed vehicle.

Move off gently and drive slowly over a

short distance only.

Towing your vehicle

F On the rear bumper, press the cover

(as shown above) to unclip it.

Screw the towing eye in fully.

Install the towing arm.

Switch on the hazard warning lamps on the

towed vehicle.

Move off gently and drive slowly over a

short distance only.

Towing another vehicle

General
recommendations

Observe the legislation in force in your
country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps
are prohibited.
The towing vehicle must move off gently.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
- vehicle broken down on a motorway

or fast road,

four-wheel drive vehicle,

when it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,

- towing with only two wheels on the

ground,

- where there is no approved towing

arm available...

327

In the event of a breakdown

Jumpy_en_Chap08_En-cas-de-panne_ed01-2016

On vehicles fitted with Diesel engines, the fuel
system must be primed if you run out of fuel.
For all versions other than BlueHDi, refer to the
corresponding engine compartment view.

Running out of fuel (Diesel)

For more information on Diesel misfuel
prevention

, refer to the corresponding

section.

F Add at least five litres of Diesel fuel to

the tank.

Open the bonnet.

If necessary, unclip the styling cover for

access to the priming pump.

Squeeze and release the priming pump

repeatedly until resistance is felt (there
may be resistance at the first press).

Operate the starter to start the engine

(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).

If the engine does not start after a few

attempts, operate the priming pump again
then start the engine.

Refit the styling cover and clip it in place.

Close the bonnet.

1.6 HDi engine

(except BlueHDi)

If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.

BlueHDi engine

Fill the fuel tank with at least five litres of

Diesel.

Switch on the ignition (without starting the

engine).

F Wait around 6 seconds and switch off the

ignition.

Repeat the operation 10 times.

Operate the starter to run the engine.

Other engines

F Add at least five litres of Diesel fuel to the

tank.

Open the bonnet.

If necessary, unclip the styling cover for

access to the priming pump.

Squeeze and release the priming pump

repeatedly until resistance is felt (there
may be resistance at the first press).

Operate the starter to start the engine

(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).

If the engine does not start after a few

attempts, operate the priming pump again
then start the engine.

Refit the styling cover and clip it in place.

Close the bonnet.

328

Technical data

Jumpy_en_Chap09_caracteristiques-techniques_ed01-2016

Mirrors folded

Side-hinged doors

Tailgate

Compact (L1)

Standard (L2)

Long (L3)

* Increased payload.
** Payload increased with high body.
*** Depending on the country of sale.

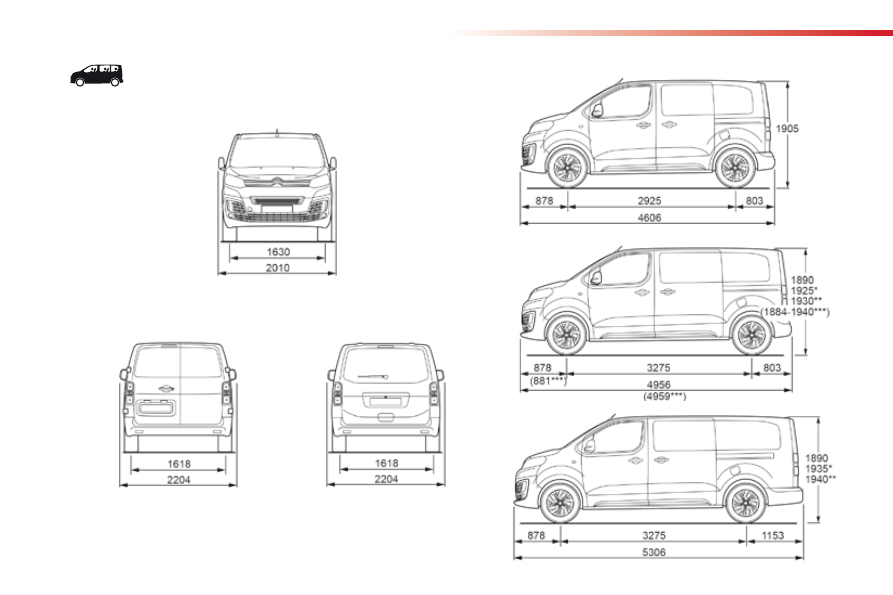

Dimensions (in mm)

These dimensions have been measured on an unladen vehicle.

329

Technical data

Jumpy_en_Chap09_caracteristiques-techniques_ed01-2016

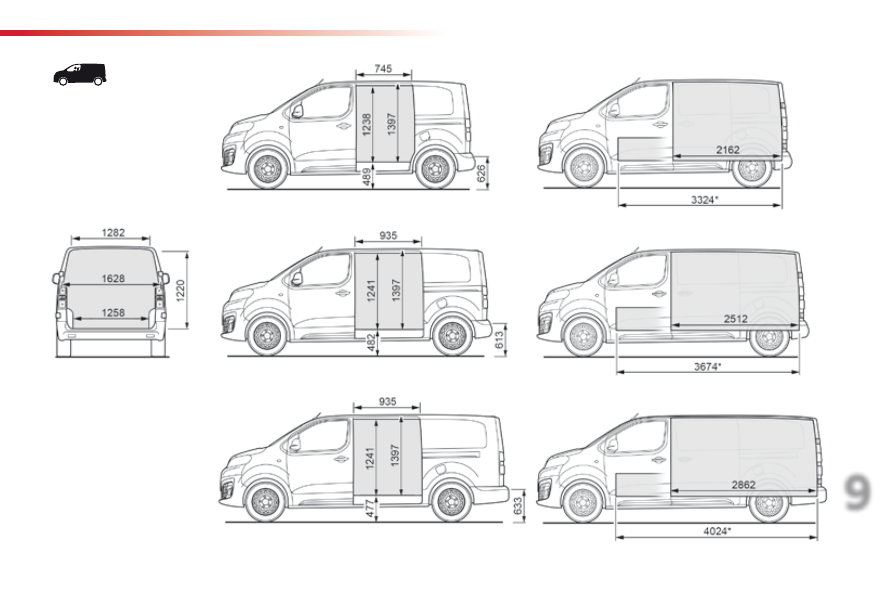

* With moduwork, flap removed.

Compact (L1)

Standard (L2)

Long (L3)

330

Technical data

Jumpy_en_Chap09_caracteristiques-techniques_ed01-2016

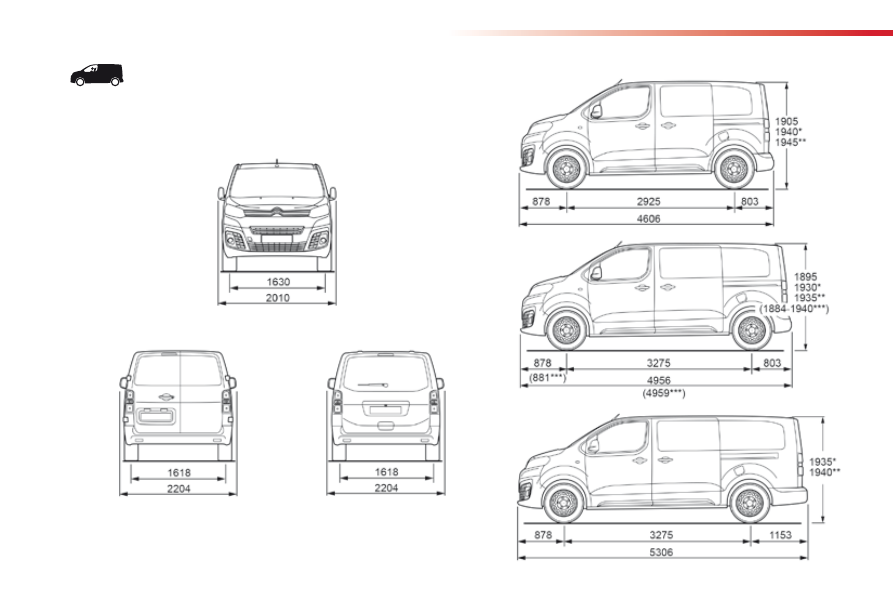

Mirrors folded

Side-hinged doors

Tailgate

Compact (L1)

Standard (L2)

Long (L3)

* Increased payload.
** Payload increased with high body.
*** Depending on the country of sale.

331

Technical data

Jumpy_en_Chap09_caracteristiques-techniques_ed01-2016

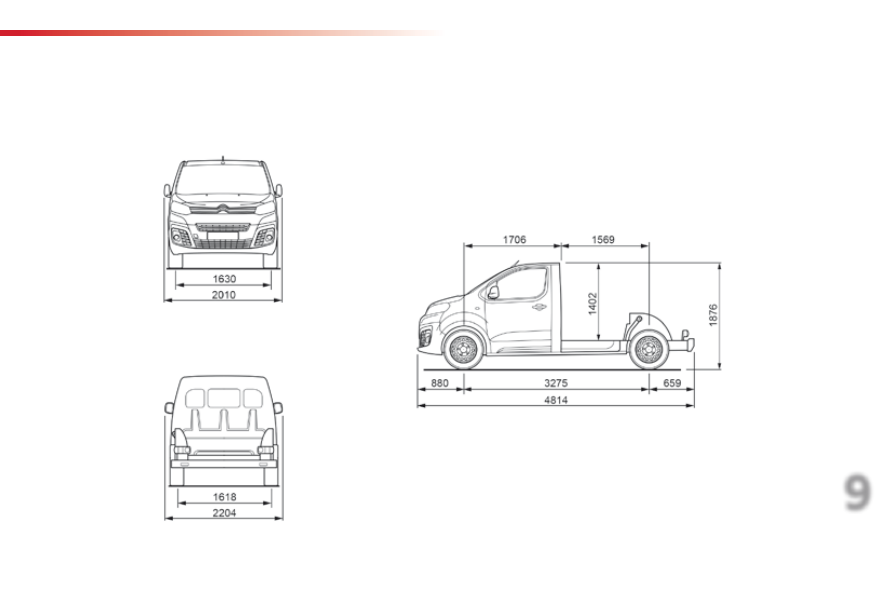

Platform cab

332

Technical data

Jumpy_en_Chap09_caracteristiques-techniques_ed01-2016

Engines

Engine characteristics

The engine characteristics (capacity,
maximum power, maximum power speed, fuel,
CO

emissions...) for your vehicle are given in

the registration document, as well as in sales
brochures.
These characteristics correspond to the
values type-approved on a test bed, under
conditions defined in European legislation
(Directive 1999/99/EC).
For more information, contact a CITROËN
dealer or a qualified workshop.

Weights

The kerb weight is equal to the unladen
weight + driver (75 kg).
The GTW and towed load values indicated
apply up to a maximum altitude of
1 000 metres; the towed load mentioned
must be reduced by 10 % for every additional
1 000 metres.
The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GVW of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towbar ball (removable with or
without tools).

High ambient temperatures may result
in a reduction in the performance of
the vehicle to protect the engine; when
the ambient temperature is higher than
37 °C, limit the towed weight.

If the ambient temperature is high, it
is recommended that the engine be
allowed to idle for 1 to 2 minutes after
the vehicle comes to a stop, to facilitate
its cooling.

Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
Never exceed 60 mph (100 km/h) when
towing (comply with the legislation in
force in your country).

GVW:

gross vehicle weight, the maximum

authorised vehicle weight.

GTW:

gross train weight, the maximum

authorised weight of vehicle plus trailer.

Weights and towed
loads

The maximum weights and towed loads for your
vehicle are given are given in the registration
document, as well as in sales brochures.
These values are also present on the
manufacturer's plate or label.
For more information, contact a CITROËN
dealer or a qualified workshop.

333

Technical data

Jumpy_en_Chap09_caracteristiques-techniques_ed01-2016

EURO 4 and 5 Diesel engines

* Increased payload.

Engine

code

Gearbox

Engine oil capacity

with filter replacement

(litres)

Length

Unbraked trailer

weight (kg)

8-9 seats

Trailer nose

weight (kg)

8-9 seats

1.6 litre HDi 90

9HF

(DV6DU)

Manual

(5-speed)

L1, L2, L3

L2*, L3*

2 litre HDi 150

AHX

(DW10F)

Manual

(6-speed)

6.1

L1, L2, L3

L2*, L3*

EAT6 automatic

(6-speed)

L1, L2, L3

L2*, L3*

334

Technical data

Jumpy_en_Chap09_caracteristiques-techniques_ed01-2016

Engine

code

Gearbox

Engine oil capacity

with filter replacement

(litres)

Length

Unbraked trailer

weight (kg)

8-9 seats

Trailer nose

weight (kg)

8-9 seats

2 litre BlueHDi

150

AHX

(DW10FD)

Manual

(6-speed)

6.1

L1, L2, L3

L2*, L3*

EAT6 automatic

(6-speed)

L1, L2, L3

L2*, L3*

* Increased payload.

Content .. 19 20 21 22 ..
