271

Technical data

DS5_en_Chap10_caracteristiques_ed02-2015

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing, the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

* The kerb weight is equal to the unladen weight + driver (75 kg).

diesel engine

BlueHdi 115 S&S

BlueHdi 120 S&S

Gearbox

Manual

(6-speed)

EAT6 automatic

(6-speed)

Manual

(6-speed)

EAT6 automatic

(6-speed)

Model code

BHXM/S -M/1S -M/2S

BHXT/S - T/1S -T/2S

BHZM/S -M/1S -M/2S

BHZT/S - T/1S -T/2S

- Unladen weight

1 528

1 605

1 528

1 605

- Kerb weight*

1 603

1 680

1 603

1 680

- Gross vehicle weight (GVW)

2 150

2 225

2 150

2 225

- Gross train weight (GTW)

on a 12% gradient

3 150

2 800

3 150

2 800

- Braked trailer (within the GTW limit)

on a 10% or 12% gradient

1 000

575

1 000

575

- Unbraked trailer

745

575

745

575

- Recommended nose weight

Diesel weights and towed loads (in kg) - Commercial versions

DS5_en_Chap10_caracteristiques_ed02-2015

* The kerb weight is equal to the unladen weight + driver (75 kg).

diesel engine

BlueHdi 135 S&S

BlueHdi 150 S&S

BlueHdi 180 S&S

Gearbox

Manual

(6-speed)

Manual

(6-speed)

EAT6 automatic

(6-speed)

Model code

AHv AHSM/S -M/1S -M/2S

AHX AHRM/S -M/1S -M/2S

AHWT/S -T/1S -T/2S

- Unladen weight

1 635

1 634

- Kerb weight*

1 710

1 709

- Gross vehicle weight (GVW)

2 255

- Gross train weight (GTW)

on a 12% gradient

3 305

- Braked trailer (within GTW limit)

on a 10% or 12% gradient

1 050

- Unbraked trailer

750

- Recommended nose weight

Diesel weights and towed loads (in kg) - Commercial versions

273

Technical data

DS5_en_Chap10_caracteristiques_ed02-2015

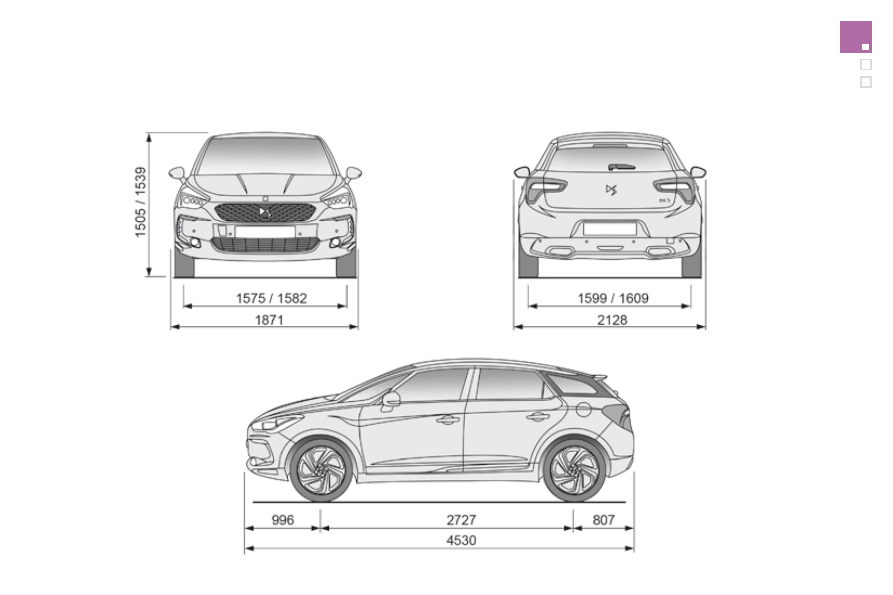

Dimensions (in mm)

These dimensions have been measured on an unladen vehicle.

DS5_en_Chap10_caracteristiques_ed02-2015

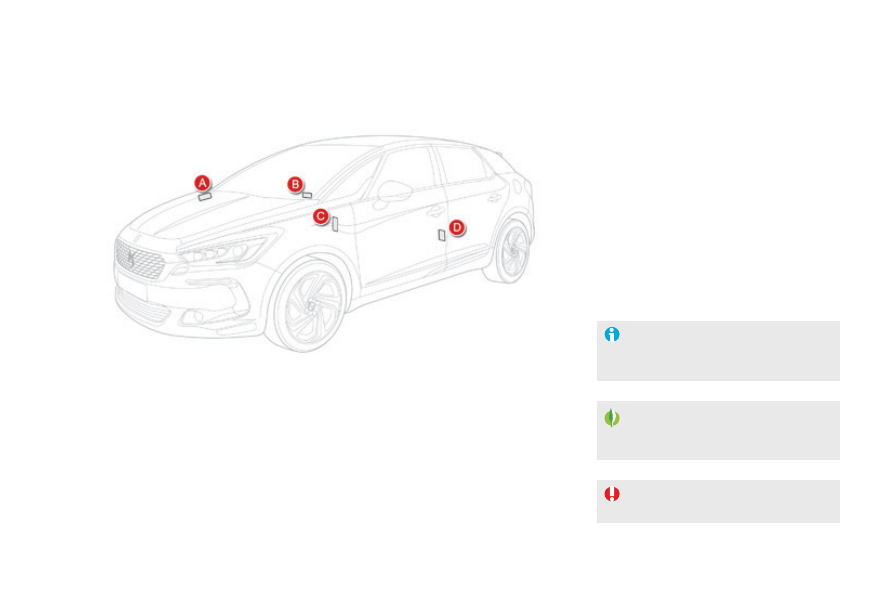

Identification markings

Various visible markings for the identification of your vehicle.

A. vehicle Identification Number (vIN)

under the bonnet.

This number is engraved on the bodywork
near the damper support.

The tyre pressures must be checked
when the tyres are cold, at least once
a month.

If the tyre pressures are too low, this
increases fuel consumption.

B. vehicle identification Number (vIN) on

the windscreen lower cross member.

This number is indicated on a self-adhesive
label which is visible through the windscreen.

c. Manufacturer's label.

The VIN is indicated on a self-destroying
label affixed to the door aperture, on the
passenger's side.

d. Tyre/paint label.

This label is affixed to the centre pillar, on
the driver's side.

It bears the following information:
- the tyre inflation pressures, laden and

unladen,

-  the tyre sizes,
-  the inflation pressure of the spare wheel,
-  the paint colour code.

The rear quarter light cannot be etched
as it is made of polycarbonate material.

275

Technical data

DS5_en_Chap10_caracteristiques_ed02-2015

011

DS5_en_Chap11a_audio_ed02-2015

Audio and telematics

DS5_en_Chap11b_BTA_ed02-2015

Emergency or assistance call

If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.

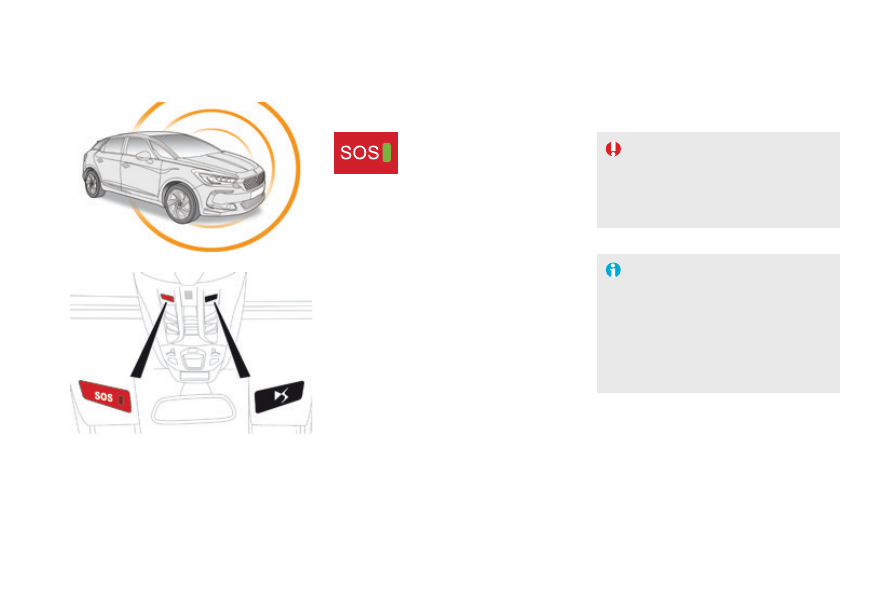

Localised Emergency call

In an emergency, press this
button for more than 2 seconds.
Flashing of the green indicator
lamp and a voice message
confirm that the call has
been made to the "Localised
Emergency Call"* centre.

Pressing this button again immediately cancels
the call.
The green indicator lamp goes off.
At any time, pressing this button for more than
8 seconds cancels the call.

The green indicator lamp remains on (without
flashing) when communication is established.
It goes off at the end of the call.

This call is dealt with by the "Localised
Emergency Call" centre, which receives
locating information from the vehicle and
can send a detailed alert to the appropriate
emergency services.
In countries in which a centre is not
operational, or when the locating service
has been expressly declined, the call is dealt
with directly by the emergency services (112)
without the vehicle location.

* These services are subject to conditions and

availability.

Consult a CITROËN dealer.

If you benefit from the DS Connect BOX
offer with the SOS and assistance
pack included, you also have available
additional services in your MyCITROËN
personal space,
via the CITROËN Internet website in
your country, accessible on
www.citroen.com.

279

Audio and Telematics

DS5_en_Chap11b_BTA_ed02-2015

* These services are subject to conditions and

availability.

Consult a CITROËN dealer.

Localised Assistance call

If you purchased your vehicle outside
the CITROËN dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.

For technical reasons, particularly
to improve the quality of Telematic
services to customers, the
manufacturer reserves the right to
carry out updates to the vehicle's on-
board telematic system.

Press this button for more than
2 seconds to request assistance
if the vehicle breaks down.
A voice message confirms that
the call has been started*.

Pressing this button again immediately cancels
the request.
The cancellation is confirmed by a voice
message.

Operation of the system

When the ignition is switched on,
the green indicator lamp comes
on for 3 seconds indicating that
the system is operating correctly.

The orange indicator lamp is on fixed: the back-
up battery should be replaced.
In both cases, the emergency and assistance
calls service may not work.
Contact a qualified repairer as soon as
possible.

The orange indicator lamp
flashes then goes off: the system
has a fault.

The fault with the system does not
prevent the vehicle being driven.

DS5_en_Chap11b_BTA_ed02-2015

281

Audio and Telematics

DS5_en_Chap11d_RD5_ed02-2015

Audio system / Bluetooth

Contents

First steps

282

Steering mounted controls

Frequently asked questions

303

The system is coded in such a way that it will only operate in
your vehicle.

As a safety measure, the driver must only carry out operations
which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of
the battery, the audio system may switch off after a few minutes.

DS5_en_Chap11d_RD5_ed02-2015

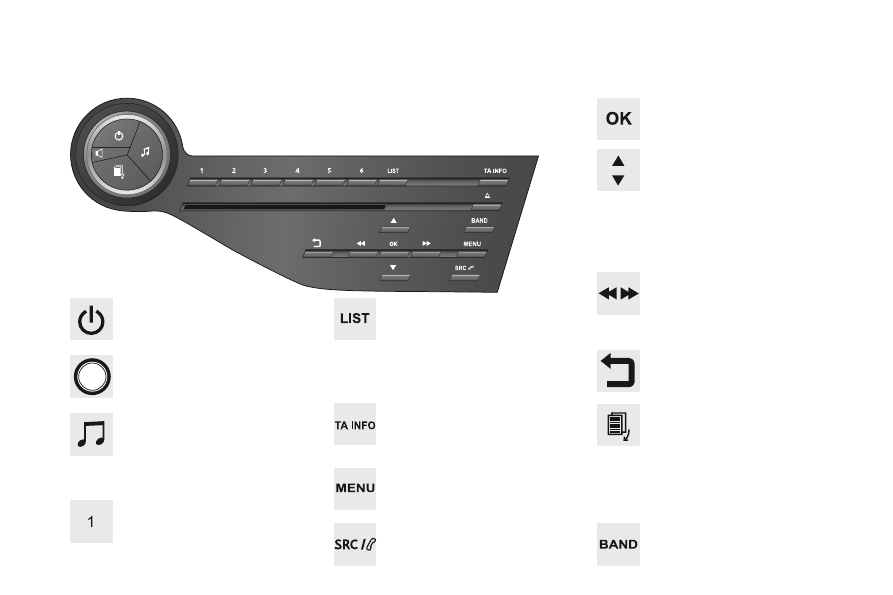

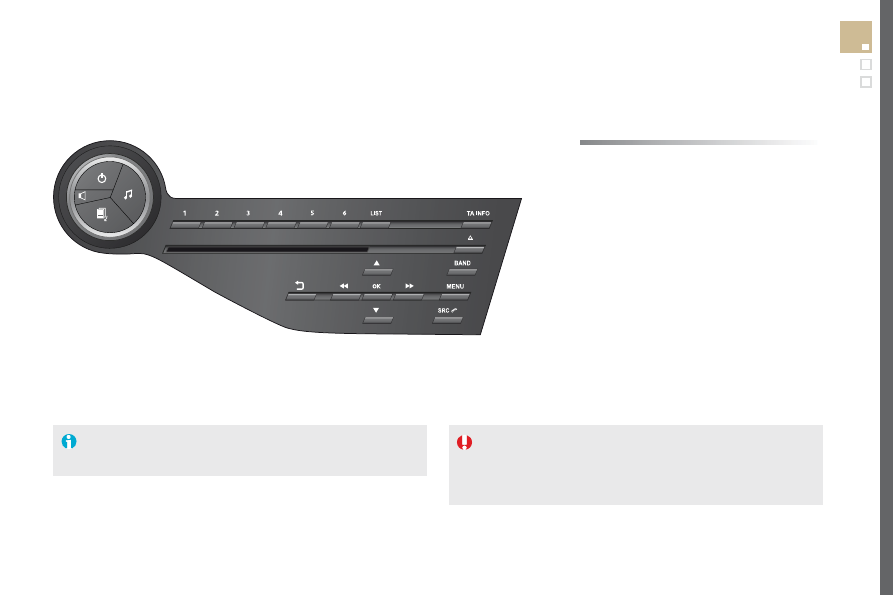

First steps

On / Off.

Volume adjustment.

Select preset radio station.
Long press: store a station.

Display the list of stations received,
CD/MP3 tracks or folders.
Long press: managing the
classification of MP3/WMA files /
update the list of stations received.

Audio settings:
audio ambiences, treble, bass,
loudness, distribution, left/right
balance, front/rear fader, automatic
volume.

TA (Traffic Announcement) function
On / Off.
Long press: access to type of
information.

Automatic search up / down for radio
frequencies.
Select previous / next CD, USB,
streaming track.
Navigation in a list.

Access to main menu.

Abandon the current operation.
Up one level (menu or folder).

Confirmation or display of contextual
menu.

Manual step by step search up /
down for radio frequencies.
Select previous / next MP3 folder.
Select previous / next folder / genre /
artist / playlist in the USB device.
Navigation in a list.

Select AM / FM wavebands.

Select source:
Radio, CD, AUX, USB, Streaming.
Accept an incoming call.

Select screen display between modes:
Full screen: Audio (or telephone if call
in progress) /
In a window: Audio (or telephone
if call in progress) - Time or Trip
computer.
Long press: black screen (DARK).

283

Audio and Telematics

DS5_en_Chap11d_RD5_ed02-2015

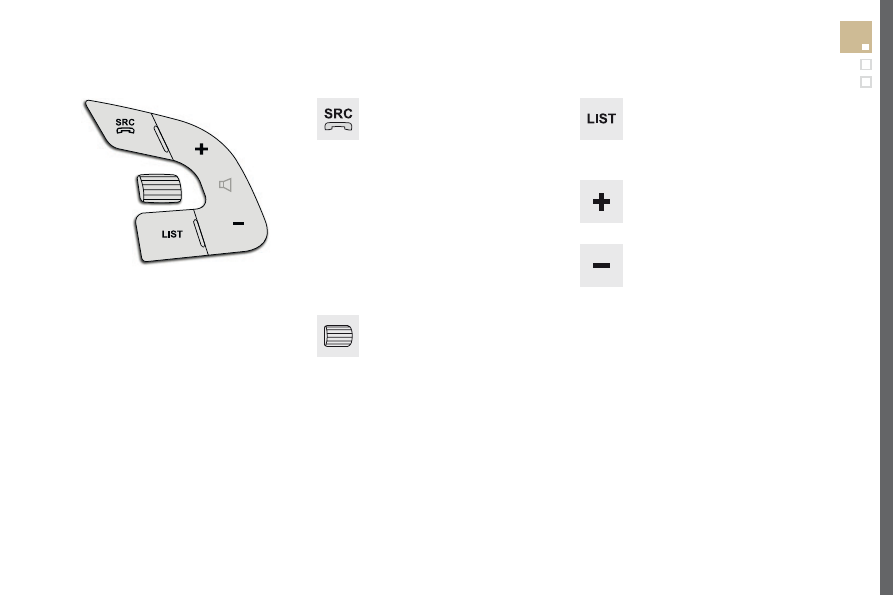

Steering mounted controls

Media: change the multimedia
source.
Telephone: call.
Call in progress: access to the
telephone menu (end call, secret
mode, hands-free mode).
Telephone, press and hold: reject an
incoming call, end a call; when there
is no call in progress, access to the
telephone menu.

Decrease volume.

Radio, rotate: automatic search for
the previous / next station.
Media, rotate: previous / next track.
Press: confirm a selection.

Radio: display the list of stations.
Media: display the list of tracks.
Radio, press and hold: update the list
of stations received.

Increase volume.

DS5_en_Chap11d_RD5_ed02-2015

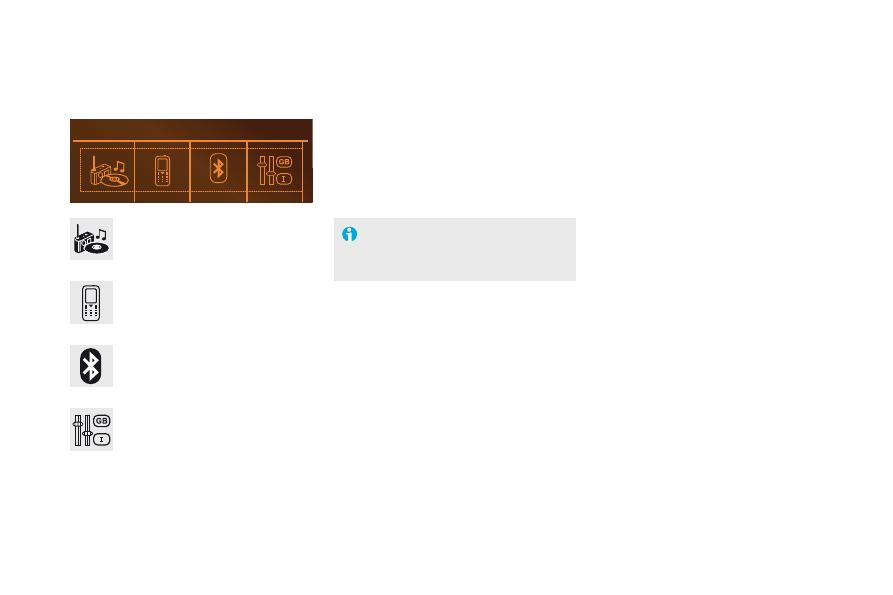

Menus

Screen c

"Multimedia

": Media parameters,

Radio parameters.

"Bluetooth connection

Connections management, Search
for a device.

"Telephone

": Call, Directory

management, Telephone
management, Hang up.

"Personalisation-configuration

Define the vehicle parameters,
Choice of language, Display
configuration, Choice of units, Date
and time adjustment.

For a detailed global view of the menus
available, refer to the "Screen menu
map" section.

285

Audio and Telematics

DS5_en_Chap11d_RD5_ed02-2015

Selecting a station

The exterior environment (hills, buildings,
tunnel, car park, below ground...) may
prevent reception, even in RDS station
tracking mode. This phenomenon is
normal in the propagation of radio waves
and is in no way indicative of a fault with
the audio system.

Press SOURcE or SRc several
times in succession and select radio.

Press BANd

to select a waveband.

Press LIST

to display the list of

stations received in alphabetical
order.

Select the desired radio station and
confirm by pressing OK.

A press changes to the next or
previous letter (e.g. A, B, D, F, G,
J, K, ...).

Audio

A long press on LIST builds or
updates the list of stations; audio
reception is cut momentarily.

DS5_en_Chap11d_RD5_ed02-2015

RdS

Select "RdS

" and confirm to save.

"RdS

" is displayed in the screen.

When the radio is displayed on the
screen, press OK

to display the

contextual menu.

Select or deselect categories to
activate or deactivate the reception of
the corresponding messages.

Make a long press on TA INFO to
display the list of categories.

Press TA INFO to activate or
deactivate the reception of traffic
messages.

RDS, if displayed, enables you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the country as radio stations
do not cover 100 % of the territory. This
explains the loss of reception of the station
during a journey.

Receiving TA messages

The TA (Traffic Announcement)
function gives priority to TA alert
messages. To operate, this function
needs good reception of a radio station
transmitting this type of message.
When a traffic report is transmitted,
the current audio source (Radio, CD,
USB, ...) is interrupted automatically to
play the TA message. Normal playback
of the audio source resumes at the end
of the transmission of the message.

The INFO function gives priority to
TA alert messages. To be active, this
function needs good reception of a
radio station that transmits this type
of message. When a message is
transmitted, the current audio source
(Radio, CD, USB, ...) is interrupted
automatically to receive the INFO
message. Normal play resumes at the
end of the message transmission.

Receiving INFO messages

Content .. 16 17 18 19 ..
