Citroen DS5 (2016 year). Instruction - part 9

127

Driving

DS5_en_Chap04_conduite_ed02-2015

With the engine running, press button 1. The
activated/deactivated status when the engine was
switched off is retained when the engine is switched
on again.

The blade retracts automatically 3 seconds after switching
off the engine except in STOP mode of Stop & Start.

Activation / deactivation

With the engine running, adjust the

brightness of the information using
button 3

- towards the rear to increase the

brightness,

- towards the front to decrease the

brightness.

Brightness adjustment

We recommend that adjustments are

only made using these buttons when

the vehicle is stationary.

When stationary or while driving, no

objects should be placed around the

transparent blade (or on its cover) to

avoid blocking deployment of the blade

and preventing its correct operation.

In certain extreme weather conditions
(rain and/or snow, bright sunshine, ...)
the head-up display may not be legible
or may suffer temporary interference.
Some sunglasses may hamper reading
of the information.
To clean the transparent blade, use a
clean, soft cloth (such as a spectacles
cloth or microfibre cloth). Do not use
a dry or abrasive cloth or detergent or
solvent products as these could scratch
the blade or damage the anti-reflection
coating.

Height adjustment

With the engine running, adjust the display

to the required height using button 2:
- towards the rear to move the display up,
- towards the front to move the display

down.

DS5_en_Chap04_conduite_ed02-2015

Memorising speeds

Activating the function
Modifying a speed setting

With your Audio system

"MEM" button

Press this button to display the list of

memorised speed settings.

By offering preset speed settings, this function facilitates the programming of a speed setting for both the speed limiter and the cruise
control.
The system includes up to 5 or 6 speeds, depending on equipment, that you can modify.

As a safety measure, the driver must
only modify the speed settings when
stationary.

Go to the main menu by pressing the

"MENU"

button:

Select the"Personalisation-configuration"

menu and confirm.

Select "Vehicle parameters" menu and

confirm.

Select the "Driving assistance" line and

conform.

Select "Speeds memorised" line and

confirm.

Select "Activation" to activate the function.

Select the speed setting to be modified and

confirm.

Modify the speed setting.

F Select "OK

" and confirm to save the

modifications.

129

Driving

DS5_en_Chap04_conduite_ed02-2015

With the touch screen

F Press this button to select the

"driving

" menu.

F Press "Speed settings

Select the system for which you want to

memorise new speed settings:

Choose the speed setting to be modified.

Enter the new value using the numerical

keypad and confirm.

Confirm to save the modification and quit

the menu.

"MEM" button

This button allows you to select a speed setting
to be used with the speed limiter or cruise
control.
Refer to the corresponding section.

Modifying a speed setting

● speed limiter

● cruise control

DS5_en_Chap04_conduite_ed02-2015

Speed limiter on / pause indication.

Speed limiter mode selection indication.

Programmed speed value.

Selection of a memorised speed setting.

displays in the instrument panel

Speed limiter

The speed limiter is a driving aid that
cannot, in any circumstances, replace the
need to observe speed limits or the need
for vigilance on the part of the driver.

Speed limiter mode selection wheel.

Programmed value decrease button.

Programmed value increase button.

Speed limiter on / pause button.

Display memorised speed settings button.

Steering mounted controls

This information also appears in the
head-up display.
For more information, refer to the
"Head-up display" section.

System which prevents the vehicle from exceeding the speed programmed by the driver.

The speed limiter is switched on manually.
The minimum programmed speed is
20 mph (30 km/h).
The programmed speed remains in the
system memory when the ignition is
switched off.

131

Driving

DS5_en_Chap04_conduite_ed02-2015

F Turn the wheel 1 to the "LIMIT" position

to select the speed limiter; the function is
paused.

If the speed setting is suitable (last speed

setting programmed in the system) press
button 4

to switch the speed limiter on.

Switching on

Adjusting the limit speed
setting

Pressing button 4 temporarily interrupts the

function (pause).

You do not have to switch the speed limiter on
in order to set the speed.

To modify the limit speed setting from the
current speed of the vehicle:
F

in steps of +/- 1 mph (km/h), make

successive short presses on button 2 or 3,

continuously, in steps of +/- 5 mph (km/h),

press and hold button 2 or 3.

To modify the limit speed setting using
memorised speeds and from your Audio
system:
F

with the system first activated.

For more information on memorising speeds,
refer to the corresponding section.
F

make a long press on button 2 or 3, the

system displays the memorised speed
closest to the actual speed of the vehicle;
this setting becomes the new limit speed,

to choose another memorised speed, make

another long press on button 2 or 3.

To modify the limit speed setting using
memorised speeds and from the touch screen:
F press button 5

to display the six memorised

speed settings,

press the button for the desired speed

setting.

This setting becomes the new limit speed.

DS5_en_Chap04_conduite_ed02-2015

Temporarily exceeding the
programmed speed

Switching off

Operating fault

The use of mats not approved by
CITROËN may interfere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned

correctly,

- do not fit one mat on top of another.

If you want to temporarily exceed the

programmed limit speed, press firmly on
the accelerator pedal, going beyond the
point of resistance

The speed limiter is deactivated temporarily
and the displayed programmed speed flashes.

F Turn wheel 1 to the "0"

position: the

display of information on the speed limiter
disappears.

Flashing dashes indicate a fault with the speed
limiter.

On a steep descent or in the event of
sharp acceleration, the speed limiter
will not be able to prevent the vehicle
from exceeding the programmed speed.

When the limit speed is exceeded but is not
due to action by the driver, there is an audible
signal to complete the alert.
Once the speed of the vehicle returns to
the programmed setting, the speed limiter
functions again: the display of the programmed
speed setting becomes steady again.

Have it checked by a CITROËN dealer or a
qualified workshop.

133

Driving

DS5_en_Chap04_conduite_ed02-2015

The cruise control system is a driving aid
that cannot, in any circumstances, replace
the need to observe speed limits, nor the
need for vigilance on the part of the driver.

Cruise control

Cruise control mode selection wheel.

Button for setting the current speed of the

vehicle as the cruise setting or lowering the
cruise setting.

Button for setting the current speed of the

vehicle as the cruise setting or raising the
cruise setting.

Cruise control pause / resume button.

Display memorised speed settings button.

Steering mounted controls

Cruise control pause / resume indication.

Cruise control mode selected indication.

Cruise speed setting.

Selecting a memorised cruise speed.

displays in the instrument panel

The cruise control is switched on
manually.
It requires a minimum vehicle speed of
25 mph (40 km/h) as well as:
- with a manual gearbox, the

engagement of fourth gear or
higher,

- with an automatic gearbox, the gear

selector at position d

or second

gear or higher in manual mode.

This information also appears in the
head-up display.
For more information, refer to the
"Head-up display" section.

System which automatically maintains the cruising speed of the vehicle at a setting programmed by the driver, without any action on the accelerator
pedal.

Switching off the ignition cancels any
programmed speed setting.

The operation of the cruise control can be
interrupted (pause):
- by pressing control 4 or by pressing the

brake or clutch pedal,

- automatically, if operation of the dynamic

stability control system is triggered.

As a safety measure, you are advised
to keep your feet near the pedals at all
times.

DS5_en_Chap04_conduite_ed02-2015

F Turn the wheel 1 to the "cRUISE" position

to select cruise control mode; the function
is paused.

To start the cruise control and set a cruise

speed, once the vehicle has reached the
desired speed, press button 2 or 3: the
current speed of your vehicle becomes the
cruise speed setting.

You can release the accelerator pedal.

Switching on

Pressing button 4 interrupts operation of

the system (pause).

Pressing button 4 again restores operation

of the cruise control (ON).

Adjusting the cruise speed
setting

The cruise control must be activated.

As a precaution, it is recommended
that the cruise speed chosen be close
to the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle.

To modify the cruise speed setting from the
current speed of the vehicle:
F

in steps of + or - 1 mph (km/h), make

repeated short presses on button 2 or 3,

continuously, in steps of + or - 5 mph

(km/h), press and hold button 2 or 3.

Take care: pressing and holding
button 2 or 3

results in a rapid change

in the speed of your vehicle.

To modify the cruise speed setting using
memorised speeds and from your Audio
system:
F

with the system first activated.

For more information on memorising speeds,
refer to the corresponding section.
F

make a long press on button 2 or 3, the

system displays the memorised speed
closest to the actual speed of the vehicle;
this setting becomes the new cruise speed,

to choose another memorised speed, make

another long press on button 2 or 3.

To modify the cruise speed setting using
memorised speeds and from the touch screen:
F press button 5

to display the six memorised

speed settings,

press the button for the desired speed

setting.

This setting becomes the new cruise speed.

135

Driving

DS5_en_Chap04_conduite_ed02-2015

Only use the cruise control if the traffic
conditions will allow you to drive for a
certain time at a steady speed and at a
safe distance from the vehicle ahead.
Do not activate the cruise control in
urban areas, in heavy traffic, on winding
or steep roads, on slippery or flooded
roads, or in conditions of poor visibility
(heavy rain, fog, falling snow...).
In some circumstances, it may not
be possible to maintain or reach the
programmed speed: towing, vehicle
heavily loaded, steep climb.

Switching off

You may have to brake to control the speed of
your vehicle. In this case, the cruise control is
automatically paused.
To activate the system again, press button 4.

Temporarily exceeding the
programmed speed

F Turn wheel 1 to the "0"

position: the cruise

control information disappears from the
screen.

When required (overtaking manoeuvre...), it is
possible to exceed the programmed speed by
pressing the accelerator pedal.
The cruise control is temporarily overridden
and the programmed speed setting flashes.

To return to the programmed speed, simply
release the accelerator pedal.
Once the vehicle has returned to the
programmed speed, the cruise control takes
over again: the display of the programmed
speed setting becomes steady again.

When descending a steep hill, the
cruise control system cannot prevent
the vehicle from exceeding the
programmed speed.

Operating fault

Flashing dashes indicate a fault with the cruise
control system.

Have it checked by a CITROËN dealer or a
qualified workshop.

The use of mats not approved by
CITROËN may interfere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned

correctly,

- never fit one mat on top of another.

DS5_en_Chap04_conduite_ed02-2015

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (stake, roadworks
cone, etc.) detected initially will no longer be
detected at the end of the manoeuvre, if they
are located in blind spots in the sensors' field
of detection.

Parking sensors

This system cannot in any circumstances replace
the need for vigilance on the part of the driver.

Rear parking sensors

Audible assistance

The proximity information is given by an
intermittent audible signal, the frequency of which
increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or left)
indicates the side on which the obstacle is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.

visual assistance

This supplements the audible signal by
displaying bars in the screen which move
progressively nearer to the vehicle.
When the obstacle is very close, the "Danger"
symbol is displayed in the screen.

The system is switched on by engaging reverse
gear.
This is confirmed by an audible signal.
The system is switched off when you come out
of reverse gear.

137

Driving

DS5_en_Chap04_conduite_ed02-2015

In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.

In the event of a malfunction of the
system, when reverse gear is engaged
this warning lamp is displayed in the
instrument panel and/or a message
appears in the screen, accompanied
by an audible signal (short beep).

Operating fault

In addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in forward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).

Front parking
sensors

The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN).

deactivation / Activation of
the front and rear parking
sensors

The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.
Pressing this button again reactivates the
function. The indicator lamp in the button
goes off.

The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind.

Contact a CITROËN dealer or a qualified
workshop.

DS5_en_Chap04_conduite_ed02-2015

Reversing camera

The reversing camera is activated automatically
when reverse gear is engaged.
The image from the camera is displayed in the
touch screen.
The reversing camera system may be
accompanied by parking sensors.

The blue lines represent the general direction
of the vehicle.
The blue curved lines represent the maximum
turning circle.

The green lines represent distances of around
1 to 2 metres beyond the edge of the vehicle's
rear bumper.
The red line represents the distance of around
30 cm beyond the edge of your vehicle's rear
bumper.

The lines displayed in the screen do not
allow the position of the vehicle to be
determined relative to tall obstacles (for
example: vehicles nearby).
Some deformation of the image is
normal.

This system is a driving aid that does
not replace vigilance on the part of the
driver, who must remain in control of the
vehicle at all times.

High pressure jet washing

When cleaning your vehicle, keep the
end of the high pressure lance at least
30 cm from the camera lens.
Clean the camera lens regularly using
a soft cloth.

139

Driving

DS5_en_Chap04_conduite_ed02-2015

005

DS5_en_Chap05_visibilite_ed02-2015

Visibility

DS5_en_Chap05_visibilite_ed02-2015

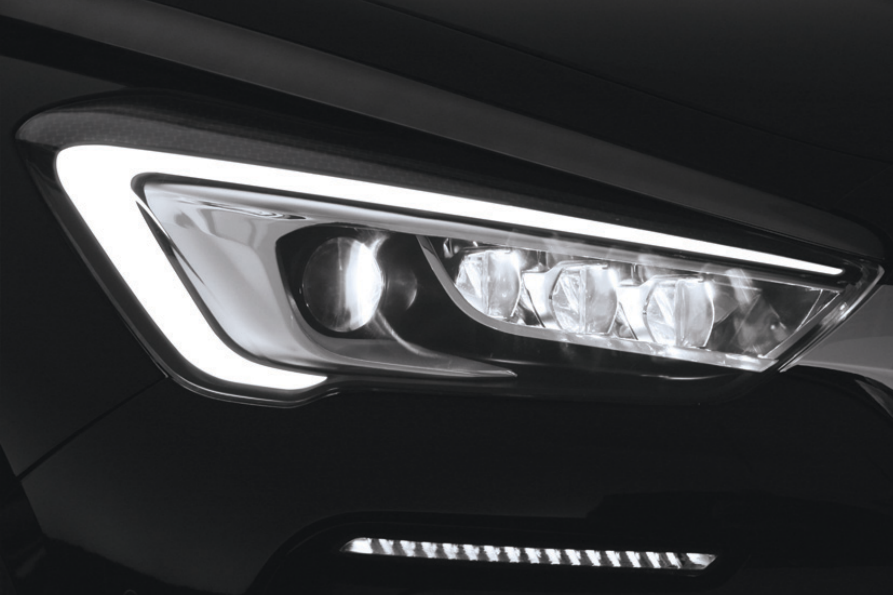

Lighting controls

Controls for selection and operation of the various front and rear lamps providing the vehicle's lighting and signalling.

Main lighting

There are various lamps on the vehicle:
- sidelamps, to be seen,
- dipped beam headlamps to see without

dazzling other drivers,

- main beam headlamps to see clearly when

the road is clear,

- directional headlamps for improved

visibility when cornering.

Additional lighting

Other lamps are installed to fulfil the
requirements of particular driving conditions:
- rear foglamps to better signal the presence

of the vehicle in foggy conditions,

- front foglamps for better visibility in foggy

conditions and to improve lighting at
intersections and when parking,

- daytime running lamps for better visibility of

the vehicle by day.

Lighting function settings

You can activate or deactivate the following
lighting functions:
-  guide-me-home lighting,
-  main additional lighting,
-  secondary additional lighting,
-  welcome lighting,
-  automatic illumination of headlamps,
-  automatic headlamp dipping.

Content .. 7 8 9 10 ..
