Citroen DS3 (2016 year). Instruction

Monitoring

DS3_en_Chap01_controle-de-marche_ed02-2015

"Personalisation-
Configuration" menu

Once this menu has been selected, you can
gain access to the following functions:
-

define the vehicle parameters,

- display configuration,
- choice of language.

Define the vehicle parameters

Once this menu has been selected, you can
activate or deactivate the following equipment:
- wiper linked to reverse gear (refer to the

"Visibility" section),

- guide-me-home lighting and duration (refer

to the "Visibility" section),

Example: setting of the duration of the guide-
me-home lighting
F Press the "5" or "6" buttons, then the

"OK"

button to select the menu required.

F Press the "5" or "6" buttons, then the

"OK"

button to select the "Guide-me-home

headlamps" line.

F Press the "7" or "8" buttons to set the

value required (15, 30 or 60 seconds), then
press the "OK"

button to confirm.

F Press the "5" or "6" buttons, then the

"OK" button to select the "OK"

box and

confirm or press the "Back" button to
cancel.

This menu is also used to reinitialise the tyre
under-inflation detection system (refer to the
"Safety" section).

- parking sensors (refer the "Driving"

section).

- automatic emergency braking (refer to the

"Active City Brake" section).

DS3_en_Chap01_controle-de-marche_ed02-2015

Display configuration

Once this menu has been selected, you can
gain access to the following settings:
-  brightness-video setting,
-  date and time setting,
-  selection of units.

Once the fuel consumption units have
been changed to mpg, the information
in the screen relating to speed and
distance also changes to mph and
miles respectively.

As a safety measure, configuration by
the driver of the multifunction screen
should only be done when stationary.

Choice of language

Once this menu has been selected, you can
change the language used by the screen by
choosing one from a defined list.

With Audio system on, once this menu is
selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, services...)
and manage your calls (call, hang up, second
call, secret mode...).
For more information on the "Telephone"
function, refer to the "Audio system" section.

"Telephone" Menu

Setting the date and time
F Select the "Set date and time" function

using the "5" or "6" button.

F Press

"OK"

to confirm the selection.

Adjust the settings one by one using

the "7" or "8" button then confirm
with "OK"

F Then select the "OK"

box in the screen

and confirm.

Monitoring

DS3_en_Chap01_controle-de-marche_ed02-2015

Touch screen tablet

This system gives access to:
- menus for adjusting settings for vehicle

functions and systems,

- audio and display configuration menus,
-

audio system and telephone controls and
the display of associated information.

- the display of alert messages,
- the display of ambient temperature (a blue

snow flake appears if there is a risk of ice),

- the trip computer.

And, depending on equipment, it allows:
- the display of the visual parking sensors

information,

- access to the controls for the navigation

system and Internet services, and the
display of associated information.

After a few moments with no action on
the secondary page, the primary page
is displayed automatically.

As a safety measure, some functions
can only be viewed when stationary.
Their display is interrupted as soon as
the vehicle moves off.

general operation

Recommendations

It is necessary to press firmly, particularly for
"flick" gestures (scrolling through lists, moving
the map...).
A light wipe is not enough.
The screen does not recognise pressing with
more than one finger.
This technology allows use at all temperatures
and when wearing gloves.
Do not use pointed objects on the touch screen
tablet.
Do not touch the touch screen tablet with wet
hands.
Uses a soft clean cloth to clean the touch
screen tablet.

Principles

Press the "MEnU" button for access to the
different menus, then press the virtual buttons
in the touch screen tablet.
Each menu is displayed over one or two pages
(primary page and secondary page).

Use the "OPTIOnS

" button to go to the

secondary page.

Use this button for access to
additional information and to the
settings for certain functions.

Use this button to confirm.

Use this button to return to the
primary page or to quit.

DS3_en_Chap01_controle-de-marche_ed02-2015

Menus

navigation
Navigation is available depending on
the county of sale and/or trim level.
Refer to the "Audio and telematics"
section.

Radio Media
Refer to the "Audio and telematics"
section.

Settings
Allows configuration of the display
and the system.
Refer to the corresponding section.

Connected Services
These services are available
depending on the county of sale and/
or trim level.
Refer to the "Audio and telematics"
section.

Telephone
Refer to the "Audio and telematics"
section.

Driving
Allows access to the trip computer and,
depending on version, the adjustment
of settings for certain functions.
Refer to the corresponding section.

Volume / mute.

Refer to the "Audio and telematics" section.

Press this button, then select the
desired menu.

Monitoring

DS3_en_Chap01_controle-de-marche_ed02-2015

"Driving" menu

Button

Corresponding function

Comments

Diagnostic

Recap of current alerts.

Under-inflation initialisation

Reinitialisation of tyre pressures.
Refer to the "Safety" section.

Vehicle settings

Access to other functions with settings that can be adjusted. The functions are grouped
together under three tabs:
- "Driving assistance"

- "Automatic rear wiper in reverse" (Activation of rear wiper coupled to reverse gear; see

the "Visibility" section).

- "Parking sensors" (Activation of rear parking sensors; refer to the "Driving" section).
- "Auto emergency braking" (Active City Brake; refer to the "Safety" section).

- "Lighting"

- "Mood lighting" (refer to the "Visibility" section).
- "Guide-me-home lighting" (Automatic guide me home lighting; refer to the "Visibility"

section).

Select or deselect the tabs at the bottom of the screen to display the functions required.

The functions accessible in this menu are given in the table below.

DS3_en_Chap01_controle-de-marche_ed02-2015

"Settings" menu

The functions accessible in this menu are given in the table below.

Button

Corresponding function

Comments

Audio settings

Adjustment of volume, balance...

Turn off screen

Turns off the display in the the touch screen tablet (black screen).
Pressing the black screen (or the MEnU button) restores the display.

System Settings

Choice of units:
- temperature (°Celsius or °Fahrenheit)
- distance and fuel consumption (l/100 km, mpg or km/l).

Time/Date

Setting the date and time.

Languages

Choice of language used from a defined list.

Screen settings

Adjustment of the display settings (scrolling of text, animations...) and the screen brightness.

Calculator

Display the calculator.

Calendar

Display the calendar.

Monitoring

DS3_en_Chap01_controle-de-marche_ed02-2015

Setting the date and time

F Select the "Settings

" menu.

In the secondary page, press on "Time/

Date

F Select "Adjust time" or "Adjust date

Modify the settings using the number

keypad, then confirm.

F Press "Confirm

" to save and quit.

When setting the time, you can select
"Satellite synchronisation", so that
the time is adjusted automatically by
satellite reception.

DS3_en_Chap01_controle-de-marche_ed02-2015

Trip computer

Monochrome screen A

Information displays

F Press the button, located at the end of the

wiper stalk, to display the various items of
trip computer information in succession.

The trip computer provides the following
information:

- range,

current fuel consumption,

Stop & Start time counter,

distance travelled,

- average fuel consumption,

- average speed.

The next press then returns you to the

normal display.

System that gives you information on the current journey (range, fuel consumption…).

Trip reset

F Press the control for more than two

seconds to reset to zero the distance
travelled, the average fuel consumption
and the average speed.

Monitoring

DS3_en_Chap01_controle-de-marche_ed02-2015

Monochrome screen C

Information displays

F Press the button, located at the end of

the wiper stalk, to display the various trip
computer tabs in succession.

the current information tab
with:
● the range,
● the current fuel

consumption,

● the distance remaining

to be travelled or the
Stop & Start time counter.

the trip "1"

tab with:

● the distance travelled,
● the average fuel

consumption,

● the average speed,
for the first trip.

the trip "2"

tab with:

● the distance travelled,
● the average fuel

consumption,

● the average speed,
for the second trip.

Pressing the button again returns you to

the normal display.

Trip reset

F When the trip required is displayed, press

the button on the end of the wiper stalk for
more than two seconds.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

DS3_en_Chap01_controle-de-marche_ed02-2015

Touch screen tablet

Information display

F Press the MEnU button, then select

"Driving

", to display the various tabs.

Select the desired tab using your finger.

The "Instantaneous

" tab with:

●  the range,
●  the current fuel consumption,
●  the Stop & Start time counter.

the "Trip 1

" tab with:

●  the distance travelled.
●  the average fuel consumption,
●  the average speed,
  for the first trip.

the "Trip 2

" tab with:

●  the distance travelled.
●  the average fuel consumption,
●  the average speed,
  for the second trip.

Trip reset

F When the desired trip is displayed, press

the reset button.

Trips "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

Monitoring

DS3_en_Chap01_controle-de-marche_ed02-2015

A few definitions

Range

(miles or km)

Current fuel consumption

(mpg or l/100 km or km/l)

Stop & Start time
counter

(minutes / seconds or hours /
minutes)

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.

If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.

When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

Distance remaining to
destination

(miles or km)

The distance which can still be travelled with
the fuel remaining in the tank (related to the
average fuel consumption over the last few
miles (kilometres) travelled).

Calculated over the last few seconds.

This is the distance remaining to be travelled
to the final destination. It can be entered by
the user.
If the distance is not entered, dashes are
displayed in place of the digits.

If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on with the key.

Distance travelled

(miles or km)

Calculated since the last trip reset.

Average speed

(mph or km/h)

Calculated since the last trip reset.

Average fuel
consumption

(mpg or l/100 km or km/l)

Calculated since the last trip reset.

This function is only displayed from
20 mph (30 km/h).

Trip computer

DS3_en_Chap02_ouvertures_ed02-2015

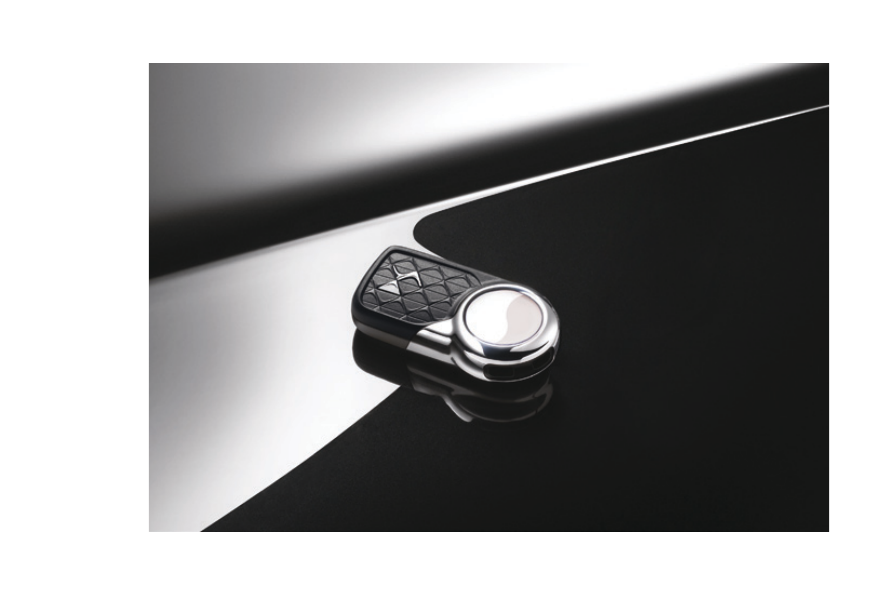

Remote control key

System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and start the vehicle,
as well as providing protection against theft.

Unlocking the vehicle

Unfolding the key

First press this button to unfold the key.

Unlocking using the remote
control

Unlocking using the key

Locking the vehicle

Locking using the remote
control

Locking is confirmed by fixed lighting of the
direction indicators for approximately
two seconds.
According to version, the door mirrors fold at
the same time.

Press the open padlock to unlock

the vehicle.

Turn the key to the left in the driver's door

lock to unlock the vehicle.

Press the closed padlock to lock

the vehicle.

Unlocking is confirmed by rapid flashing of
the direction indicators for approximately
two seconds.
According to version, the door mirrors unfold at
the same time.

Locking using the key

Turn the key to the right in the driver's door

lock to lock the vehicle completely.

Access

DS3_en_Chap02_ouvertures_ed02-2015

If one of the doors or the boot is still
open, the central locking does not take
place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
automatically lock itself again after
thirty seconds unless a door or the boot
is open.

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.

Folding the key

First press this button to fold the key.

If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.

This is indicated by lighting of the courtesy
lamps and flashing of the direction indicators
for a few seconds.

Locating your vehicle

Press the closed padlock to

locate your locked vehicle in a
car park.

DS3_en_Chap02_ouvertures_ed02-2015

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction,
you can no longer unlock, lock or locate your
vehicle.
F

First of all, use the key in the lock to unlock

or lock your vehicle.

Then, reinitialise the remote control.

If the problem persists, contact a CITROËN
dealer as soon as possible.

Remote control problem

Reinitialisation

Switch off the ignition.

Turn the key to position 2 (Ignition).

Press the closed padlock immediately for a

few seconds.

Switch off the ignition and remove the key

from the ignition switch.

The remote control is fully operational again.

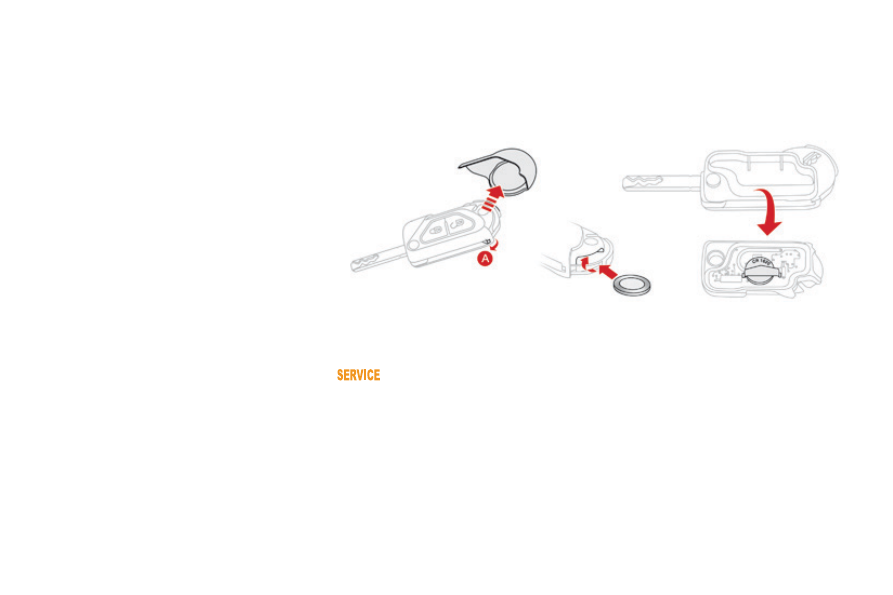

Changing the battery

Battery ref.: CR1620 / 3 volts.

Unclip the casing by inserting a coin at the

notch and rotating.

Slide the flat battery out of its location.

F Slide the new battery into its location

observing the original direction.

Clip the casing in place, then the chrome

finisher.

Reinitialise the remote control.

If the battery is flat, you are
informed by lighting of this warning

lamp in the instrument panel, an audible signal
and a message in the multifunction screen.

Unfold the key.

Release the chrome finisher by pressing on

lug A.

Maintain pressure on lug A and remove the

chrome finisher by sliding it off at 45°.

Citroen DS3 (2016 year). Instruction - part 4
