B r a k e s

Handbrake

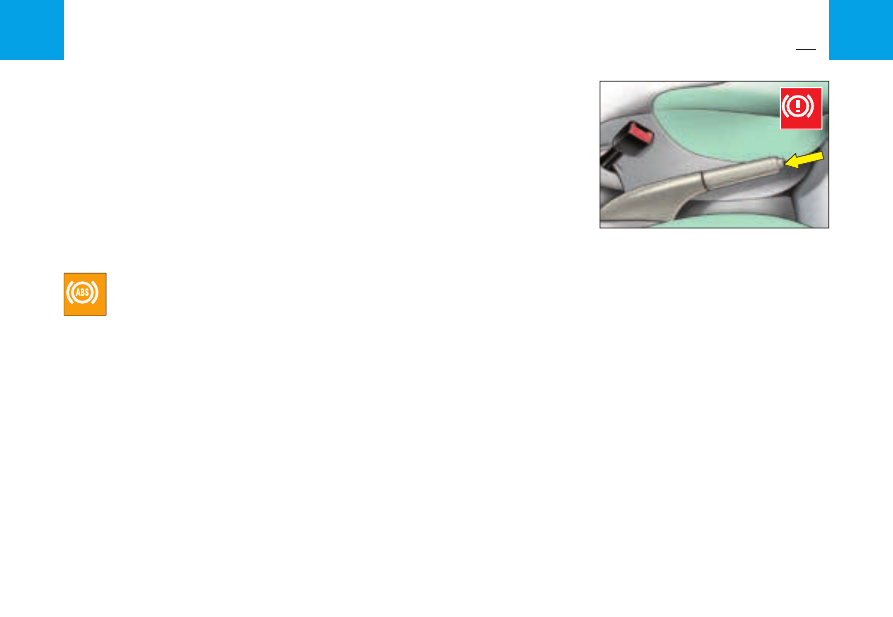

The parking brake is applied, with the vehicle stationary, by pulling on the le-

ver with a force that is proportionate to the steepness of the slope.
In all circumstances, as a precautionary measure, engage first gear. For vehi-

cles equipped with an automatic gearbox, ensure that the parking position

(P) is selected.
On steep slopes, turn the steering towards the kerb.
To release the brake, pull the lever lightly up, press the button on the end of

the lever and return the lever to the fully down position.
The warning lamp will come on if the handbrake is on or not fully released.
An alert message appears on the instrument panel when the vehicle is mov-

ing.

ABS - Anti-lock Braking System
This system improves vehicle safety by preventing the wheels from locking under emergency braking or when

braking on surfaces offering poor adhesion. It thus allows control of the steering to be retained.
The operational capacity of the various electrical components of the ABS is continuously monitored, both be-

fore and during your journey. On switching on the ignition, the ABS warning lamp will light up and then should go out af-

ter a few seconds.
If the warning lamp stays on, this means that the ABS has been disconnected because a fault was detected. If the warn-

ing lamp lights up when you are driving, this means that the ABS system is not active. In either case, the normal braking

system remains effective, as on a vehicle without ABS. Nevertheless, to restore the additional safety afforded by cor-

rect functioning of ABS, it is recommended that the vehicle be taken to a CITROËN dealer as soon as possible.
On slippery roads (loose stones, snow, ice, etc.), it remains essential to drive with caution.

Emergency braking assistance system
This system enables you to achieve optimum braking pressure more quickly in an emergency situation and thus to

reduce the stopping distance. It deploys as a function of your speed of action on the brake pedal, reducing its re-

sistance. To maintain the effect of the emergency braking assistance, just keep your foot on the brake pedal.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T049-ENG.win 25/5/2004 15:44

E L E C T R O N I C

S T A B I L I T Y

P R O G R A M M E

Electronic Stability Programme (ESP) and Traction Control (ASR)
These systems are closely connected to the ABS and additional to it. In the

event of a loss of control of the vehicle by the driver, the ESP system acts au-

tomatically on one or more brakes and also on the engine to bring the vehicle

back on trajectory. The ASR system optimises traction and prevents wheel

spin by acting on the brakes of the driving wheels. It also improves steering

stability during acceleration.

Operation
If either the ESP or traction control (ASR) is active, the ESP warning lamp flash-

es.

Deactivation
In exceptional conditions (vehicle stuck in snow, soft ground, etc.) it may prove useful to deactivate the ESP/ASR sys-

tem to allow the wheels to spin and thus regain traction.

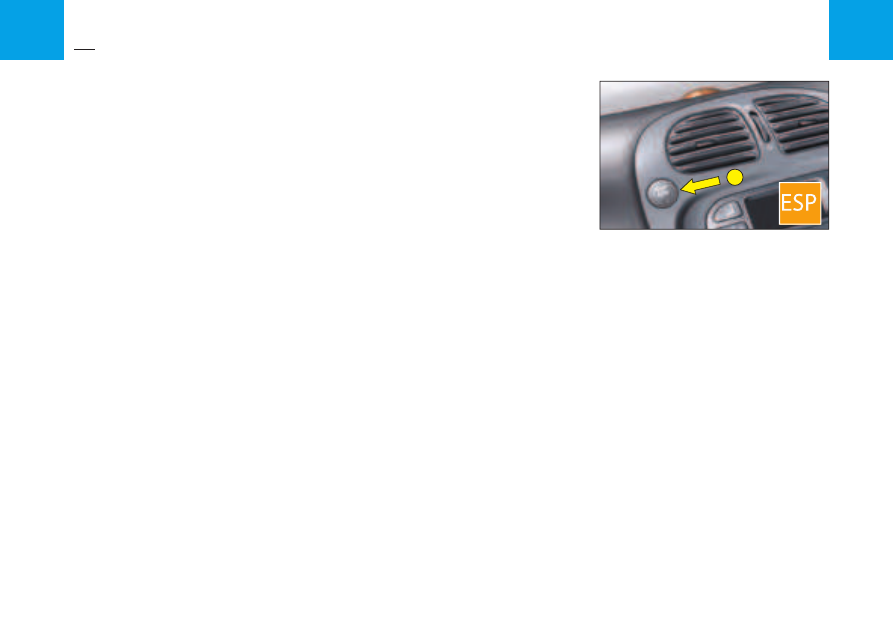

- Press control A.
- The ESP warning lamp lights up, accompanied by the message “ESP/ASR DEACTIVATED” on the multifunction

screen, the ESP/ASR systems are no longer active.

The ESP/ASR systems will deploy again:
- Automatically if the ignition has been switched off.
- Automatically over a speed of approx. 50 km/h (approx. 30 mph).
- With action on your part by a new press on control A.

Operational anomaly
If there is system malfunction, the ESP warning lamp lights up accompanied by an audible signal and the message

“ESP/ASR NOT IN USE” on the multifunction screen. Contact a CITROËN dealer to have the system checked.

SAFETY RECOMMENDATIONS
The ESP system offers increased driving safety but is not in place to encourage the driver to take additional risks or to

drive at excessive speeds.
The functioning of this system is subject to compliance with the manufacturer’s recommendations on wheels (tyres and

rims), brake parts and electronic components, as well as with CITROËN’s assembly and repair procedures.
After any collision, have this system checked by a CITROËN dealer.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T049-ENG.win 25/5/2004 15:44

D i e s e l

p a r t i c l e

f i l t e r

Complementary to the catalytic converter, this filter makes an active contribution to the preservation of air quality by the

retaining of the unburnt pollutant particles. Black exhaust fumes are thus no longer emitted.

Clogging of the particle filter
If there is a risk of clogging, a message appears on the multifunction screen, accompanied by a sound signal.
This alert tells you that the particle filter is starting to fill up (in conditions of urban driving of exceptionally long duration:

low speeds, traffic jams etc.)
To regenerate the filter, it is advised to drive as soon as possible, when traffic conditions permit, at a speed of 60 km/h

(around 40 mph) or more for at least five minutes (until the alert message disappears).
If this alert persists, consult a CITROËN dealer.

Observation: After prolonged idling or driving at very low speeds, you may occasionally notice water vapour being

emitted from the exhaust when accelerating. This is of no consequence to the running of the vehicle or to the environ-

ment.

Diesel fuel additive level

If the diesel fuel additive level is low, a message appears on the multifunction screen accompanied by a sound signal.

It is necessary to have the additive level topped up.
Contact your CITROËN dealer.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T049-ENG.win 25/5/2004 15:44

P a r k i n g

a s s i s t a n c e

Parking assistance

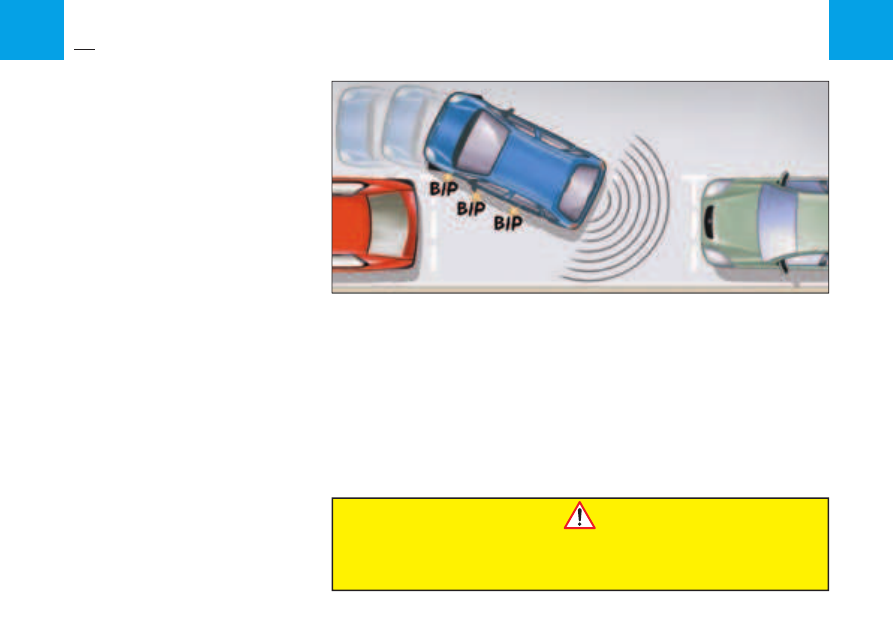

When reversing the vehicle, prox-

imity sensors located in the rear

bumper will inform you, by means

of a modulated audible signal, of

the presence of any obstacle within

the detection zone behind the vehi-

cle.

When engaging reverse gear, a

short audible signal confirms to

you that the system is active:
- as the vehicle approaches the ob-

stacle, the audible signal repeats

more and more rapidly,

- when the obstacle is less than 20

centimetres from the rear of the

vehicle, the signal becomes con-

tinuous.

However, the proximity sensors

cannot detect obstacles situated

immediately below the level of the

bumper. Objects such as spikes or

marker posts or similar may be de-

tected at the beginning of the ma-

noeuvre, but may no longer be

sensed when the vehicle gets

close.

Note: This system can be deacti-

vated by your CITROËN Dealer if

you so wish.

On engaging reverse gear, a short sound signal

followed by a long sound signal indicates a malfunction.

Contact the CITROËN network.

Detection zone

Deactivation
Moving the gear lever to neutral deactivates the system.
Note: The system is deactivated automatically if a trailer or caravan is

attached to the vehicle.

For fitting a towbar, you are advised to contact your nearest CITROËN

dealership or authorised repairer.

Remove the towing ball if you are no longer towing, so that it does not interfere

with the functioning of the proximity sensors.
Advice : in bad weather and during the winter months, make sure that the

sensors are not obstructed by mud, ice or snow.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T049-ENG.win 25/5/2004 15:44

III

A C C E S S

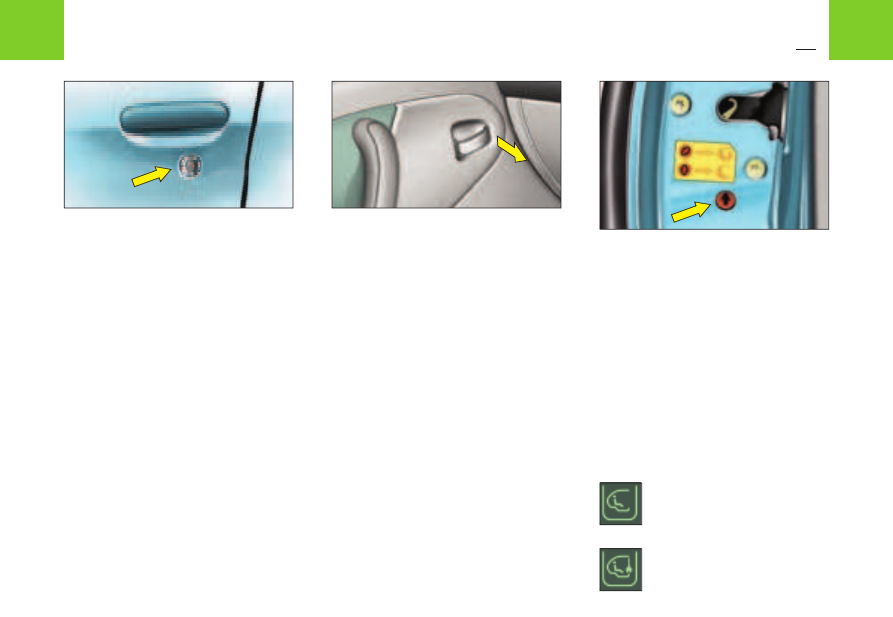

Opening from the outside
To unlock the door from the out-

side, either insert the key fully in

the lock and turn it or unlock using

the remote control.

Note: the doors have three open-

ing positions.

Opening from the inside
Pull the lever towards you.

Child safety on rear doors
This prevents the rear doors from

being opened from the inside.
This device operates independent-

ly of the main locking system.
Insert the end of the key, or similar

object, into the red aperture and

turn to operate.

Note: Ignition on, the warning lamp

in the instrument panel display illu-

minates:

The child lock is not activat-

ed or is only activated for

one door.

Child locks activated on

both doors.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T049-ENG.win 25/5/2004 15:44

III

A C C E S S

Interior Locking/Unlocking
With the doors closed, press button

A once to operate the electric cen-

tral locking and unlocking.

The doors can still be opened

from inside.

Note: With the ignition switched on,

the warning lamp indicating that the

doors and tailgate have been

locked illuminates in the instrument

panel display.

Doors unlocked.

Doors locked.

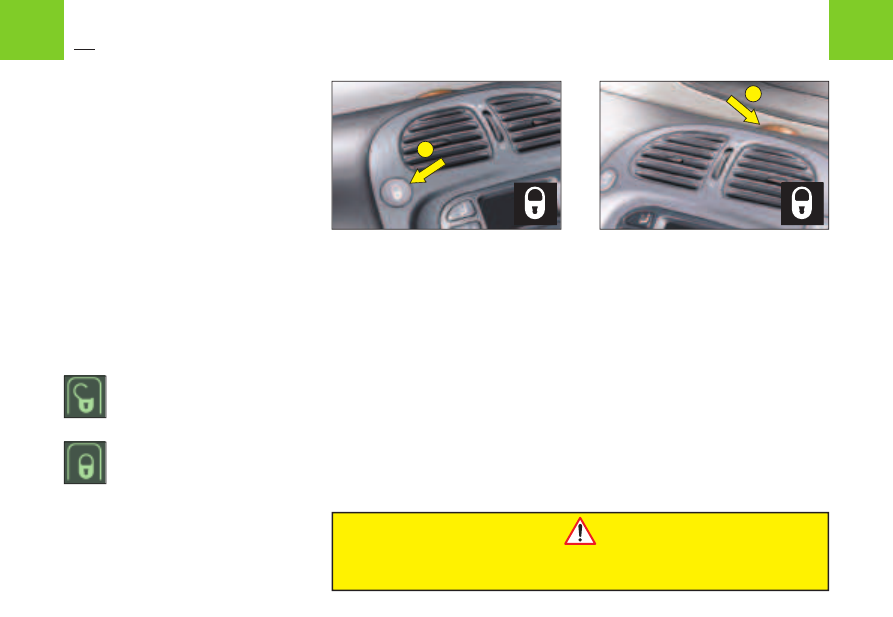

ANTI-THEFT AND ANTI- INTRUSION SECURITY
The doors and tailgate can lock automatically as soon as the vehicle reaches

a speed of 10 km/h (approx. 6 mph).

Activating the function
Give a long press on the central locking button until a message appears on

the multifunction screen, accompanied by a beep.

Deactivating the function
Only the automatic locking of doors can be deactivated.
Give a long press on the central locking button until you hear a beep.
The doors or the tailgate are unlocked when one of the doors is opened, or

when the central locking button is pressed.

Note: The warning lamp, in the hazard warning lamps control, flashes when-

ever the vehicle is locked using the remote control or the key.

Driving with the doors locked could render access difficult for

the emergency services.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T049-ENG.win 25/5/2004 15:44

III

A C C E S S

Tailgate

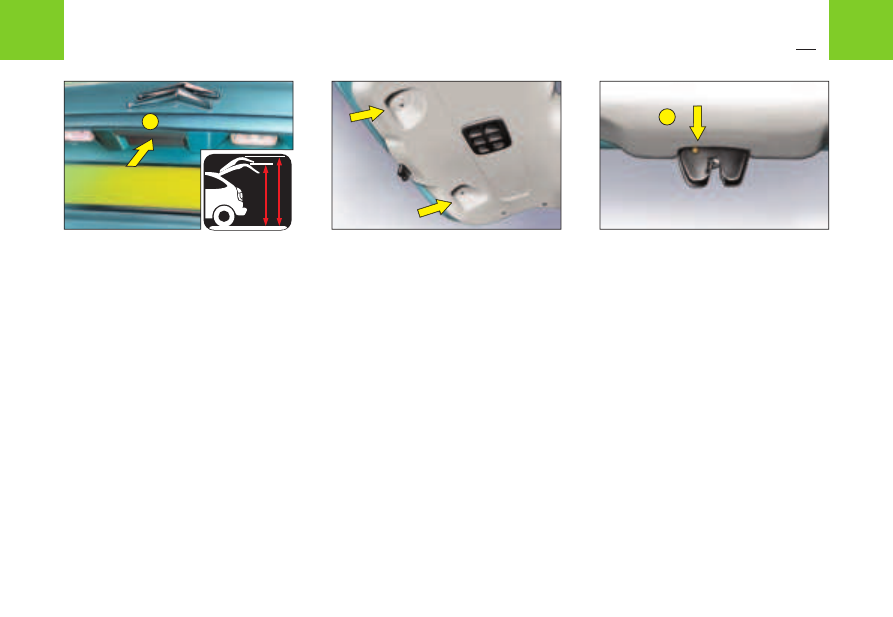

To open
Release the catch by lifting lever A

located between the number plate

lamps.
The tailgate can be opened to two

positions.
The first position allows it to be

opened in an area with limited

headroom, e.g. an enclosed car

park.

Closing the tailgate
To close, pull down the tailgate us-

ing either of the handholds in the in-

terior trim.

Removing your fingers, push down

firmly to shut.

Emergency unlocking
If there is a problem with unlocking

the tailgate, it can be unlocked

from inside the boot:
- insert a screwdriver or similar tool

into hole B of the lock, and turn it

in order to unlock the tailgate.

Automatic locking of the tailgate (vehicle moving)
The tailgate locks automatically as soon as the vehicle reaches a speed of approx. 10 km/h (approx. 6 mph). It

remain locked even when the vehicle stops.
Note: The opening of a door will unlock the tailgate.

In the event of an impact the tailgate unlocks automatically, and so can again be opened from the outside.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T049-ENG.win 25/5/2004 15:44

III

A C C E S S

Opening from the outside
To unlock the door from the out-

side, either insert the key fully in

the lock and turn it or unlock using

the remote control.

Note: the doors have three open-

ing positions.

Opening from the inside
Pull the lever towards you.

Child safety on rear doors
This prevents the rear doors from

being opened from the inside.
This device operates independent-

ly of the main locking system.
Insert the end of the key, or similar

object, into the red aperture and

turn to operate.

Note: Ignition on, the warning lamp

in the instrument panel display illu-

minates:

The child lock is not activat-

ed or is only activated for

one door.

Child locks activated on

both doors.

III

V E N T I L A T I O N - H E A T I N G

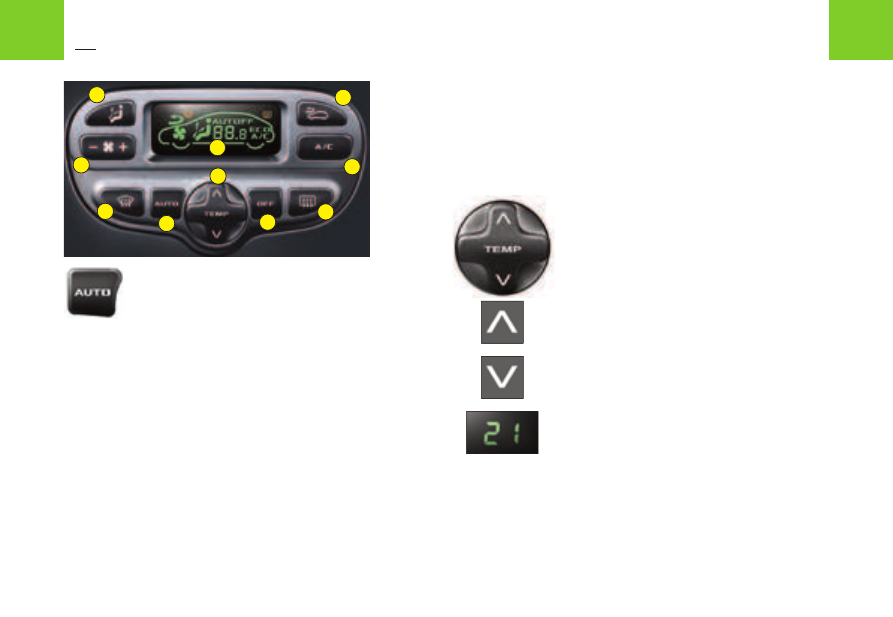

M A N U A L A I R C O N D I T I O N I N G

Entry of air
Make sure that the exterior air inlet grille and manifold

at the base of the windscreen is clean and free of dead

leaves, snow, etc..

If you wash the vehicle using a high pressure jet, avoid

targeting anywhere near the air inlet.

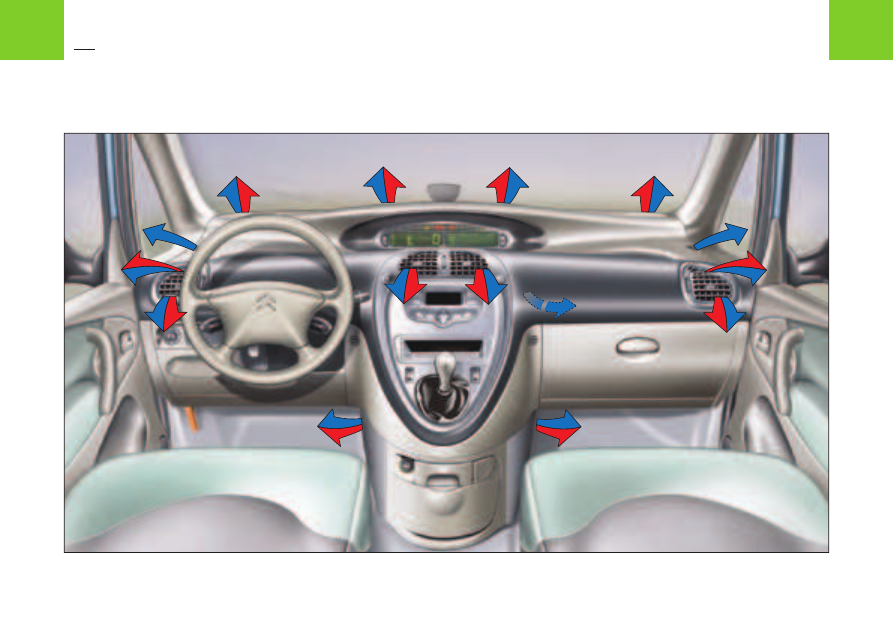

Air vents
The face-level air vents have controls for adjusting the air
fl ow and grilles for orienting the direction.

Air circulation
Maximum  comfort  is  obtained  from  having  a  good
distribution  of  air  in  both  the  front  and  the  rear  of  the
passenger compartment. Air outlets on the fl oor beneath
the  front  seats  enhance  comfort  for  rear  passengers,
so  you  should  make  sure  that  these  outlets  are  not
obstructed.

Pollen fi lter

Your installation has a fi lter for excluding dust.
This fi lter has to be changed at the prescribed
maintenance intervals (see the Maintenance Guide).

Additional heating

Vehicles with HDi engines may be fi tted with an automatic
additional heating system for enhancing your comfort.

It is normal to notice certain emissions of fumes and
odours, especially when stationary, with the engine
running at idle.

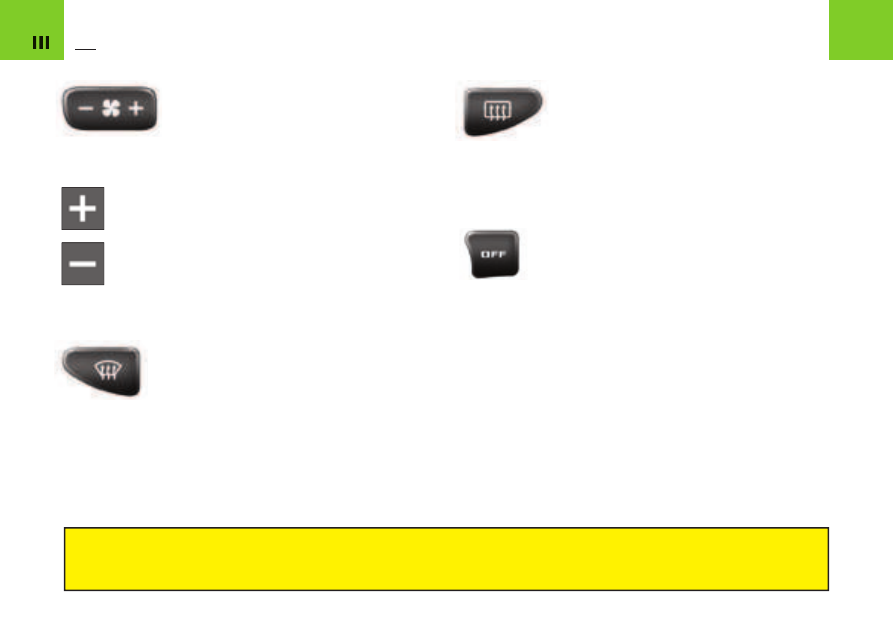

Air conditioning

Whatever the time of year, the air conditioning is useful
in removing humidity and misting.

To keep the air conditioning compressor well sealed,
it is essential to operate the air conditioning at least
once in every month.

To be effective, the air conditioning should only be
operated with the windows closed.

If  after  a  prolonged  stop  in  bright  sunshine,  the
inside  temperature  has  become  excessive,  open  the
windows  for  a  few  moments  to  air  the  cabin,  then
close the windows again.

The temperature inside the cabin cannot be lower than
the ambient temperature if the air conditioning is not
operating.

If you are pulling a heavy trailer in very high ambient
temperatures, the air conditioning may temporarily be
interrupted if the engine cooling requirements demand
this.

Water arising from the condensation in the air
conditioning system drains out through a hole
provided for that purpose; a pool of water may thus be
observed underneath the vehicle when stationary.

It is recommended to have the air conditioning
system checked on a regular basis (see the
Maintenance Guide).

The air conditioning uses power from the engine to
operate. There is a resulting slight increase in fuel
consumption.

A U T O M A T I C T E M P E R A T U R E

R E G U L A T I O N

1 - Automatic operation

This is the optimal and normal mode
for using the air conditioning system
to ensure a circulation of air suffi cient
to maintain a good level of comfort.

A  press  on  the  control  for  this,  confi rmed  by
the  display  of  «  AUTO  »,  provides  automatic
operation  at  the  selected  temperature  of  the
following 5 functions :
-  Air fl ow.
-  Cabin temperature.
-  Air distribution.
-  Air conditioning.
-  Air recirculation.

Is is advised to keep all the air vents open.

Notes :
- When starting the engine from cold, in

order to prevent an unwanted rush of cold
air, the blower attains its optimum level only
progressively.

- When you are entering the vehicle after a fairly prolon-

ged  stop  and  the  temperature  inside  the  cabin  is  far
colder  (or  far  hotter)  than  would  be  comfortable,  it  is
no use altering the displayed temperature to try to res-
tore the desired comfort level more rapidly. The system
automatically  strives  to  compensate  this  temperature
discrepancy as rapidly as possible.

2- Adjustment of temperature

To display the desired temperature,
press one of the buttons :

To increase the temperature

To decrease the température

Display of the temperature requested

for the cabin

A setting close to 21 will provide a good comfort level.

Manual resumption of one or more functions

It  is  possible  to  adjust  any  of  the  following  functions
manually,  while  retaining  all  the  other  functions  in
automatic  mode.  The  warning  lamp  for  the  «AUTO»
function will then go out.

III

III

A U T O M A T I C T E M P E R A T U R E

R E G U L A T I O N

3 - Display

4 - Air conditioning

Warning lamp « A/C » or « AUTO » is illuminated.
If you press on the button, you see « ECO » displayed,
the air conditioning is stopped, « A/C » or « AUTO »
disappears.
To prevent misting inside the vehicle in either cold or
humid weather, you are advised to use AUTO mode
and to avoid ECO mode.

5 - Air recirculation

If you press on this button, the intake of air from
outside is closed off, as confirmed by the display.

This

position

enables

you

exclude

any

unpleasant odours or fumes comng from outside. It should
be cancelled as soon as possible to allow renewal of
cabin air and to prevent misting.

For this, press on the button « AUTO ».

6- Air distributor

Press on the button for successive display of air
flows to :

Windscreen.

Windscreen and passenger footwells.

Passenger footwells.

Central and lateral air vents and
passenger footwells.

Central and lateral air vents.

A U T O M A T I C T E M P E R A T U R E

R E G U L A T I O N

7- Air ﬂ ow

To adjust the air blower speed. Press on the button :

To increase it.

To decrease it.

It is not possible to stop the blower via this
control.

8 - Demisting - Deicing

This button is for rapid deicing or demisting of the
windscreen, acting automatically on the air blower
speed, the air distribution, the air conditioning and
the air intake.

Note : for greater effectiveness, close the central
and lateral air vents.

9- Deicing of the rear screen

This button is for deicing or demisting of the rear
screen and rear view mirrors.

10 - To close down the system

To close down all the functions of the automatic
system, press the « OFF » button.

The ventilation and the air conditioning will no longer
operate, there will be no display on the screen.

The passenger compartment will not be heated.

To reactivate the system

Press on the buttons « AUTO » or « Demisting -

deicing », the warning lamp for the « OFF » button will
go out (the other buttons are inactive).

To return to automatic operation, press the button AUTO.

III

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T049-ENG.win 25/5/2004 15:44

III

R E A R

S E A T S

Sliding rear seats
Fore and aft adjustment
Lift the control bar and adjust to the

desired position.

Tray/armrest function
Pull the lever A to fold the backrest

onto the seat cushion.

Putting the backrest back into

place
If necessary, unlock it by pulling the

control A.
When putting the backrest back in-

to place, ensure that it locks se-

curely.

Avoid using the shelf for heavy or hard items.

These could be dangerous if thrown around during harsh braking

or in the event of an impact.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T065-ENG.win 23/4/2004 13:12

III

R E A R

S E A T S

Backrest angle
Use the control A to adjust the

backrest angle.

Tilting the backrest
Pull the lever A to fold the backrest

onto the seat cushion.

Folding the seat
With the backrest folded onto the

seat cushion, lift the bar located be-

hind the seat to release the rear se-

curing points and tilt the seat

assembly forwards until it locks in

place.

Note: The rear seats can only be

folded if they are slid as far as pos-

sible rearwards.

Before moving a seat

To prevent any damage to or jamming of a seat belt,

release it from its guide and secure it in the specially

provided location.

Picasso 2004-1 C:\Documentum\Checkout\N68_04_01_T065-ENG.win 23/4/2004 13:12

III

R E A R

S E A T S

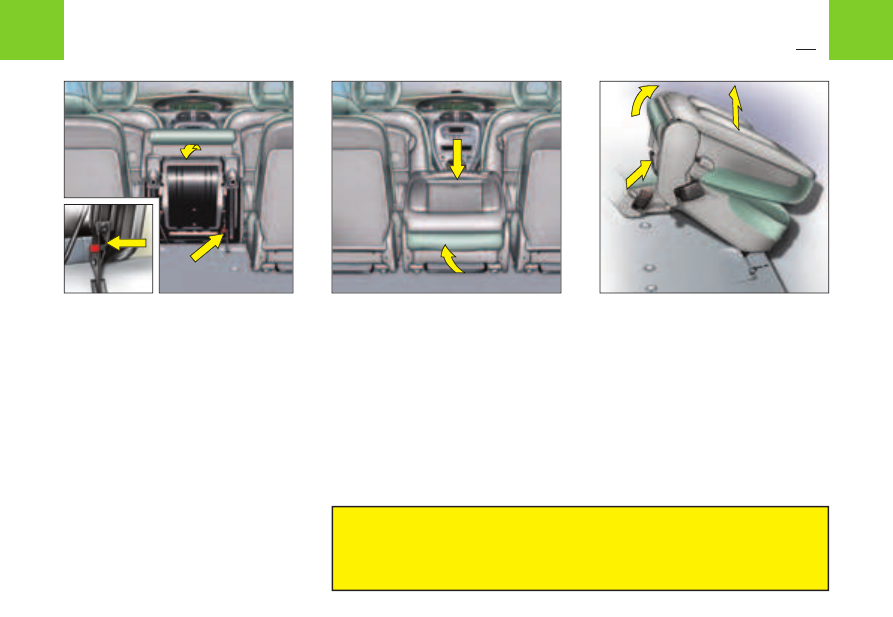

Repositioning the seat
Push the red lever.
Tilt the seat back to fasten the rear

securing points.
Raise the backrest while pulling the

lever.

Check that the seat assembly is

securely locked in place.

Removing the seat
Remove the head restraint.
With the backrest folded onto the

seat cushion, push it fully to lock it

in this position.
Lift the bar located behind the seat

to release the rear securing points

Tilt the seat assembly, at an angle

of 45°, forwards.
Lift the seat up to remove it.

Make certain that nothing is allowed to enter the anchorage

points preventing the seat mountings from locking fully.

Citroen Xsara Picasso Dag (2005 year). Instruction - part 4
