Citroen Nemo Dag (2008 year). Instruction - part 8





1

0

5

7

T

R

O

U

B

L

ESH

O

O

T

IN

G

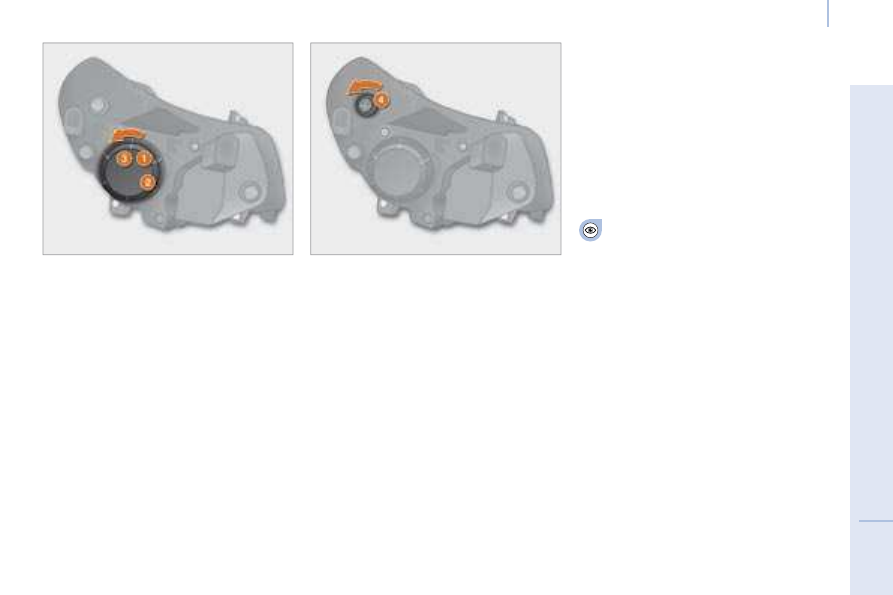

 Changing a bulb

  1 - Dipped headlamp

  Type D , H4 - 55W
   -   Remove the cover by turning it

anticlockwise.

  -   Disconnect the electrical connector.

  -   Release the retaining spring by pressing

on the two clips.

  -   Change the bulb taking care to align the

metal part with the grooves on the light.

  2 - Side light

  Type A , W5W - 5W
   -   Remove the cover by turning it

anticlockwise.

  -   Pull the bulb holder to gain access to the

bulb.

  -   Change the bulb.

  3 - Main beam headlamp

  Type D , H4 - 55W
   -   Remove the cover by turning it

anticlockwise.

  -   Disconnect the electrical connector.

  -   Release the retaining spring by pressing

on the two clips.

  -   Remove the bulb holder.

  -   Change the bulb taking care to align the

metal part with the groove on the light.

  4 - Direction indicators

  Type B , PY 21W - 21W - amber
   -   Turn the bulb holder a quarter turn

anticlockwise.

   -   Remove the bulb by pressing it lightly

while turning it anticlockwise.

  -   Change the bulb.

   If you encounter any difficulty, consult a
 CITROËN  dealer.

  When each operation has been
completed, check the operation of the

lights.

  5 - Fog lamps

  Type E , H1 - 55W
  Consult a CITROËN dealer .

1

0

6

Changing a bulb

  FRONT/REAR COURTESY LIGHTS

  Type C , 12V 10W - 10W
   -   Release the courtesy light using a

screwdriver.

  -   Remove the cover to gain access to the

bulb.

  -   Change the bulb moving aside the two

contacts.

  -   Ensure that the new bulbs are secured

correctly between the two contacts.

  -   Close the protective flap.

  -   Fix the courtesy light in its housing and

ensure that it is secured correctly.

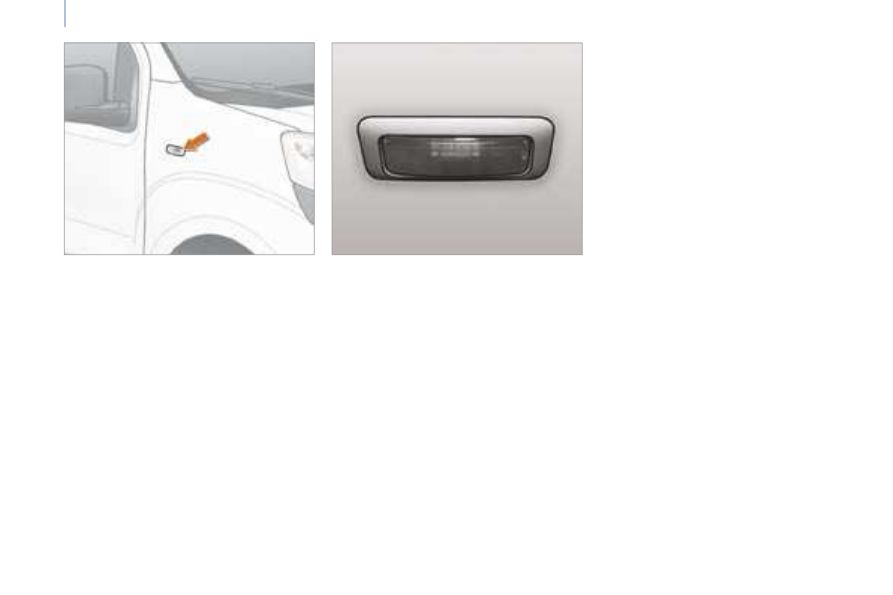

  DIRECTION INDICATOR SIDE
REPEATER

  Type A , WY5W - 5W amber
   -   Push the repeater rearwards and release

it.

  -   Support the connector and turn the bulb

holder a quarter of a turn to the left.

  -   Turn the bulb a quarter of a turn to the

left.

  -   Pull the bulb then change it.

  -   When refitting, engage the repeater

rearwards then move it forwards.



1

0

6

Changing a bulb

  FRONT/REAR COURTESY LIGHTS

  Type C , 12V 10W - 10W
   -   Release the courtesy light using a

screwdriver.

  -   Remove the cover to gain access to the

bulb.

  -   Change the bulb moving aside the two

contacts.

  -   Ensure that the new bulbs are secured

correctly between the two contacts.

  -   Close the protective flap.

  -   Fix the courtesy light in its housing and

ensure that it is secured correctly.

  DIRECTION INDICATOR SIDE
REPEATER

  Type A , WY5W - 5W amber
   -   Push the repeater rearwards and release

it.

  -   Support the connector and turn the bulb

holder a quarter of a turn to the left.

  -   Turn the bulb a quarter of a turn to the

left.

  -   Pull the bulb then change it.

  -   When refitting, engage the repeater

rearwards then move it forwards.



1

0

7

7

T

R

O

U

B

L

ESH

O

O

T

IN

G

 Changing a bulb

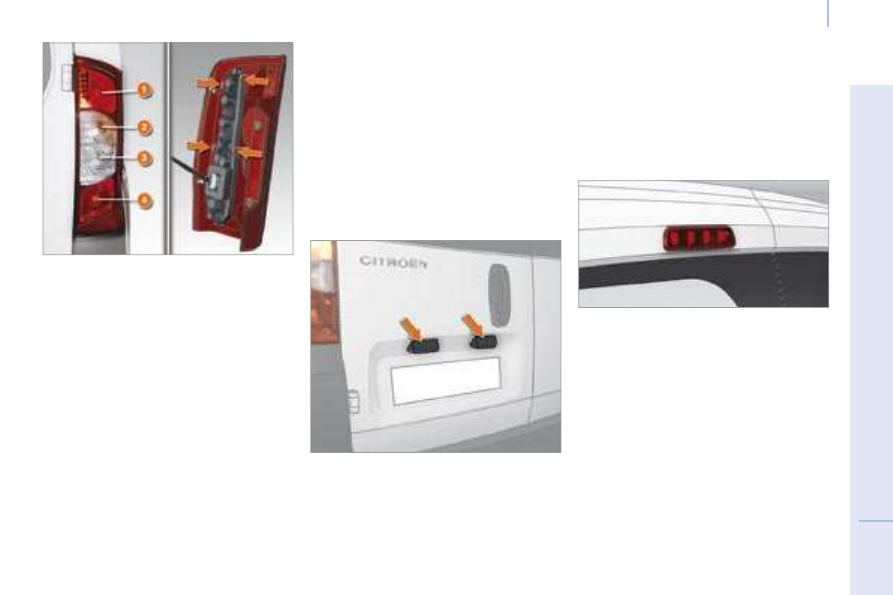

 REAR LIGHTS

 For further information concerning the bulbs,
refer to the table “Types of bulb”.
   1.    Brake lights

 Type B , P21W - 21W

  2.    Direction indicators

 Type B,  PY21W - 21W - amber

  3.    Reversing lights

 Type B,  P21W - 21W

  4.    Side lights   / Fog lamps

 Type B,  P4/21W - 4W/21W

   -   Identify the faulty bulb then open the rear

doors.

  -   Unscrew the two screws using the

screwdriver supplied in the tool kit
(behind the driver’s seat) and extract the
bulb holder.

  -   Release the light unit.

  -   Disconnect the electrical connector.

  -   Remove the support by moving aside the

tabs.

  -   Change the bulb.

  NUMBER PLATE LIGHTS

  Type A,  C5W - 5W
   -   Unclip the transparent cover using

the screwdriver supplied in the tool kit
(behind the driver’s seat) and extract the
bulb holder.

  -   Change the bulb by moving aside

the two contacts.

  -   Ensure that the new bulbs are secured

correctly between the two contacts.

  -   Replace the plastic lens and press on it.

 THIRD BRAKE LIGHT

  Type B , W5W - 5W (4 bulbs)
   -   Unclip the transparent cover using the

screwdriver located in the tool kit (behind
the driver).

  -   Disconnect the electrical connector.

  -   Remove the bulb holder by squeezing the

two tabs.

  -   Remove the faulty bulb.

  -   Change the bulb.

   If you encounter any difficulty, consult a
 CITROËN  dealer.

1

0

8

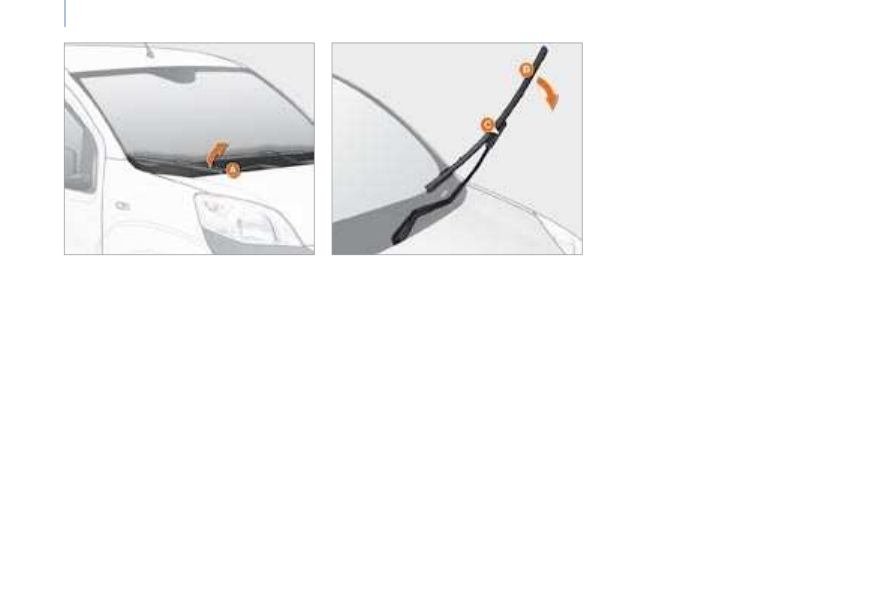

Changing a wiper blade

   CHANGING A WIPER BLADE

  Changing a front or rear wiper blade

 Instructions for removing the blade:
 Lift the wiper arm  A  off the windscreen.
 Turn the blade  B  90° around the pivot  C  on
the end part of the arm.
 Remove the pivot from the blade  B .

 Instructions for fitting the blade:
 Fit the pivot  C  in the hole in the central part
of the blade  B .
 Place the arm with the blade on the
windscreen.

1

0

9

7

T

R

O

U

B

L

ESH

O

O

T

IN

G

   Changing a fuse

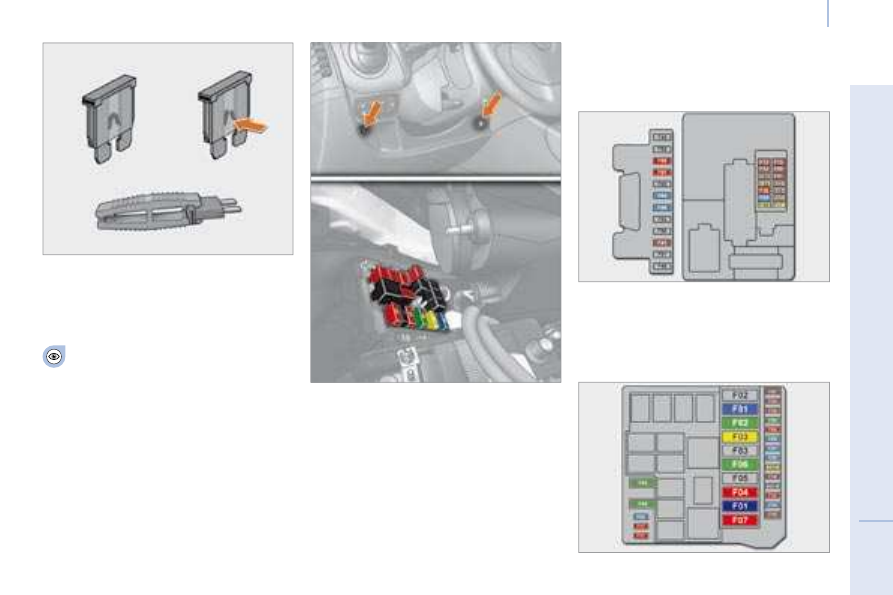

 CHANGING A FUSE

 The two fuse boxes are placed on the fascia
panel on the driver’s side and under the
bonnet.

  CITROËN  will not accept responsibility
for the cost incurred in repairing your

vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
a  CITROËN dealer  and not installed
in accordance with his instructions, in
particular when the combined consumption
of all of the additional equipment connected
exceeds 10 milliamperes.

  Removing and fitting a fuse

 Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.

  Always replace a faulty fuse with a fuse
of the same rating.

   -   To gain access to the fascia panel

fuses, remove the 2 screws using the
screwdriver (located in the tool kit) and
tilt the box.

  -   To gain access to the fuses under the

bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.

1

0

9

7

T

R

O

U

B

L

ESH

O

O

T

IN

G

   Changing a fuse

 CHANGING A FUSE

 The two fuse boxes are placed on the fascia
panel on the driver’s side and under the
bonnet.

  CITROËN  will not accept responsibility
for the cost incurred in repairing your

vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
a  CITROËN dealer  and not installed
in accordance with his instructions, in
particular when the combined consumption
of all of the additional equipment connected
exceeds 10 milliamperes.

  Removing and fitting a fuse

 Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.

  Always replace a faulty fuse with a fuse
of the same rating.

   -   To gain access to the fascia panel

fuses, remove the 2 screws using the
screwdriver (located in the tool kit) and
tilt the box.

  -   To gain access to the fuses under the

bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.

1

1

0

Changing a fuse

  Identification

mark

  Amperage

  Functions

 F12

 7.5 A

 Right-hand dipped headlamp supply

 F13

 7.5 A

 Left-hand dipped headlamp supply - headlamp height adjuster

 F31

 5 A

 Engine control unit supply switch

 F32

 7.5 A

 Front light - front courtesy light - rear courtesy light lamp

 F36

 10 A

 Audio equipment - mobile telephone pre-equipment - air conditioning control panel - EODB diag socket

 F37

 5 A

 Brake light - instrument panel

 F38

 20 A

 Locking of the doors

 F43

 15 A

 Wipers pump

 F47

 20 A

 Driver’s electric window motor supply

 F48

 20 A

 Passenger’s electric window motor supply

 F49

 5 A

 Parking assistance control unit - rear lighting switch - electric exterior mirrors

 F50

 7.5 A

 Air bags control unit

 F51

 5 A

 Switch on brake pedal - switch on clutch pedal

 F53

 5 A

 Instrument panel - rear fog lamps

  DRIVER’S SIDE FASCIA PANEL FUSES

1

0

9

7

T

R

O

U

B

L

ESH

O

O

T

IN

G

   Changing a fuse

 CHANGING A FUSE

 The two fuse boxes are placed on the fascia
panel on the driver’s side and under the
bonnet.

  CITROËN  will not accept responsibility
for the cost incurred in repairing your

vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
a  CITROËN dealer  and not installed
in accordance with his instructions, in
particular when the combined consumption
of all of the additional equipment connected
exceeds 10 milliamperes.

  Removing and fitting a fuse

 Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.

  Always replace a faulty fuse with a fuse
of the same rating.

   -   To gain access to the fascia panel

fuses, remove the 2 screws using the
screwdriver (located in the tool kit) and
tilt the box.

  -   To gain access to the fuses under the

bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.

1

1

1

7

T

R

O

U

B

L

ESH

O

O

T

IN

G

   Changing a fuse



Identifi cation mark

  Amperage

  Functions

 F01

 60 A

 Control unit

 F03

 20 A

 Starter supply

 F04

 40 A

 ABS hydraulic block pump supply

 F06

 30 A

 Single speed fan assembly control

 F07

 40 A

 High speed fan assembly control

 F08

 30 A

 Air conditioning unit pump

 F10

 10 A

 Horn

 F11

 10 A

 Engine management secondary charge supply

 F14

 15 A

 Main beam headlamps

 F16

 7.5 A

 F17

 15 A

 Supply for ignition coil, injectors, engine management central unit

 F18

 7.5 A

 Engine management control unit (1.4 HDi)

 F19

 7.5 A

 Air conditioning compressor

 F20

 30 A

 Supply for heated rear screen, electric exterior mirrors de-icing heaters

 F21

 15 A

 Engine management 1.4 petrol, relay coil T09 (HDi)

 F22

 20 A

 Engine management control unit (1.4 HDi), petrol pump

 F23

 20 A

 ABS hydraulic block solenoid valves supply

 F24

 7.5 A

 ABS

 F30

 15 A

 Fog lamps

 F81

 60 A

 Pre-heat unit

  F82

  30 A

 Electronic gearbox system pump - electronic gearbox system supply

  F84

  10 A

 Electronic gearbox system control unit and valves

 F85

 30 A

 Lighter - 12 V accessories socket

 F87

 7.5 A

 Reversing lights - water in diesel sensor

  FUSES IN THE ENGINE

1

1

2

Having your vehicle towed

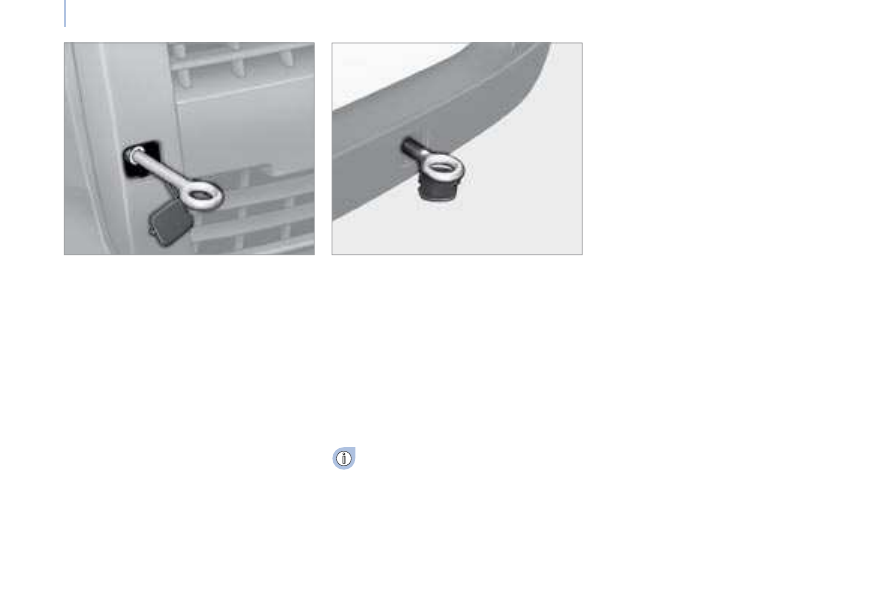

 BEING TOWED

  Without lifting (four wheels on the
ground)

 You must always use a towbar.

  From the front

 The removable towing eye is located in the
tool kit behind the driver’s seat (Van) or
behind the rear benchseat (Combi).
  Unclip the cover using a flat tool.
 Screw the removable towing eye in fully.

  From the rear

 Hook the bar onto the rigid eye located
under the bumper.

  With lifting (2 wheels only on the ground)

 It is preferable to lift the vehicle using
professional lifting equipment.

 When being towed with the engine
off, there is no braking or steering

assistance.

1

1

3

7

T

R

O

U

B

L

ESH

O

O

T

IN

G

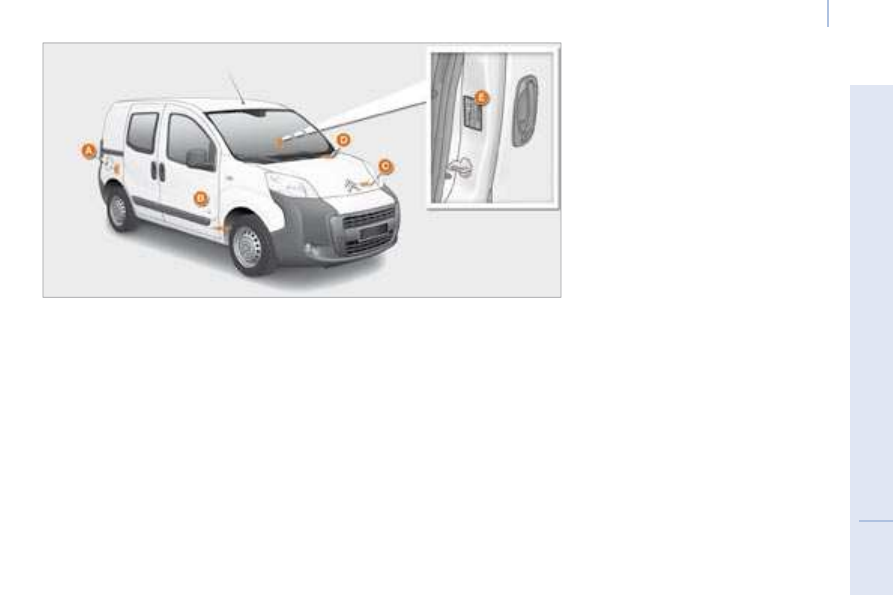

 Identification features

   IDENTIFICATION FEATURES

  A. Manufacturer’s plate
   1.   VF Type serial number.

  2.   Gross vehicle weight (GVW).

3.   Gross train weight (GTW).

  4.   Maximum weight on front axle.

  5.   Maximum weight on rear axle.

  B. Serial number on the body

  C. Paint reference

  D. Serial number on the dashboard

E.  Tyre pressures

1

1

4

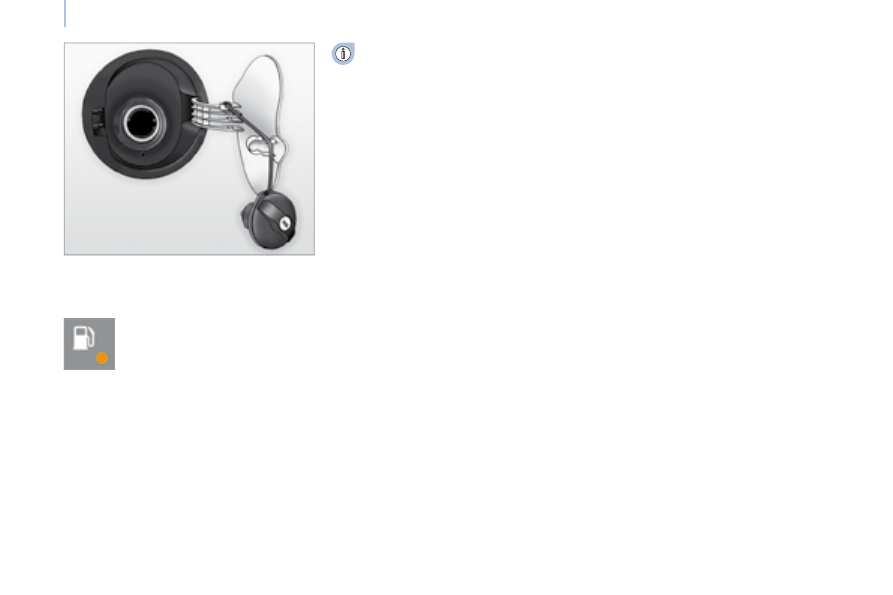

   Fuel

   FILLING WITH FUEL

  Low fuel level

 When the minimum fuel tank
level is reached, this warning
light comes on. At this moment,
you have approximately   litres

remaining.   Fill up without delay to avoid
running out of fuel.

 The fuel tank must be filled  with the engine
off.

   -   Open the fuel filler flap.

  -  Hold the cap with one hand.

-  With the other hand, insert the key and

turn it a third of a turn.

   -   Remove the cap.

 FUEL CIRCUIT DEACTIVATED

 In the event of a serious collision, a device
automatically cuts off the fuel supply to the
engine and the vehicle’s electrical supply.
 This also automatically unlocks the doors
and switches on the interior lights.
A message is displayed on the instrument
panel (depending on model).
Turn the key to position STOP to avoid the
battery being discharged.
  Check that there is no smell or leak of fuel
outside the vehicle.

 When the fuel filler flap is open, a
safety system prevents sliding of the

side door.
 A label affixed to the inside of the flap
reminds you of the type of fuel to be used.
 When filling the fuel tank, do not continue
after the 3rd cut-off of the nozzle. This could
cause malfunctions.
 The capacity of the fuel tank is
approximately  45  litres.
 After filling the fuel tank, lock the cap and
close the flap.

Reactivating

To continue driving, manually re-establish
the fuel supply and the electrical supply :
-  with the ignition key in position STOP

turn it to position RUNNING,

-  move the direction indicators control stalk

all the way upwards,

-  put it to position “Stop”,

-  move the direction indicators control stalk

all the way downwards,

-  put it to position “Stop“ again,

-  move it all the way upwards again,

-  put it to position “Stop” again,

-  move it all the way downwards again,

-  put it to position “Stop” again,

-  turn the ignition key to position STOP.

1

1

6

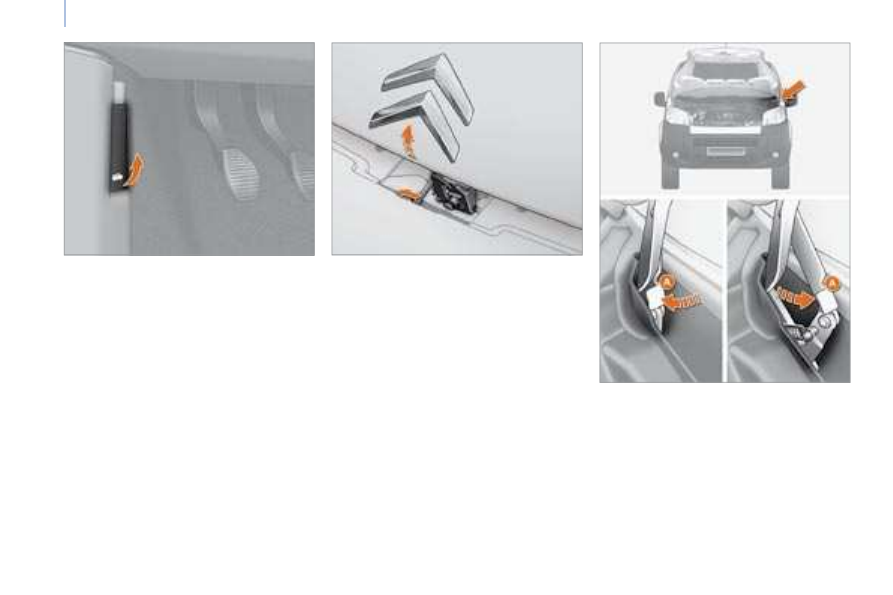

   Opening the bonnet

   OPENING THE BONNET

  On the inside

 Pull the lever under the fascia panel towards
you.

  On the outside

 Raise the bonnet slightly, placing your hand
flat under the bonnet to make the operation
easier.
 Push the lever to the left, then open the
bonnet fully.
 While holding the bonnet open, check that
the locking control  A  is engaged by pressing
it.

  To close

 Gently lift up the bonnet and pull on the
release control A to release.
 Lower the bonnet and release it at the end
of its travel. Check that the bonnet is locked.
 Avoid manoeuvring the bonnet in strong
winds.

1

1

7

7

T

R

O

U

B

L

ESH

O

O

T

IN

G

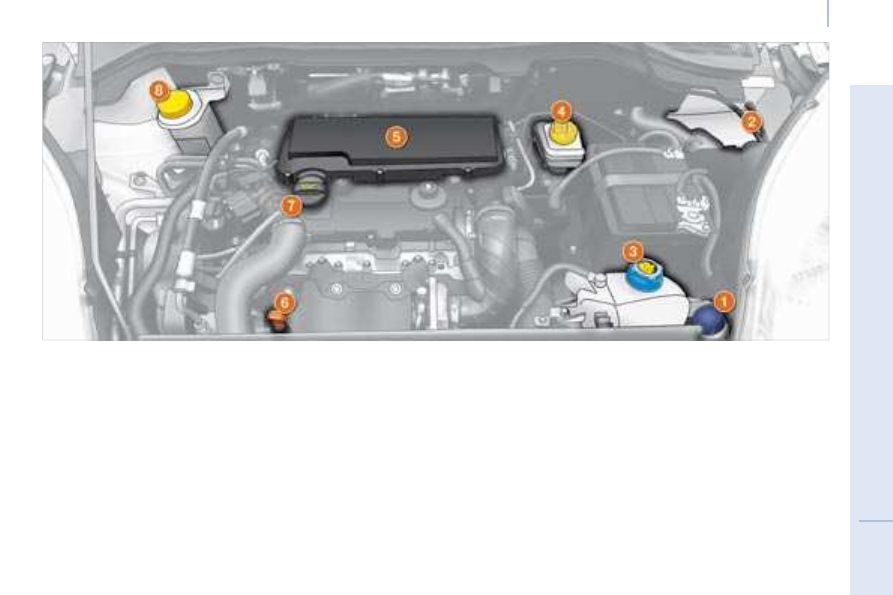

 Under the bonnet

  Diesel engine

 UNDER THE BONNET

  4.   Brake and clutch fluid reservoir.

  5.   Air filter.

  6.   Dipstick.

  7.   Engine oil filler cap.

  8.   Power steering fluid reservoir.

    1.   Windscreen wash reservoir.

  2.   Fuse box.

  3.   Engine coolant reservoir.

1

1

8

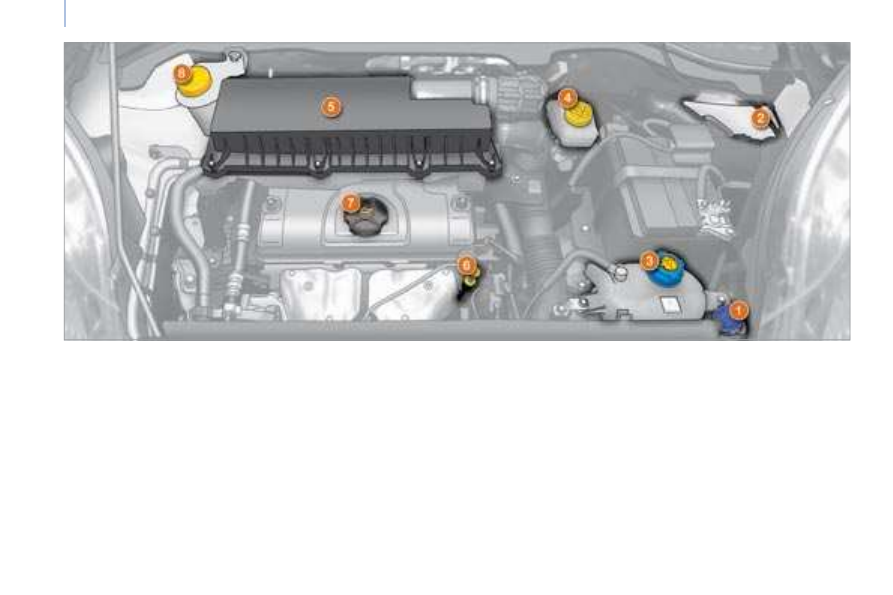

   Under the bonnet

  Petrol engine

 UNDER THE BONNET

  4.   Brake and clutch fluid reservoir.

  5.   Air filter.

  6.   Dipstick.

  7.   Engine oil filler cap.

  8.   Power steering fluid reservoir.

    1.   Windscreen wash reservoir.

  2.   Fuse box.

  3.   Engine coolant reservoir.















Content   ..  6  7  8  9   ..
