Citroen C-Crosser Dag (2008 year). Instruction - part 2

CRUISE

I N S T R U M E N T S a n d C O N T R O L S

INSTRUMENT PANEL INDICATOR LIGHTS

Indicator lights

is on

Cause

Observations

Left-hand
direction
indicator

Flashing
with
buzzer

This ﬂ ashes when you

press the lights stalk
down.

If this indicator light ﬂ ashes abnormally quickly,

this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.

Right-hand
direction
indicator

Flashing
with
buzzer

This ﬂ ashes when you

push the lights stalk up.

If this indicator light ﬂ ashes abnormally quickly,

this could indicate that the electric bulb of one
of the direction indicators has blown. Change
the bulb or contact a CITROËN dealer.

Main beam
headlamps

Fixed

This comes on when
you pull the lights stalk
towards you.

Pull the stalk to return to dipped headlamps.

Side lights

Fixed

This comes on when
the lights stalk is in the
“Side lights” or “Dipped
headlamps” position.

Turn the stalk to the position required.

Front fog
lamps

Fixed

This comes on when you
use the front fog lamps.

Turn the ring on the stalk forwards to switch on
the fog lamps.

Rear fog lamps

Fixed

This comes on when you
use the rear fog lamps.

Turn the ring on the stalk forwards to switch on
the fog lamps.

Cruise control

Fixed

This comes on when the
mode is active.

Press the “ON/OFF” button to activate/
deactivate the mode.

I N S T R U M E N T S a n d C O N T R O L S

Indicator lights

is on

Cause

Observations

Diesel

pre-heating

Fixed

This comes on when the
ignition switch is at ON.

Wait until this light has switched off before
starting.
The duration for which this is displayed is

determined by the exterior climatic conditions.

Warning lights

is on

Cause

Observations

Handbrake /

Brake ﬂ uid

level

Fixed

This comes on for a
few seconds when the
ignition is turned to “ON”
then switches off.

It is accompanied by a message on the
instrument panel display.

The handbrake is
applied or has not been
released fully.

It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.

The brake ﬂ uid level is

too low.

It is accompanied by a message on the

instrument panel display. Top up with brake ﬂ uid

and contact a CITROËN dealer.

Emission

control system

Fixed or

ﬂ ashing

This comes on or

ﬂ ashes if the system

fails.

Consult a CITROËN dealer.
It should switch off a few seconds after starting
the engine.

Battery charge

Fixed

This comes on if a
charging circuit fault
occurs.

It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the “Battery” section).

I N S T R U M E N T S a n d C O N T R O L S

Warning lights

is on

Cause

Solution - action

Driver’s

seat belt not

fastened

Fixed

The driver has not
fastened or has
unfastened his seat belt.

This is accompanied by a message on the
instrument panel display.
Fasten the driver’s seat belt.

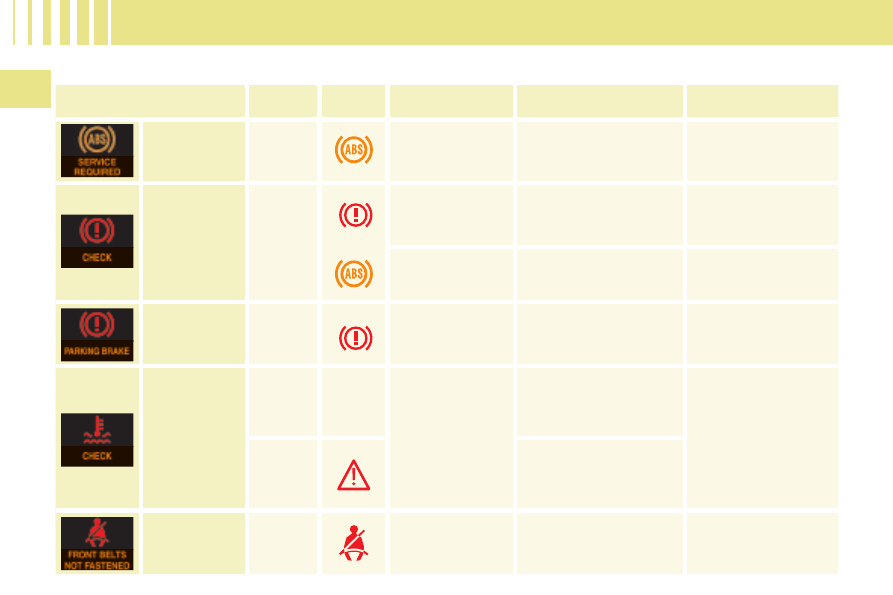

ABS

Fixed

This comes on if an
anti-lock braking system
failure occurs.

It is accompanied by a message on the
instrument panel display. The vehicle retains
conventional braking without assistance but
you are advised to stop. Have it checked by a
CITROËN dealer.

Air bags and

pretensioners

Fixed

This comes on for a
few seconds when the
ignition is turned to “ON”
then switches off.

It should switch off when the engine is started. If
it does not switch off, contact a CITROËN dealer.

This comes on if an air
bag or pretensioner
failure occurs.

It is accompanied by a message on the
instrument panel display. Have the system
checked by a CITROËN dealer without delay.

I N S T R U M E N T S a n d C O N T R O L S

Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on

continuously or ﬂ ashes. This initial warning may be accompanied by an audible signal and a message on the display. Do not

ignore these warnings.
When the cause of the appearance of the warning light or warning message has been rectiﬁ ed, the warning disappears from

the display automatically. If the cause of the warning is not rectiﬁ ed, you can return to the previous screen at any time by

pressing the  INFO  button on the fascia.
The symbol  “!”  is displayed.
To return to the previous screen (with the  “!”  symbol), you must press the  INFO  button several times.

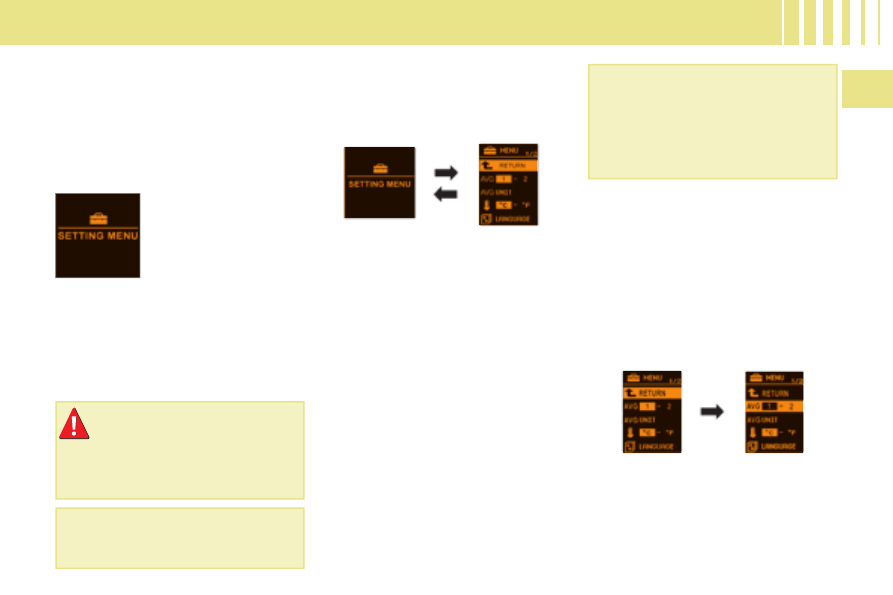

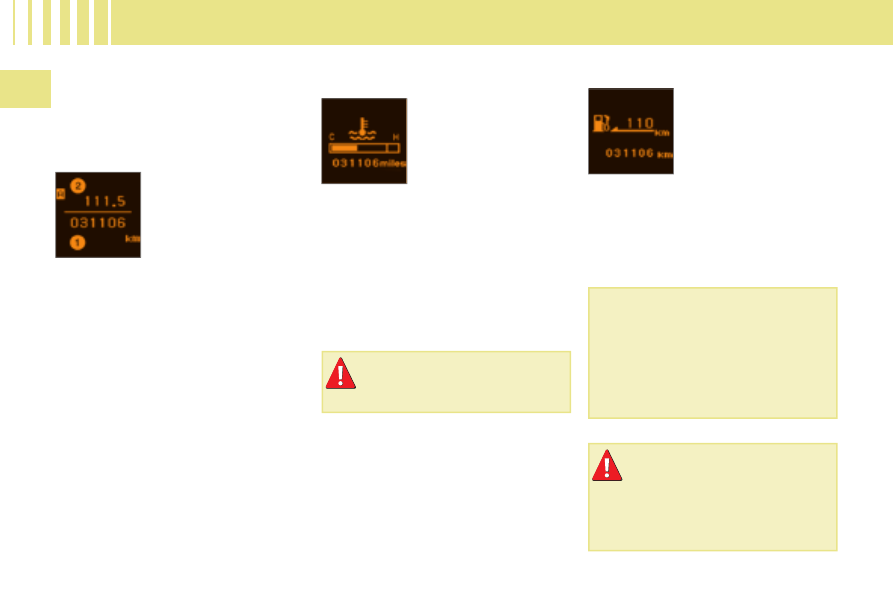

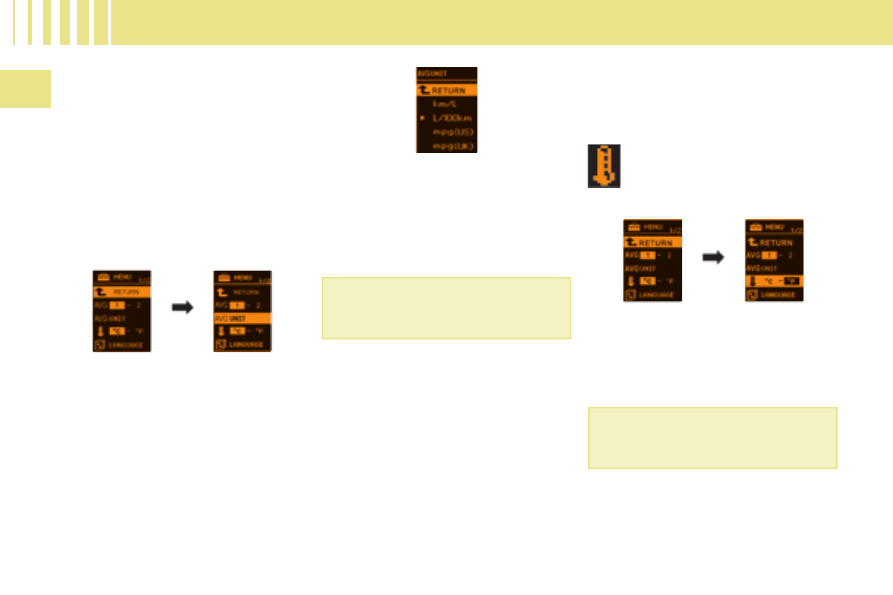

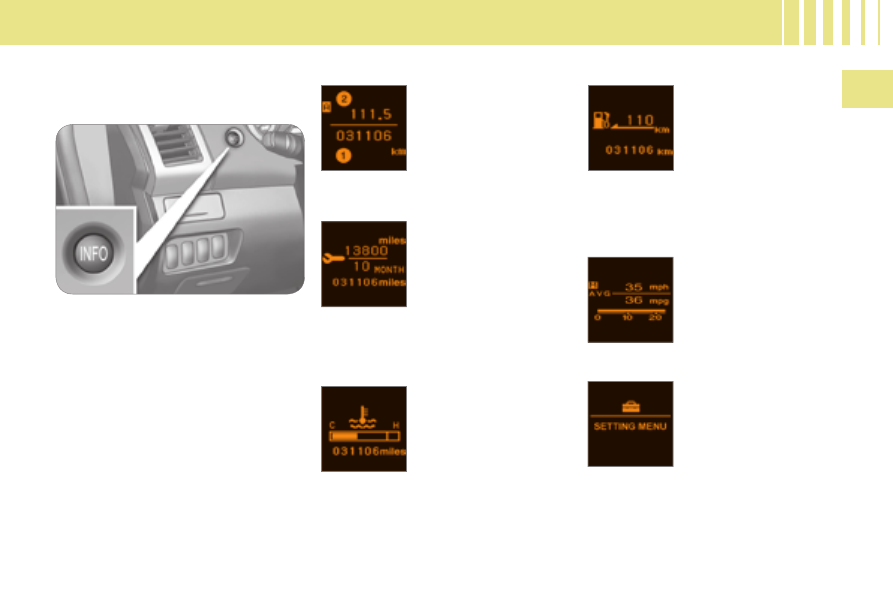

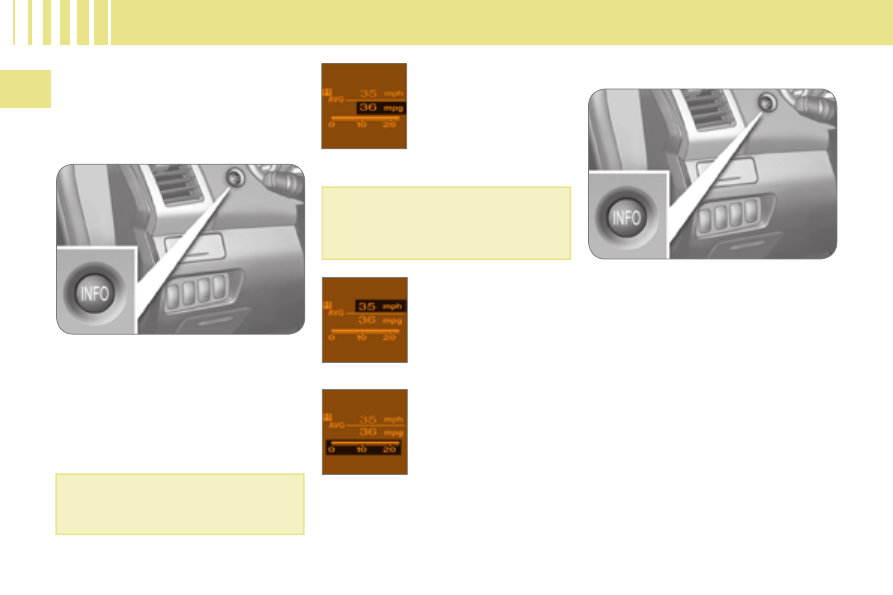

INSTRUMENT PANEL DISPLAYS

Warning messages (ignition at “OFF”)

You can shut down the warning messages which show these symbols in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.

Press

brieﬂ y .

Press and hold .

Symbols which appear in the top right corner of the display.

Message

is on

Associated

warning

light

Cause

Solution - action

Observations

Key in

ignition

Fixed

The driver’s door
is open and you
have forgotten to
remove the key
from the ignition.

Turn the ignition
switch to the LOCK
position and remove
the key.

Only if the engine has
been started.
An intermittent audible
signal is heard.

Lights left

Fixed

You have
forgotten to
switch off your
lights.

Switch off your lights
by placing the stalk at
OFF.

An intermittent audible
signal is heard.

I N S T R U M E N T S a n d C O N T R O L S

Warning messages (ignition at “ON”)

Message

is on

Associated

warning

light

Cause

Solution - action

Observations

ABS

Fixed

Anti-lock braking
system (ABS)
fault.

Consult a CITROËN
dealer.

The vehicle retains
conventional braking
without assistance
but you are advised
to stop.

Braking

system

Fixed

and

The level of

brake ﬂ uid in the

reservoir is too
low.

Stop and top up,
otherwise contact a
CITROËN dealer.

If the message
remains on after
topping up, contact a
CITROËN dealer.

Braking system
fault.

Consult a CITROËN
dealer.

It is essential
to stop.

Handbrake on

Fixed

You have moved
off with the
handbrake still
applied.

Release the handbrake.

Coolant

temperature

Flashing

High engine
temperature.

If the message

ﬂ ashes ,

wait for the engine to
cool before topping up
the level, if necessary.

It is essential to
stop your vehicle in
a safe place.

Flashing

If the message

ﬂ ashes

and the service
warning light comes
on , contact a CITROËN
dealer without delay.

Seat belt

Fixed

The driver has
not fastened or
has unfastened
his seat belt.

Fasten your seat belt.

An intermittent
audible signal is
heard above 5 mph
(8 km/h).

I N S T R U M E N T S a n d C O N T R O L S

Message

is on

Cause

Solution - action

Observations

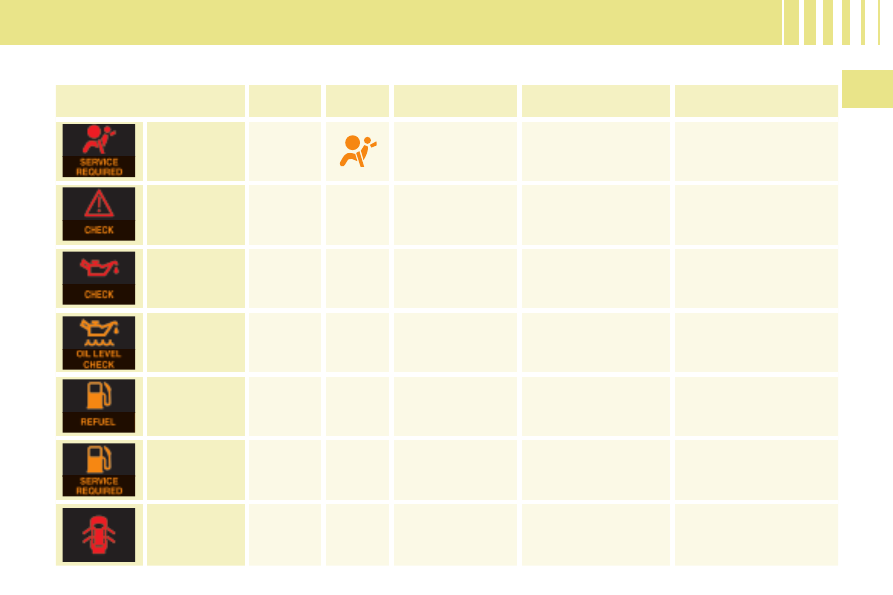

Air bags

Fixed

Fault in the
air bags or
pretensioners.

Consult a CITROËN
dealer.

Service

Fixed

Problem in one
of the systems
which does not

have a speciﬁ c

message.

Stop the vehicle and
contact a CITROËN
dealer.

To identify the problem,
contact a CITROËN
dealer.

Engine oil

pressure

Fixed

Engine oil
pressure too low
or fault in the oil
circuit.

Stop the vehicle and
contact a CITROËN
dealer.

Engine oil

level

Fixed

Engine oil level
too low.

Stop the vehicle and
check the level using
the dipstick.

If there is a lack of oil,
top up the level.

Fuel level

warning

Fixed

The fuel tank
level is low.

Fill your fuel tank as
soon as possible.

Fuel circuit

Fixed

Fuel circuit fault.

Consult a CITROËN
dealer.

Accesses

not closed

correctly

Fixed

One of the doors
or the tailgate
is not closed
correctly.

Close the door or the
tailgate.

The access concerned
is indicated on the
display.

I N S T R U M E N T S a n d C O N T R O L S

Message

is on

Associated

warning

light

Cause

Solution - action

Observations

Dynamic

stability

control

system (ASC)

Fixed

Dynamic stability
control system
(ASC) fault.

Consult a CITROËN
dealer.

Four wheel

drive system

Fixed

Four wheel drive
transmission
system fault.

Consult a CITROËN
dealer.

Four wheel

drive system

temperature

Fixed

The temperature
of the four wheel
drive transmission
system is too
high.

Stop the vehicle and
contact a CITROËN
dealer.

The vehicle switches
to front wheel
drive (2 WD) mode
automatically.

Automatic
headlamp

adjustment

system

Fixed

The automatic
headlamp
adjustment is
faulty.

Consult a CITROËN
dealer.

Only on vehicle ﬁ tted

with xenon bulbs.

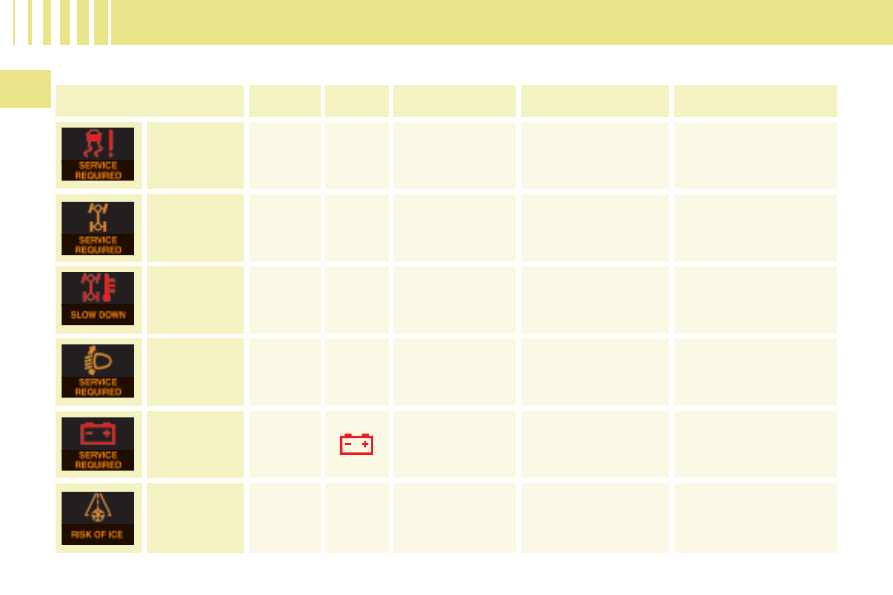

Battery

charge

Fixed

Battery charge
fault.

Stop the vehicle and
contact a CITROËN
dealer.

Exterior

temperature

Fixed

The exterior

temperature 3 °C
(37 °F) or below.

Road icy.
Pay attention and
drive slowly.

Caution: The road may
be icy even when this
screen is not displayed.

I N S T R U M E N T S a n d C O N T R O L S

Message

is on

Associated

warning

light

Cause

Solution - action

Observations

Saturation of

the particle

emission ﬁ lter

Fixed

Start of saturation
of the particle

emission ﬁ lter.

As soon as trafﬁ c

conditions permit,

regenerate the ﬁ lter

by driving at a speed
of at least 35 mph
(60 km/h) until the
message is cleared.

If the message is still
displayed, contact a
CITROËN dealer.

Diesel

additive level

Fixed

Low diesel
additive level.

Have the level topped
up by a CITROËN
dealer without delay.

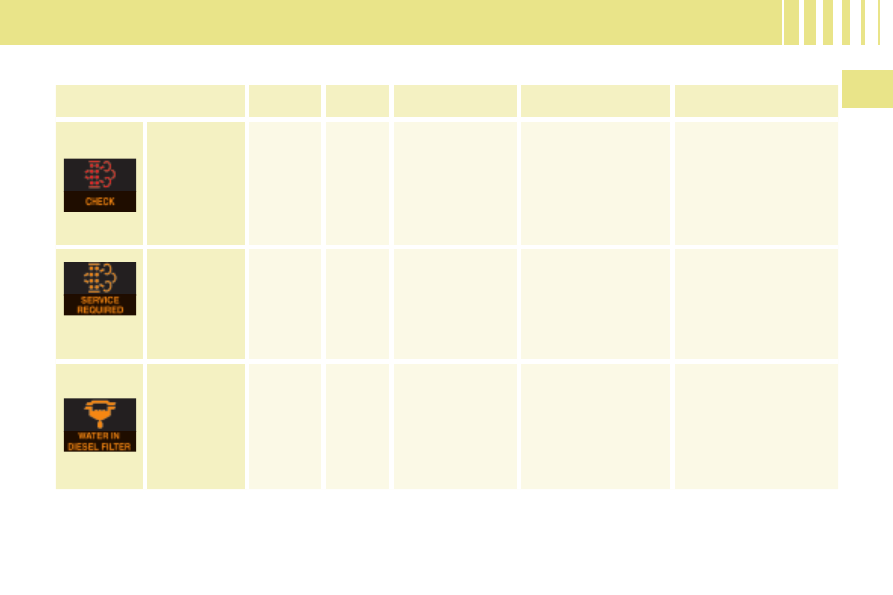

Water in the

diesel ﬁ lter

(according to

country)

Fixed

The presence
of water in the

diesel ﬁ lter is

indicated.
Risk of damage
to the injection
system on Diesel
engines.

Contact a CITROËN
dealer without delay.

I N S T R U M E N T S a n d C O N T R O L S

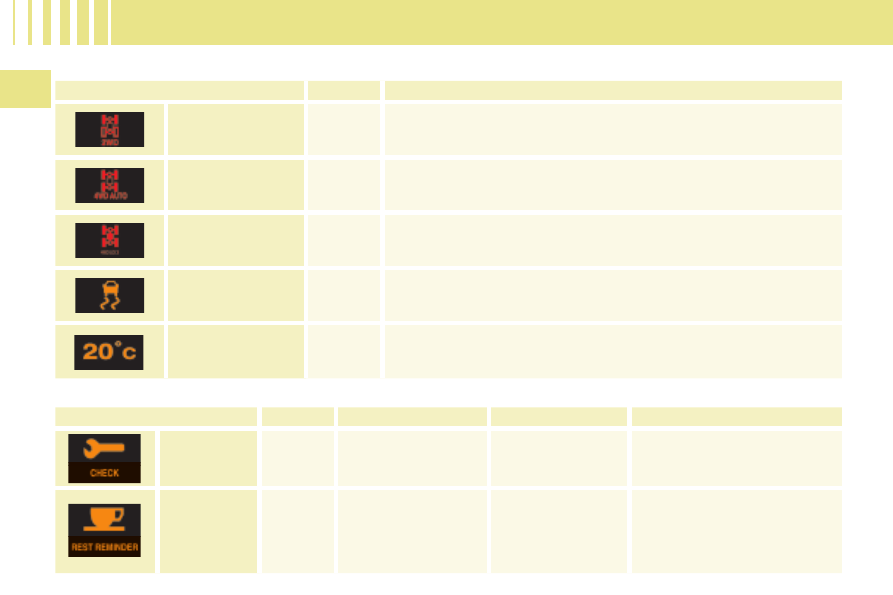

Prevention messages

Information messages (ignition at “ON”)

Message

is on

Status of the system

2WD two wheel

drive system

Flashing

When the “2WD” (2 wheel drive) mode is selected using the
transmission mode selector.

4WD four wheel

drive system

Flashing

When the “4WD” (4 wheel drive) mode is selected using the
transmission mode selector.
This mode is the default mode.

4WD LOCK four

wheel drive system

Flashing

When the “LOCK” (4 wheel drive) mode is selected using the
transmission mode selector.

Dynamic stability

control system

(ASC)

Fixed

When the dynamic stability control system (ASC) is active.

Exterior

temperature

Fixed

This indicates the exterior temperature.

When the vehicle is stationary or if the speed is below 12 mph
(20 km/h) the temperature displayed may not correspond to the

exterior temperature.

Display

is on

Cause

Solution - action

Observations

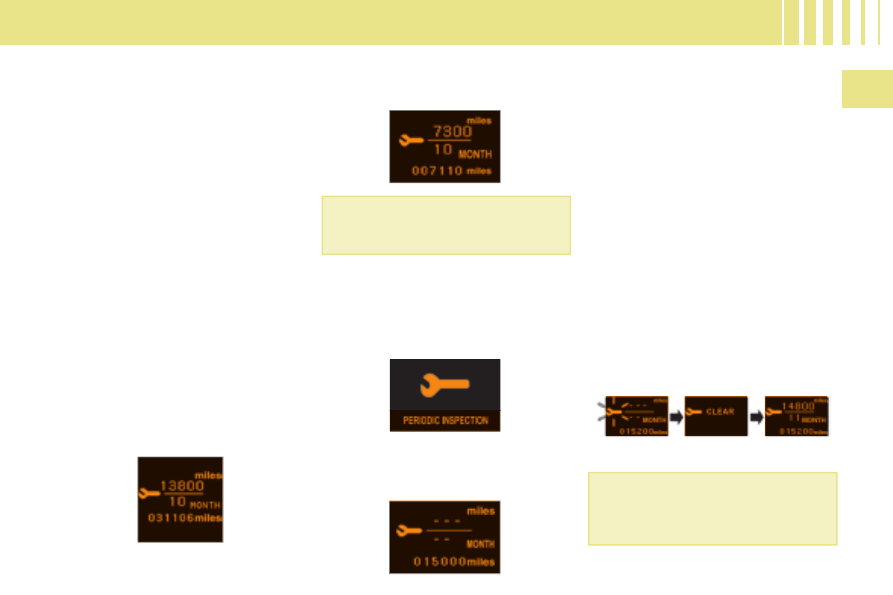

Service

indicator

Fixed

Informs the driver of
the time remaining
before the vehicle’s
scheduled service.

Consult a
CITROËN dealer.

This is displayed for a few
seconds when the ignition is
switched on.

Break

advised

Fixed

Informs the driver that
he should stop to take
a break.

You are advised to
take a break.

This is displayed when the
driving time that you set
previously is reached.
An audible signal is heard
3 times and is then heard every
5 minutes until the vehicle stops.

I N S T R U M E N T S a n d C O N T R O L S

The  total  distance  is
displayed  in  zone   1
of  the  display  and  the
trip  distance  in  zone   2
(refer  to  the  “Distance
recorders” section).

Distance recorder (A and B)

INFORMATION ON THE
INSTRUMENT PANEL DISPLAY

Data displays

With  the  ignition  on,  press  the   INFO
button,  located  on  the  fascia  to  the
left  of  the  instrument  panel,  to  display
the  various  information  displays  in
succession:
   -

the distance recorder A,

the distance recorder B,

the service indicator,

the coolant temperature,

the range,

the trip computer,

the setting menu.

This

displays

the

distance and the number
of

months

remaining

before the next service

to be carried out in
accordance

with

the

manufacturer’s servicing
schedule (refer to the

“Service indicator” section).

Service indicator

When the engine is
running, this indicates
the temperature of the
coolant (refer to the
“Coolant temperature
indicator” section).

Coolant temperature

When  the  engine  is
running,  this  indicates
the  number  of  miles
(kilometres)  which  can
still  be  travelled  with
the fuel remaining in the
tank  in  relation  to  the
average

consumption

over the last few miles

(kilometres) travelled (refer to the
“Range” section).

Range

This

indicates

the

average

consumption,

the average speed and
the current consumption
(refer

the

“Trip

computer” section).

Trip computer

  When  the  vehicle  is
stationary ,  this  allows
the  user  to  change  the
following

parameters

(refer  to  the  “Function
parameters” section):
   -   the display language,
  -   the  temperature  dis-
play unit,

the fuel consumption unit,

the option to reinitialise the aver-
age consumption and the average
speed,

the break (rest) reminder display in-
terval.

Setting menu

I N S T R U M E N T S a n d C O N T R O L S

The  total  distance  is
displayed  in  zone   1   of
the  display  and  the  trip
distance in zone  2 .

DISTANCE RECORDERS (A / B)

System for measuring the total distance
travelled by the vehicle during its
service life and the distance travelled in
a day or other period until it is reset to
zero by the driver.

Zero reset

With  the  ignition  on,  press  the   INFO
button  for  more  than  2  seconds  until
zeros appear.

When  the  engine  is
running,  this  indicates
the  temperature  of  the
coolant.

COOLANT TEMPERATURE

If the bar is close to
the

critical

position

located on the right, the
temperature is too high.

The symbol ﬂ ashes when your engine

is overheating.
  It  is  imperative  that  you  stop  your
vehicle safely.
  Wait a few minutes before switching
off the engine.

Wait for the engine to cool
before topping up the level. The
cooling system is pressurised.

  When  the  engine  is
running ,  this  indicates
the  distance  which  can
still be travelled with the
fuel remaining in the tank
in relation to the average
consumption  over  the
last few miles/kilometres
travelled.

RANGE

When the range is less than 30 miles
(50 km) , dashes are displayed.
Fill the fuel tank as soon as possible.
The display of the range is updated.

As the cooling system is pressurised, to
avoid any risk of scalding, unscrew the
cap  by two turns  to allow  the  pressure
to drop.
When  the  pressure  has  dropped,
remove the cap and top up the level, if
necessary.
  Consult a CITROËN dealer.

This ﬁ gure may increase following a

change in the style of driving or the
relief,  resulting  in  a  reduction  in  the
current consumption.
If  you  only  add  a  few  litres,  the
value  displayed  will  be  incorrect.

Therefore, you must ﬁ ll the tank

whenever possible.

When

you

disconnect

the

battery,

the

consumption data is lost and

the  value  displayed  will  be  different
from that displayed before the battery
was  disconnected.  The  distance
displayed  must  be  considered  an

approximate indication.

I N S T R U M E N T S a n d C O N T R O L S

SERVICE INDICATOR

Resetting the service indicator
to zero

Your CITROËN dealer carries out this
operation after each service.
If you have carried out your vehicle’s
service

yourself,

the

zero

reset

procedure is the following:


switch off the ignition,



press the INFO button several times

in succession until the service indi-
cator is displayed.



press and hold the INFO button for

a few seconds until the spanner

ﬂ ashes .



press the INFO button while the

spanner is ﬂ ashing to change the

display “---” to “CLEAR” then the

time remaining before the next serv-

ice is due is displayed.

Service overdue

Operation

When  the  ignition  is  switched  on,  you
must  press  the   INFO   button  several
times  in  succession  until  the  service
indicator  is  displayed.  The  distance
recorder  display  line  indicates  the
number of miles (kilometres) remaining
and the time elapsed line indicates the
number of months remaining before the

next service is due.

After

certain

distance

and

certain time, the displaying of “---”
is

reinitialised

and

the

display

indicates the time remaining before

the next service is due.

System which informs the driver when

the next service is due in accordance

with

the

manufacturer’s

servicing

schedule.
The point at which the next service is

due is calculated from the last service
indicator zero reset.
It is determined by two parameters:
-

the distance travelled (in miles
(km)),

the time elapsed since the last serv-
ice (in months).

The distance remaining to be travelled
may be weighted by the time factor,
depending on the user’s driving habits.

Example: the display indicates that
7300 miles (kilometres) remain before

the next service is due.

The symbol “---” remains displayed

until the ﬁ rst service of a new vehicle

has been carried out.

    Example:  the display indicates that the
service  is  overdue.  This  service  must
be carried out by a  CITROËN  dealer.

Each  time  the  ignition  is  switched  on,
the  display   “SCHEDULED  SERVICE”
is  displayed  for  a  few  seconds  to
indicate that the service must be carried
out without delay.

I N S T R U M E N T S a n d C O N T R O L S

System

which

provides

current

information about the route travelled.

TRIP COMPUTER

Average
consumption
(l/100km or km/l or
mpg)

This

the

average

quantity of fuel consumed
since the last zero reset.

This ﬁ gure may increase following a

change  in  the  style  of  driving  or  the
relief  resulting  in  a  reduction  in  the
current consumption.

Average speed
(km/h or mph)

This  is  the  average
speed  calculated  since
the last zero reset.

Resetting the information to
zero

  Automatic
If  the  ignition  remains  in  the   “ACC”
(Accessories) position for at least
4 hours, the average consumption value
is reset to zero automatically.

   If  dashes  “---”  are  displayed  for  long
periods  in  place  of  the  digits  while
driving, contact a  CITROËN  dealer.

Current
consumption
(l/100km or km/l or
mpg)

This is the average
quantity

fuel

consumed  during  the
last  few  seconds  of
driving.

Data displays

With  the  ignition  on,  press  the   INFO
button  on  the  fascia,  to  the  left  of  the
instrument  panel,  several  times  in
succession  to  display  the  different
information:
   -

the average consumption,

the average speed,

the current consumption.

When the required information is
displayed, press the INFO button for
more than two seconds.

When the ignition is switched on, the
zero reset switches automatically from
manual mode to automatic mode.

I N S T R U M E N T S a n d C O N T R O L S

When the vehicle is

stationary ,

allows

the user to change the

following parameters:
- the choice of the reini-

tialisation of the aver-

age consumption and

average speed,

the fuel consumption unit,

the temperature display unit,

the display language,

activation/deactivation of the INFO

button sound,

the break (rest) reminder display in-

terval,

restore the manufacturer’s param-
eters.

FUNCTION PARAMETERS

System which provides access to
certain function parameters.

In order to change the settings,
it is essential that you stop
the vehicle and switch on the
ignition.

Apply the handbrake and place the
gear lever in neutral.

  When  the  vehicle  is  moving ,
the  functions  setting  display  is  not
displayed when you press the  INFO
button.

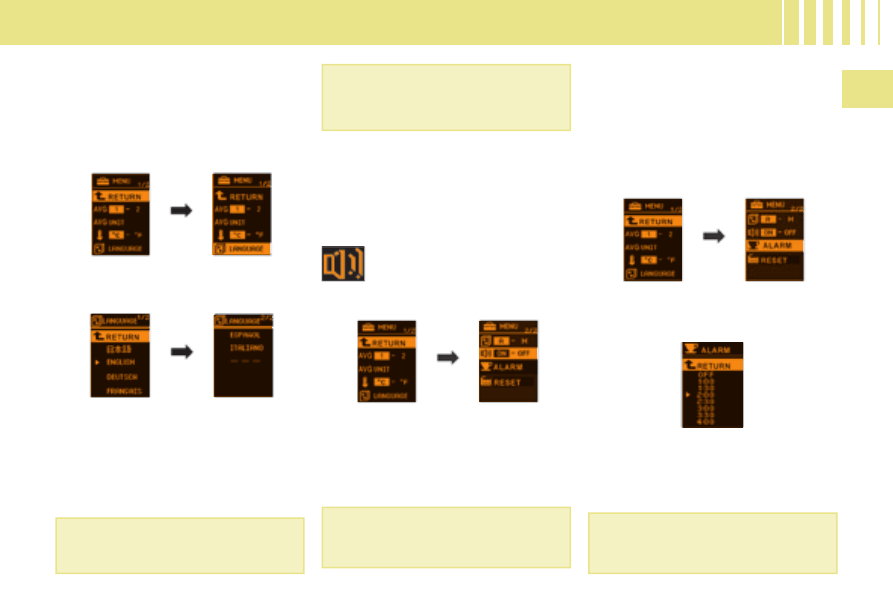

  With  the  ignition  on ,  press  the   INFO
button  on  the  fascia,  to  the  left  of  the
instrument  panel,  several  times  in
succession until the “SETTING MENU”
screen is displayed.

Operation



press and hold the INFO button for

a few seconds to display the menus
screen.

Press  and  hold  the   INFO   button
for  a  few  seconds  to  return  to  the
previous screen.
When the menus screen is displayed,
if  no  operation  is  carried  out  within
15 seconds, the function parameters
screen is displayed.



on the menus screen, press the

INFO button to select a function
from the list:

MENU 1/2 :
-

1 - 2 (choice of the reinitialisation of
the average consumption and aver-
age speed),

UNIT (choice of the fuel consump-
tion units),

choice of the temperature display
unit ,

LANGUAGE (choice of the display
language),

MENU 2/2:
-

a/b (choice of displaying a different
language on the instrument panel
display and the navigation display),

activation / deactivation of the
INFO button sound ,

ALERT (changing of the “BREAK
ADVISED” break reminder display
interval),

REINITIALISE (restore the manu-
facturer’s parameters).

Choice of the reinitialisation of
the average consumption and
average speed

You can choose between two average
consumption

and

average

speed

reinitialisation modes:
-

automatic reinitialisation
( choice 1) ,

manual reinitialisation (choice 2) .

On the menus screen:


press the INFO button to select:



press and hold the INFO button for

a few seconds to switch in succes-
sion  from  reinitialisation  mode   1
(automatic)  to reinitialisation mode
2 (manual) .

The mode selected is conﬁ rmed.

I N S T R U M E N T S a n d C O N T R O L S

Choice of the fuel consumption
units

You can choose between different units
for displaying the fuel consumption.

On the menus screen:


press the INFO button to select

“UNIT” .



press and hold the INFO button for

a few seconds to display the “UNIT”
screen.



press the INFO button to scroll the

units (km/L, L/100km, mpg(US),
mpg(UK) and PREVIOUS) in suc-
cession.



press and hold the INFO button for

a few seconds to conﬁ rm your se-

lection.

In this case, the distance, speed and
quantity of fuel units will also be changed
in accordance with your choice of fuel
consumption unit.

If  the  battery  is  disconnected,  the
parameter  memory  is  cleared  and
the  default  unit  (km/L)  is  restored
automatically.

Choice of the temperature
display unit

You can choose between different units
for displaying the temperature.

On the menus screen:



press the INFO button to select

the temperature unit param-
eters symbol (thermometer).



press and hold the  INFO  button for
a  few  seconds  to  scroll  the  units
(°C and °F) in succession.

The mode selected is conﬁ rmed.

If  the  battery  is  disconnected,  the
parameter  memory  is  cleared  and
the  default  unit  (°C)  is  restored
automatically.

I N S T R U M E N T S a n d C O N T R O L S

Choice of the display language
(LANGUAGE)

You can choose between different
languages for the display.
On the menus screen:


press the INFO button to select

“LANGUAGE” .



press and hold the INFO button for

a few seconds to display the “LAN-
GUAGE” screen.



press the INFO button to scroll the

languages (Japonais, English, Deutsch,
Français, Espanol, Italiano, “---” and
PREVIOUS) in succession.



press and hold the INFO button

for a few seconds to conﬁ rm your

selection.

If you select the parameter “---”,
no message will be displayed in
message display situations.

If  the  battery  is  disconnected,  the
parameter  memory  is  cleared  and
the  default  language  (ENGLISH)  is
restored automatically.

Activation / deactivation of the
“INFO” button sound

You can activate or deactivate the INFO
button sound.
On the menus screen:



press the INFO button to

select  the   INFO   button
sound  activation  /  deacti-
vation  symbol   (located  on
menu 2/2) .



press  and  hold  the   INFO   button
for  a  few  seconds  to  scroll  the
choices (ON, OFF) in succession.

The mode selected is conﬁ rmed.

If  the  battery  is  disconnected,  the
parameter  memory  is  cleared  and
the  default  choice  (ON)  is  restored
automatically.

Changing the display interval
of the “BREAK ADVISED”
message

You  can  change  the  display  interval  of
the  “BREAK ADVISED”  message.
On the menus screen:
   

press the INFO button to select

“ALERT” (located on menu 2/2) .



press and hold the INFO button

for a few seconds to display the
“ALERT” screen.



press the INFO button to select

the display interval of the “BREAK
ADVISED” message.



press and hold the INFO button for

a few seconds to conﬁ rm.

If  the  battery  is  disconnected,  the
parameter  memory  is  cleared  and
the  default  value  (OFF)  is  restored
automatically.

Content .. 1 2 3 ..
