TRIP COMPUTER/VEHICLE PARAMETERS

VEHICLE DIAGNOSTICS

- The "vehicle" tab:

The range, the current

consumption and the distance

remaining.

- The "1" (trip 1) tab with:

The average speed, the average

consumption and the distance
travelled calculated over route "1".

- The "2" (trip 2) tab with the same

functions for a second route.

Range: displays the distance which can travelled with the remaining

displays the distance which can travelled with the remaining

fuel detected in the tank, basd on the average consumption over the

last few miles (kilometres).

This displayed value may vary signiﬁ cantly following a change in the

This displayed value may vary signiﬁ cantly following a change in the
vehicle speed or the relief of the route.

When the range falls below 20 miles (30 km), dashes are displayed.

After ﬁ lling with at least 5 litres of fuel, the range is recalculated and

is displayed when it exceeds 60 miles (100 km).

If, whilst driving, dashes are displayed continuously in place of the

digits, contact a CITROËN dealer.

If, whilst driving, dashes are displayed continuously in place of the

Current fuel consumption: only calculated and display

displayed above

20 mph (30 km/h).

Average fuel consumption: this is the average fuel consumption

this is the average fuel consumption

since the last trip computer zero reset.

Distance travelled: calculated since the last trip computer zero

calculated since the last trip computer zero

reset.

Distance remaining to the destination: calculated wit

ed with reference

to the ﬁ nal destination, entered by the user. If guidance is activated,

the navigation system calculates it as a current value.

Average speed: this is the average speed calculated since the last

this is the average speed calculated since the last

trip computer zero reset (ignition on).

Each press of the button at the end of the wiper stalk displays the

different trip computer information in succession, according to the

different trip computer information in succession, according to the
screen.

A FEW DEFINITIONS

271

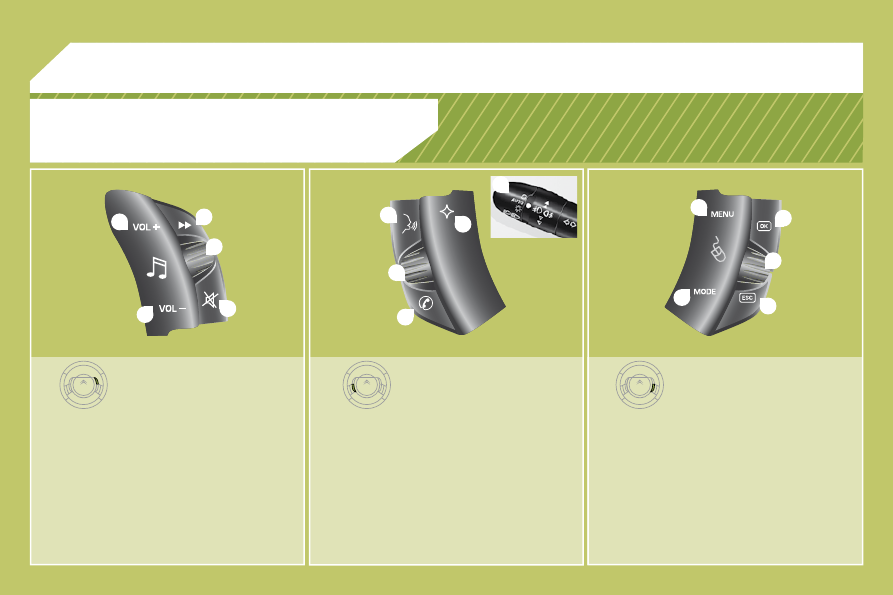

C4 STEERING WHEEL CONTROLS

STEERING WHEEL CONTROLS

     1.    Volume increase.
   2.    Volume decrease.
   3.    Successive presses mute/restore the sound.
   4.    Rotation - associated with a pop-up.

Radio - access the 6 stored stations: next or previous.

Music players: previous/next track.

5. Radio: next station.

Music players: next track.

1. Press.

Repeat the current spoken navigation instruction.

2. Short press to make a telephone call.

Pick up/Hang up.

Access the telephone menu.

Display the call list.

Long press to reject an incoming call.

3. Personalisation.

Short press to conﬁ rm the choice made using the dial.

4. Rotation.

Scroll through the call list in the phone book.

Personalisation selection.

1. Short press: provides access to the menu according to

the display on the screen.

2. Successive presses: provides access according to the

current display on the screen.

MAP/NAV (if navigation is in progress), TEL (if a conversation

is in progress), RADIO or MEDIA in progress, Trip computer.

Long press: switch to black screen - Dark (night driving).

Touching a control restores the display.

3. ESC: abandon the current operation.
4. Rotation: selects the access to the short-cut menus

according to the current display.

5. Conﬁ rms the choice displayed on the screen.

272

MAIN FUNCTION

CHOICE A

choice A1

choice A2

CHOICE B...

SCREEN MENU MAP

"RADIO" MENU

"MUSIC" MENU

"TRAFFIC" MENU

MESSAGES ON ROUTE

ONLY WARNINGS ON ROUTE

ALL WARNING MESSAGES

ALL MESSAGES

GEO. FILTER

Within 2 miles (3 km)

Within 3 miles (5 km)

Within 6 miles (10 km)

Within 30 miles (50 km)

Within 60 miles (100 km)

SELECT MUSIC

SOUND SETTINGS

Balance/Fader

Bass/Treble

Equalizer

Linear

Classic

Jazz

Rock/Pop

Techno

Vocal

Loudness

Speed dependent volume

Reset sound settings

WAVEBAND

MANUAL TUNE

SOUND SETTINGS

Balance/Fader

Bass/Treble

Equalizer

Linear

Classic

Jazz

Rock/Pop

Techno

Vocal

Loudness

Speed dependent volume

Reset sound settings

273

TMC station information

ROUTE OPTIONS

Route type

Fast route

Short route

Optimized route

STOPOVERS

Add stopover

Address input

Navigate home

Choose from address book

Choose from last destinations

Rearrange route

Replace stopover

Delete stopover

Recalculate

Fast route

Short route

Optimized route

POI SEARCH

POI nearby

POI near destination

POI in city

POI in country

POI near route

Route dynamics

Trafﬁ c independent

Semi-dynamic

Avoidance criteria

Avoid motorways

Avoid toll roads

Avoid ferries

Recalculate

SETTINGS

Navi volume

POI categories on MAP

"NAVIGATION" MENU

ABORT GUIDANCE/RESUME GUIDANCE

DESTINATION INPUT

Address input

Country

City

Street

House number

Start route guidance

Postal code

Save to address book

Intersection

City district

Geo position

MAP

Navigate HOME

Choose from address book

Choose from last destinations

274

"PHONE" MENU

"SETUP" MENU

DIAL NUMBER

DIAL FROM ADDRESS BOOK

CALL LISTS

CONNECT PHONE

Search phone

Phones connected

Disconnect phone

Rename phone

Delete pairing

Delete all pairings

Show details

SETTINGS

Select ring tone

Phone/Ring tone volume

Enter mailbox number

SYSTEM LANGUAGE

Deutsch

English

Español

Français

Italiano

Nederlands

Polski

Portuguese

DATE & TIME

Set date & time

Date format

Time format

Dark blue

MAP

colour

Day mode for MAP

Night mode for MAP

Auto. Day/Night for MAP

VEHICLE

Vehicle information

Alert log

Status of functions

DISPLAY

Brightness

Colour

Pop titanium

Toffee

Blue steel

Technogrey

UNITS

Temperature

Celsius

Fahrenheit

Metric/Imperial

Kilometres (Consumption: l/100)

Kilometres (Consumption: km/l)

Miles (Consumption: MPG)

SYSTEM

Factory reset

Software version

Automatic scrolling

275

sound quality between
the different audio

sources (radio, CD...).

Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set

the AUDIO functions (Bass, Treble, Front-Rear

Balance, Left-Right Balance) to the middle
position, select the Linear musical ambience
and set the loudness correction to the "Active"

position in CD mode or to the "Inactive" position
in radio mode.

For optimum sound quality, the audio settings (Volume, Bass, Treble,

Ambience, Loudness) can be adapted to the different sound sources,

which may result in audible differences when changing source (radio,

CD...).

The CD is ejected
automatically or is not
played by the player.

- Check that the CD is inserted in the player the

right way up.

- Check the condition of the CD: the CD cannot

be played if it is too damaged.

- Check the content in the case of a recorded

CD: consult the advice in the Audio section.

- The audio equipment's CD player does not

play DVDs.

- Because of their quality level, certain writeable

CDs will not be played by the audio system.

The CD is inserted upside down, is unplayable, does not contain any audio
data or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

The CD player sound
is poor.

Insert good quality CDs and store them in
suitable conditions.

The CD used is scratched or of poor quality.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting
an ambience.

QUESTION

SOLUTION

ANSWER

FREQUENTLY ASKED QUESTIONS

276

QUESTION

SOLUTION

ANSWER

The quality of reception
of the radio station

listened to gradually
deteriorates or the
stored stations do
not function (no

sound, 87.5 Mhz is

displayed...).

The vehicle is too far from the transmitter used by the station listened to or

there is no transmitter in the geographical area through which the vehicle

is travelling.

The environment (hills, buildings, tunnels, basement car parks...) block

reception, including in RDS mode.

The aerial is absent or has been damaged (for example when going

through a car wash or into an underground car park).

Activate the RDS function to enable the system
to check whether there is a more powerful

transmitter in the geographical area.

This phenomenon is normal and does not
indicate a failure of the audio equipment.

Have the aerial checked by a CITROËN dealer.

Sound cut-outs of 1
to 2 seconds in radio
mode.

During this brief sound cut-out, the RDS searches for any frequency

permitting better reception of the station.

Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.

With the engine off,
the audio equipment
switches off after a few
minutes of use.

When the engine is switched off, the audio equipment operating time

depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode

and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the battery

charge.

The stored stations do
not function (no sound,

87.5 Mhz is displayed...)

An incorrect waveband is selected.

Press the BAND AST button to return to the

waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.

277

QUESTION

SOLUTION

ANSWER

The TA box is ticked.

However, certain trafﬁ c

jams along the route
are not indicated in real
time.

On starting, it is several minutes before the system begins to receive

the trafﬁ c information.

Wait until the trafﬁ c information is being received

correctly (displaying of the trafﬁ c information

symbols on the map).

In certain countries, only major routes (motorways...) are listed for

the trafﬁ c information.

The time taken to
calculate a route
sometimes seems

longer than usual.

This phenomenon is normal. The system is

dependent on the trafﬁ c information available.

The performance of the system may slow down temporarily if a CD is

being copied onto the Jukebox at the same time as a route is being
calculated.

Wait until the CD has been copied or stop the

copying before starting the guidance function.

The altitude is not
displayed.

On starting, the initialisation of the GPS may take up to 3 minutes to
receive more than 3 satellites correctly.

Wait until the system has started up completely.

Check that there is a GPS coverage of at least

3 satellites (long press on the SETUP button,

then select GPS coverage).

Depending on the geographical environment (tunnel...) or the weather,

the conditions of reception of the GPS signal may vary.

This phenomenon is normal. The system is
dependent on the conditions of reception of

the GPS signal.

The route is not
calculated successfully.

The exclusion criteria may conﬂ ict with the current location (exclusion of

toll roads on a motorway with tolls).

Check the exclusion criteria.

There is a long waiting

time after inserting a CD.

When a new medium is inserted, the system reads a certain amount of

data (directory, title, artist, etc.). This may take a few seconds.

This phenomenon is normal.

I cannot connect my
Bluetooth telephone.

The telephone's Bluetooth function may be deactivated or the equipment
may not be visible.

- Check that your telephone's Bluetooth function

is activated.

- Check that your telephone is visible.

279

Audio system

CONTENTS

• 01 First steps

p . 280

• 02 General menu

p . 281

• 03 Audio

p . 282

• 04 USB reader

p . 285

• 05 Bluetooth functions

p . 288

• 06 Control short-cuts

p . 290

• 07 Conﬁ guration

p . 291

• 08 Screen menu map

p . 292

• Frequently asked questions

p . 294

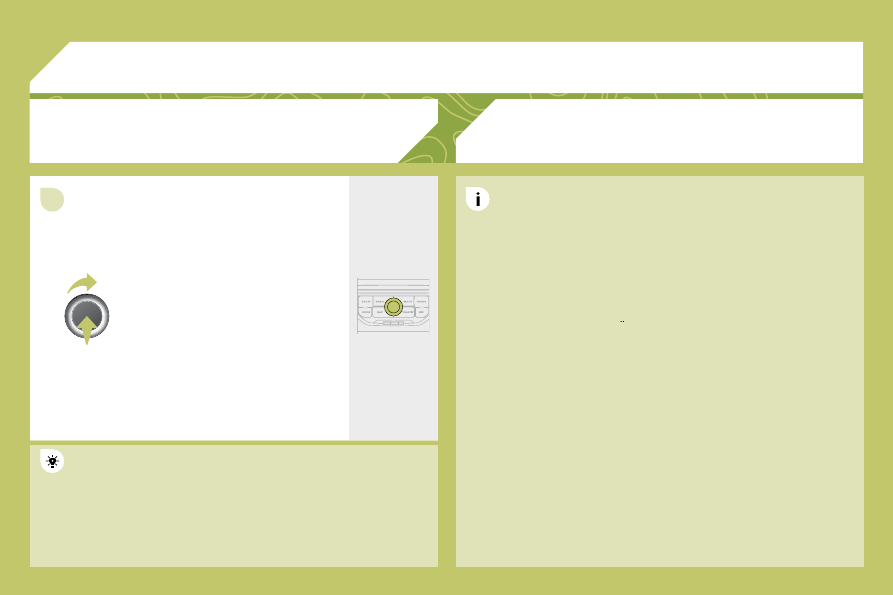

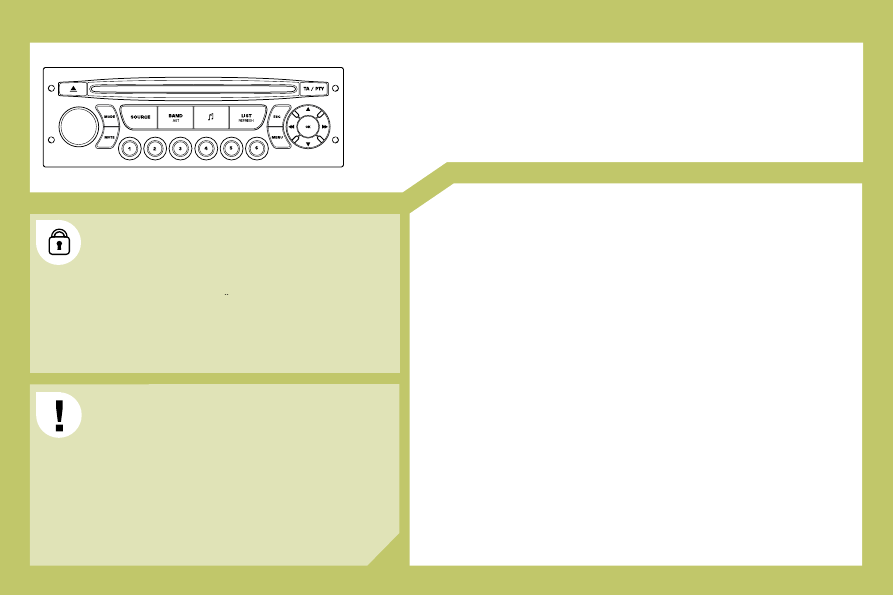

The audio system is coded in such a way that it will only
operate in your vehicle. If it is to be installed in another

vehicle, contact a CITROËN dealer for conﬁ guration of

operate in your vehicle. If it is to be installed in another

le. If it i

the system.

For reasons of safety, the driver should only carry out

operations which require prolonged attention while the
vehicle is stationary.

When the engine is off, and in order to prevent

discharging of the battery, the audio system may switch
off after a few minutes.

280

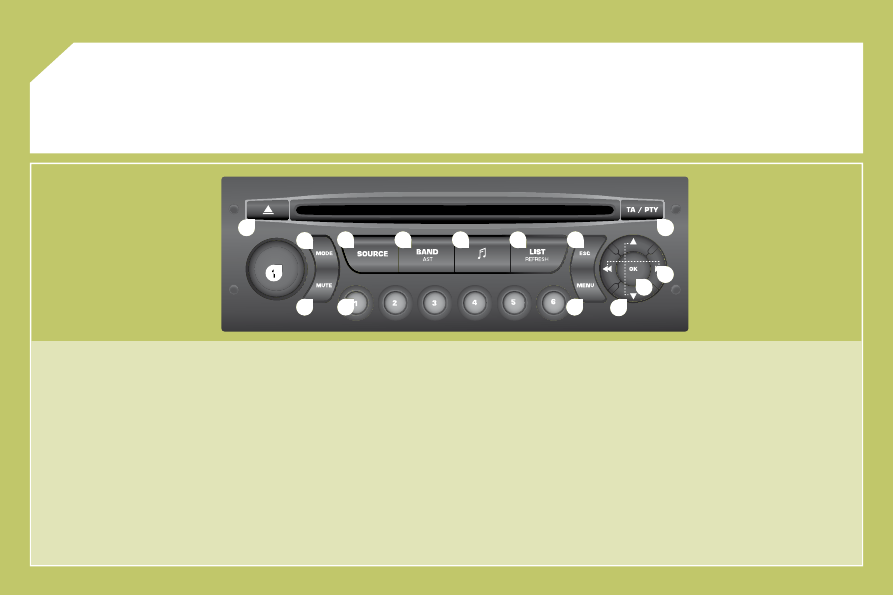

01 FIRST STEPS

On/Off and volume adjustment.

CD eject.

Selection of the display on the screen from the modes:

Audio (AUDIO), Trip Computer (TRIP) and Hands-Free Kit
(TEL) functions.

Selection of the source:

radio, audio CD/MP3 CD, USB, Jack connection, Streaming.

Selection of the FM1, FM2, FMast and AM wavebands.

Setting the audio options: front/rear balance, left/right

balance, loudness, sound ambiences.

Display the list of local stations, of the tracks on the CD or of
the MP3 directories.

Abandon current operation.

TA (Trafﬁ c Announcement) function on/off.

Long press: access to the PTY

(Types of radio programme) mode.

10.

Conﬁ rmation.

11.

Automatic search for a lower/higher frequency.

Selection of previous/next CD, MP3 or USB track.

12.

Selection of a lower/higher radio frequency.

Selection of the previous/next CD.

Selection of the previous/next MP3 directory.

Selection of the previous/next USB equipment directory/genre/
artist/playlist.

13.

Display of the general menu.

14. Buttons 1 to 6:

Selection of a stored radio station.

Long press: storing of a station.

15. The MUTE button cuts off or restores the sound.

282

03 AUDIO

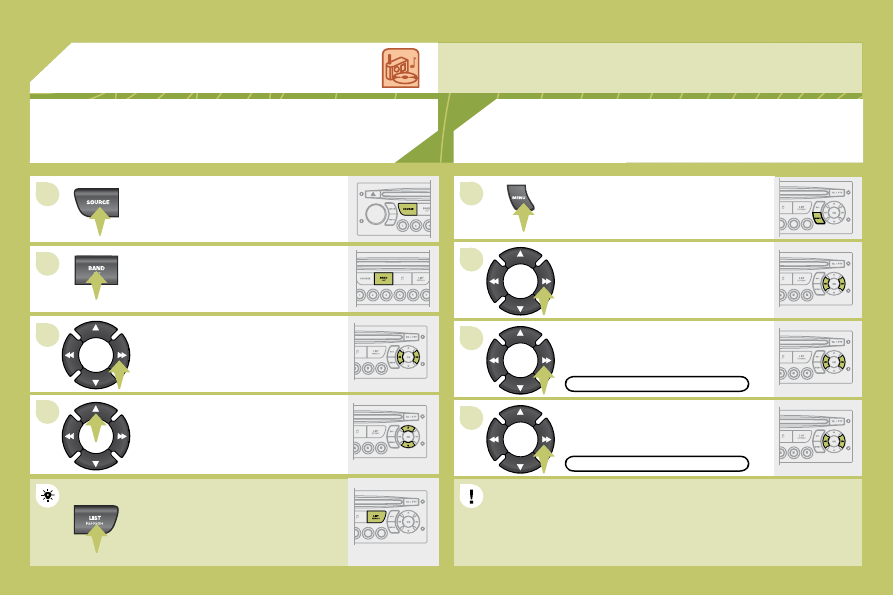

Press the SOURCE button several
times in succession and select the
radio.

Press the BAND AST button to select
a waveband: FM1, FM2, FMast, AM.

Brieﬂ y press one of the buttons to
carry out an automatic search of the
radio stations.

Press one of the buttons to carry out a
manual search of the radio stations.

Press the LIST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more than
two seconds.

Select ACTIVATE FREQUENCY
FOLLOWING (RDS) then press OK.
RDS appears on the display.

Select the FM WAVEBAND
PREFERENCES function then press OK.

Select AUDIO FUNCTIONS then
press OK.

Press the MENU button.

FM WAVEBAND PREFERENCES

ACTIVATE FREQUENCY FOLLOWING (RDS)

The external environment (hills, buildings, tunnels, basement car parks) may block reception, including
in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not

indicate any failure of the audio equipment.

RDS

The RDS, if displayed, enables you to continue listening to the same

station by automatic retuning to alternative frequencies. However, in

certain conditions, coverage of an RDS station may not be assured

throughout the country as radio stations do not cover 100 % of the

territory. This explains the loss of reception of the station during a journey.

RADIO

SELECTING A STATION

283

Some anti-pirating systems, on original discs or CDs

copied using a personal recorder, may cause faults

which are no reﬂ ection on the quality of the original
player.

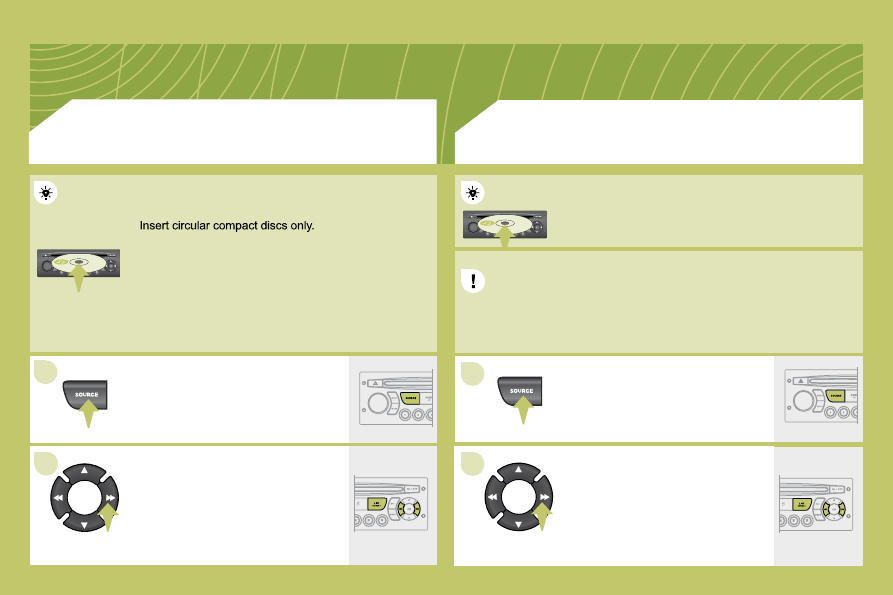

Without pressing the EJECT button, insert a CD in the

player, play begins automatically.

To play a disc which has already been
inserted, press the SOURCE button
several times in succession and select CD.

Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to
display the list of tracks on the CD.
Press and hold one of the buttons for
fast forward or backward.

Insert an MP3 compilation in the player.
The audio equipment searches for all of the music

tracks, which may take anything between a few seconds

and several tens of seconds, before play begins.

On a single disc, the CD player can read up to 255 MP3 ﬁ les spread
over 8 directory levels. However, it is advisable to keep to a limit of
two levels to reduce the access time before the CD is played.

While the CD is being played, the directory ﬂ ow chart is not followed.

All of the ﬁ les are displayed on a single level.

To play a disc which has already been
inserted, press the SOURCE button
several times in succession and
select CD.

Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to
display the list of directories of the
MP3 compilation.
Press and hold one of the buttons for
fast forward or backward play.

PLAYING A CD

MP3 CD

PLAYING AN MP3 COMPILATION

284

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,

is an audio compression standard which permits the recording of

several tens of music ﬁ les on a single disc.

In order to be able to play a recorded CDR or CDRW, when recording it
is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.

The audio equipment will only play ﬁ les with the extension ".mp3"

with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of ﬁ le
(.wma, .mp4, .m3u...) can be played.

It is advisable to restrict ﬁ le names to 20 characters without using

special characters (e.g. " " ? ; ù) to avoid any playing or displaying
problems.

MP3 CD

INFORMATION AND ADVICE

AUDIO

285

USB PLAYER

The system puts together playlists (temporary memory) created over
a period which depends on the capacity of the USB equipment.

The other sources are available during this time.

The playlists are updated each time the ignition is switched off or
each time a USB memory stick is connected.

When connecting for the ﬁ rst time, the classiﬁ cation suggested is by

folder. When you reconnect, the classiﬁ cation selected previously is
retained.

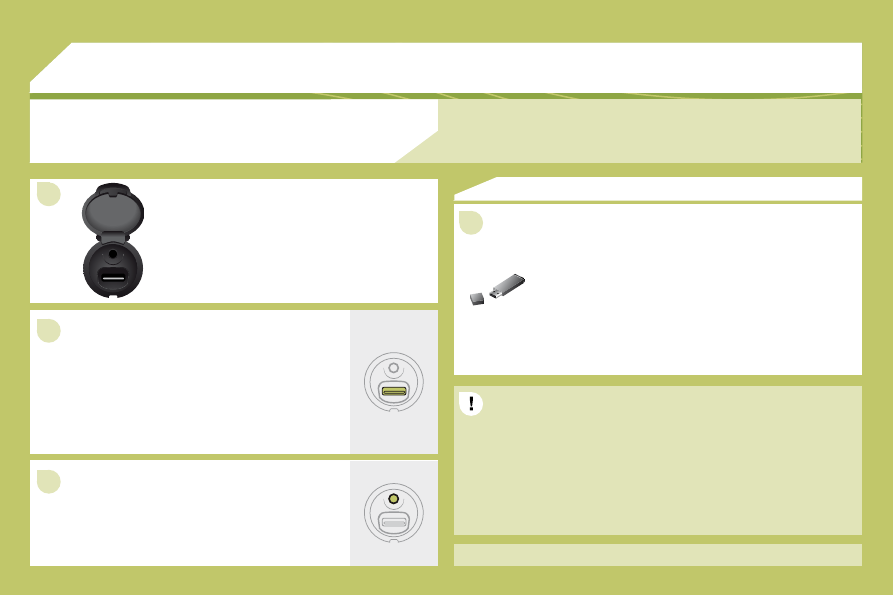

Connect the memory stick to the port, directly or using
a lead. If the audio equipment is switched on, the USB

source is detected as soon as it is connected. Play begins
automatically after a delay which depends on the capacity
of the USB stick.

The ﬁ le formats recognised are .mp3 (mpeg1 layer 3 only),
.wma (standard 9 only, 128 kbits/sec compression), .wav

and .ogg.
The playlists types accepted are m3u, .pls, .wpl.

The list of compatible equipment is available from CITROËN dealers.

USING THE USB

CONNECTING A USB MEMORY STICK

This unit consists of a USB port and a Jack

socket * . The audio ﬁ les are transmitted from

portable equipment such as a digital player or a
USB memory stick to your Audio system to be
listened to via the vehicle's speakers.

USB key (1.1, 1.2 and 2.0) or Ipod

generation 5 or later:
- USB memory sticks should be formatted FAT

or FAT 32 (NTFS not supported),

- the Ipod

lead is essential,

- navigation through the ﬁ le database is by

means of the steering wheel controls,

- the IPod software should be regularly updated

for the best connection.

Other Ipod

players of earlier generations and

players using the MTP protocol * :
- play via Jack-Jack lead only (not supplied),

- navigation through the ﬁ le database is from the

portable equipment.

* According to vehicle.

286

USB PLAYER

USING THE USB SOCKET

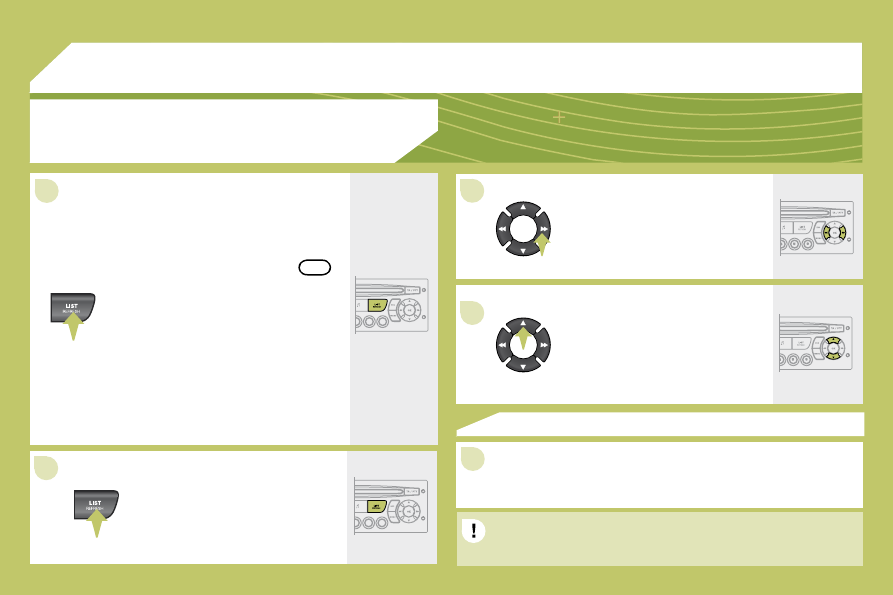

Press LIST brieﬂ y to display the

previously selected classiﬁ cation.

The lists available are Artist, Genre and Playlist

(as deﬁ ned on the iPod

Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or USB devices other than audio

equipment to the USB port. This could damage your installation.

CONNECTING AN IPOD

AN IPOD

AN IPOD VIA THE USB PORT

Navigate through the list using the

left/right and up/down buttons.

Conﬁ rm the selection by pressing OK.

Press one of these buttons to gain
access to the previous/next track on

the classiﬁ cation list currently being
played.

Press and hold one of the buttons for
fast forward or backward play.

Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the

classiﬁ cation list currently being
played.

Press and hold LIST to display the

different classiﬁ cations.
Select by Folder/Artist/Genre/Playlist,

press OK to select the classiﬁ cation

required, then press OK again to conﬁ rm.

- by Folder: all folders containing audio

ﬁ les recognised on the peripheral

device, classiﬁ ed in alphabetical order

without following the ﬂ ow chart.

- by Artist: all of the artist names

deﬁ ned in the ID3 Tags, classiﬁ ed in
alphabetical order.

- by Genre: all of the genres deﬁ ned in

the ID3 Tags.

- by Playlist: in accordance with the

playlists recorded on the USB device.

Citroen C4 Picasso Dag (2009 year). Instruction - part 20
