Citroen C2 (2008 year). Instruction - part 2

D I S P L A Y S

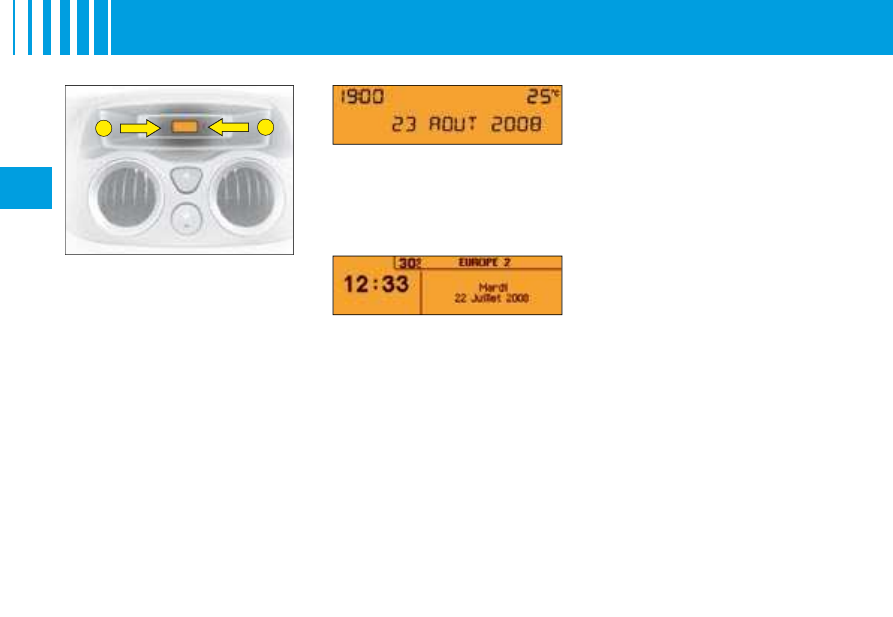

Digital clock

To adjust the display, press on
button 1 to alter the hours and on
button 2 to alter the minutes.

Display A

Display C

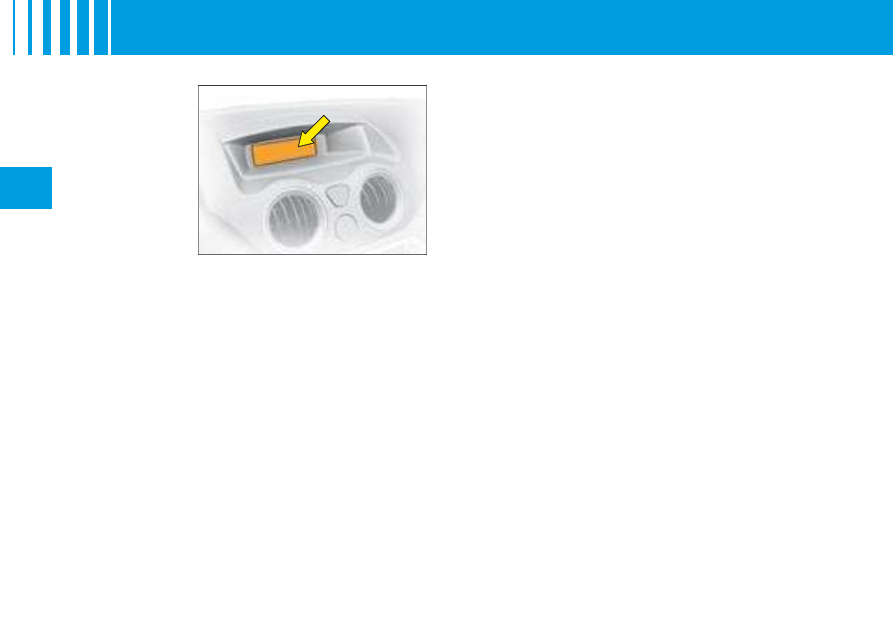

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y A

The driver is recommended not to
concern himself with the display
controls while driving.

1. Time.
2. Date - Display zone.
3. Outside temperature.

When the outside temperature

is between +3 °C and –3 °C, the

temperature display ﬂ ashes (risk

of ice).
Note:  The  outside  temperature
displayed  may  be  higher  than  the
actual temperature if the vehicle is
stationary in bright sunlight.
Remark:  The  display  of  certain
types  of  information  is  sometimes
scrolled  and  sometimes  alter-
nated.

Controls

A. Access to the "Main menu" of

the display.

B. Scroll through display menus.
C.

Validation and Selection in the

menus, of the function chosen

or value modiﬁ ed.

D. Cancellation of the operation or

return to the previous display.

E. Selection of the type of

information displayed in
zone 2 (date, radio/CD and trip
computer).
In the Menus, choice of
activation/deactivation of your
functions and choice of your
adjustments.

Main Menu

By pressing control A then B,
you have access to the following
functions:

Radio-CD (See radio-CD
handbook).
Vehicle conﬁ guration, to

activate/deactivate:

Triggering of rear screen wipe.
The automatic guide-me-
home lighting.
Automatic lighting of
headlamps.

Options, to display the alerts.
Display adjustments, to
adjust the date and time on the
display.
Languages, to select the
display language.
Units, to access the choices of
units of Temperature and Fuel
Consumption.

•

-
-

•
•

•

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y A

Personalisation/Conﬁ guration

To activate/deactivate rear screen
wipe on engaging reverse gear:

Press button A.
Select, using B, the sub-menu

to personalise-conﬁ gure your

vehicle, then conﬁ rm your

choice with a press on C.
Select rear screen wipe, using B.
The system tells you the status
(active or inactive) of the
function. Modify this status with
a press on E.
Then please wait for the
display to disappear.

Note: The activation/deactivation
registers immediately.

•
•

•

To activate/deactivate the
automatic guide-me-home
lighting:

Press button A.
Select, using B, the sub-menu

to personalise-conﬁ gure your

vehicle, then conﬁ rm your

choice with a press on C.
Select guide-me-home lighting,
using B.
The system tells you the status
(active or inactive) of the
function. Modify this status with
a press on E.
Then please wait for the
display to disappear.

•
•

•

To activate/deactivate the
automatic lighting of headlamps:

Press button A.
Select, using B, the sub-menu

to personalise-conﬁ gure your

vehicle, then conﬁ rm your

choice with a press on C.
Select automatic lighting of
headlamps using B.
The system tells you the status
(active or inactive) of the
function. Modify this status with
a press on E.
Then please wait for the
display to disappear.

Note: Activation of this function is
immediate while deactivation requires
the ignition to be switched off.

•
•

•

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y A

To choose the language:

Press button A.
Using B, select the sub-menu

for Languages. Conﬁ rm your

choice with a press on C.
By presses on E, select the
language of your choice.
Then please wait for the
display to disappear.

To choose units:

Press button A.
Using B, select the sub-menu

for Units. Conﬁ rm your choice

with a press on C.
Using B, select the unit you
wish to modify (Temperature or
Consumption).
Via presses on E, select the

unit of your choice.
Then please wait for the
display to disappear.

Note:  This  choice  concerns  all
the  types  of  information  (fuel
consumption,  speed,  etc.)  that
appear on the displays.

•
•

•

•
•

•

To display the Log of Alerts:

Press button A.
Using B, select the sub-menu

for options. Conﬁ rm your

choice with a press on C.

Note:  You  can  cancel  the  start  of
the display by selecting E to aban-
don, validate with a press on C.
The  alerts  that  have  previously
been  signalled  to  you  but  not
resolved,  are  recalled  to  you  in  a
scroll.
To  delete  the  display  of  an  alert,
press D.

•
•

To adjust the date and the time:

Press button A.
Using B, select the sub-menu
for Display Adjustments, then

conﬁ rm with a press on C.
Using B, select what you wish
to modify: Day, month, year,
hour, minutes and display
mode.
Make your adjustment by
presses on E. You can
continue your adjustments,
selecting further parameters by
pressing B.
When you have ﬁ nished your

adjustments, simply wait for
the display to disappear.

•
•

•

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y C

The driver is recommended not to
concern himself with the display
controls while driving.

1. Time.
2. Outside temperature.
3. Date - Display zone.

When the outside temperature

is between +3 °C and –3 °C, the

temperature display ﬂ ashes (risk

of ice).

Controls

A. Access to the "Main menu" of

the display.

B. Scroll through display menus.
C.

Validation and Selection in the

menus, of the function chosen

or value modiﬁ ed.

D. Cancellation of the operation or

return to the previous display.

E. Selection of the type of

information you wish to see
permanently displayed (date,
radio-CD, trip computer) on the
right of the screen.

Main Menu

Press  on  button A  to  bring  up  the
"Main  menu"  of  the  multifunc-
tion  display.  This  menu  gives  you
access to the following functions:

Radio-CD
(See radio-CD handbook).

Trip computer, giving you:

Entering the distance
to the destination.
Access to the log of

alerts (recall of the alerts
signalled previously.
Access to status of functions,
for example activation/
deactivation of automatic
lighting of headlamps, ESP,
windscreen wipers.

•

Personalisation-

Conﬁ guration,

allowing you
to activate
or deactivate:

Triggering of rear screen wipe.
The automatic guide-me-home
lighting.
Automatic lighting of headlamps.

And choosing:

The brightness, the time, the
date and the display units.
The display language.

•
•

•

Bluetooth

hands-free kit

(See radio-CD handbook).

Note: The outside temperature
displayed may be higher than the
actual temperature if the vehicle is
stationary in bright sunlight.

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y C

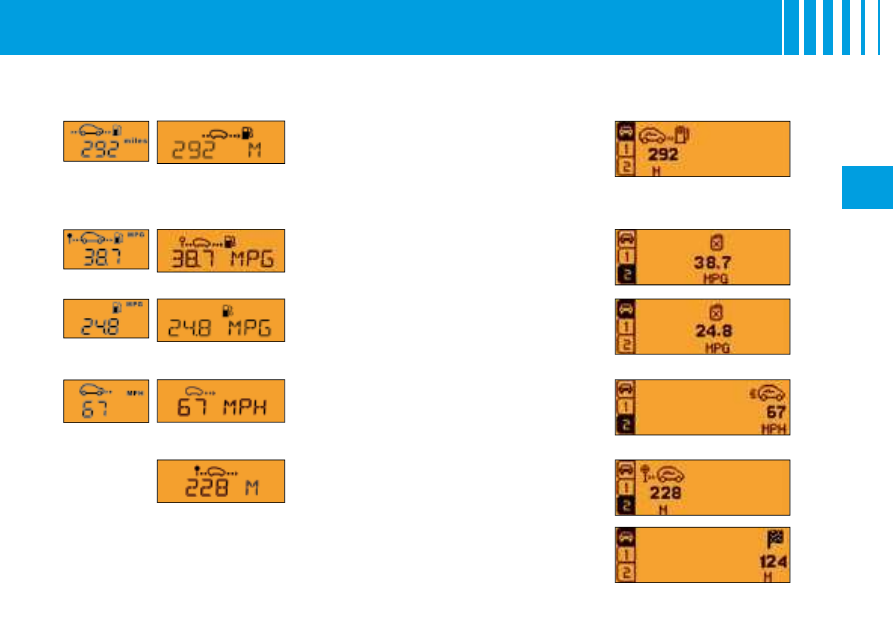

Trip computer

To enter the distance to be
travelled on the trip computer:

Press button A.
Use B to select the icon "Trip

computer", then conﬁ rm with a

press on C.
Select entry of distance
using B

. Conﬁ rm your choice

with a press on C.
To choose the distance, select

the ﬁ gure you wish to modify

by using B

, then conﬁ rm with a

press on C.
Use B to adjust the value, then
validate by pressing C.
Validate "OK" on the screen.

To access the trip computer's
log of alerts:

Press button A.
Use B to select the icon "Trip

computer", then conﬁ rm with a

press on C.
Select the log of alerts.
When the list displays, use B
to scroll through it.
Press D to return to the
permanent display.

To access the status of functions:
proceed in a similar manner.

•
•

•

•
•

•

Personalisation/Conﬁ guration

To activate/deactivate rear screen
wipe on engaging reverse gear:

Press button A.
Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.
Then select the sub-menu for

the vehicle parameters. Conﬁ rm

your choice with a press on C.
Use B to select parking

assistance. Conﬁ rm your

choice with a press on C.
Then with a press on C, select/
deselect rear screen wipe to
activate or deactivate it.
Validate "OK" on the screen.

Note: The activation/deactivation
registers immediately.
To activate/deactivate the auto-
matic guide-me-home lighting:

Press button A.
Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.
Then select the sub-menu for

the vehicle parameters. Conﬁ rm

your choice with a press on C.

•
•

•

•
•

•

Using B, select lighting and

signalling. Conﬁ rm your choice

with a press on C.
Then press C to select/
deselect the guide-me-home
lighting, to activate/ deactivate
it. After activation, choose the
duration: press C then use B
to select the duration, then
press C.
Validate "OK" on the screen.

To activate/deactivate the
automatic lighting of headlamps:

Press button A.
Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.
Then select the sub-menu for

the vehicle parameters. Conﬁ rm

your choice with a press on C.
Using B, select lighting and

signalling. Conﬁ rm your choice

with a press on C.
Next press on C to activate/
deactivate automatic lighting of
headlamps.
Press button C.

Note: Activation of this function is
immediate while deactivation requires
the ignition to be switched off.

•

•
•

•

To adjust the display brightness:

Press button A.
Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.
Select the display conﬁ guration

with a press on B

. Conﬁ rm

your choice with a press on C.
Select the brightness

adjustment. Conﬁ rm your

choice with a press on C.
Select with a press on B, then
validate by pressing C, the
normal or alternative display
mode. To adjust the brightness,
select the symbols "+" or "–"

and conﬁ rm your adjustment

by pressing C.
Validate "OK" on the screen.

•
•

•

To adjust the date and the time:

Press button A.
Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.
Select the display conﬁ guration

with a press on B

. Conﬁ rm

your choice with a press on C.
Select the adustment for
the date and the time, by
pressing B

, then conﬁ rm with a

press on C.
Press B to select the values

you wish to modify. Conﬁ rm

your choice with a press on C.
Do your adjustments with B,
then validate each adjustment
choice with a press on C.
Validate "OK" on the screen.

To choose the language:

Press button A.
Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.
Use B to select the desired
language and validate your
choice by pressing C.
Validate "OK" on the screen.

•
•

•

•
•

•

To choose units:

Press button A.
Use B to select the icon

"Personalisation-Conﬁ guration"

then conﬁ rm your choice by

pressing C.
Select the display conﬁ guration

with a press on B

. Conﬁ rm

your choice with a press on C.
Then select the sub-menu for

Units. Conﬁ rm your choice with

a press on C.
Using B, select the unit to

be modiﬁ ed (Temperature or

Consumption) then validate
with a press on C.
Validate "OK" on the screen.

Note:  This  choice  concerns  all
the  types  of  information  (fuel
consumption,  speed,  etc.)  that
appear on the displays.

•
•

•

M U L T I F U N C T I O N D I S P L A Y

D I S P L A Y C

T R I P C O M P U T E R

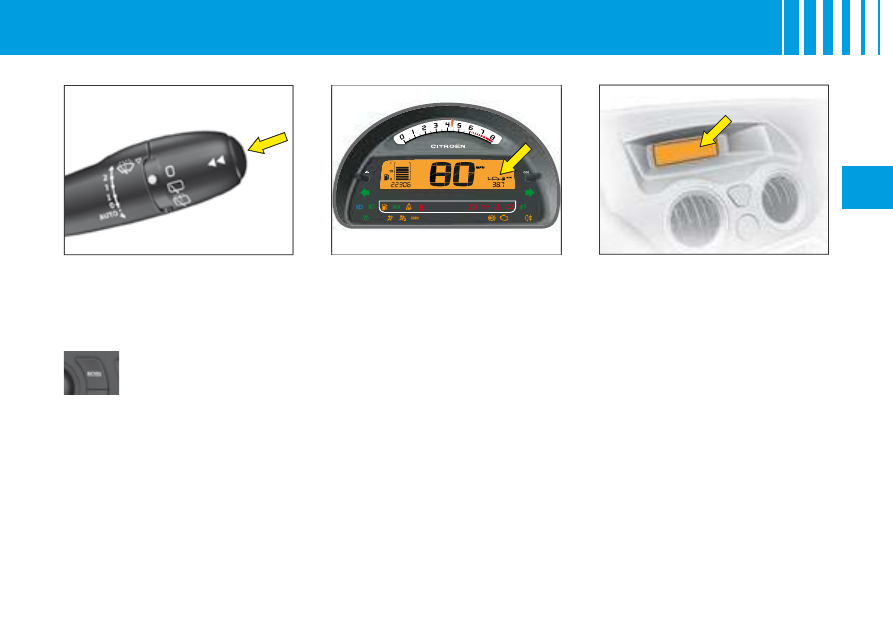

For  selection  and  display  of  the
various  types  of  information,  give
short  presses  on  the  end  of  the
windcsreen wiper stalk.

Instrument panel
(For a version with digital clock)

The trip computer provides 4 types

of information on the instrument
panel, following the display of trip
mileage:

Range.
Instantaneous consumption.
Average consumption.
Average speed.

Remark: If the cruise control/speed
limiter is in operation, the display
of trip computer information disap-
pears after a few seconds.

•
•
•
•

Display A

The trip computer provides 5 types

of information:

Range.
Average consumption.
Instantaneous consumption.
Distance travelled.
Average speed.

To cancel the display of the trip
computer information, press a
sixth time.

•
•
•
•
•

For

display

type

pressing  on  the  "Mode"
button  permanently  dis-
plays  the  trip  computer
information.

To reset the trip computer infor-
mation to zero, keep the end of
the control stalk pressed for a few
seconds when you see the relevant
information displayed.

The trip computer gives access to 3 types of instantaneous information:

Range.
Instantaneous consumption.
Distance remaining to be travelled.

The trip computer also gives access to 3 types of information for 2 Journeys 1

and 2:

The distance travelled.
Average consumption.
Average speed.

The Journeys

Journeys 1 and 2 are independent of each other but identical in use. For

example you can allocate Journey 1 to daily calculations and Journey 2 to

monthly calculations.

Resetting a Journey to zero

When the desired Journey is displayed, give a long press on the end of the

wiper control stalk.

•
•
•

Remark:
After a re-initialisation of the trip
computer, the indication of range

only becomes signiﬁ cant after a

certain period of use.

T R I P C O M P U T E R

Display C

Range

This is the distance that can still be travelled
on the amount of fuel remaining in the tank.
When the distance remaining to be travelled is

less than approx. 25 km (15 miles), only three

dashes will be displayed.

Average consumption

This is the relationship between the fuel con-
sumed and the distance travelled since the last
reset to zero of the trip computer.

Instantaneous consumption

This is the result from the consumption

recorded within the last 2 seconds. This func-

tion is only available when travelling at over

30 km/h (approx. 20 mph).

Average speed

This  is  obtained,  from  the  last  reset  to  zero
of  the  trip  computer,  by  dividing  the  distance
travelled  by  the  time  taken  (with  ignition
switched on).

Distance travelled

This is the distance that has been travelled

since the last reset to zero of the Journey

selected.

Distance to be travelled

To enter it, see "Multifunction display".

Instrument

panel

Display

version A

Display

version C

T R I P C O M P U T E R

S I G N A L L I N G

Direction indicators

Left, downwards.
Right, upwards.
For  a  change  of  direction,  move
the  control  stalk  beyond  the  tight
spot.  Stops  automatically  with  the
return of the steering wheel.

Visible alert/headlamp ﬂ ash

Pull the control towards you.
The headlamp ﬂ ash can be made

even with the ignition switched off.

Horn

Press at the centre of the steering
wheel.

Hazard warning lamps

This operates all the direction indi-
cators simultaneously.
Only  use  them  to  indicate  dan-
ger,  for  an  emergency  stop  or  for
driving in abnormal conditions.
The  hazard  lamps  can  also  be
used with the ignition switched off.

Sound signal for headlamps
left on

This operates when the driver's door
is  opened,  ignition  off,  to  indicate
that the vehicle lamps are still on.
It  stops  when  you  close  the  door,
switch  off  the  lamps  or  switch  on
the ignition.
This signal does not operate if the
automatic  lighting  of  headlamps
or  the  guide-me-home  lighting  are
active.

Emergency operation of
hazard warning lamps

A sudden deceleration of the vehi-
cle  causes  the  hazard  lamps  to
come on automatically.
They  will  cease  to  operate  auto-
matically,  or  manually  if  you  press
the  hazard  lamps  button  on  the
dashboard.

The direction indicators cannot operate

if the hazard warning lamps are on.

S I G N A L L I N G

Lighting control stalk

All vehicle lamps off

Sidelamps on

The instrument panel lights
up.

Dipped beams/
main beams on

Rotate the ring A forwards.

Sidelamps and dipped beams
come on automatically in poor
ambient light, or if the wipers are in
continuous operation. They go out
as soon as the ambient light again

become sufﬁ cient or when the wip-

ers cease to operate.

Guide-me-home lighting

This function switches on your
headlamps, to light your way when
you wish to walk from a carpark,
for example.
This function is activated:

Manually by pulling the lighting
stalk towards you, ignition off.
Automatically, provided:

The automatic lighting of
headlamps is activated.
To activate the guide-me-
home lighting function,
select in the "Main menu",
then in "Personalisation/

Conﬁ guration", the sub-menu

for lighting and signalling,
then activate the function.
See "Multifunction display".

Note:

It is possible to modify the
duration of the guide-me-
home lighting (approx. 60, 30
or 15 seconds) in the menu
"Personalisation/

Conﬁ guration".
On screen A

, the length is ﬁ xed.

Note:  On  vehicles  equipped  with
daytime  running  lamps,  automatic
headlamp  lighting  and  guide-me-
home lighting are not available.

•

Rotate the ring A forwards.
Pull the control stalk towards you
to change between dipped beam
and main beam.

Rotate the ring A forwards.
Take care not to cover the bright-
ness sensor, which is visible from
outside the windscreen, behind
the interior rear view mirror.

Automatic lighting of
headlamps

S I G N A L L I N G

Rear foglamps on

Front foglamps and rear foglamps on

The warning lamp lights up.
The foglamps operate only with
either headlamp dipped beam or
headlamp main beam switched on.

Switching off

First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.
Note: the foglamps should be used only in fog or in other conditions of poor
visibility.

Front and rear foglamps
(ring C)

Switch on your dipped/main beams.

In foggy conditions, if the ambient light is not such that the

headlamps come on automatically, it is up to the driver to switch

on dipped beams, and/or foglamps, manually

Rear FOGLAMPS (Ring B)

Switch on your dipped/main beams.
Rotate the ring B forwards.

Front foglamps on

Rotate the ring C forwards.

W I P E R S

For  safety,  the  wiper  system
is  deactivated  when  the  igni-
tion is switched off.
If the ignition has been switched
off for more than 1 minute, you
will  need  to  reactivate  auto-
matic  wipe,  by  pressing  the
control stalk downwards.

Position

: The wipe speed adjusts automatically to the speed of the vehicle.

Positions 1 and 2: When the vehicle is stationary, the speed of the wipers
will reduce automatically.
For safety, the wiper system is deactivated when the ignition is
switched off.
When you switch the ignition on again, to reactivate the function:

Return to position 0.
Or go to the desired position.

Activation of the function is conﬁ rmed by one sweep of the wipers.

Vehicle with rain sensor

Activation of automatic wipe:

One touch downwards: "AUTO". The wipe speed will adjust according to
the intensity of the rain.
Note: If automatic wipe is active, a touch downwards triggers a single wipe,
without deactivating automatic wipe.

Deactivation of automatic wipe:

Go to position

, then return to position 0.

Or stop the engine.

WARNING

Do not cover the rain detector which is located behind the interior rear

detector

view mirror and visible from outside the windscreen.
For washing the vehicle, switch off the ignition or deactivate the automatic wipe.

•
•

Windscreen wiper

Control positions

2: Rapid wipe.
1: Normal wipe.

: Intermittent wipe.

0: Off.

One press downwards:

AUTO: Automatic wipe activated.
Single wipe.

•
•

W I P E R S

Check that the windscreen and rear wipers can operate freely when

for example a bicycle-carrier is ﬁ tted, or in freezing conditions.

Remove any accumulation of snow at the base of the windscreen.

Changing the wiper blades

If  you  have  to replace  them,  the
wiper blades have to be parked in
the  maintenance  position.  For
this, switch off the ignition and then
within  one  minute  move  the  wiper
control  stalk. The wipers  stand  up
in a vertical position.
After  replacement,  switch  on  the
ignition  and  move  the  wiper
control  stalk  so  that  the  wipers
resume their normal position.

A. Windscreen wash

To  operate  the  windscreen  wash,
pull the wiper stalk towards you.
The  screen  wash  is  accompanied
by a timed wipe of the windscreen,
the headlamp  wash  also  activates
if the dipped beams are on.

B. Rear screen wipe

First notch

Off.

Second notch

Intermittent rear wipe.

Third notch

Timed rear wash/wipe.

Automatic wipe

When the windscreen wipers are
operational and reverse gear is
engaged.
Activation/deactivation

this

function is possible in the menu

"Personalisation/Conﬁ guration" in

the "Main menu".
Deactivation may be necessary
when a bicycle-carrier is installed
on the tailgate.

D A S H B O A R D A D J U S T M E N T S

Seat belt height adjustment

The  correct  positioning  of  the  seat
belt is across the middle of the shoul-
der. See user precautions.
Adjust  the  height  of  the  seat  belt
anchorage  by  holding  down  the
button and the lever.

Headlamps adjustment

You are advised to adjust the aim
of the headlamps in accordance
with vehicle load.
In the dashboard on the right hand
side of the steering column.
0: Unladen weight.
1: Lightly laden.
2: Half laden.
3: Fully laden.

As a metter of safety, these manœuvres should not be performed

while the vehicle is moving.

Steering column adjustment

The steering can be adjusted for
both height and reach.
With the vehicle stationary

, ﬁ rst

adjust your seat to the most suitable
position, then adjust the position of
the  steering  wheel.  See  "Driving
position".
Unlock  the  steering  wheel  by
pulling the control upwards.
Adjust  the  position  of  the  steering
wheel  then  lock  by  pushing  the
control fully downwards.
Make  sure  that  you  have  a  good
view  of  the  instrument  panel  dis-
plays.

Content .. 1 2 3 ..
