Overdrive

21 - 178

41TE AUTOMATIC TRANSAXLE

RS

41TE AUTOMATIC TRANSAXLE (Continued)

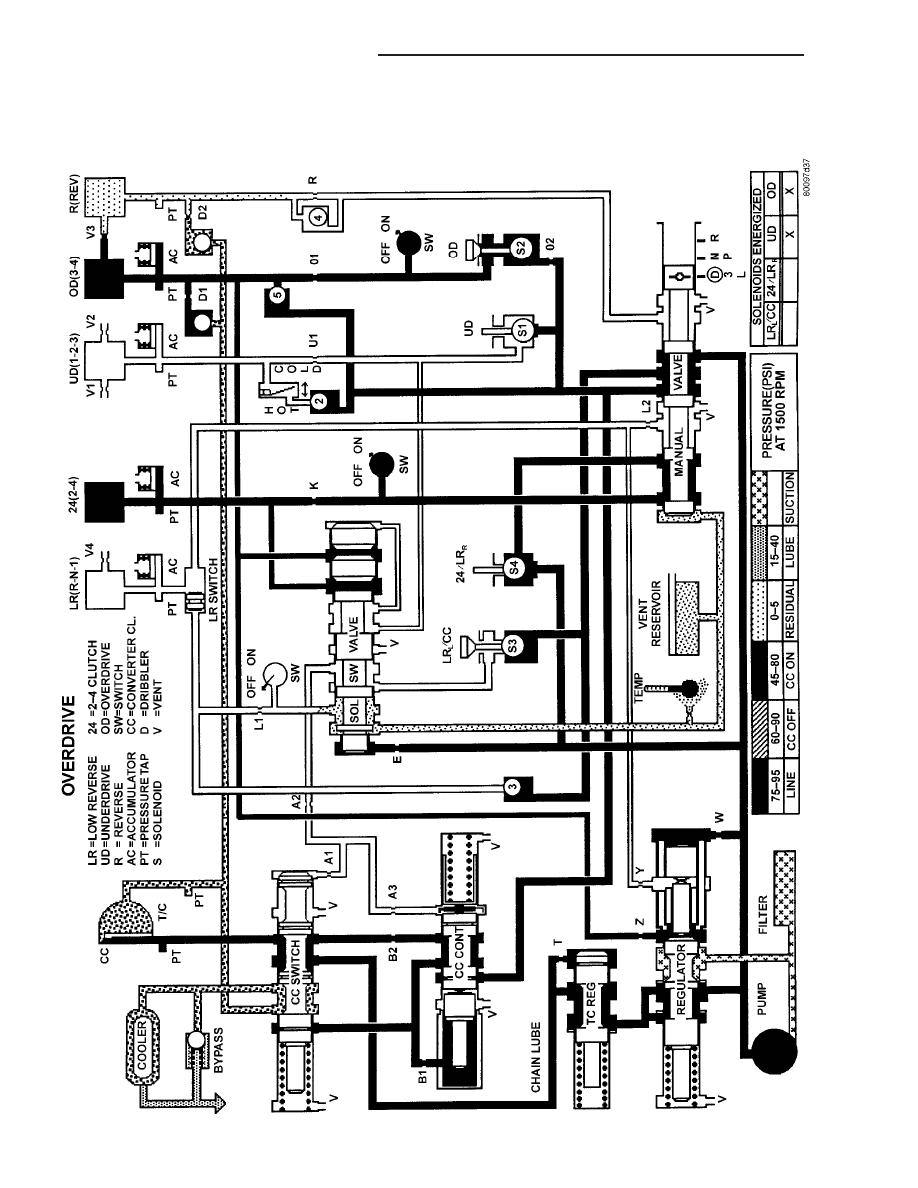

Overdrive

(EMCC)

RS

41TE AUTOMATIC TRANSAXLE

21 - 179

41TE AUTOMATIC TRANSAXLE (Continued)

Overdrive

(CC

On)

21 - 180

41TE AUTOMATIC TRANSAXLE

RS

41TE AUTOMATIC TRANSAXLE (Continued)

SPECIFICATIONS - 41TE TRANSAXLE

GENERAL SPECIFICATIONS

DESCRIPTION

SPECIFICATION

Transaxle Type

Fully adaptive, electronically controlled, four speed

automatic with torque converter and integral differential

Cooling Method

Air-to-oil heat exchanger

Lubrication

Pump (internal-external gear-type

GEAR RATIOS

DESCRIPTION

SPECIFICATION

First Gear

2.84

Second Gear

1.57

Direct Gear

1.00

Overdrive Gear

0.69

Reverse Gear

2.21

BEARING SETTINGS (END PLAY & TURNING TORQUE)

DESCRIPTION

METRIC

STANDARD

Differential Assembly

0.6-2 N·m

5-18 in. lbs.

Output Hub

0.3-2 N·m

3-8 in. lbs.

Transfer Shaft (End Play)

0.051-0.102 mm

0.002-0.004 in.

Overall Drag At Output Hub

0.3-1.9 N·m

3-16 in. lbs.

CLUTCH CLEARANCES

DESCRIPTION

METRIC

STANDARD

Low/Rev Clutch (Select Reaction

Plate)

0.89-1.47 mm

0.035-0.058 in.

Two/Four Clutch (No Selection)

0.76-2.64 mm

0.030-0.104 in.

Reverse Clutch (Select Snap Ring)

0.89-1.37 mm

0.035-0.054 in.

Overdrive Clutch (No Selection)

1.07-3.25 mm

0.042-0.128 in.

Underdrive Clutch (Select Pressure

Plate)

0.94-1.50 mm

0.037-0.059 in.

OIL PUMP CLEARANCES

DESCRIPTION

METRIC

STANDARD

Outer Gear-to-Crescent

0.060-0.298 mm

0.0023-0.0117 in.

Inner Gear-to-Crescent

0.093-0.385 mm

0.0036-0.0151 in.

Outer Gear-to-Pocket

0.089-0.202 mm

0.0035-0.0079 in.

Outer Gear Side Clearance

0.020-0.046 mm

0.0008-0.0018 in.

Inner Gear Side Clearance

0.020-0.046 mm

0.0008-0.0018 in.
