Fig.

40

LEFT

SIDE

KICK

P

ANEL

LHD

8W - 91 - 50

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig.

41

RIGHT

SIDE

KICK

P

ANEL

RHD

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 51

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

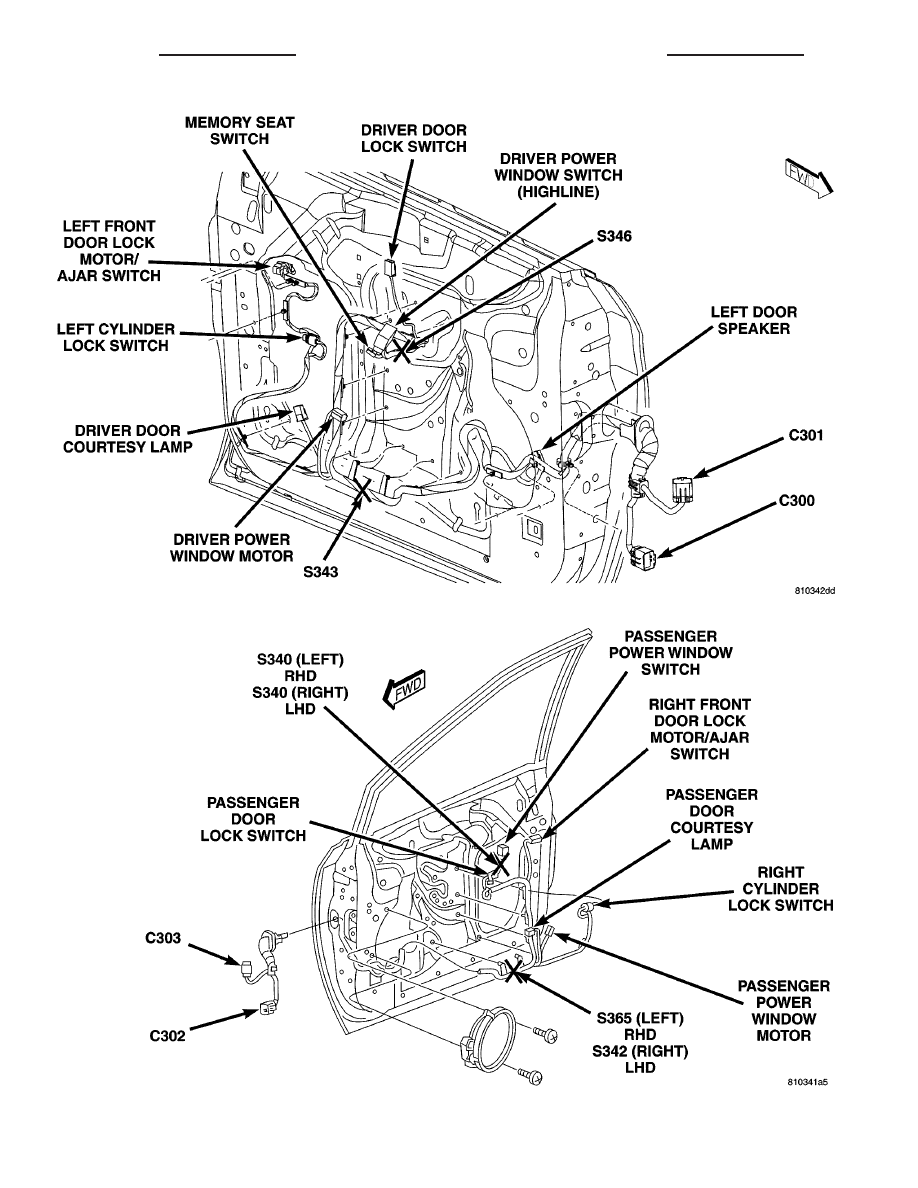

Fig. 42 DRIVER DOOR

Fig. 43 PASSENGER DOOR

8W - 91 - 52

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

RS

CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 44 RIGHT SLIDING DOOR

RS

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 53

CONNECTOR/GROUND/SPLICE LOCATION (Continued)
