Chrysler Town, Dodge Caravan. Manual - part 1088





(16) Remove coolant pressure tank (Fig. 5).

(17) Remove battery shield.
(18) Remove charge air cooler outlet hose.
(19) Remove charge air cooler inlet hose (Fig. 6).

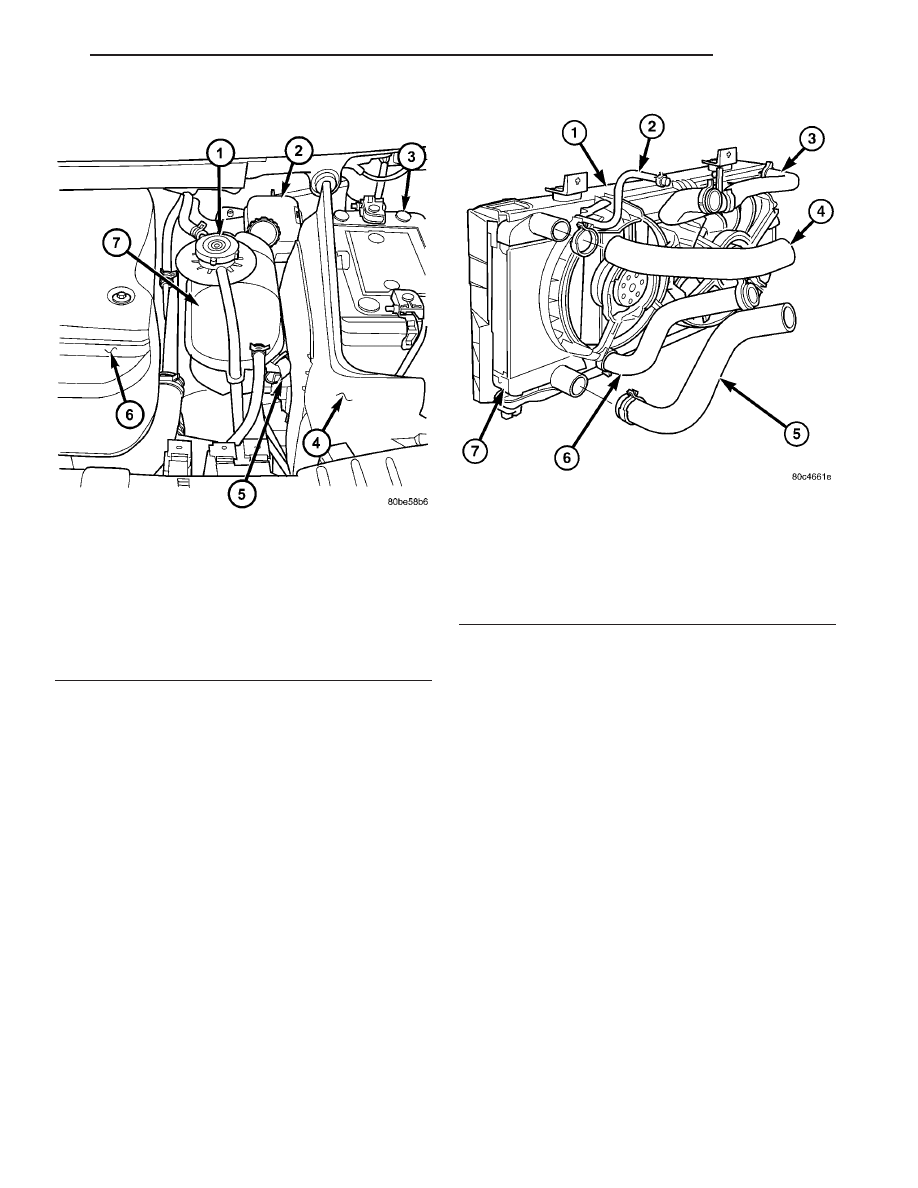

Fig. 5 COOLANT RECOVERY PRESSURE

CONTAINER LOCATION

1 - PRESSURE/VENT CAP
2 - BRAKE MASTER CYLINDER
3 - BATTERY
4 - BATTERY SHIELD
5 - COOLANT RECOVERY PRESSURE CONTAINER RETAING
CLIP
6 - ENGINE COVER
7 - COOLANT RECOVERY PRESSURE CONTAINER

Fig. 6 CHARGE AIR COOLER HOSES

1 - COOLING MODULE
2 - BYPASS HOSE
3 - UPPER RADIATOR HOSE
4 - CHARGE AIR COOLER OULET HOSE
5 - CHARGE AIR COOLER INLET HOSE
6 - LOWER RADIATOR HOSE
7 - CHARGE AIR COOLER

RG

ENGINE

9 - 5

ENGINE 2.5L TURBO DIESEL (Continued)

(20) Disconnect upper radiator hose at engine (Fig.

7).

(21) Disconnect lower radiator hose at engine (Fig.

7).

(22) Disconnect brake booster vacuum supply hose.
(23) Disconnect heater core return hose at engine.
(24) Disconnect EGR solenoid vacuum line at

brake booster check valve.

(25) Disconnect fuel injector, cam sensor, boost

pressure/intake air temperature sensor, fuel rail high
pressure, and EGR solenoid connectors (Fig. 8).

(26) Disconnect generator electrical connectors.
(27) Disconnect coolant temperature sensor and

glow plug electrical connectors.

(28) Disconnect high pressure injection pump and

A/C compressor electrical connectors.

(29) Disconnect starter electrical connectors.
(30) Disconnect ground wires at engine block.
(31) Raise vehicle on hoist.

Fig. 7 UPPER AND LOWER RADIATOR HOSES

1 - COOLANT BYPASS HOSE
2 - RADIATOR ASSEMBLY
3 - UPPER RADIATOR HOSE
4 - COOLING FAN
5 - LOWER RADIATOR HOSE
6 - CHARGE AIR COOLER
7 - RADIATOR BRACKET

Fig. 8 ENGINE COMPONENT LOCATIONS

1 - FUEL INJECTOR RETURN LINE
2 - FUEL INJECTOR SUPPLY LINE
3 - OIL SEPARATOR
4 - FUEL INJECTOR
5 - CAMSHAFT POSITION SENSOR
6 - BOOST PRESSURE/INTAKE AIR TEMPERATURE SENSOR
7 - EGR SOLENOID
8 - FUEL PRESSURE SENSOR
9 - CYLINDER HEAD COVER/INTAKE MANIFOL
10 - FUEL RAIL
11 - WIRING HARNESS RETAINING CLIPS

9 - 6

ENGINE

RG

ENGINE 2.5L TURBO DIESEL (Continued)

(32) Disconnect oil pressure switch, engine speed

sensor, and vehicle speed sensor electrical connector
(Fig. 9).

(33) Raise and support vehicle.
(34) Remove front wheels.
(35) Remove the suspension cradle assembly (Refer

to 13 - FRAME & BUMPERS/FRAME/ENGINE
CRADLE CROSSMEMBER - REMOVAL).

(36) Remove both axle shaft assemblies (Refer to 3

- DIFFERENTIAL & DRIVELINE/HALF SHAFT -
REMOVAL).

(37) Disconnect the clutch slave cylinder quick dis-

connect line (RHD only)(Refer to 6 - CLUTCH/SLAVE
CYLINDER - REMOVAL).

(38) Disconnect reverse lamp connector.
(39) Disconnect shifter cables at the transmission

(Refer to 21 - TRANSMISSION/TRANSAXLE/MAN-
UAL/GEAR SHIFT CABLE - REMOVAL).

(40) Disconnect exhaust pipe from the turbo-

charger downpipe and reposition to right side of vehi-
cle.

(41) Disconnect cabin heater coolant line (Refer to

24 - HEATING & AIR CONDITIONING/CABIN
HEATER/HEATER UNIT - REMOVAL).

(42) Remove front engine mount bracket retaining

bolts from lower radiator support

(43) Lower

vehicle.

Evacuate

the A/C

system

(Refer to 24 - HEATING & AIR CONDITIONING/

PLUMBING/REFRIGERANT - STANDARD PROCE-
DURE).

(44) Disconnect the A/C lines at the A/C compres-

sor.

(45) Raise and support vehicle.
(46) Disconnect the fuel supply and return lines.
(47) Position engine cradle under engine and lower

vehicle over cradle.

(48) Remove right engine mount bolts.
(49) Remove left engine mount through bolt.
(50) Carefully raise vehicle, leaving engine and

transmission on engine cradle.

(51) Lift engine from engine cradle and dissemble

as necessary.

REMOVAL - ENGINE COVER

(1) Remove engine cover retaining bolts.
(2) Remove engine cover from engine (Fig. 10).

INSTALLATION

INSTALLATION - 2.5L TURBO DIESEL ENGINE

(1) Reassembly engine and transmission assembly

and install on engine cradle.

(2) Position engine and cradle assembly under

vehicle.

(3) Slowly lower the vehicle down over the engine

and cradle assembly.

(4) Install right engine mount bolts. Torque to

54N·m (40 ft. lbs.)

Fig. 9 VIEW-REAR ENGINE

1 - SUSPENSION CRADLE
2 - ENGINE BLOCK
3 - OIL PRESSURE SWITCH
4 - VEHICLE SPEED SENSOR
5 - TRANSMISSION

Fig. 10 ENGINE COVER

1 - ENGINE COVER MOUNTING BOLTS
2 - ENGINE COVER

RG

ENGINE

9 - 7

ENGINE 2.5L TURBO DIESEL (Continued)

(5) Install left engine mount through bolt. Torque

to 75N·m (55 ft. lbs.)

(6) Raise vehicle and engine from engine cradle.
(7) Attach front engine mount bracket to lower

radiator support. Torque to 54N·m (40 ft. lbs.)

(8) Connect cabin heater coolant hose.
(9) Connect exhaust pipe to the turbocharger

downpipe flange. Torque to 28 N·m (250 in. lbs.)

(10) Connect reverse lamp electrical connector at

transmission.

(11) Connect both shifter cables (Refer to 21 -

TRANSMISSION/TRANSAXLE/MANUAL/GEAR
SHIFT CABLE - INSTALLATION).

(12) Connect the clutch slave cylinder quick dis-

connect connector (RHD only)(Refer to 6 - CLUTCH/
SLAVE CYLINDER - INSTALLATION).

(13) Install engine harness into bracket on trans-

mission.

(14) Lower vehicle.
(15) Connect fuel supply and return lines.
(16) Connect A/C lines to A/C compressor. Torque

to 23N·m (17 ft. lbs.)

(17) Route engine wiring harnes to proper location.
(18) Connect engine harness ground cables to

engine block

(19) Connect starter solenoid electrical connector

and battery positive wire to starter. Torque to 10N·m
(90 in. lbs.)

(20) Connect A/C compressor, injection pump, glow

plugs, and coolant temperature sensor electrical con-
nectors.

(21) Connect generator electrical connector. Torque

to 9N·m (75 in. lbs.)

(22) Connect the fuel injector, fuel pressure sensor,

boost pressure/intake air temp sensor, cam sensor,
and EGR solenoid electrical connectors (Fig. 8).

(23) Connect EGR solenoid vacuum supply line to

brake boost vacuum supply line.

(24) Connect brake booster vacuum supply line.
(25) Connect heater core return hose to coolant

pipe.

(26) Connect lower radiator hose to engine (Fig. 7).
(27) Install charger air cooler inlet hose (Fig. 6).
(28) Install charge air cooler outlet hose (Fig. 6).
(29) Connect upper radiator hose to engine (Fig.

7).

(30) Install battery shield.
(31) Install coolant reserve pressure container

(Refer to 7 - COOLING/ENGINE/COOLANT RECOV-
ERY PRESS CONTAINER - INSTALLATION).

(32) Install power steering reservoir and bracket

(Fig. 4).

(33) Raise vehicle
(34) Connect oil pressure sensor, oil temperature

sensor, engine speed sensor, and vehicle speed sensor
electrical connector (Fig. 9).

(35) Install suspension cradle in vehicle (Refer to

13 - FRAME & BUMPERS/FRAME/ENGINE CRA-
DLE CROSSMEMBER - INSTALLATION).

(36) Install both axle shaft assemblies (Refer to 3 -

DIFFERENTIAL & DRIVELINE/HALF SHAFT -
INSTALLATION).

(37) Connect the power steering supply, pressure,

and return lines to power steering pump (Fig. 4).

(38) Install the power steering line brackets on oil

pan (Fig. 4).

(39) Install lower splash shield and side panels.
(40) Install both front wheel and tire assemblies.
(41) Lower vehicle.
(42) Install air cleaner housing, MAF sensor, and

air intake tube assembly (Fig. 3).

(43) Refill transmission to proper level (Refer to 21

- TRANSMISSION/TRANSAXLE/MANUAL/FLUID -
STANDARD PROCEDURE).

(44) Refill engine coolant (Refer to 7 - COOLING/

ENGINE/COOLANT - STANDARD PROCEDURE).

(45) Fill engine crankcase to proper level, with cor-

rect viscosity engine oil.

(46) Connect negative battery cable.
(47) Recharge A/C system (Refer to 24 - HEATING

&

AIR

CONDITIONING/PLUMBING/REFRIGER-

ANT - STANDARD PROCEDURE).

Perform fuel system air purge procedure (Refer to

14 - FUEL SYSTEM - STANDARD PROCEDURE).

(48) Install engine cover (Refer to 9 - ENGINE -

INSTALLATION) (Fig. 2).

INSTALLATION - ENGINE COVER

(1) Install engine cover on engine.
(2) Install the engine cover mounting bolts (Fig.

10).

9 - 8

ENGINE

RG

ENGINE 2.5L TURBO DIESEL (Continued)
