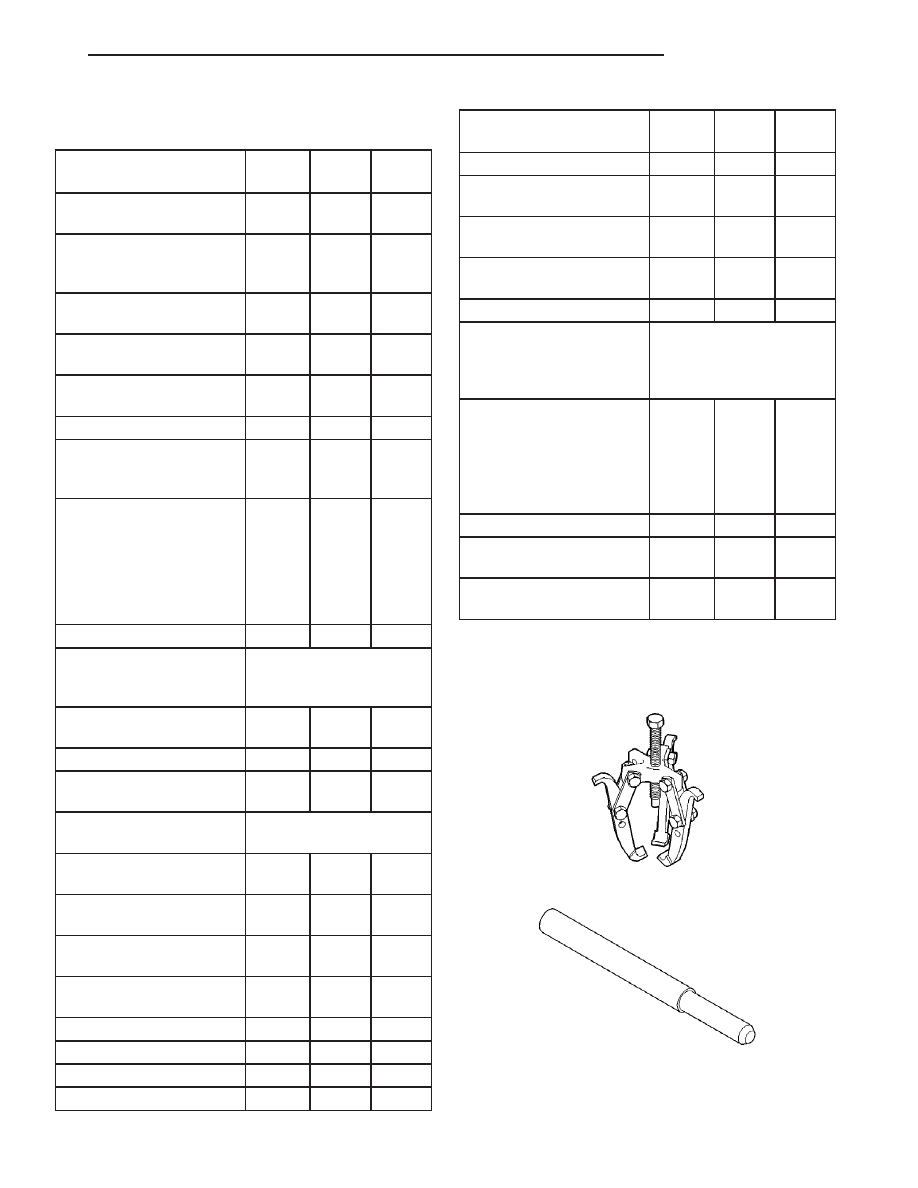

SPECIFICATIONS - TORQUE

DESCRIPTION

N·m

Ft.

Lbs.

In.

Lbs.

Balance Shaft Carrier to
Block—Bolts

54

40

—

Balance Shaft Gear
Cover—Double Ended
Fastener

12

—

105

Balance Shaft Sprocket—
Bolt

28

—

250

Balance Shaft Chain
Tensioner—Bolts

12

—

105

Balance Shaft Carrier
Cover—Bolts

12

—

105

Camshaft Sprocket—Bolt

101

75

—

Connecting Rod
Cap—Bolts

27 +

1

⁄

4

turn

20

+

1

⁄

4

turn

—

Crankshaft Main Bearing
Cap/Bedplate

—M8 Bolts

28

250

—M11 Bolts

41 +

1

⁄

4

Turn

30

+

1

⁄

4

Turn

—

Crankshaft Damper

136

100

—

Cylinder Head—Bolts

(Refer to 9 - ENGINE/

CYLINDER HEAD -

INSTALLATION)

Cylinder Head Cover—
Bolts

12

—

105

Flex Plate to Crankshaft

95

70

—

Engine Mount Bracket
Right—Bolts

61

45

—

Engine Mounting—Bolts

(Refer to 9 ENGINE/

ENGINE MOUNTING)

Exhaust Manifold to
Cylinder Head—Bolts

19

—

170

Exhaust Manifold Heat
Shield—Bolts

12

—

105

Intake Manifold - Lower
—Bolts

28

—

250

Intake Manifold -
Upper—Bolts

28

—

250

Oil Filter

12

—

105

Oil Pan—Bolts

12

—

105

Oil Pan Drain—Plug

28

20

—

Oil Pressure Switch

21

—

190

DESCRIPTION

N·m

Ft.

Lbs.

In.

Lbs.

Oil Pump to Block—Bolts

28

20

—

Oil Pump Cover
Plate—Bolts

12

—

105

Oil Pump Pick-up
Tube—Bolt

28

20

—

Oil Pump Relief
Valve—Cap

41

30

—

Spark Plugs

18

13

—

Structural Collar

(Refer to 9 - ENGINE/

ENGINE BLOCK/

STRUCTURAL COVER -

INSTALLATION)

Timing Belt Covers

- Front Covers to Rear

Cover—Bolts

6

—

50

- Rear Cover—M6 Bolts

12

—

105

—M8 Bolts

28

—

250

Timing Belt Idler Pulley

61

45

—

Timing Belt Tensioner
Lock Bolt

25

—

220

Timing Belt Tensioner
Assembly—Bolts

61

45

—

SPECIAL TOOLS

2.4L ENGINE

Puller 1026

Crankshaft Damper Removal Insert 6827A

RS

ENGINE 2.4L

9 - 21

ENGINE 2.4L (Continued)

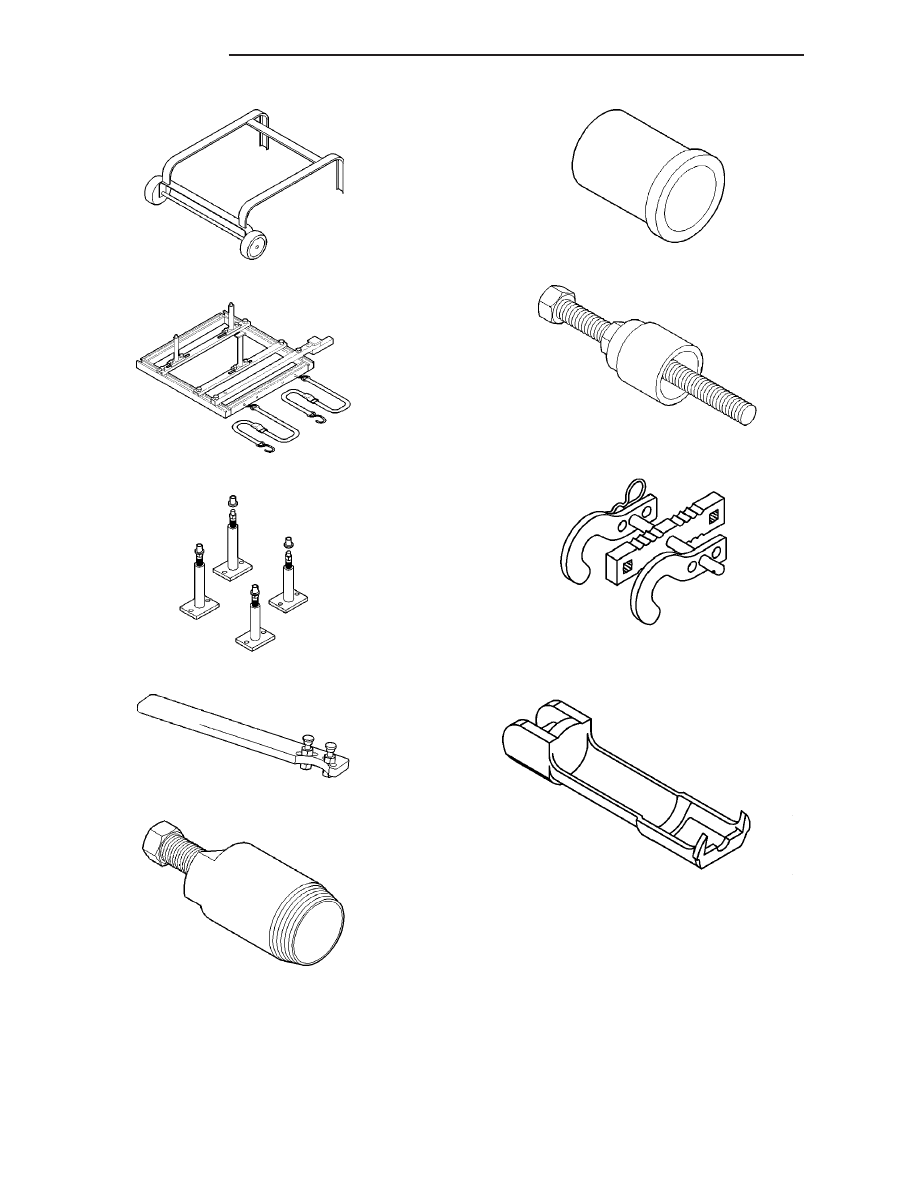

Dolly 6135

Cradle 6710A

Post Kit Engine Cradle 6848

Camshaft Sprocket Holder 6847

Camshaft Seal Remover C-4679A

Camshaft Seal Installer MD-998306

Crankshaft Damper/Sprocket Installer 6792

Valve Spring Compressor 8215-A

Adaptor 8436

9 - 22

ENGINE 2.4L

RS

ENGINE 2.4L (Continued)

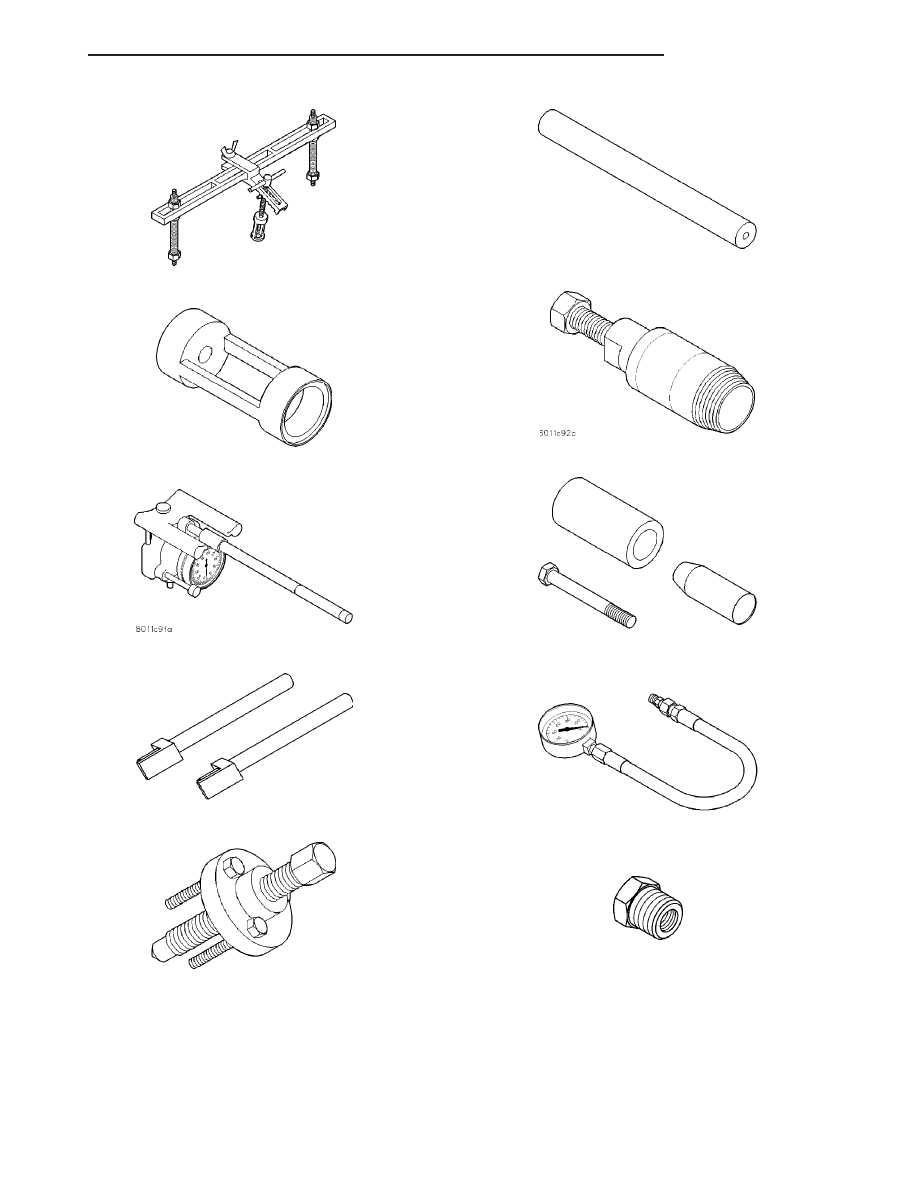

Valve Spring Compressor MD998772A

Valve Spring Compressor Adapter 6779

Indicator, Cylinder Bore C-119

Connecting Rod Guides 8189

Crankshaft Sprocket Remover 6793

Crankshaft Sprocket Remover Insert C-4685-C2

Front Crankshaft Oil Seal Remover 6771

Front Crankshaft Oil Seal Installer 6780

Oil Pressure Gauge C-3292

Adapter 8406

RS

ENGINE 2.4L

9 - 23

ENGINE 2.4L (Continued)

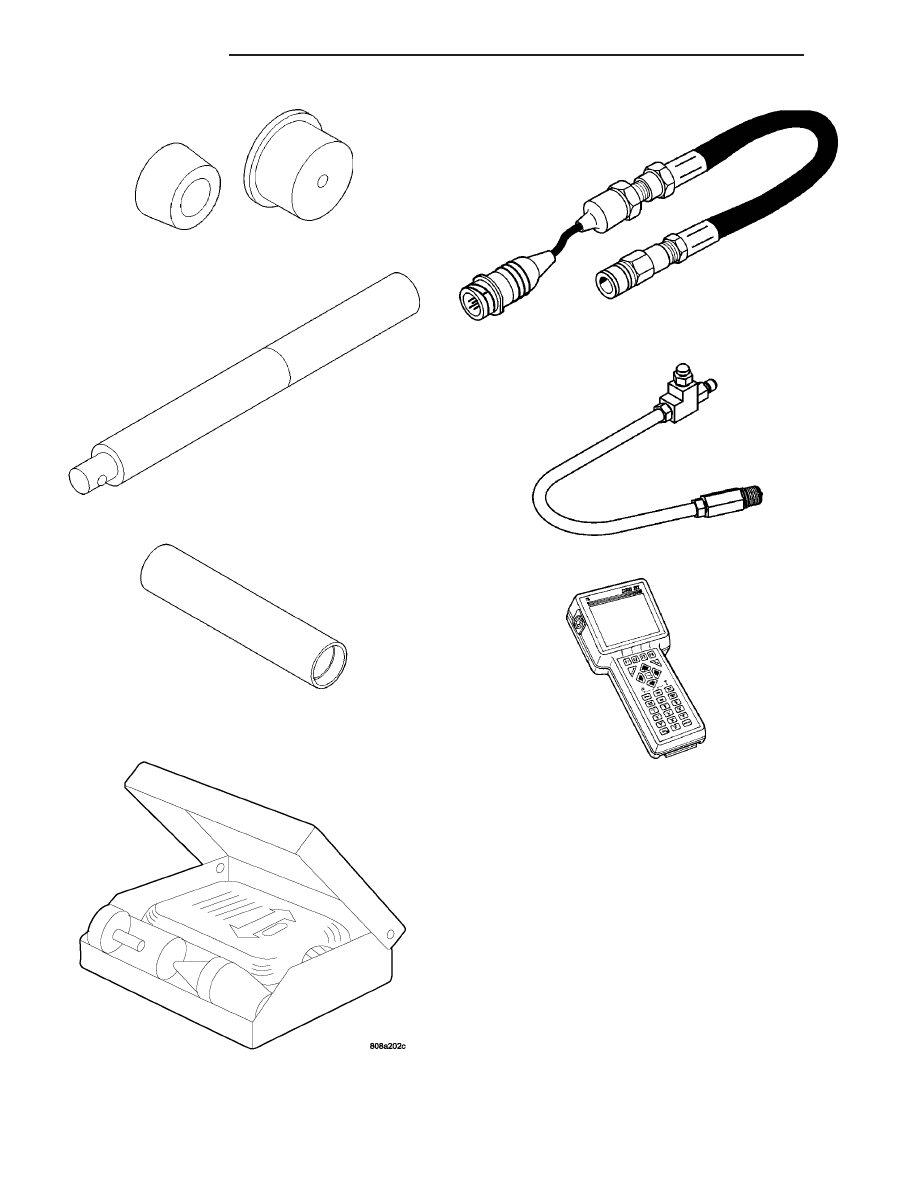

Rear Crankshaft Oil Seal Installer 6926

Driver Handle C-4171

Balance Shaft Sprocket Installer 6052

Combustion Leak Tester C-3685-A

Pressure Transducer CH7059

Cylinder Compression Pressure Adaptor 8116

DRB III

T

with PEP Module OT-CH6010A

9 - 24

ENGINE 2.4L

RS

ENGINE 2.4L (Continued)
