Chrysler PT Cruiser. Manual - part 126

REAR

8.4

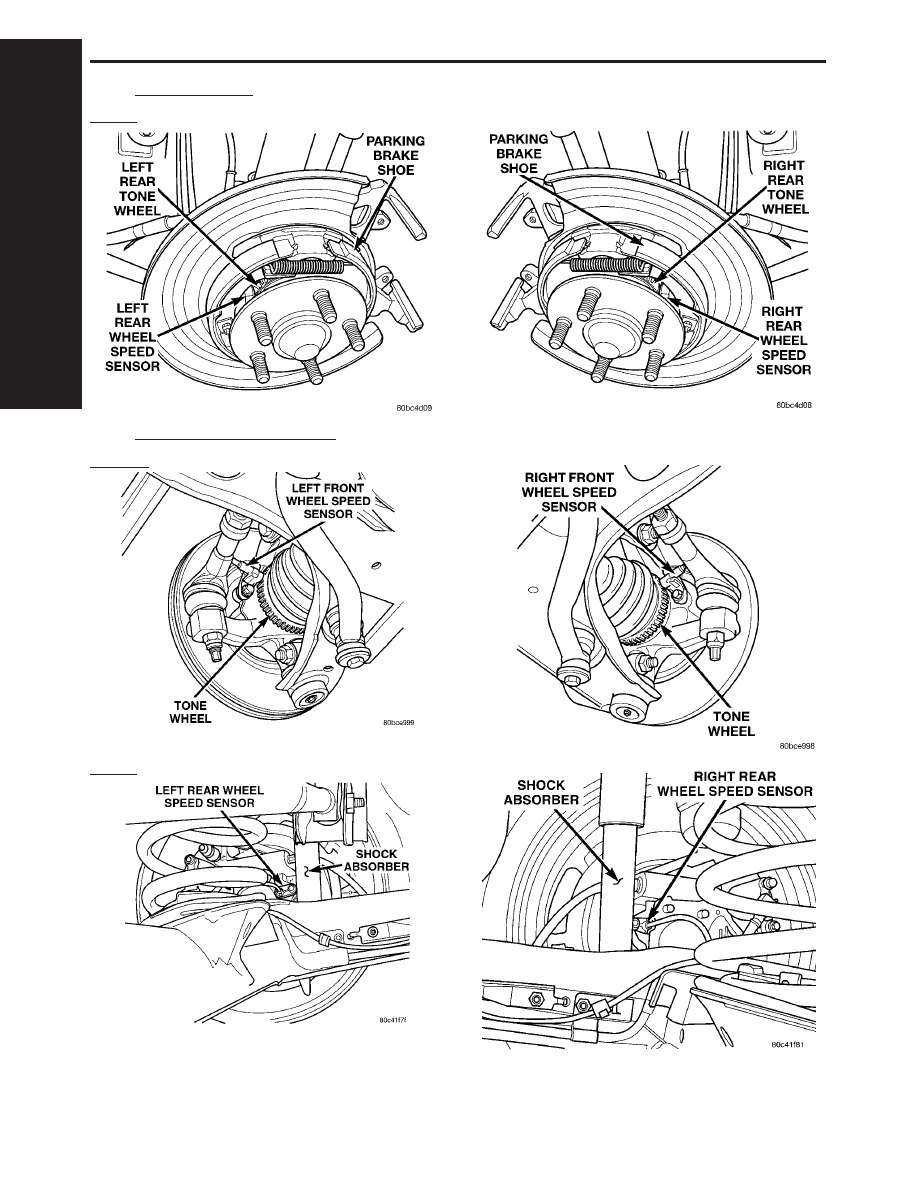

WHEEL SPEED SENSORS

FRONT

REAR

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

48

COMPONENT LOCATIONS

8.3

TONE WHEELS (Continued)

8.5

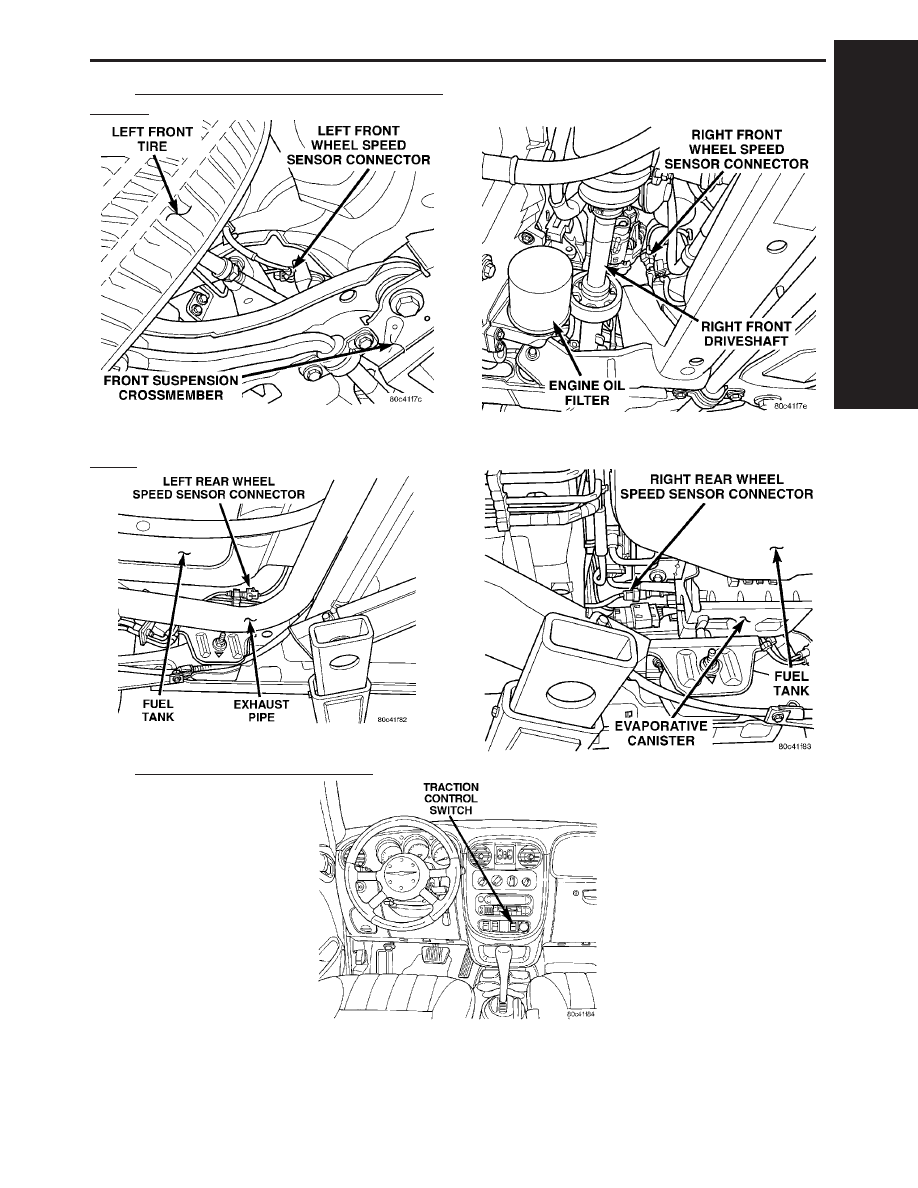

WHEEL SPEED SENSOR CONNECTORS

FRONT

REAR

8.6

TRACTION CONTROL SWITCH

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

49

COMPONENT LOCATIONS

8.7

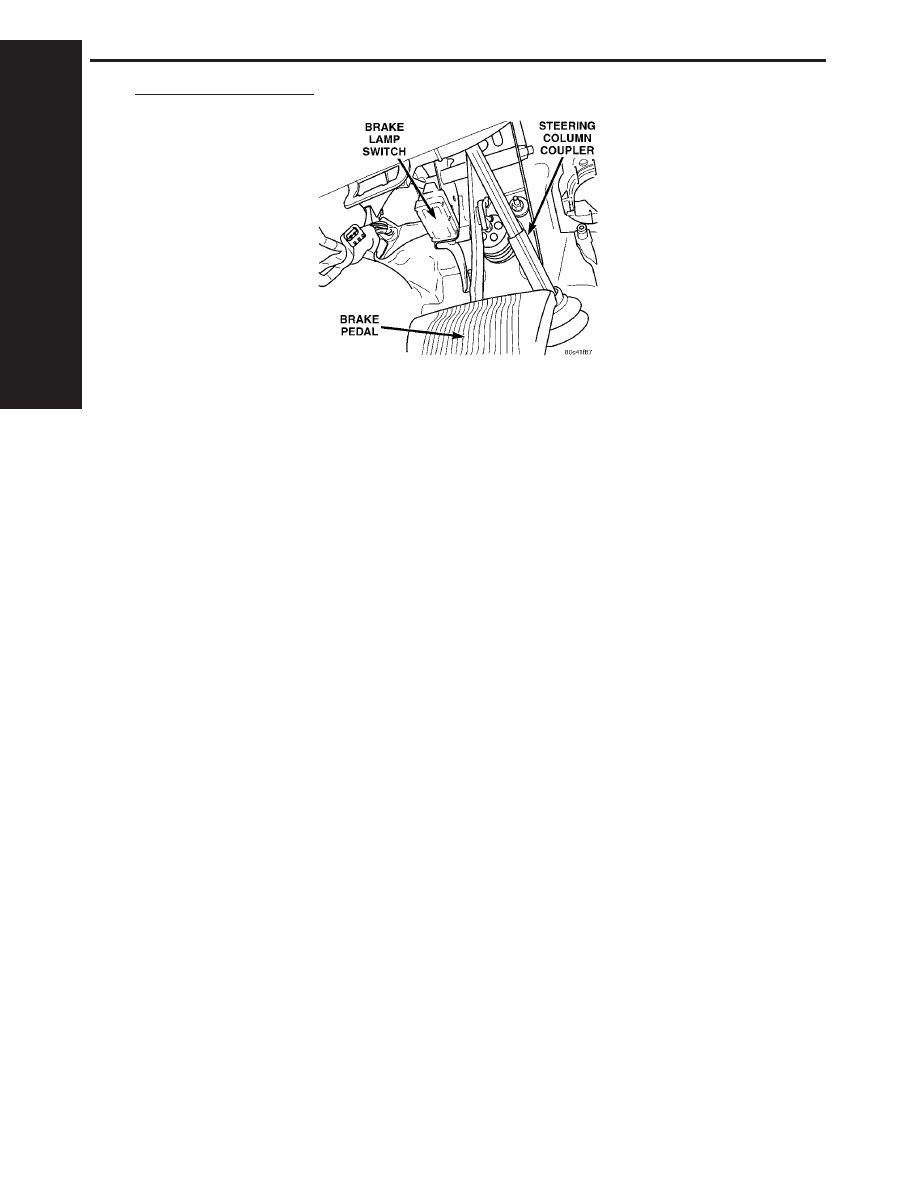

BRAKE LAMP SWITCH

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

50

COMPONENT LOCATIONS

9.0

CONNECTOR PINOUTS

ANTI-LOCK BRAKE MODULE - BLACK 47 WAY

CAV

CIRCUIT

FUNCTION

1

A10 12RD/DG

FUSED B(+) (PUMP)

2

-

-

3

-

-

4

B27 18RD/YL

TRACTION CONTROL SWITCH SENSE

5

-

-

6

L50 18WT/TN

BRAKE LAMP SWITCH OUTPUT

7

-

-

8

F12 18DB/WT

FUSED IGNITION SWITCH OUTPUT (RUN-START)

9

-

-

10

D223 20WT/VT

NOT USED

11

D25 18VT/YL

PCI BUS

12

-

-

13

-

-

14

-

-

15

-

-

16

Z1 12BK

GROUND

17

-

-

18

-

-

19

-

-

20

-

-

21

-

-

22

-

-

23

-

-

24

-

-

25

-

-

26

-

-

27

-

-

28

-

-

29

-

-

30

-

-

31

-

-

32

A20 12RD/DB

FUSED B(+) (VALVE)

33

B6 18WT/DB

RIGHT FRONT WHEEL SPEED SENSOR SIGNAL

34

B7 18WT

RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY

35

-

-

36

B4 18LG

LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY

37

B3 18LG/DB

LEFT REAR WHEEL SPEED SENSOR SIGNAL

38

-

-

39

-

-

40

-

-

41

-

-

42

B1 18YL/DB

RIGHT REAR WHEEL SPEED SENSOR SIGNAL

43

B2 18YL

RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY

44

-

-

45

B9 18RD

LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY

46

B8 18RD/DB

LEFT FRONT WHEEL SPEED SENSOR SIGNAL

47

Z1 12BK

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

51

CONNECTOR PINOUTS
