(1) Release deck lid latch and open deck lid.
(2) Remove deck lid cover.
(3) Disconnect lamp socket(s) from housing (Fig. 3).
(4) Remove bulb(s) from socket(s).

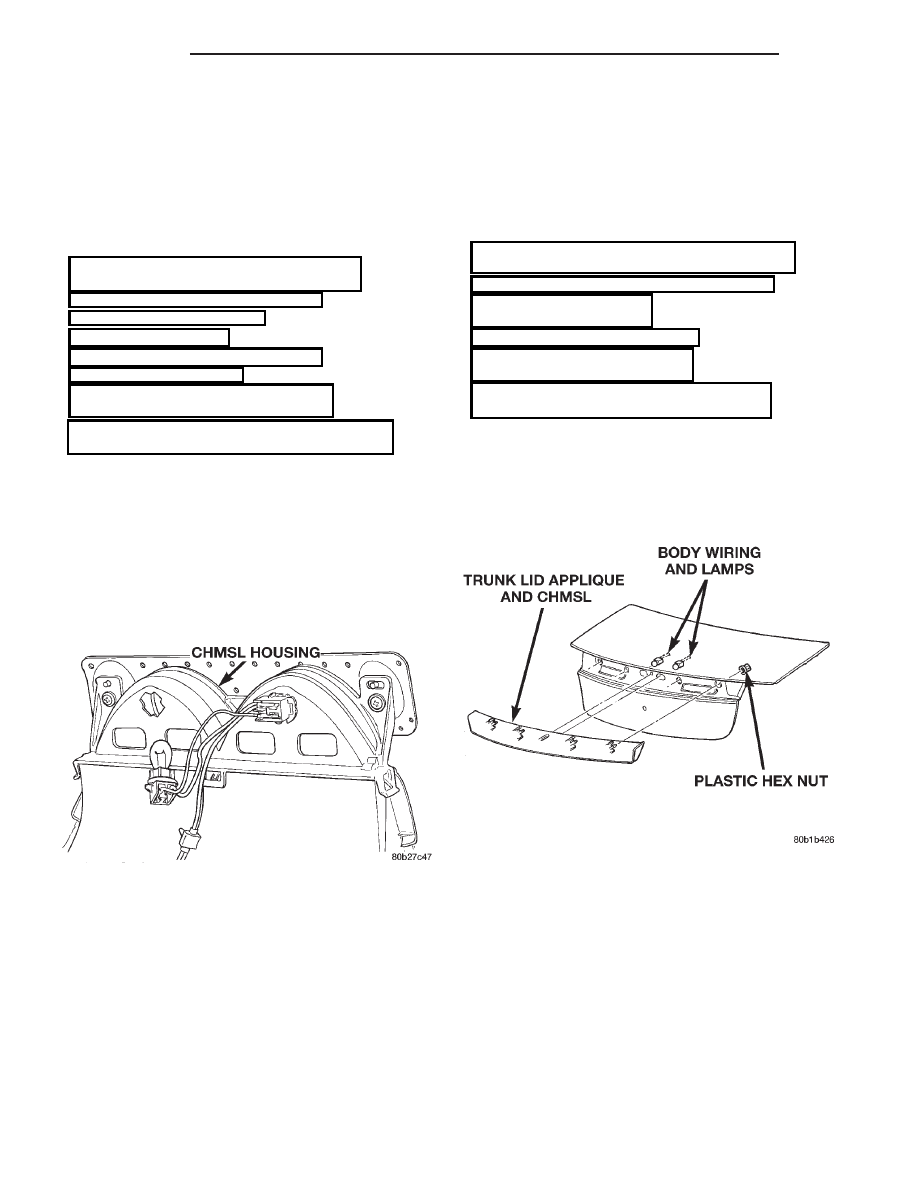

Fig. 1 CHMSL – Rear Shelf

Fig. 2 CHMSL – Intrepid

8L - 10

LAMPS

300M

INSTALLATION

(1) Install bulb(s) in socket(s).
(2) Install socket(s) into housing.
(3) Verify CHMSL operation.
(4) Install deck lid cover.

FOG LAMP BULB – INTREPID/300M

REMOVAL

(1) Remove fog lamp housing screw in front fascia

and pull lamp housing from the fascia.

(2) Remove rear cover from fog lamp housing.
(3) Disengage wire clip holding bulb in fog lamp.
(4) Hinge wire clip out of bulb removal path.
(5) Pull bulb from lamp housing (Fig. 4) or (Fig. 5).
(6) Disengage wire connector from body wire harness.

INSTALLATION

CAUTION:

Do not touch the glass of halogen

bulbs with fingers or other possibly oily surface,
reduced bulb life will result.

(1) Connect wire connector to body wire harness.
(2) Cover exposed terminal with teflon coated

sleeve.

(3) Insert bulb into lamp housing.
(4) Hinge wire clip over bulb base.
(5) Engage wire clip to hold bulb in fog lamp.
(6) Install rear cover to fog lamp housing.
(7) Verify fog lamp operation and alignment.
(8) Install fog lamp housing screw to the front fascia.

FOG LAMP BULB – LHS

REMOVAL

(1) Remove fog lamp housing screw in front fascia

and pull lamp housing from the front fascia.

(2) Disconnect wire connector from fog lamp socket

(Fig. 6).

(3) Rotate socket and pull bulb/socket from lamp

housing.

INSTALLATION

CAUTION:

Do not touch the glass of halogen

bulbs with fingers or other possibly oily surface,
reduced bulb life will result.

(1) Install socket into fog lamp housing and rotate

to the lock position.

(2) Connect wire connector to the socket.
(3) Verify fog lamp operation and alignment.
(4) Install fog lamp housing into fascia.
(5) Install fog lamp screw to the front fascia.

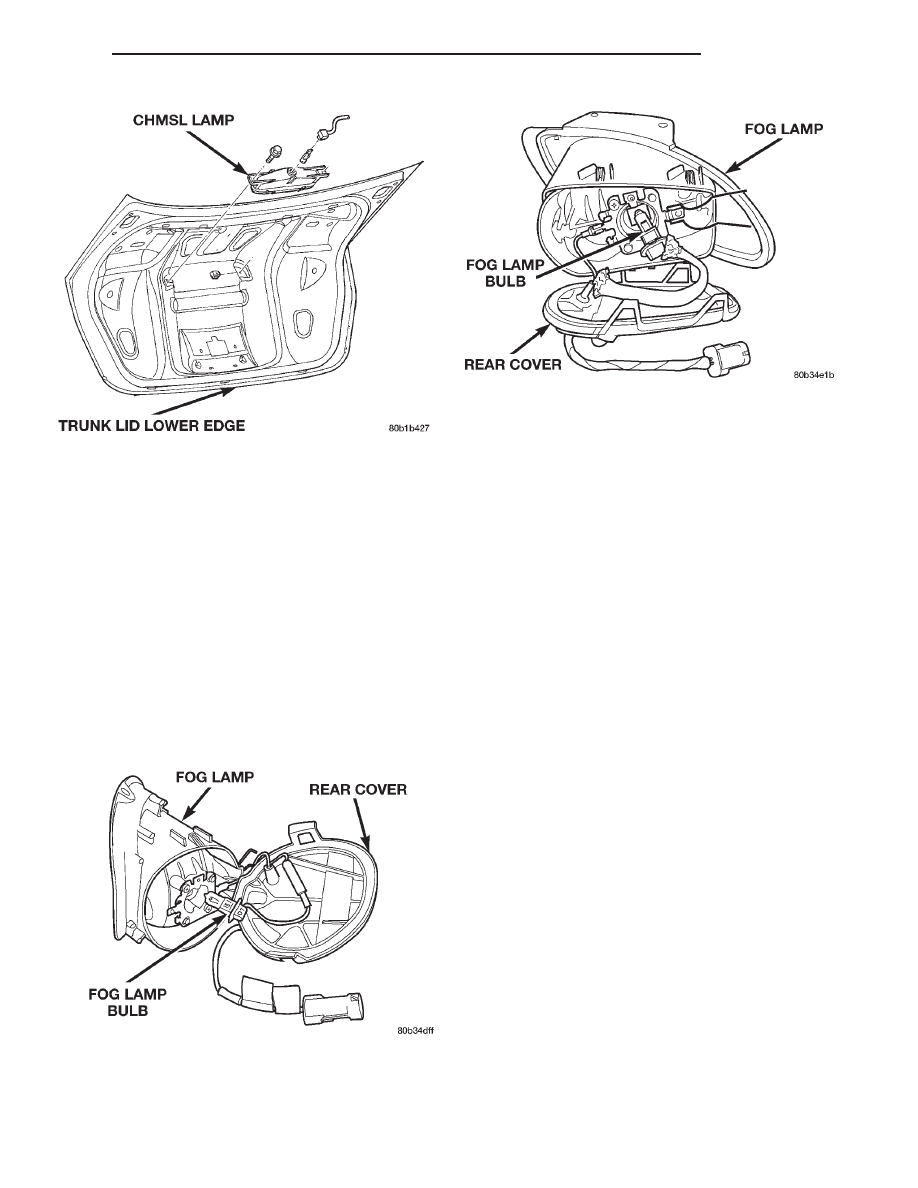

Fig. 3 CHMSL – 300M

Fig. 4 Fog Lamp Bulb – Intrepid

Fig. 5 Fog Lamp Bulb – 300M

300M

LAMPS

8L - 11

REMOVAL AND INSTALLATION (Continued)

FRONT PARKING AND TURN SIGNAL LAMP BULB
- LHS

REMOVAL

(1) Remove headlamp housing from vehicle.
(2) Disconnect wire connector from back of lamp

socket(s).

(3) Rotate socket and pull lamp socket from head-

lamp housing (Fig. 7).

(4) Remove bulb from lamp socket.

INSTALLATION

(1) Push bulb into lamp socket.
(2) Place lamp socket into headlamp housing and

rotate to the lock position.

(3) Connect wire connector to lamp socket(s).
(4) Verify headlamp operation.
(5) Install headlamp housing.
(6) Verify headlamp operation and alignment.

FRONT PARKING, SIDE MARKER, AND TURN
SIGNAL LAMP BULB – CONCORDE

REMOVAL

(1) Reach under the fascia and remove the socket

from the lamp housing (Fig. 8).

(2) Rotate and pull socket from lamp housing.
(3) Pull bulb from socket.

INSTALLATION

(1) Push bulb into socket.
(2) Install socket into lamp housing.
(3) Verify park and turn signal lamp operation.

FRONT PARKING, SIDE MARKER, AND TURN
SIGNAL LAMP BULB – INTREPID

REMOVAL

(1) Release hood latch and open hood.
(2) Remove

jackscrews

attaching

headlamp

crossmember.

(3) Remove lamp housing to access the lamp

socket.

(4) Remove lamp socket from lamp housing (Fig. 9).
(5) Pull bulb from socket.

INSTALLATION

(1) Push bulb into socket.
(2) Install lamp socket in lamp housing.
(3) Verify lamp operation.
(4) Place headlamp in position on vehicle.
(5) Install jackscrews to attach headlamp housing

to crossmember.

FRONT SIDE MARKER LAMP BULB – LHS

REMOVAL

(1) Reach under the fascia and remove the socket

from the side marker lamp housing (Fig. 10).

Fig. 8 Parking, Side Marker, and Turn Signal Lamp

Bulb – Concorde

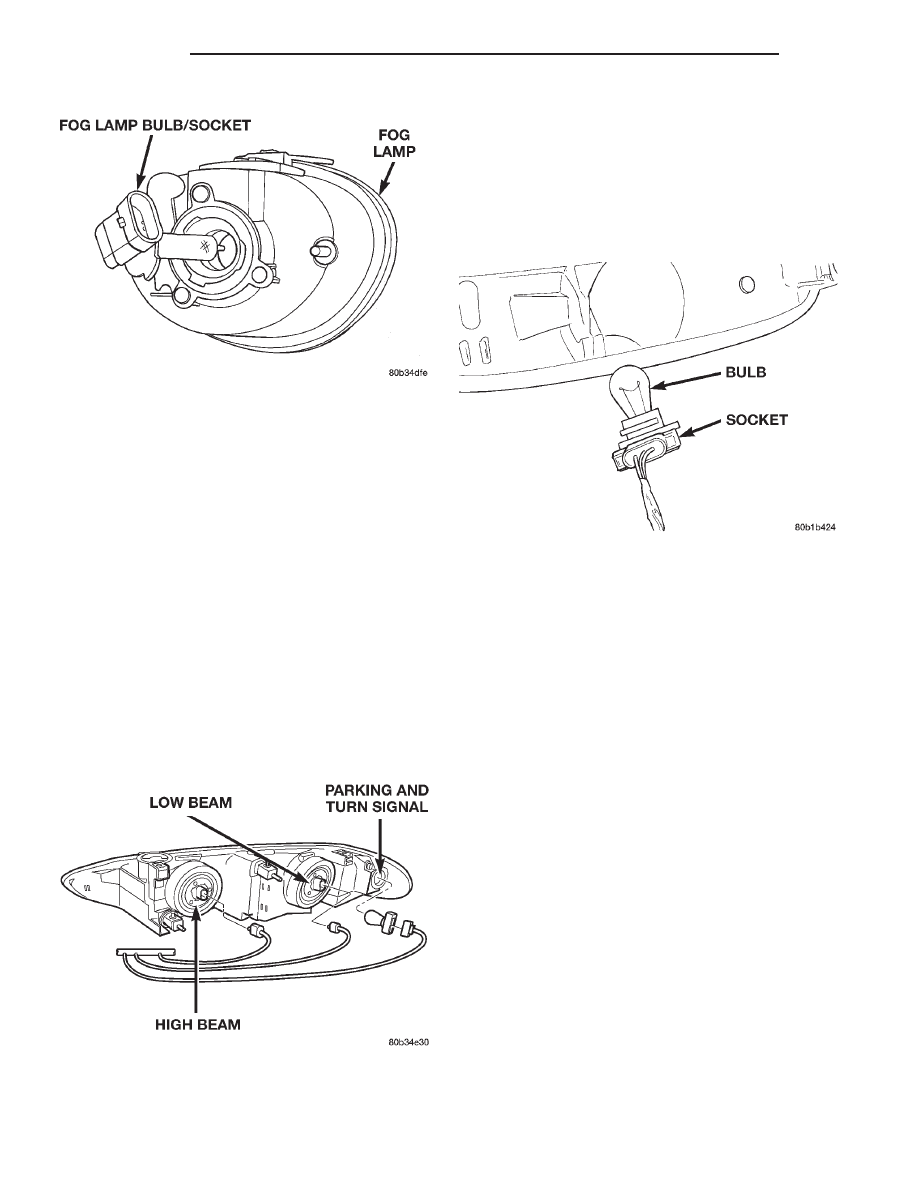

Fig. 6 Fog Lamp Bulb – LHS

Fig. 7 Front Parking and Turn Signal Lamp Bulb –

LHS

8L - 12

LAMPS

300M

REMOVAL AND INSTALLATION (Continued)

(2) Pull bulb from socket.

INSTALLATION

(1) Push bulb into socket.
(2) Install socket into front side marker lamp

housing.

(3) Verify park and front side marker lamp opera-

tion.

HEADLAMP BULB(S) – CONCORDE/LHS/300M

REMOVAL

(1) Remove headlamp housing. Refer to Headlamp

Housing - Concorde/LHS/300M for proper procedures.

(2) Rotate retaining ring (High beam or Low beam)

and pull lamp socket from headlamp housing (Fig.
11).

(3) Remove bulb from lamp socket.

INSTALLATION

CAUTION:

Do not touch the glass of halogen

bulbs with fingers or other possibly oily surface,
reduced bulb life will result.

(1) Push bulb into lamp socket.
(2) Place lamp socket into headlamp housing and

rotate retaining ring to the lock position.

(3) Install headlamp housing.

HEADLAMP BULBS – INTREPID

REMOVAL

(1) Release hood latch and open hood.
(2) Remove jackscrews attaching headlamp hous-

ing to crossmember and remove the lamp housing to
access the lamp(s).

(3) Disconnect wire connector from back of lamp

socket (Fig. 12).

(4) Rotate retaining ring (High beam or Low beam)

and pull lamp socket from headlamp housing.

(5) Remove bulb from lamp socket.

INSTALLATION

CAUTION:

Do not touch the glass of halogen

bulbs with fingers or other possibly oily surface,
reduced bulb life will result.

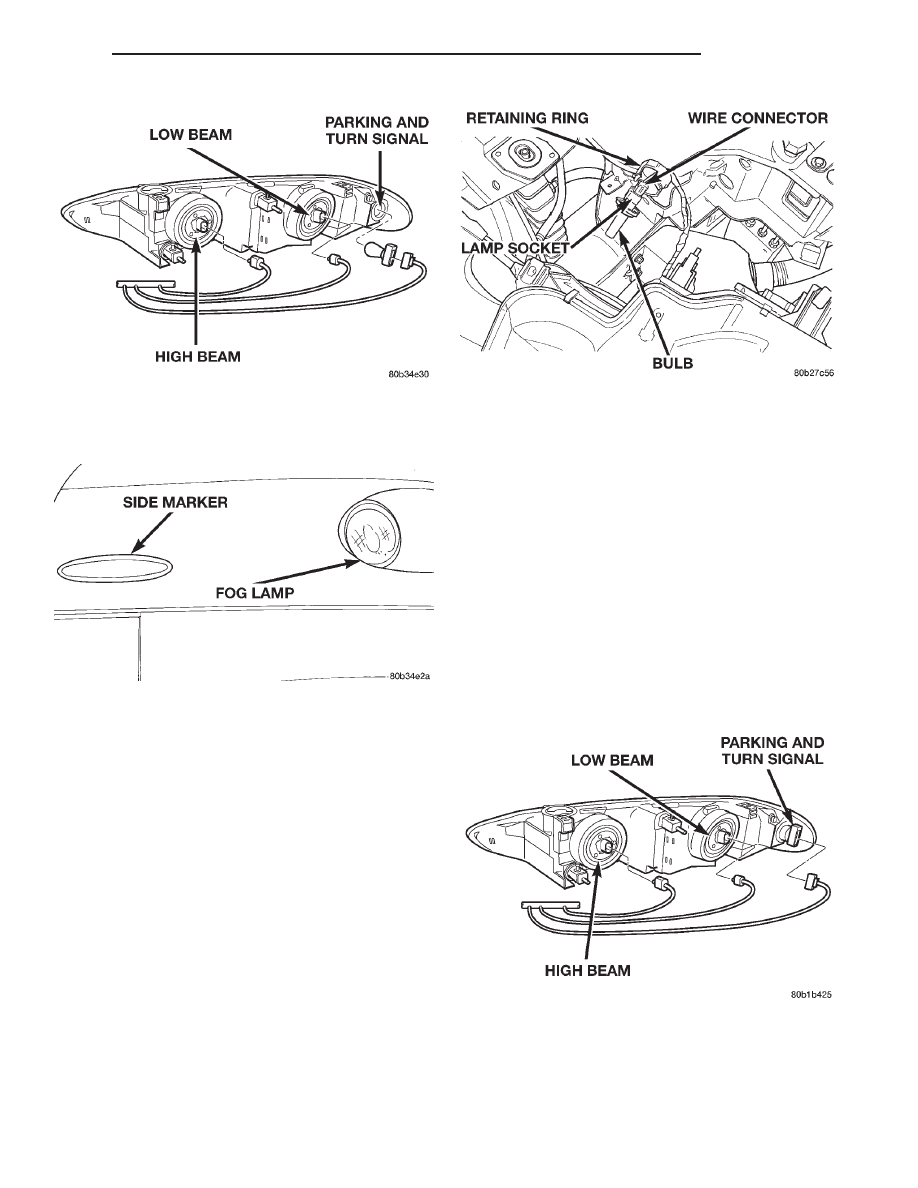

Fig. 9 Parking, Side Marker, and Turn Signal Bulb -

Intrepid

Fig. 10 Front Side Marker Lamp Bulb – LHS

Fig. 11 Headlamp Bulb Removal

Fig. 12 Headlamp Bulb – Intrepid

300M

LAMPS

8L - 13

REMOVAL AND INSTALLATION (Continued)
