BODY CONTROL MODULE INTERNAL FAILURE (CONTINUED)

When Monitored and Set Condition

When Monitored: Continuous.

Set Condition: If the Body Control Module (BCM) detects an internal malfunction, the DTC is set.

POSSIBLE CAUSES

OPEN FUSED B(+) CIRCUIT

BODY CONTROL MODULE

For a complete Rear Spoiler Circuit Diagram. (Refer to 23 - BODY - SCHEMATICS AND DIAGRAMS).

Diagnostic Test

1.

FUSED B(+) CIRCUIT

Turn the ignition off.

Disconnect the BCM C4 harness connector.

Note: Check connectors - Clean/repair as necessary.

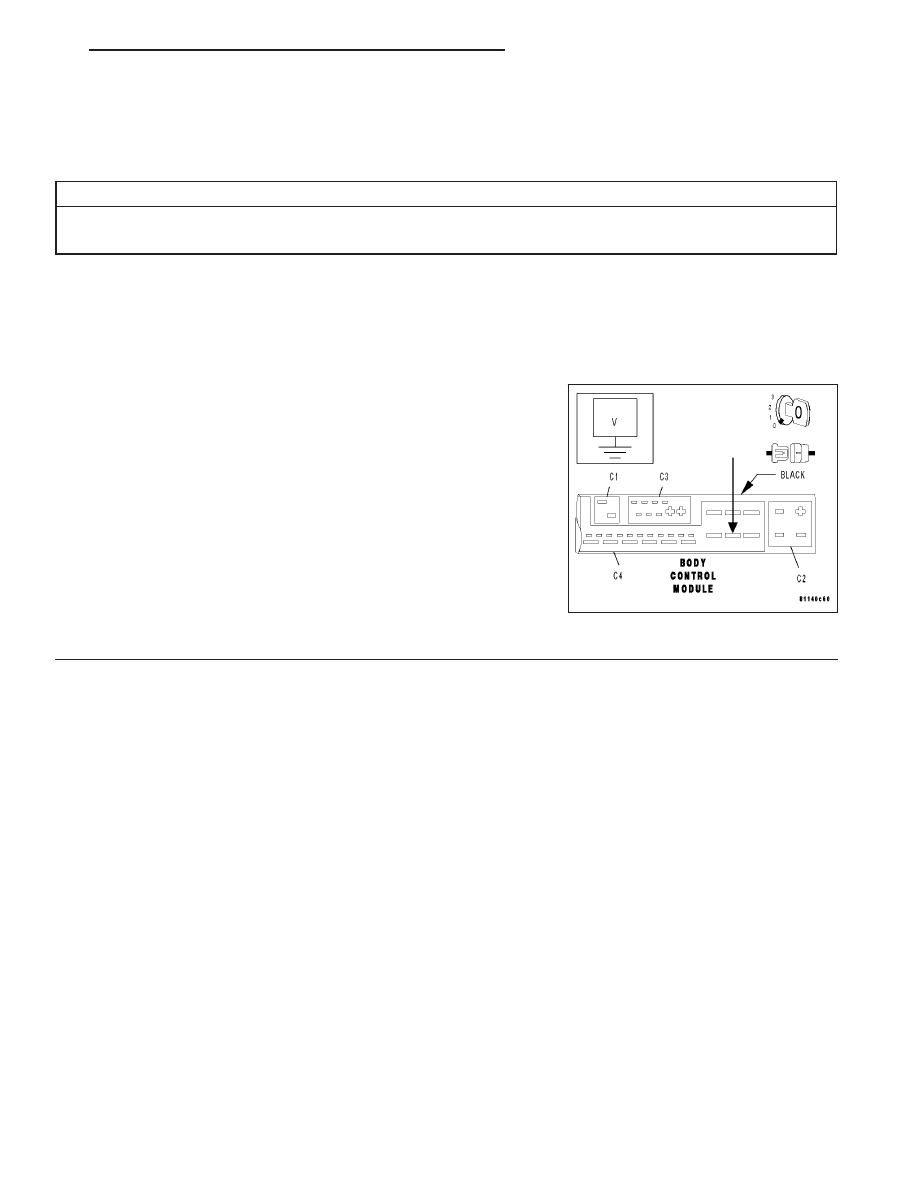

Measure the voltage of the Fused B(+) circuit at the BCM C4 harness
connector.

Is the voltage above 10.0 volts?

Yes

>> Replace the Body Control Module.(Refer to 8 - ELECTRI-

CAL/ELECTRONIC CONTROL MODULES/BODY CON-
TROL/CENTRAL TIMER MODUL - REMOVAL).

Perform REAR SPOILER VERIFICATION TEST.

No

>> Repair the Fused B(+) circuit for an open.

Perform REAR SPOILER VERIFICATION TEST.

ZH

BODY - ELECTRICAL DIAGNOSTICS

23 - 3

REAR SPOILER SWITCH SENSE CIRCUIT

23 - 4

BODY - ELECTRICAL DIAGNOSTICS

ZH

REAR SPOILER SWITCH SENSE CIRCUIT (CONTINUED)

When Monitored and Set Condition

When Monitored: Continuous.

Set Condition: The Body Control Module (BCM) sense a short to power or a short to ground on the Rear
Spoiler Switch Sense circuit for more than 20 seconds.

POSSIBLE CAUSES

REAR SPOILER SWITCH SENSE CIRCUIT SHORTED TO VOLTAGE

REAR SPOILER SWITCH SENSE CIRCUIT SHORTED TO GROUND

REAR SPOILER SWITCH

BODY CONTROL MODULE

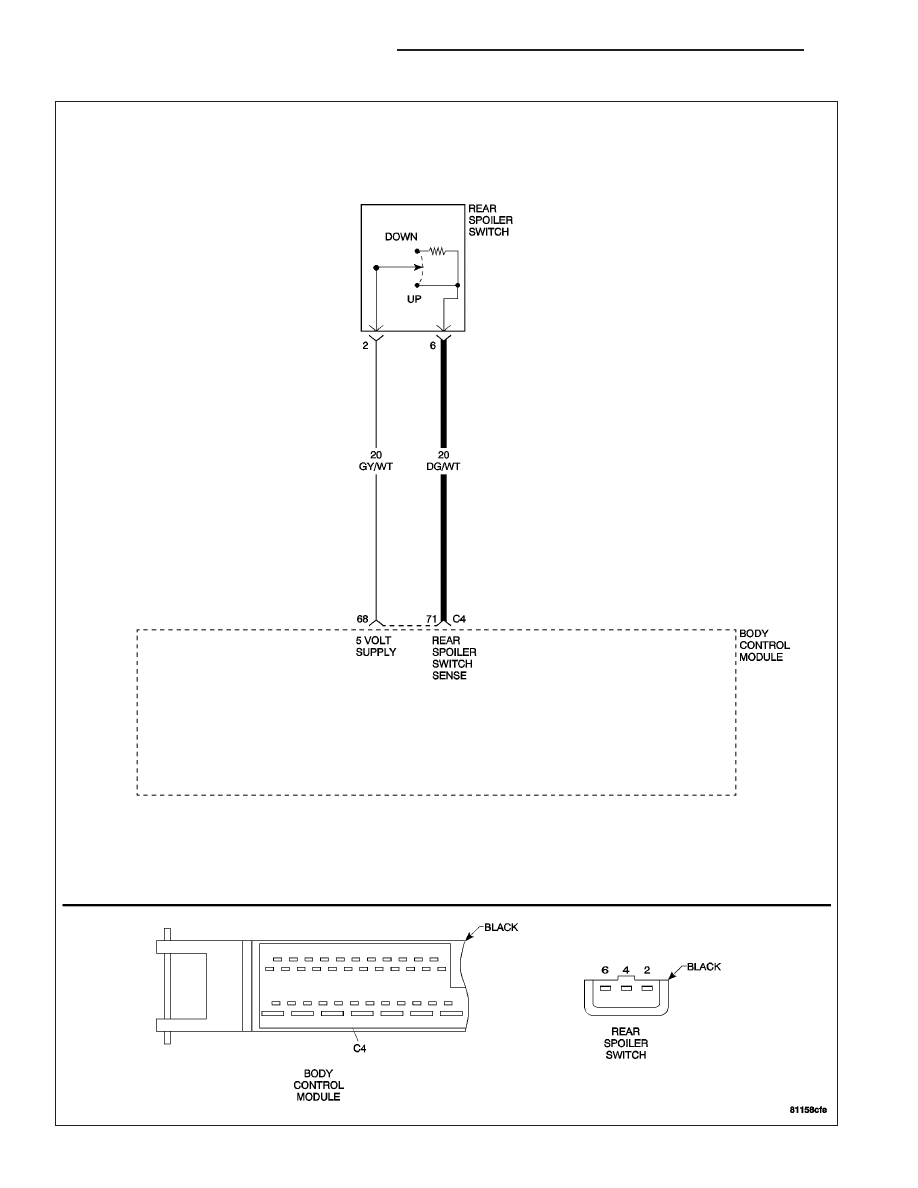

For a complete Rear Spoiler Circuit Diagram, (Refer to 23 - BODY - SCHEMATICS AND DIAGRAMS).

Diagnostic Test

1.

REAR SPOILER SWITCH SENSE CIRCUIT SHORT TO B(+)

Turn the ignition off.

Disconnect the BCM C4 harness connector.

Note: Check connectors - Clean/repair as necessary.
Turn the ignition on.

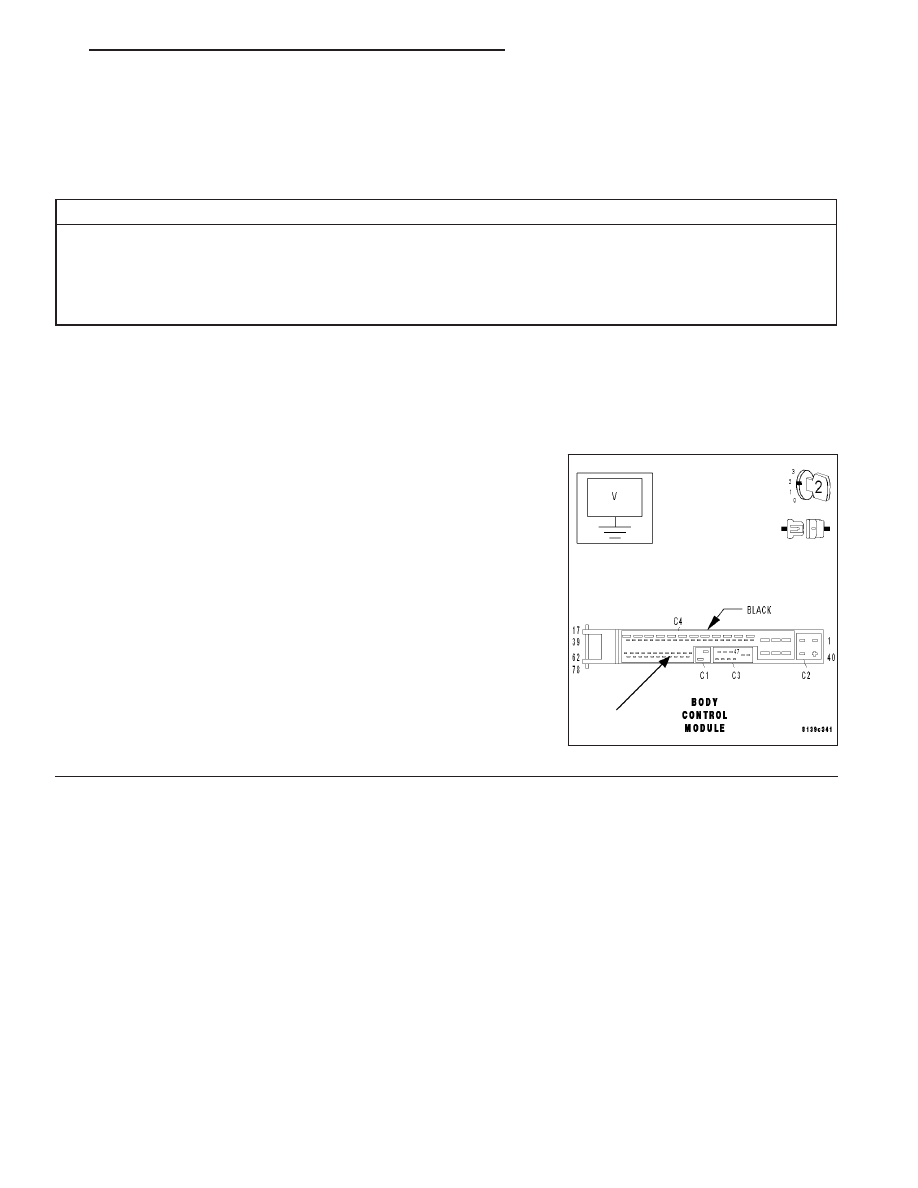

Measure the voltage of the Rear Spoiler Switch Sense circuit at the
BCM C4 harness connector.

Is voltage above 1.0 volts?

Yes

>> Repair the Rear Spoiler Switch Sense circuit for a short to

B(+).

Perform REAR SPOILER VERIFICATION TEST.

No

>> Go to 2

ZH

BODY - ELECTRICAL DIAGNOSTICS

23 - 5

REAR SPOILER SWITCH SENSE CIRCUIT (CONTINUED)

2.

BCM

Turn the ignition off.

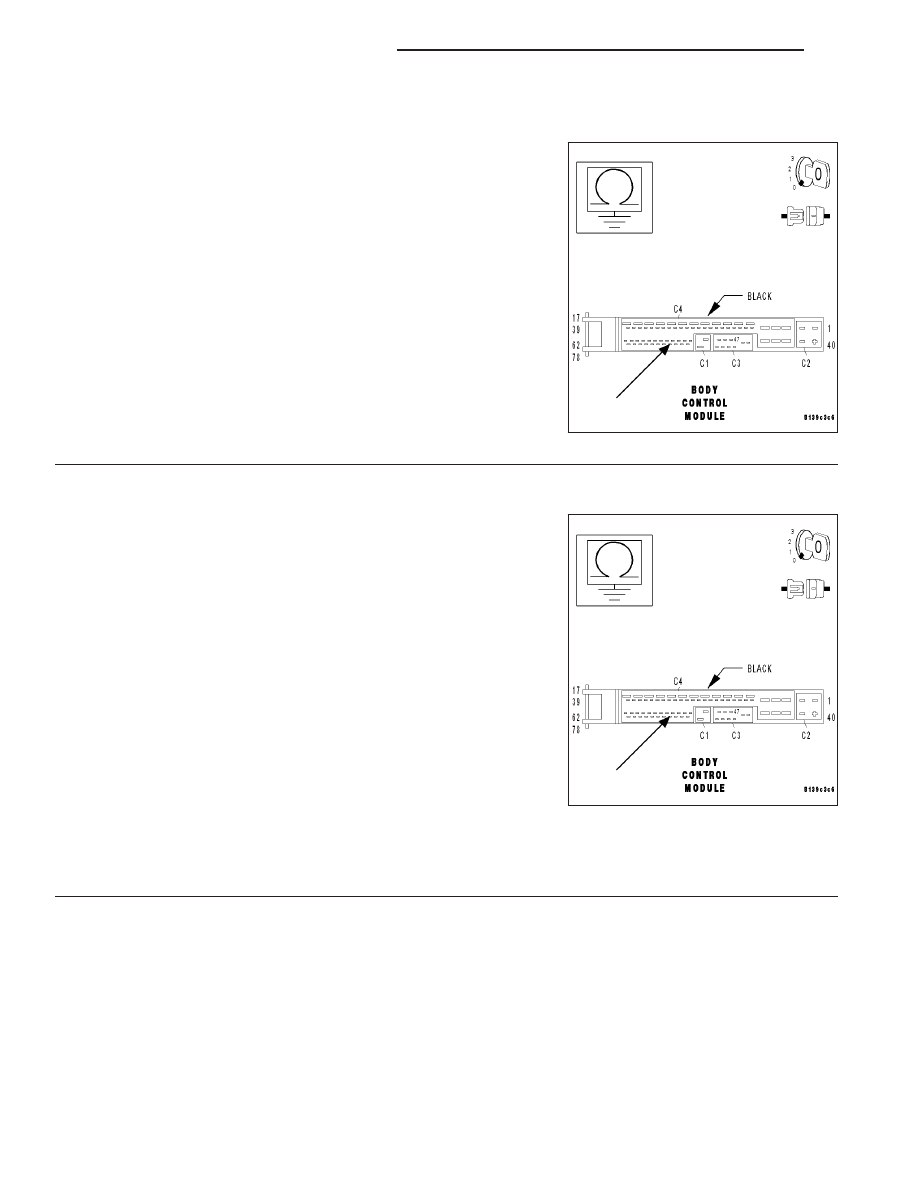

Measure the resistance between ground and the Rear Spoiler Switch
Sense circuit at the BCM C4 harness connector.

Is the resistance below 100K ohms?

Yes

>> Go to 3

No

>> Replace the Body Control Module.(Refer to 8 - ELECTRI-

CAL/ELECTRONIC CONTROL MODULES/BODY CON-
TROL/CENTRAL TIMER MODUL - REMOVAL).

Perform REAR SPOILER VERIFICATION TEST.

3.

REAR SPOILER SWITCH SENSE CIRCUIT SHORT TO GROUND

With the ignition off.

Disconnect the Rear Spoiler Switch harness connector.

Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the Rear Spoiler Switch
Sense circuit at the BCM C4 harness connector.

Is the resistance below 100K ohms?

Yes

>> Repair the Rear Spoiler Switch Sense circuit for a short to

ground.

Perform REAR SPOILER VERIFICATION TEST.

No

>> Replace the Rear Spoiler Switch.

Perform REAR SPOILER VERIFICATION TEST.
