(P0700) SENSOR SUPPLY VOLTAGE (CONTINUED)

When Monitored and Set Condition

When Monitored: Always monitored with system active at each ignition cycle and no undervoltage condition
exists.

Set Condition: If measured sensor voltage is not within specified limits 4.8-7.2 volts or if a failed regulator,
Sensor Supply Voltage circuit short to ground, or Sensor Supply Voltage circuit short to voltage is detected.

POSSIBLE CAUSES

SENSOR SUPPLY VOLTAGE CIRCUIT SHORT TO ANOTHER CIRCUIT

SENSOR SUPPLY VOLTAGE CIRCUIT SHORT TO VOLTAGE

SENSOR SUPPLY VOLTAGE CIRCUIT SHORT TO GROUND

TRANSMISSION CONTROL MODULE

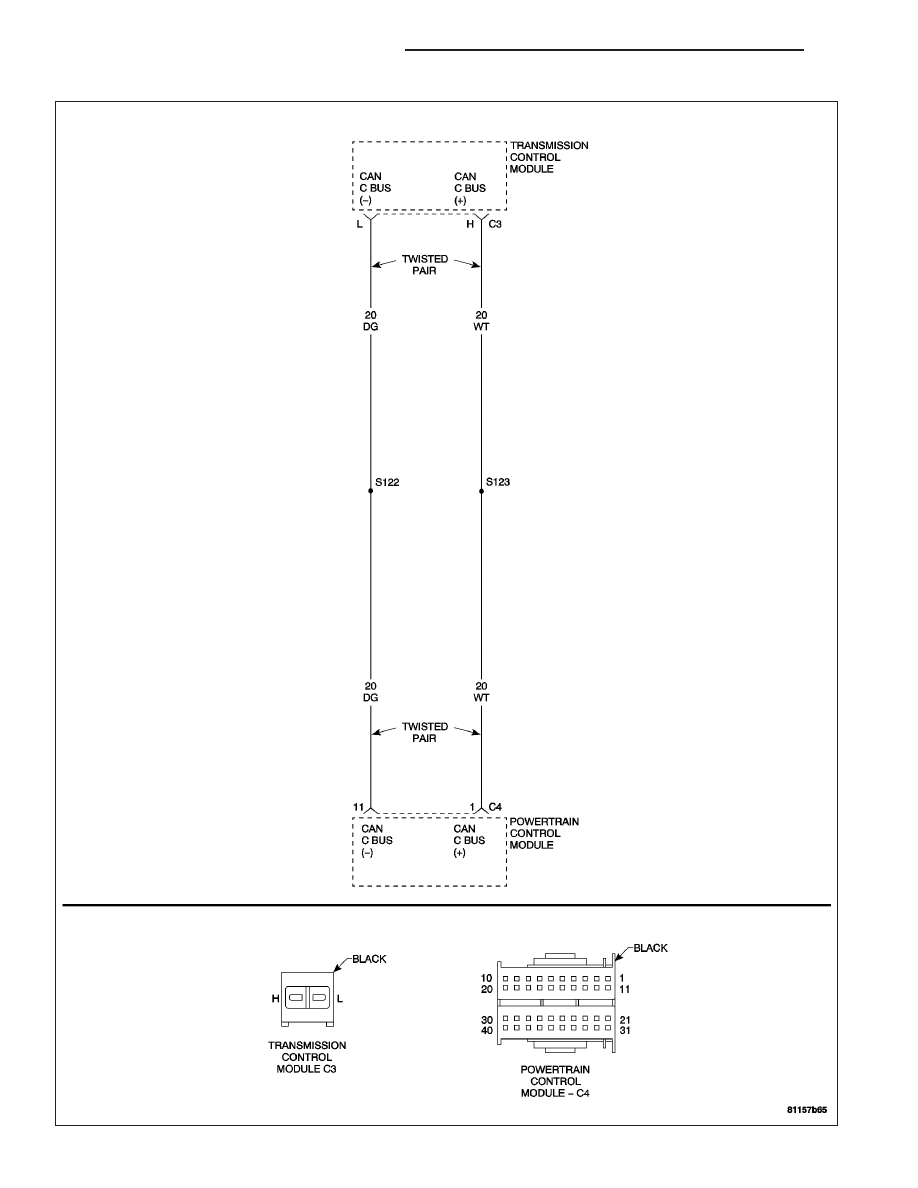

For a complete Transmission Control Module Circuit Diagram, (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTO-
MATIC - NAG1 - SCHEMATICS AND DIAGRAMS).

Diagnostic Test

1.

PRE-DIAGNOSTIC CHECK OUT

Note: Low fluid level can be the cause of many transmission
problems. If the fluid level is low, locate and repair the leak then
check and adjust the fluid level in accordance with the Service
Information.

Note: Always perform diagnostics with a fully charged battery to
avoid false symptoms.
With the DRB III

T

, read Engine DTCs. Check and repair all engine

DTCs prior to performing transmission symptom diagnostics.

With the DRB III

T

, read and record all Transmission DTCs.

Note: Check connectors - Clean/repair as necessary. Poor pin to
terminal connections can set DTCs.
Using the wiring diagram/schematic as a guide, inspect the wiring and
connectors. Repair as necessary.

Most DTCs set on start up but some must be set by driving the vehicle such that all diagnostic monitors have run.

Note: Check for any Technical Service Bulletins that may apply.

Perform this procedure prior to Symptom diagnosis.

Continue

Go To 2

ZH

NAG1 - ELECTRICAL DIAGNOSTICS

21 - 69

(P0700) SENSOR SUPPLY VOLTAGE (CONTINUED)

2.

CHECK FOR CURRENT DTC

Note: If the TCM detects and stores a DTC, the TCM also stores
the engine/vehicle operating conditions under which the DTC was
set. Some of these conditions are displayed on the DRB III

T

at the

same time the DTC is displayed.

Note: Before erasing stored DTCs, record these conditions.
Attempting to duplicate these conditions may assist when check-
ing for an active DTC.
Turn the ignition on.

With the DRB III

T

, erase Transmission DTCs.

Note: It maybe necessary to road test the vehicle for this DTC to
set.
With the DRB III

T

, read Transmission DTCs.

Did this DTC set again?

Yes

>> Go To 3

No

>> Go To 5

3.

SENSOR SUPPLY VOLTAGE CIRCUIT SHORT TO OTHER CIRCUITS

Turn the ignition off.

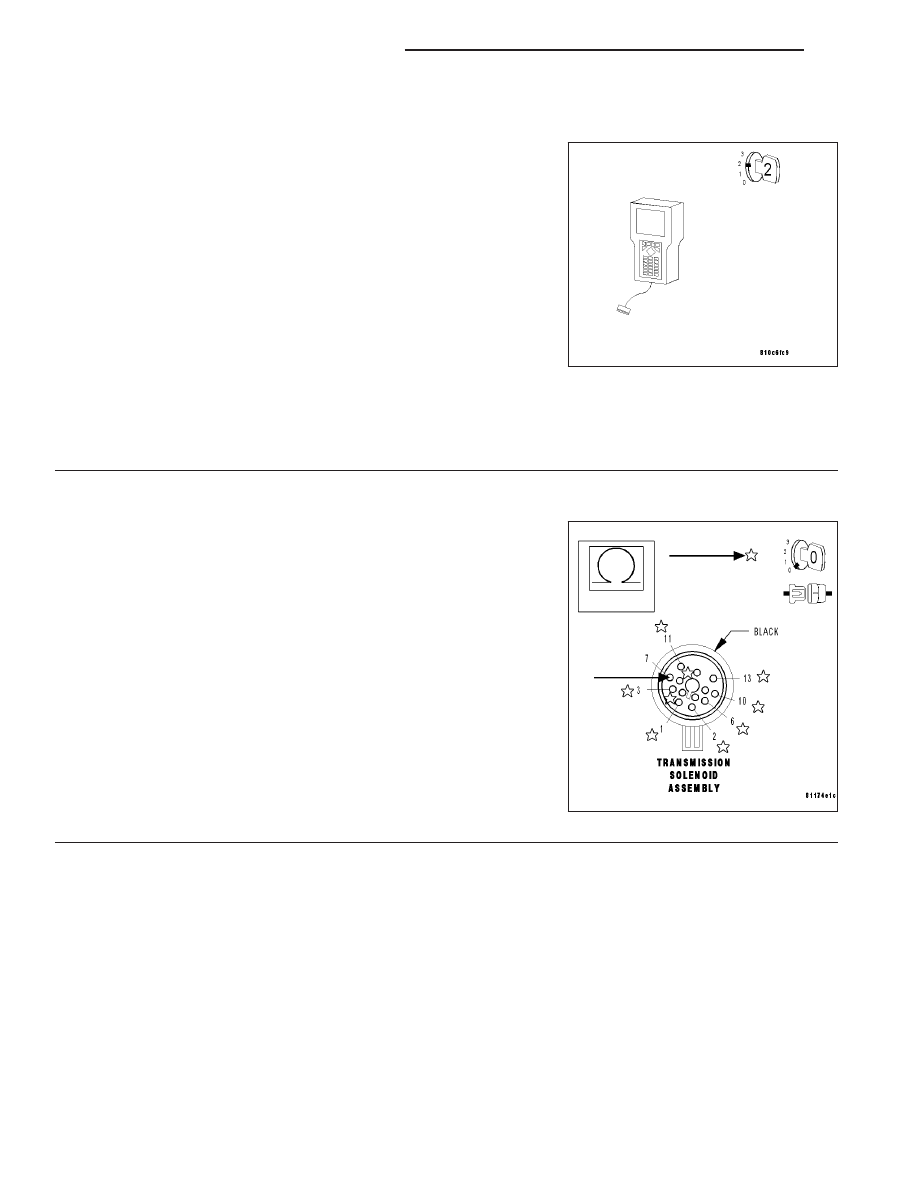

Disconnect the Transmission Solenoid Assembly harness connector.

Note: Check connectors - Clean/repair as necessary.
Measure the resistance from the Sensor Supply Voltage circuit to all
other circuits in the Transmission Solenoid harness connector.

Is the resistance above 100 kohms for all measurements?

Yes

>> Go To 4

No

>> Repair the Sensor Supply Voltage circuit for a short to

other circuit(s).

Perform NAG1 TRANSMISSION VERIFICATION TEST.

21 - 70

NAG1 - ELECTRICAL DIAGNOSTICS

ZH

(P0700) SENSOR SUPPLY VOLTAGE (CONTINUED)

4.

SENSOR SUPPLY VOLTAGE CIRCUIT SHORT TO GROUND

With the ignition off.

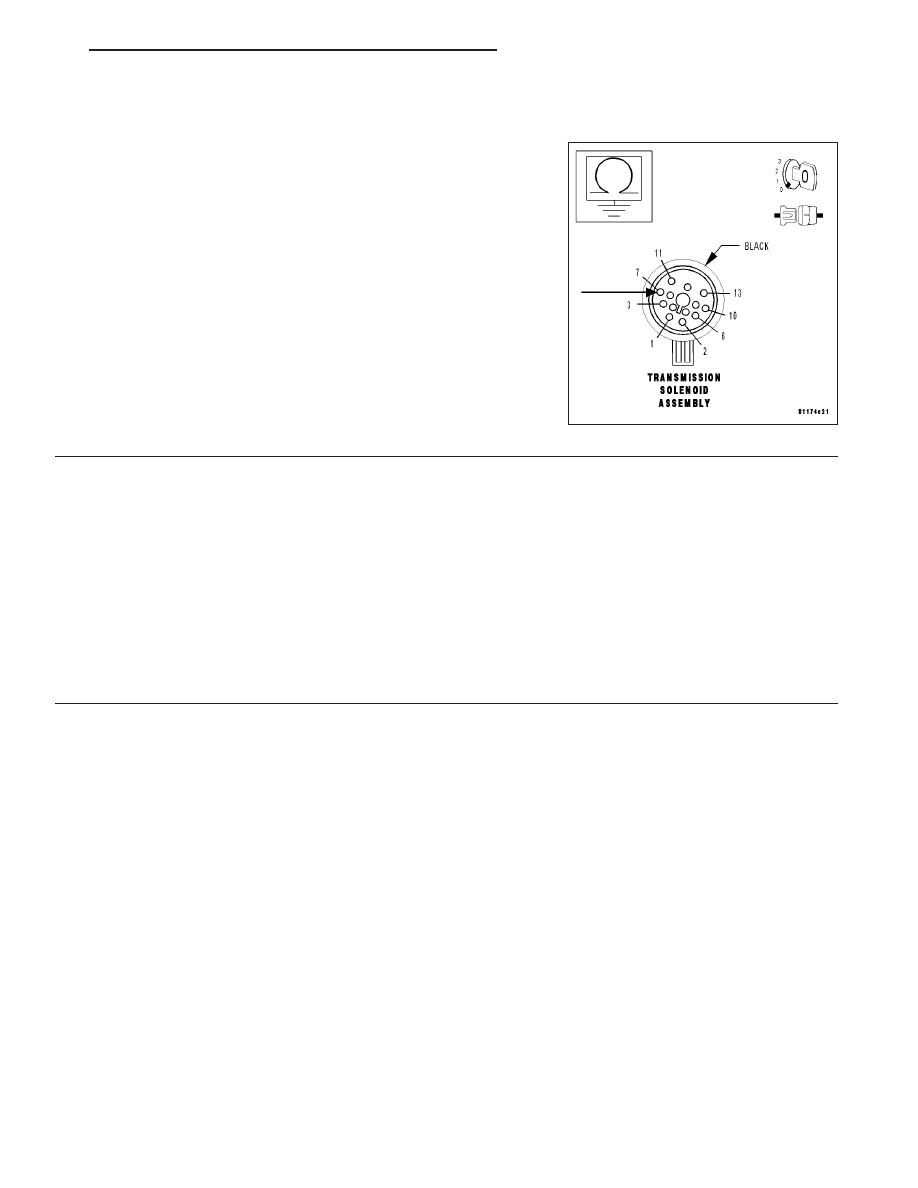

Measure the resistance between ground and the Sensor Supply Volt-
age circuit at the Transmission Solenoid Assembly harness connector.

Is the resistance above 100 kohms?

Yes

>> Replace the Transmission Control Module. (Refer to 8 -

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

TRANSMISSION CONTROL MODULE - REMOVAL).

Perform NAG1 TRANSMISSION VERIFICATION TEST.

No

>> Repair the Sensor Supply Voltage circuit for a short to

ground.

Perform NAG1 TRANSMISSION VERIFICATION TEST.

5.

INTERMITTENT WIRING AND CONNECTORS

The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible
intermittent condition.

Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.

Wiggle the wires while checking for shorts and open circuits.

Note: Check for any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary

Perform NAG1 TRANSMISSION VERIFICATION TEST.

No

>> Test Complete.
