INSTALLATION

1. Install the relay control module harness connectors to the relay control module (1).

2. Install the relay control module into the control module box, pushing the relay control module down until the clips

snap into place.

3. Install the control module box lid.

4. Connect the negative battery cable.

UNDERHOOD ACCESSORY FUSE BLOCK

DESCRIPTION

The Underhood Accessory Fuse Block houses many of the fuses for the vehicles electrical system. The Underhood
Accessory Fuse Block is located on the left side of the engine compartment just in front of the brake booster. The
Underhood Accessory Fuse Block can not be serviced it must be replaced as a unit.

OPERATION

All of the circuits entering and leaving the Underhood Accessory Fuse Block do so through seperate wires. There
are NO seperate wiring harness connectors that connect to the Underhood Accessary Fuse Block. Each circuit is
connected individually to the Underhood Accesssory Fuse Block, and held in place by the use of retention combs.

ZH

8W-97 POWER DISTRIBUTION

8W - 97 - 5

REMOVAL

1. Disconnect and isolate the negative battery cable.

2. Remove the lid to the underhood accessory fuse block.

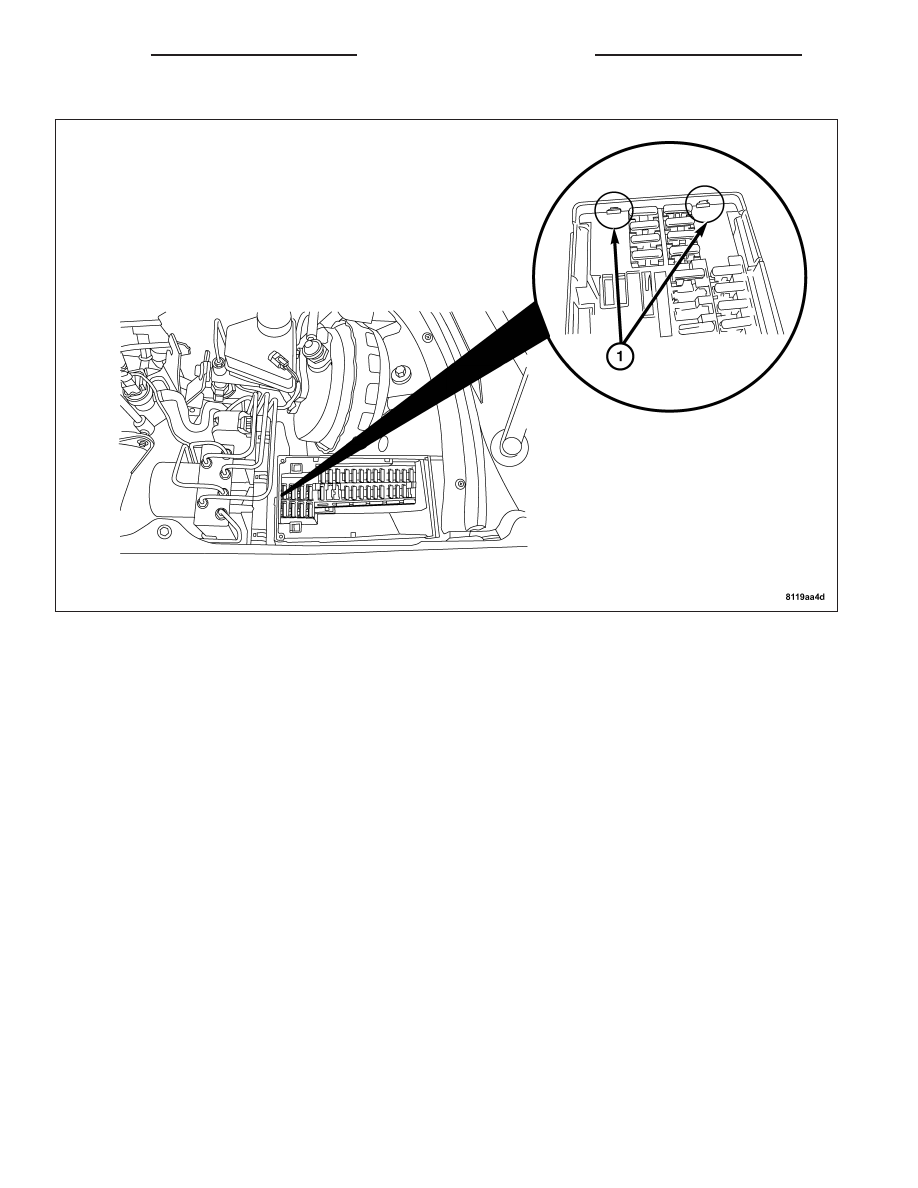

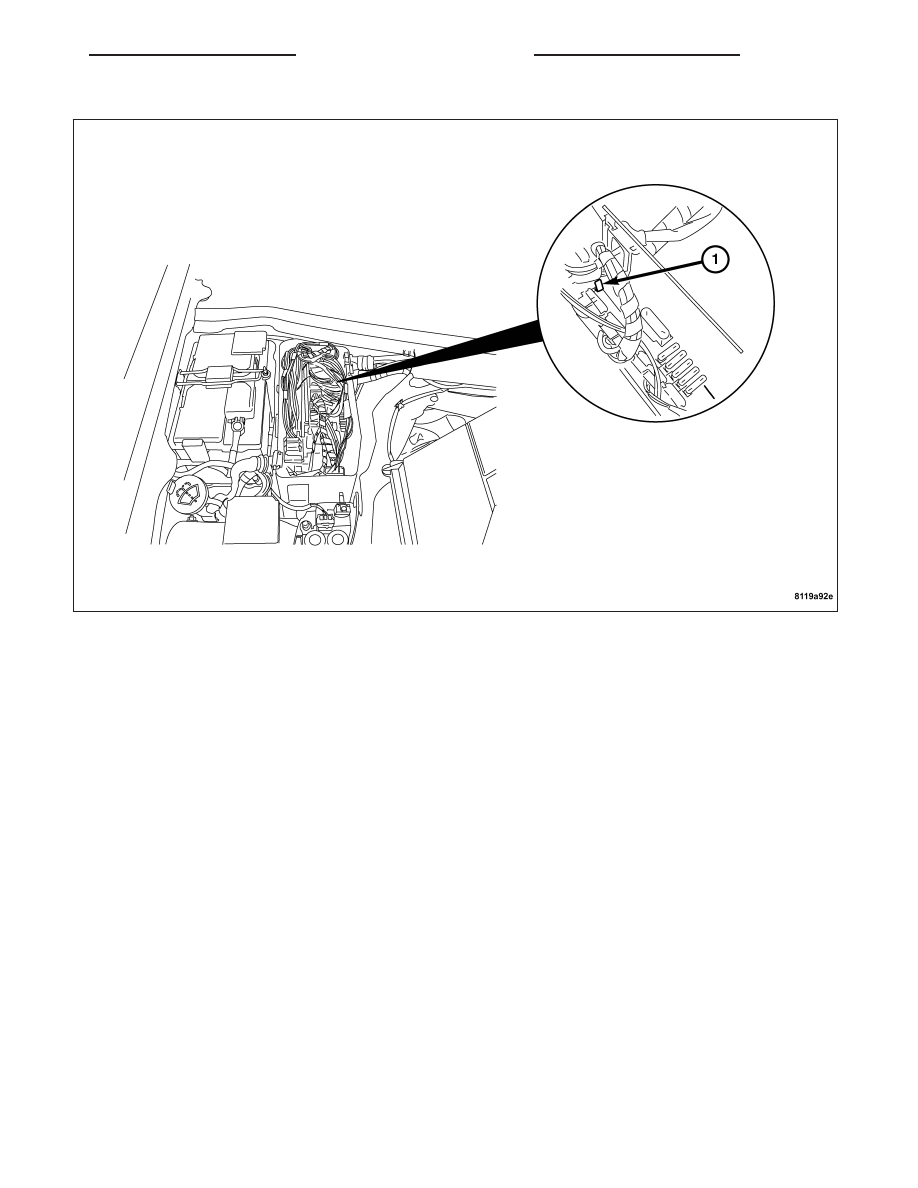

3. Push the front of the underhood accessory fuse box forward releasing the tabs (1) on the underhood fuse block.

4. Pull the underhood accessory fuse block out of the box and remove all of the underhood accessory fuse block

harness connectors.

8W - 97 - 6

8W-97 POWER DISTRIBUTION

ZH

INSTALLATION

1. Install the harness connectors to the underhood accessory fuse block.

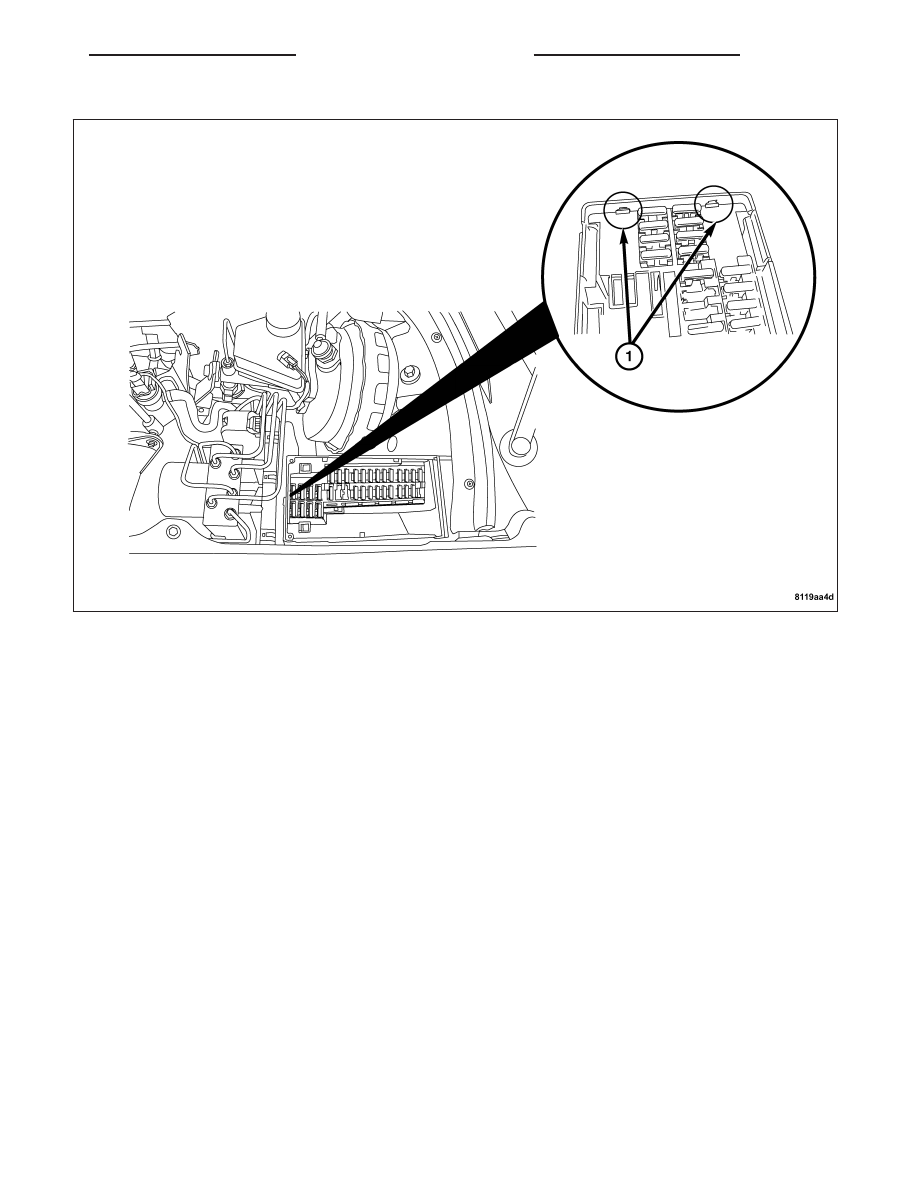

2. Push the underhood accessory fuse block down into the box until the rear tabs and the front two tabs (1) connect.

3. Install the lid.

4. Connect the negative battery cable.

FUSE BLOCK

DESCRIPTION

The Fuse Block is part of the Illumination Control Module. A knob on the face of the module controls the exterior
lighting functions. The exterior lighting and headlamp switch portions of the Illumination Control Module cannot be
adjusted or repaired. If faulty or damaged, the entire module assembly must be replaced as a unit. (Refer to 8 -
ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP SWITCH - REMOVAL).

OPERATION

The Fuse Block on the side of the Illumination Control Module houses the Fuses for the following:

Fuse 2. Brake Lamp

Fuse 3. Right High Beam/High Beam Indicator Lamp

Fuse 4. Reverse Lamp/Turn Signal Lamp/Rear View Mirror

Fuse 5. Left High Beam

Fuse 6. Right Low Beam

Fuse 7. Right Parking/Tail Lamp Side Marker

Fuse 8. Left Low Beam

Fuse 9. Fog Lamp

Fuse 10. Left Parking/Tail Lamp Side Marker

Fuse 11. License Plate/Instrument Cluster Lighting/Symbol Lighting

Fuse 12. Rear Fog Lamp (Export Only)

ZH

8W-97 POWER DISTRIBUTION

8W - 97 - 7
