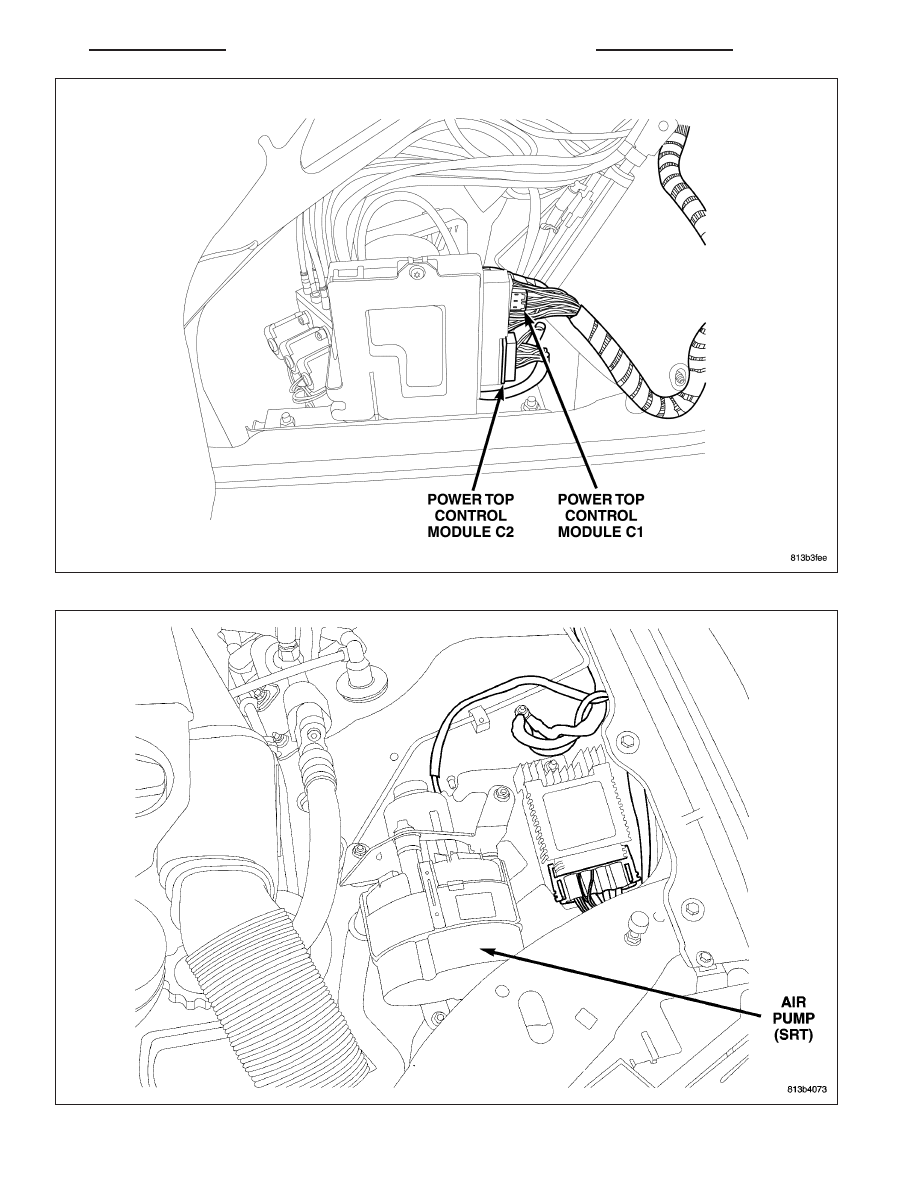

Fig. 17 POWER TOP CONTROL MODULE (ROADSTER)

Fig. 18 UNDERHOOD (SRT)

ZH

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 21

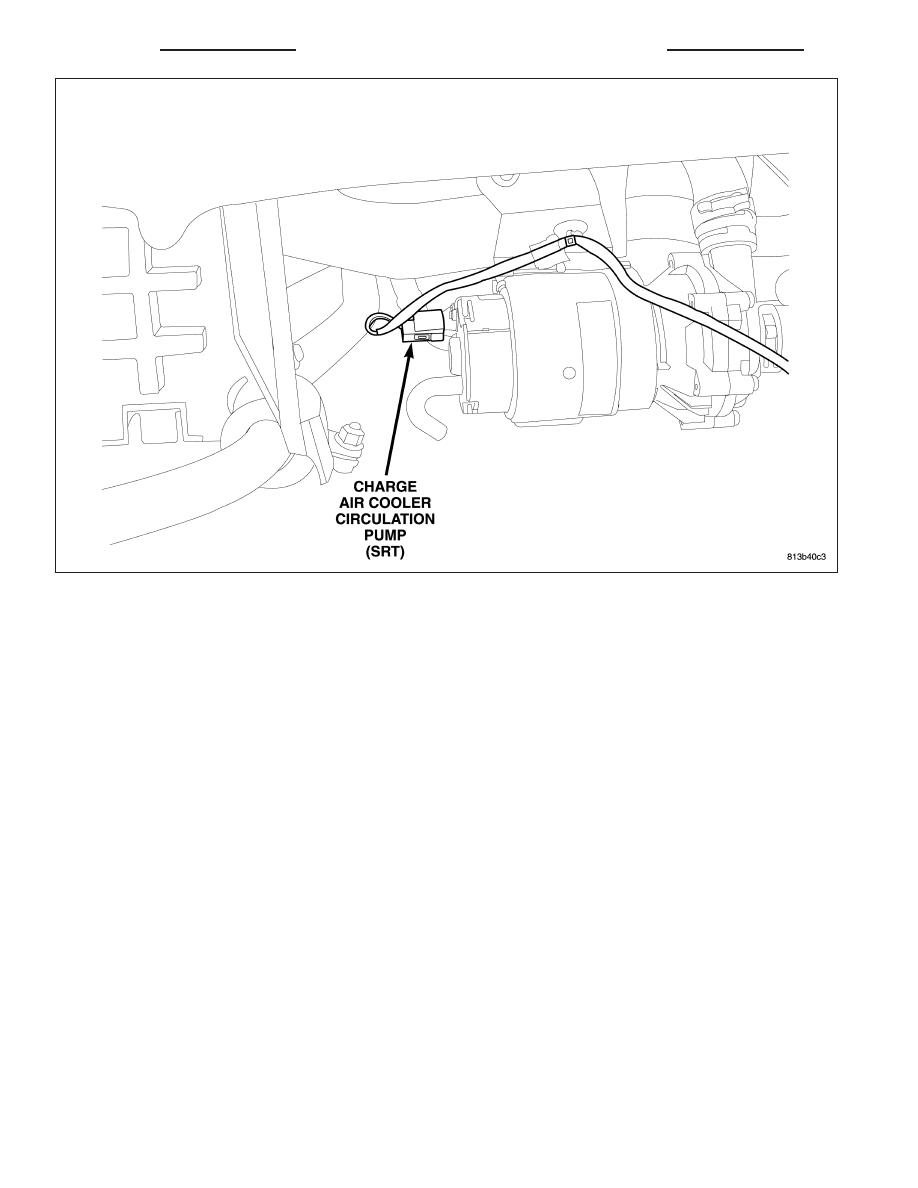

Fig. 19 CHARGE AIR COOLER CIRCULATION PUMP (SRT)

8W - 91 - 22

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZH

Fig.

20

FRONT

OF

ENGINE

(SR

T)

ZH

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 23

Fig. 21 REAR OF ENGINE (SRT)

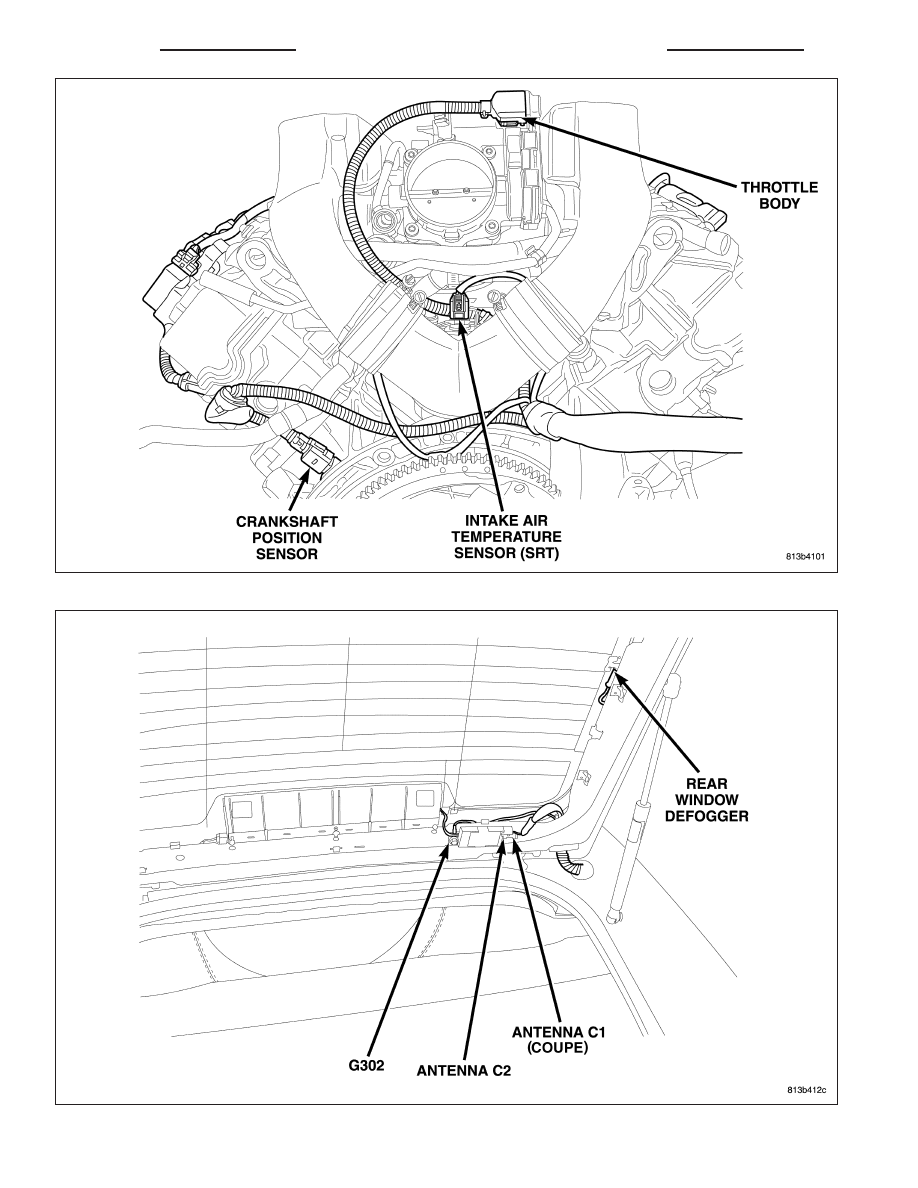

Fig. 22 REAR WINDOW/TRUNK (COUPE)

8W - 91 - 24

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

ZH
