Chrysler Crossfire. Manual - part 457

CONNECTOR NAME/

NUMBER

COLOR

LOCATION

FIG.

Transmission Control Module
C3

Behind the Passenger Footwell

Transmission Solenoid
Assembly

Bottom of Automatic Transmission

N/S

Trunk Latch Assembly C1
(ZH27)

Truck Latch Assembly C2
(ZH27)

28NS

Underhood Accessory Fuse
Block Fuses

Left Rear of Engine Compartment

Universal Garage Door
Opener/Tire Pressure Monitor

Top Center of Windshield

Washer Fluid Level Switch

Behind Right Front Wheelwell Splash Shield

N/S

Washer Pump Motor

GROUNDS

GROUND

LOCATION

FIG.

G100

Left Side of Engine Compartment

G101

Right Side of Engine Compartment

G104

Top Front of Engine

N/S

G107

Right Side of Engine Compartment, Battery Negative Ground

G200

Behind Left Side of Instrument Panel at Base of Windshield

N/S

G201

Lower Left Footwell Behind Kickpanel

G202

Under the Center Console at the Occupant Restraint Controller

G203

Under the Center Console

G204

Lower Right Footwell Behind Kickpanel

G205

Upper Left Rear Passenger Compartment

G206

Lower Right Footwell Behind Kickpanel

G300

Left Luggage Compartment Behind Trim Panel

G301

Lower Right Luggage Compartment Behind Trim Panel

G302

Upper Liftgate

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 9

SPLICES

SPLICE

LOCATION

FIG.

S101

Engine Compartment on Top Left of Intake Manifold

N/S

S103

Right Rear of Engine Compartment in the Control Module Box

S104

Engine Compartment on Top Left of Intake Manifold

N/S

S105

Engine Compartment at the Front of Intake Manifold

N/S

S106

Engine Compartment Behind the Engine

N/S

S107

Engine Compartment on Top Left of Intake Manifold

N/S

S108

Engine Compartment Behind the Engine

N/S

S113

Engine Compartment Behind the Engine

N/S

S114

Right Rear of Engine Compartment in the Control Module Box

S116

Left of Steering Column Behind the Instrument Panel

N/S

S117

Left of Steering Column Behind the Instrument Panel

N/S

S118

Right Rear of Engine Compartment in the Control Module Box

S119

Right Rear of Engine Compartment in the Control Module Box

S121

Engine Compartment at the Front of Intake Manifold

N/S

S122

Engine Compartment Behind the Engine

N/S

S123

Engine Compartment Behind the Engine

N/S

S124 (A/T)

Engine Compartment Behind the Engine

N/S

S125 (A/T)

Engine Compartment Behind the Engine

N/S

S211

Behind the Instrument Cluster

N/S

S212

Behind the Instrument Cluster

N/S

S213

Behind the Instrument Cluster

N/S

S215

Behind the Upper Instrument Panel

N/S

S216

Behind the Upper Instrument Panel

N/S

S217

Behind the Upper Instrument Panel

N/S

S218

At the End of the Sentry Key Remote Entry Module (SKREEM)
Antenna

N/S

S219

Behind the Lower Instrument Panel

N/S

S220

Behind the Lower Instrument Panel

N/S

S221

Behind the Lower Instrument Panel

N/S

S224

Behind the Lower Instrument Panel

N/S

S225

Behind Passenger Footwell

N/S

S226

Behind Passenger Footwell

N/S

S232

Under the Center Console

S233

Lower Passenger Side Behind Kickpanel

N/S

S235

Behind Passenger Footwell

N/S

S236

Behind Passenger Footwell

N/S

S239

Behind Passenger Footwell

N/S

S240

Behind the Lower Instrument Panel

N/S

S241

Part of the Left Seat Assembly

N/S

S242

Part of the Left Seat Assembly

N/S

S243

Part of the Right Seat Assembly

N/S

8W - 91 - 10

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

SPLICE

LOCATION

FIG.

S244

Part of the Right Seat Assembly

N/S

S246 (M/T)

Behind Passenger Footwell

N/S

S305

Right Rear Passenger Compartment Behind Headliner

N/S

Splice Block 100

Left Rear of Engine Compartment Behind the Underhood Accessory
Fuse Block

Splice Block 101

Left Rear of Engine Compartment Behind the Underhood Accessory
Fuse Block

Splice Block 102

Left Rear of Engine Compartment Behind the Underhood Accessory
Fuse Block

Splice Block 200

Under the Center Console

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 11

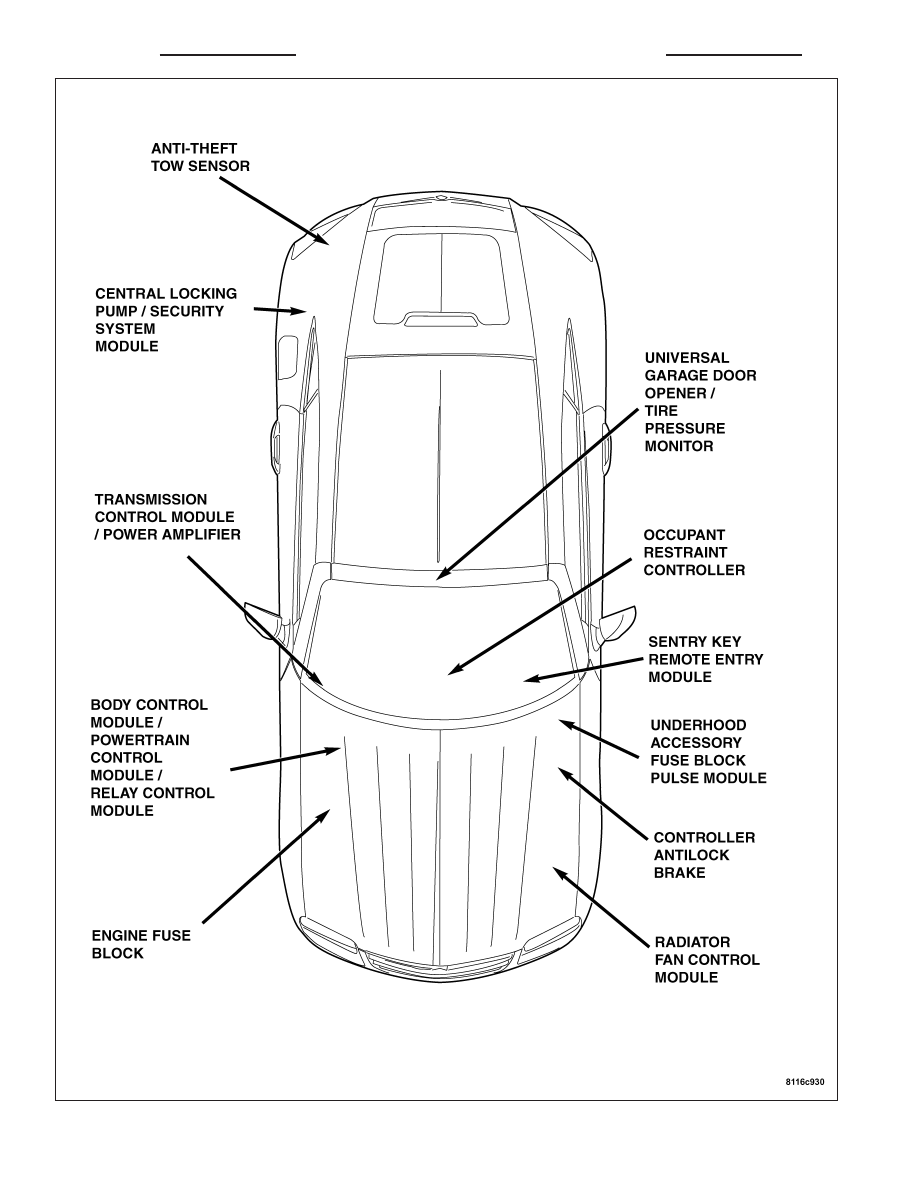

Fig. 1 MODULE OVERVIEW

8W - 91 - 12

8W-91 CONNECTOR/GROUND/SPLICE LOCATION
