Fig.

38

INSTRUMENT

P

ANEL

(RHD)

8W - 91 - 58

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

LX

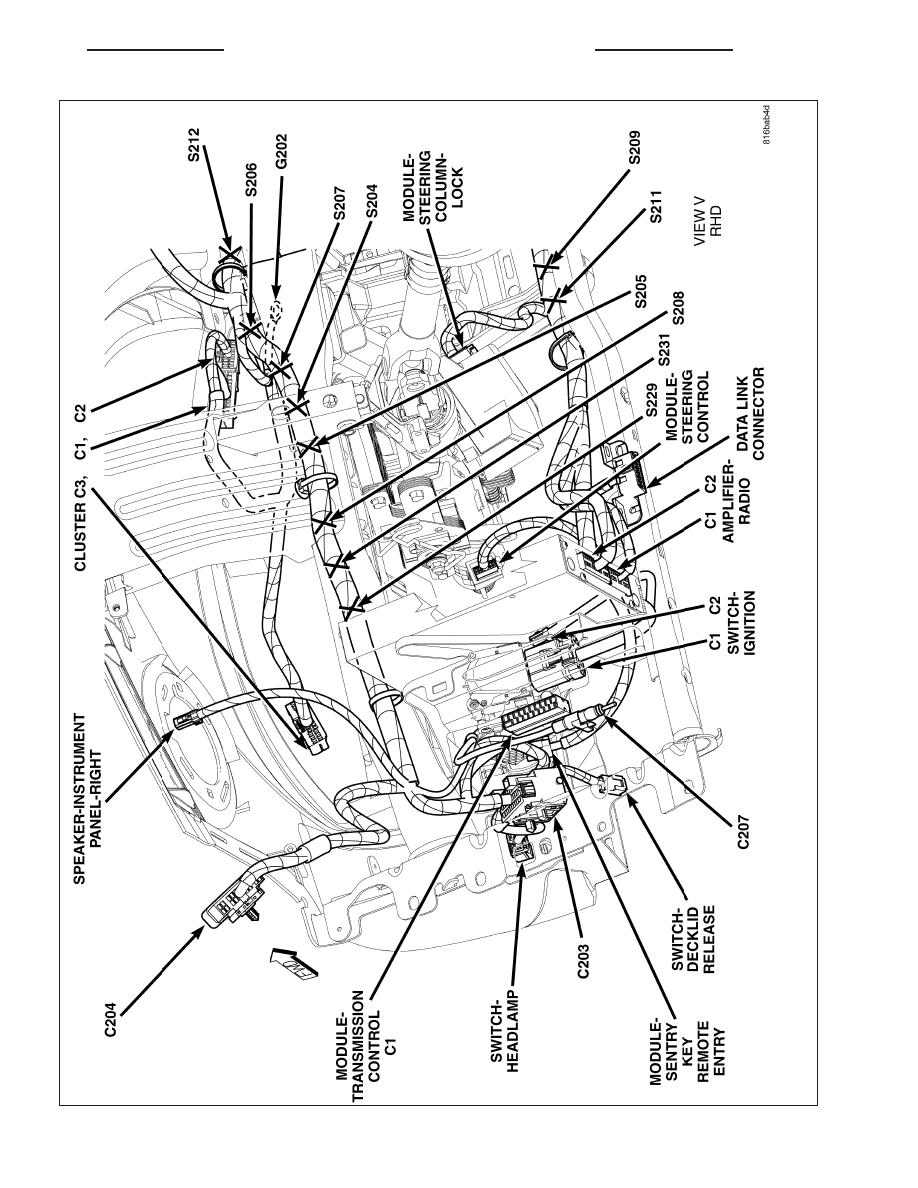

Fig.

39

INSTRUMENT

P

ANEL

RIGHT

(RHD)

LX

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 59

Fig.

40

STEERING

COLUMN

(LHD)

8W - 91 - 60

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

LX

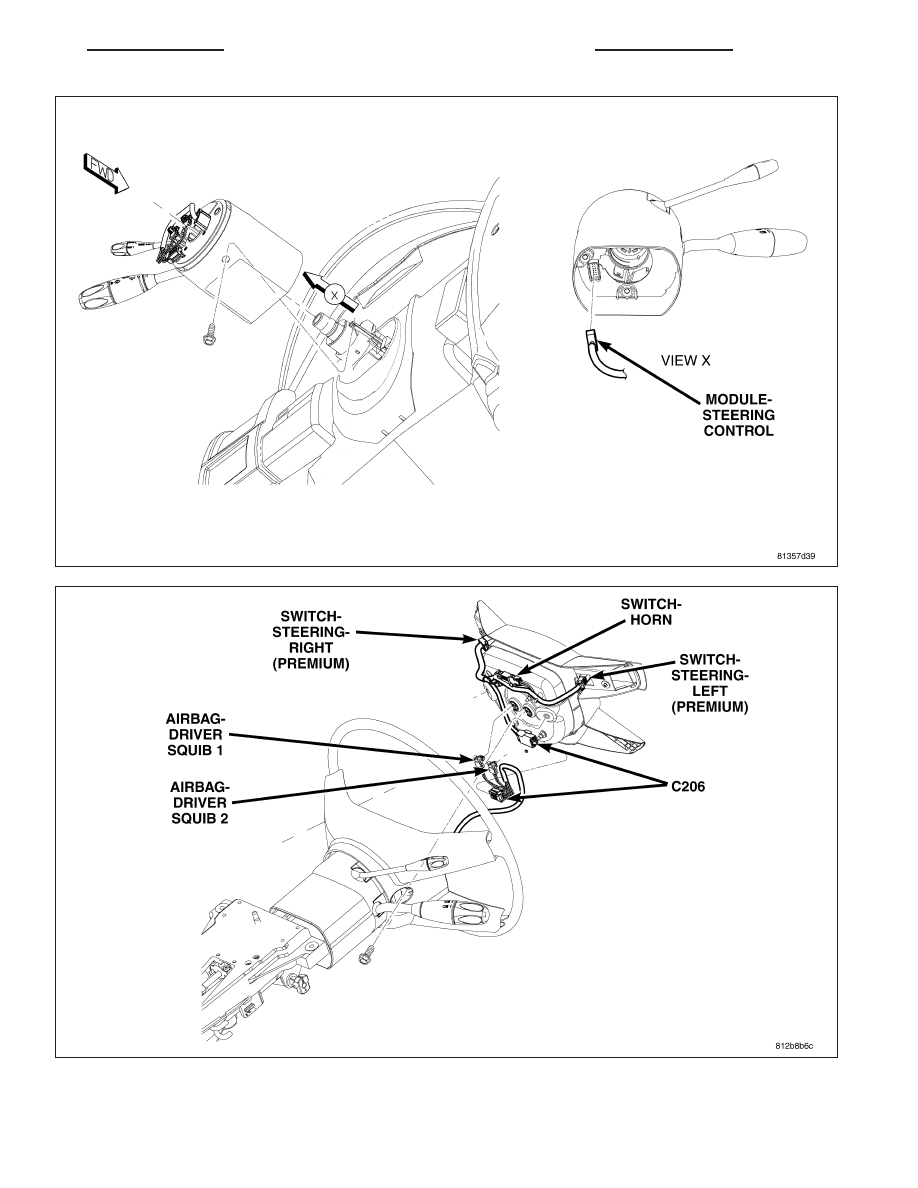

Fig. 41 MULTIFUNCTION SWITCHES

Fig. 42 HORN PAD SWITCHES

LX

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 61
