2.

TEST THE SWITCH

Turn the ignition off.

Remove the Driver Window/Door Lock Switch assembly.

Test the Mirror Switch in all positions by using the procedure in SERVICE INFORMATION / POWER LOCKS / WIN-
DOW/LOCK SWITCH / DIAGNOSING & TESTING / WINDOW/LOCK SWITCH.

Does the switch pass the test in all positions

No

>> Replace the Mirror Switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

Yes

>> Go to 3

3.

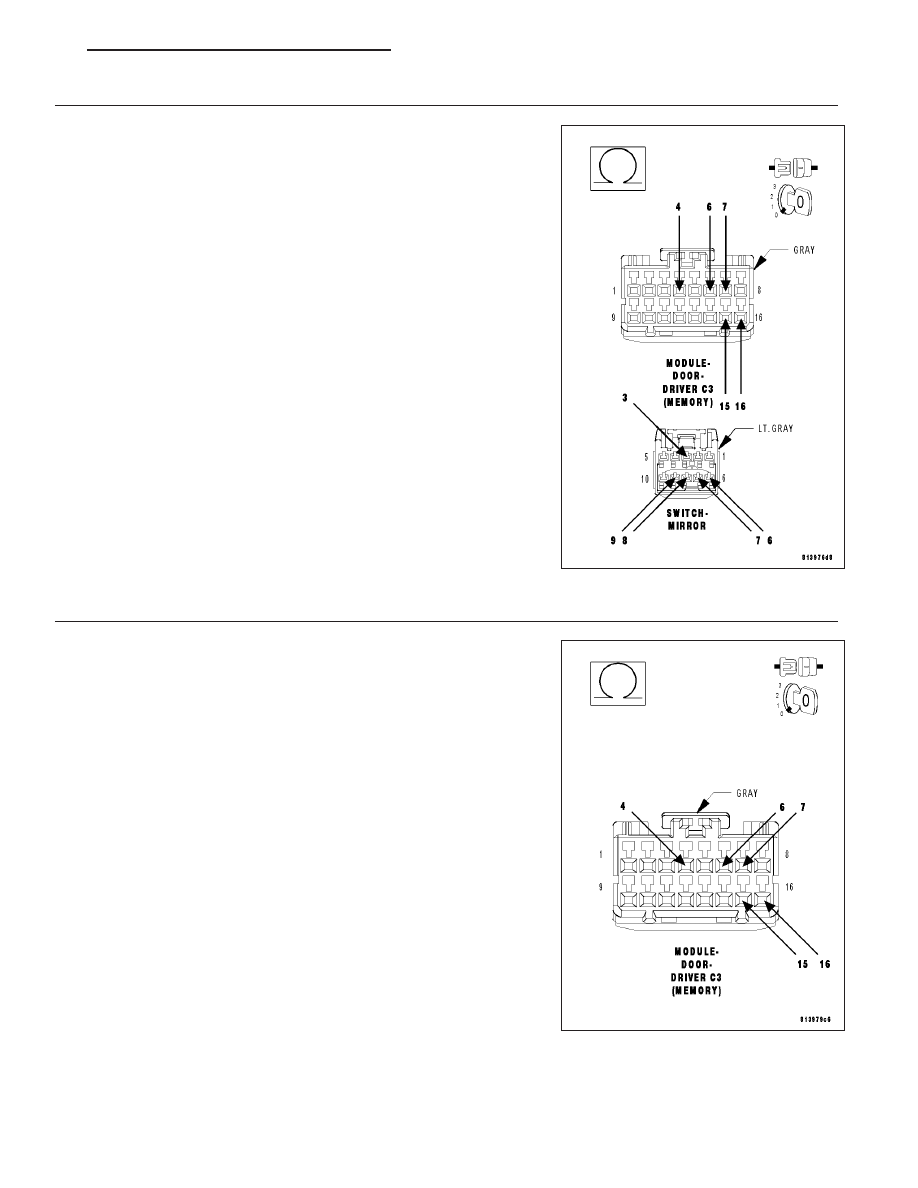

TEST FOR SWITCH SENSE WIRE SHORT TO GROUND

Disconnect the Driver Door Module C3 connector.

Measure the resistance between Ground and the (P703) Mirror Hori-
zontal Left Switch Sense circuit in the Driver Door Module connector.

Measure the resistance between Ground and the (P704) Mirror Hori-
zontal Right Switch Sense circuit in the Driver Door Module connector.

Measure the resistance between Ground and the (P705) Mirror Vertical
Down Switch Sense circuit in the Driver Door Module connector.

Measure the resistance between Ground and the (P706) Mirror Vertical
Up Switch Sense circuit in the Driver Door Module connector.

Measure the resistance between Ground and the (P710) Mirror Com-
mon Switch Sense circuit in the Driver Door Mirror Module connector.

Is the resistance below 5000.0 ohms in any of the circuits?

Yes

>> Repair the Appropriate Switch Sense circuit for a short to

ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Go to 4

8N - 62

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

LX

4.

TEST FOR SWITCH SENSE CIRCUIT OPEN

Disconnect the Mirror Switch connector.

Measure the resistance of the (P703) Mirror Horizontal Left Switch
Sense circuit between the Driver Door Module connector and the Mirror
Switch connector.

Measure the resistance of the (P704) Mirror Horizontal Right Switch
Sense circuit between the Driver Door Module connector and the Mirror
Switch connector.

Measure the resistance of the (P705) Mirror Vertical Down Switch
Sense circuit between the Driver Door Module connector and the Mirror
Switch connector.

Measure the resistance of the (P706) Mirror Vertical Up Switch Sense
circuit between the Driver Door Module connector and the Mirror Switch
connector.

Measure the resistance of the (P710) Mirror Common Switch Sense cir-
cuit between the Driver Door Module connector and the Mirror Switch
connector.

Is the resistance below 2.0 ohms in all of the Switch Sense
circuits?

No

>> Repair the Appropriate Switch Sense circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

Yes

>> Go to 5

5.

TEST FOR A SWITCH SENSE CIRCUIT SHORTED TO ANOTHER SWITCH SENSE CIRCUIT

Measure the resistance between each of the switch sense circuits to
each of the other switch sense circuits.

Is the resistance below 10000.0 ohms between any of the
switch sense circuits?

Yes

>> Repair the appropriate switch sense circuit for a short to

the other switch sense circuits.

Perform the BODY VERIFICATION TEST - VER 1. (Refer
to BODY VERIFICATION TEST - VER 1).

No

>> Replace the Driver Door Module.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

LX

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 63

B1D07–MIRROR ADJUST SWITCH INPUT CIRCUIT STUCK– DRIVER DOOR
MODULE

8N - 64

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

LX

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously.

Set Condition:
When the Driver Door Module receives a mirror movement command from the switch for over 30 seconds, this
code will set.

Possible Causes

MIRROR SWITCH

DRIVER DOOR MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC’s

Press the Mirror Switch in all directions several times.

Cycle the ignition from on to off three times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display B1D07–MIRROR ADJUST SWITCH INPUT CIRCUIT STUCK?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors. If the conditions returns, replace the switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

2.

TEST THE SWITCH

Turn the ignition off.

Remove the Driver Window/Door Lock Switch assembly.

Remove the Mirror Switch.

Test the Mirror Switch in all positions by using the procedure in SERVICE INFORMATION / POWER LOCKS / WIN-
DOW/LOCK SWITCH / DIAGNOSING & TESTING / WINDOW/LOCK SWITCH.

Does the switch pass the test in all positions

No

>> Replace the Mirror Switch.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

Yes

>> Replace the Driver Door Module.

Perform BODY VERIFICATION TEST - VER 1 (Refer to BODY VERIFICATION TEST - VER 1).

LX

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 65
