B1648-REAR RIGHT TURN CONTROL CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

8L - 38

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

LX

When Monitored:

Continuously

Set Condition:

When the Front Control Module detects a short to battery on the Control circuit.

Possible Causes

(L62) REAR RIGHT TURN SIGNAL CONTROL CIRCUIT

POWER DISTRIBUTION CENTER

FRONT CONTROL MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

Clear all FCM DTC’s

Turn the Right Turn Signal on.

With the scan tool, read DTC’s.

Does the scan tool read: B1648-REAR RIGHT TURN CONTROL CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1.

2.

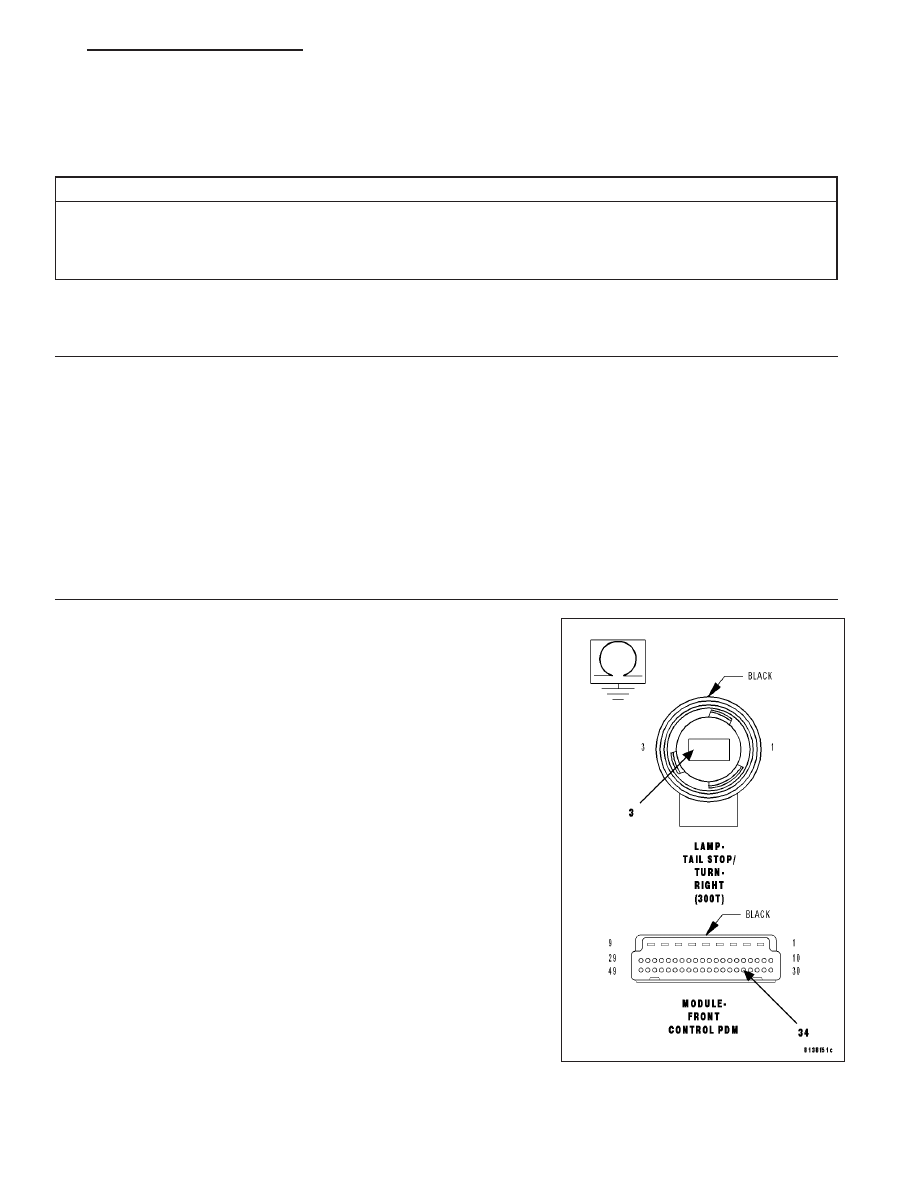

L62 REAR RIGHT TURN SIGNAL CONTROL CIRCUIT

Turn the ignition off.

Disconnect the PDM connector from the FCM.

Measure the resistance of the (L62) Rear Right Turn Signal Control cir-
cuit.

Is the resistance above 5.0 ohms?

No

>> Repair the (L62) Rear Right Turn Signal Control circuit.

Perform BODY VERIFICATION TEST - VER 1.

Yes

>> Go To 3

LX

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 39

3.

FRONT CONTROL MODULE

Turn the ignition off.

Disconnect the Front Control Module from the PDM 49 way connector.

Measure the voltage between (L62) Rear Right Turn Signal Control circuit and ground.

Is there any voltage present?

Yes

>> Replace the Power Distribution Center.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the Front Control Module.

Perform BODY VERIFICATION TEST - VER 1.

8L - 40

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

LX

B1659-FRONT FOG LAMP CONTROL CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

LX

LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS

8L - 41
