B210D-BATTERY VOLTAGE LOW

For a complete wiring diagram Refer to Section 8W.

When Monitored:Engine running, during heated seat operation.

Set Condition:This code is set immediately after the Heated Seat Module receives a low charging system
voltage message over the CAN B Bus or detects voltage under 11.3 volts on the (A33) Fused B(+) circuit.

Possible Causes

CHARGING SYSTEM VOLAGE LOW

(A33) FUSED B(+) CIRCUIT

HEATED SEAT MODULE

Diagnostic Test

1.

CHECK PCM FOR CHARGING SYSTEM DTC

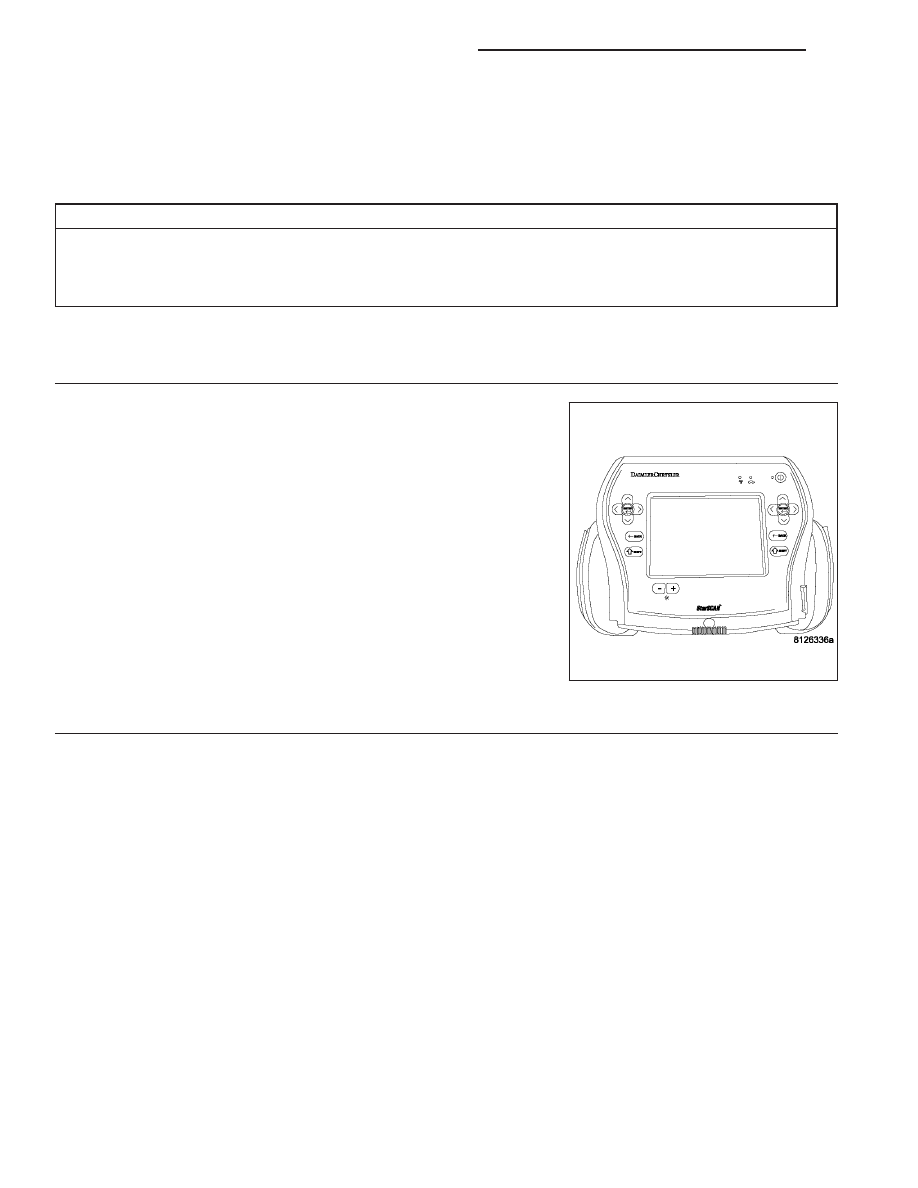

With the scan tool, read Powertrain Control Module DTC’s.

Are there any Charging System DTC’s set in the Powertrain
Control Module?

Yes

>> (Refer to 8 - ELECTRICAL/CHARGING - DIAGNOSIS AND

TESTING) for Charging System diagnostic procedures.

No

>> Go To 2

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

2.

VERIFY THAT DTC B210D-BATTERY VOLTAGE LOW IS ACTIVE

With the scan tool, record and erase DTC’s

Turn the ignition switch to the Off position then start the engine and let run for one minute.

With the scan tool, read DTC’s.

Does the DTC B210D-BATTERY VOLTAGE LOW reset?

Yes

>> Go To 3

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

8G - 62

HEATED SEATS - ELECTRICAL DIAGNOSTICS

LX

3.

CHECK THE VOLTAGE ON THE (A33) FUSED B(+) CIRCUIT

Disconnect the Heated Seat Module connector.

NOTE: Check connectors - Clean and repair as necessary.
Start the engine and let idle.

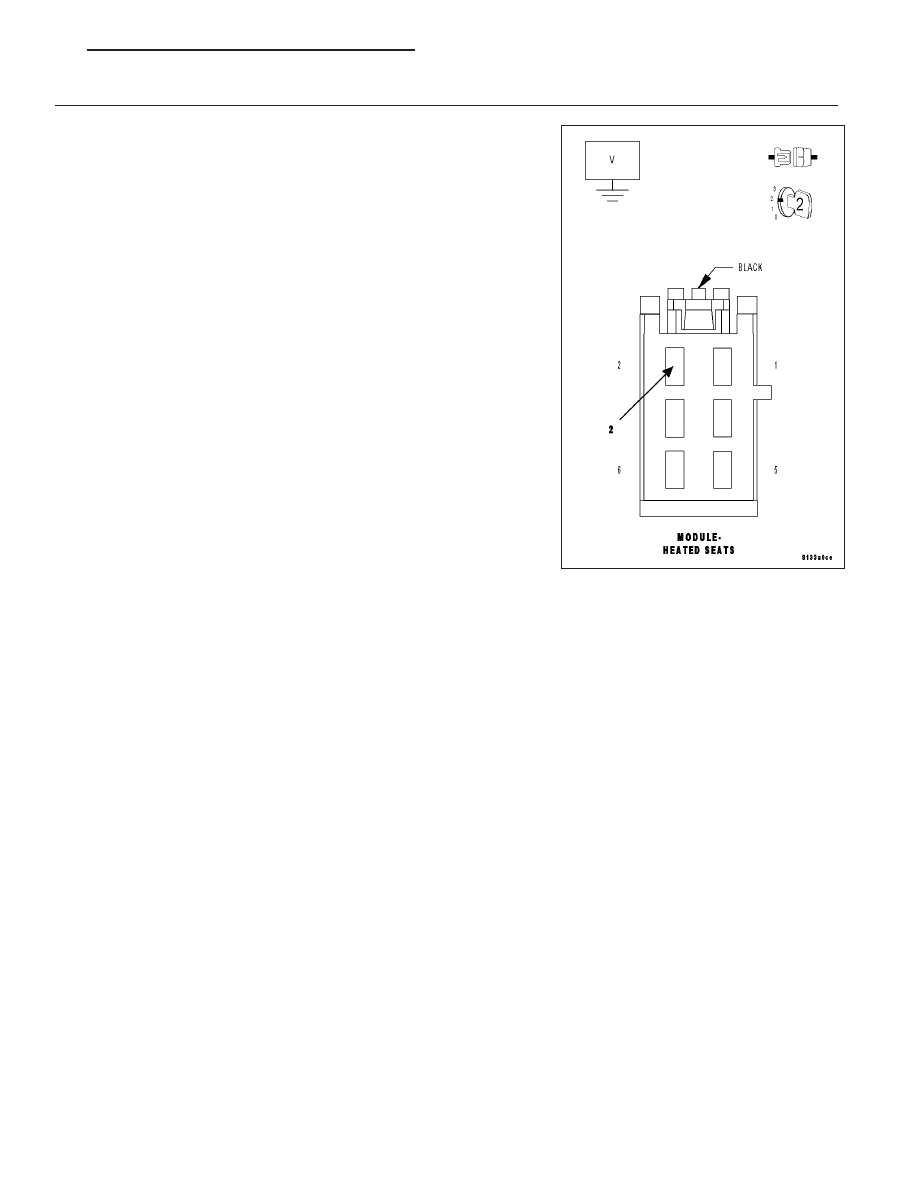

Measure the voltage on the (A33) Fused B(+) circuit at the HSM con-
nector and compare to voltage at the vehicle battery.

Is the voltage at the HSM connector the same as measured at
the battery?

Yes

>> Replace the Heated Seat Module in accordance with the

service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Repair the (A33) Fused B(+) circuit as necessary.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

LX

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 63

B210E-BATTERY VOLTAGE HIGH

For a complete wiring diagram Refer to Section 8W.

When Monitored:Engine running, during heated seat operation.

Set Condition:This code is set immediately after the Heated Seat Module receives a high charging system
voltage message over the CAN B Bus or detects voltage over 15 volts on the (A33) Fused B(+) circuit.

Possible Causes

CHARGING SYSTEM VOLAGE HIGH

(A33) FUSED B(+) CIRCUIT

HEATED SEAT MODULE

Diagnostic Test

1.

CHECK PCM FOR CHARGING SYSTEM DTC

With the scan tool, read Powertrain Control Module DTC’s.

Are there any Charging System DTC’s set in the Powertrain
Control Module?

Yes

>> (Refer to 8 - ELECTRICAL/CHARGING - DIAGNOSIS AND

TESTING) for Charging System diagnostic procedures.

No

>> Go To 2

2.

VERIFY THAT DTC B210E-BATTERY VOLTAGE HIGH IS ACTIVE

With the scan tool, record and erase DTC’s

Turn the ignition switch to the Off position then start the engine and let run for one minute.

Attempt to operate the heated seats.

With the scan tool, read DTC’s.

Does the DTC B210E-BATTERY VOLTAGE HIGH reset?

Yes

>> Go To 3

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

8G - 64

HEATED SEATS - ELECTRICAL DIAGNOSTICS

LX

3.

CHECK THE VOLTAGE ON THE (A33) FUSED B(+) CIRCUIT

Disconnect the Heated Seat Module connector.

NOTE: Check connectors - Clean and repair as necessary.
Start the engine and let idle.

Measure the voltage on the (A33) Fused B(+) circuit at the HSM con-
nector and compare to voltage at the vehicles battery.

Is the voltage at the HSM connector the same as measured at
the battery?

Yes

>> Replace the Heated Seat Module in accordance with the

service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Repair the (A33) Fused B(+) circuit as necessary.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).
