*NO RESPONSE FROM TCM (TRANSMISSION CONTROL MODULE) - NAG1

For a complete wiring diagram Refer to Section 8W.

8E - 230

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

LX

Possible Causes

(Z910) or (Z912) GROUND CIRCUIT OPEN

(F942) FUSED TRANSMISSION RELAY OUTPUT CIRCUIT OPEN OR SHORT

(D65) CAN C BUS (+) CIRCUIT OPEN

(D64) CAN C BUS (-) CIRCUIT OPEN

TRANSMISSION CONTROL MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
With the scan tool, select ECU View.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active
on the Bus network. A green check indicates that the module is active on the Bus network.

NOTE: Check the FCM for any active CAN C hardware and any ignition related DTCs, perform DTCs before
proceeding.

Does the scan tool display a red X next to the module?

Yes

>> Go To 2

No

>> The no response condition is not present at this time. Using the wiring diagram/schematic as a guide,

inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness con-
nectors for broken, bent, pushed out, and corroded terminals.

2.

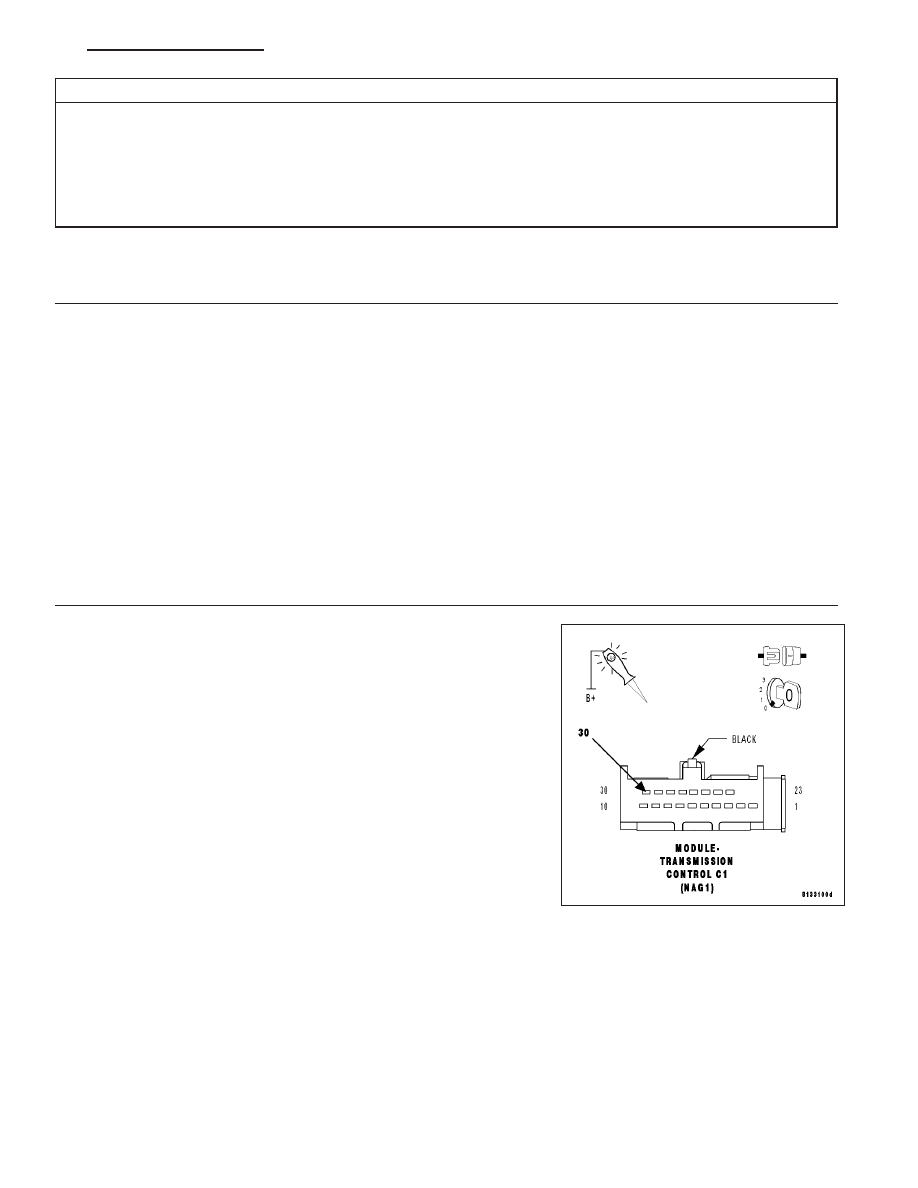

CHECK THE (Z910) OR (Z912) GROUND CIRCUIT FOR AN OPEN

Turn the ignition off.

Disconnect the Transmission Control Module C1 harness connector.

Using a 12-volt test light connected to 12-volts, check the (Z910) or
(Z912) ground circuit.

Does the test light illuminate brightly?

Yes

>> Go To 3

No

>> Repair the (Z910) or (Z912) ground circuit for an open.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

LX

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 231

3.

(F942) FUSED TRANSMISSION RELAY OUTPUT CIRCUIT OPEN OR SHORTED

Turn the ignition on.

Using a 12-volt test light connected to ground, check the (F942) Fused
Transmission Relay Output circuit.

Does the test light illuminate brightly?

Yes

>> Go To 4

No

>> Repair the (F942) Fused Transmission Relay Output circuit

for an open or short.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

4.

(D65) CAN C BUS (+) CIRCUIT OPEN

Turn the ignition off.

Disconnect the FCM C1 harness connector.

Disconnect the TCM C2 harness connector.

Measure the resistance of the (D65) CAN C Bus (+) circuit between the
FCM connector and the TCM connector.

Is resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Repair the (D65) CAN C Bus (+) circuit for an open.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

8E - 232

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

LX

5.

(D64) CAN C BUS (-) CIRCUIT OPEN

Measure the resistance of the (D64) CAN C Bus (-) circuit between the
FCM connector and the TCM connector.

Is resistance below 5.0 ohms?

Yes

>> Replace the Transmission Control Module in accordance

with the service information.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Repair the (D64) CAN C Bus (-) circuit for an open.

Perform NAG1 TRANSMISSION VERIFICATION TEST -
VER 1.
