When Monitored:
When the scan tool queries the FCM.

Set Condition:
The scan tool has detected a shorted high condition on either or both CAN C Diagnostic circuits.

Possible Causes

(D72) CAN C DIAGNOSTIC (+) CIRCUIT SHORTED TO VOLTAGE

(D71) CAN C DIAGNOSTIC (-) CIRCUIT SHORTED TO VOLTAGE

FRONT CONTROL MODULE

Diagnostic Test

1.

CHECK THE STATUS OF THE ERROR MESSAGE

NOTE: Ensure the vehicle being tested is a CAN BUS VEHICLE. If not, false error messages may be dis-
played.

NOTE: Ensure the scan tool is updated to the latest software.
With the scan tool, record the error message.

Disconnect the scan tool from the DLC.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

Does the scan tool display this same error message?

Yes

>> Go To 2

No

>> The conditions that caused this error message to set are not present at this time. Using the wiring dia-

gram/schematic as a guide, inspect the wiring and connectors.

2.

CAN C DIAGNOSTIC CIRCUITS SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Front Control Module C1 harness connector.

Disconnect the scan tool from the DLC.

Turn the ignition on.

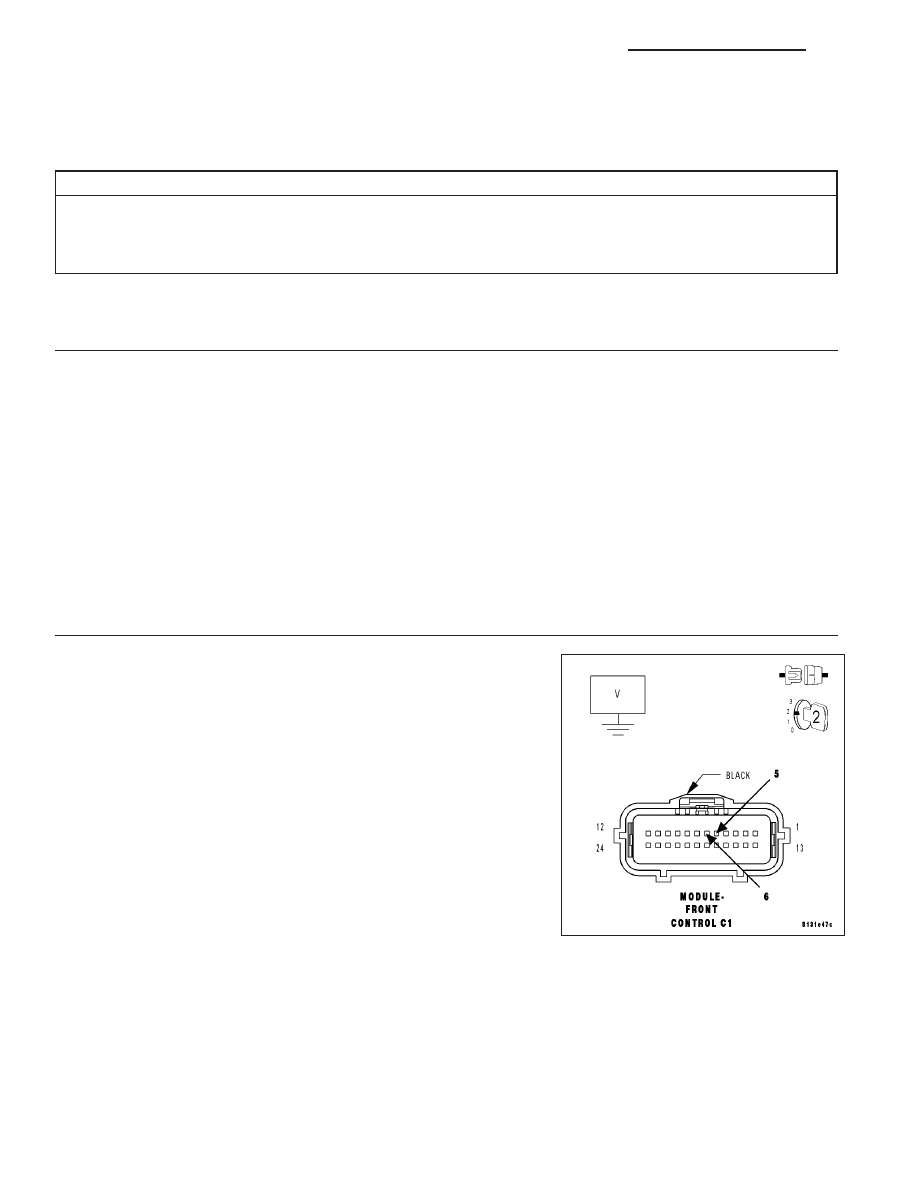

Measure the voltage of the CAN C Diagnostic circuits.

Is the voltage above 6.0 volts for either circuit?

Yes

>> Repair the CAN C Diagnostic circuits for a short to voltage.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace the Front Control Module in accor-
dance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

8E - 130

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

LX

*CAN C DIAGNOSTIC (+) CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

LX

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 131

When Monitored:
When the scan tool queries the FCM.

Set Condition:
The scan tool has detected a shorted low condition on the (D72) CAN C Diagnostic (+) circuit.

Possible Causes

(D72) CAN C DIAGNOSTIC (+) CIRCUIT SHORTED TO GROUND

FRONT CONTROL MODULE

Diagnostic Test

1.

CHECK THE STATUS OF THE ERROR MESSAGE

NOTE: Ensure the vehicle being tested is a CAN BUS VEHICLE. If not, false error messages may be dis-
played.

NOTE: Ensure the scan tool is updated to the latest software.
With the scan tool, record the error message.

Disconnect the scan tool from the DLC.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

Does the scan tool display this same error message?

Yes

>> Go To 2

No

>> The conditions that caused this error message to set are not present at this time. Using the wiring dia-

gram/schematic as a guide, inspect the wiring and connectors.

2.

(D72) CAN C DIAGNOSTIC (+) CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the Front Control Module C1 harness connector.

Disconnect the scan tool from the DLC.

Measure the resistance between ground and the (D72) CAN C Diag-
nostic (+) circuit.

Is the resistance below 100.0 ohms?

Yes

>> Repair the (D72) CAN C Diagnostic (+) circuit for a short to

ground.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

No

>> Inspect the wiring and connectors for damage or shorted

circuits. If ok, replace the Front Control Module in accor-
dance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST – VER 1).

8E - 132

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

LX

*CAN C DIAGNOSTIC (-) CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.
