U0199-LOST COMMUNICATION WITH DRIVER DOOR MODULE

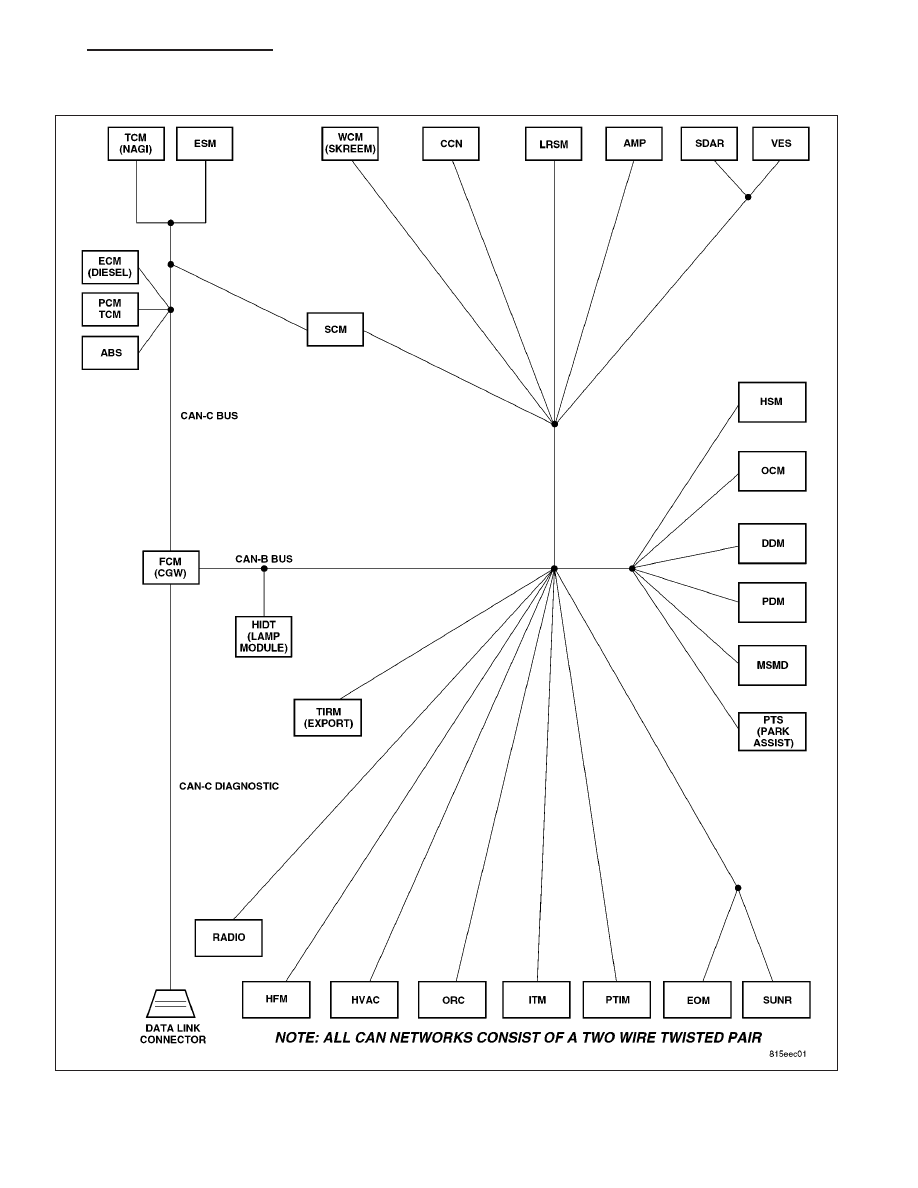

For a complete wiring diagram Refer to Section 8W.

8E - 90

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

LX

When Monitored:

With the ignition on

Battery voltage between 10 and 16 volts

IOD fuse installed

FCM is configured correctly

Set Condition:
Bus messages not received from the DDM for approximately 2 to 5 seconds.

Possible Causes

CAN B BUS CIRCUITS OPEN OR SHORTED

DTCS RELATED TO BATTERY VOLTAGE, IGNITION, OR VIN MESSAGES

FCM NOT CONFIGURED CORRECTLY

DRIVER DOOR MODULE

DRIVER DOOR MODULE POWER AND GROUND

MODULE THAT SET THE DTC

Diagnostic Test

1.

VERIFY DTC IS ACTIVE

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10 and 16 volts before proceeding.
With the scan tool, read active DTCs.

Is this DTC active?

Yes

>> Go To 2

No

>> Refer to the Stored Lost Communication test procedure. Refer to the table of contents in this section.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

2.

CHECK FOR ANY OF THE FOLLOWING ACTIVE DTCS

With the scan tool, read active DTCs from all modules.

NOTE: Check for FCM configuration, CAN B or C hardware electrical, VIN Missing/Mismatch, battery or igni-
tion related DTCs.

Does the scan tool display any active DTCs to the conditions listed above?

Yes

>> Diagnose and repair the DTC. Refer to the Table of Contents for a complete list of the symptoms.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> Go To 3

3.

VERIFY THAT THE DDM IS ACTIVE ON THE BUS

Turn the ignition on.

With the scan tool, select ECU View.

Verify that the DDM is active on the bus.

Is the DDM active on the bus?

Yes

>> Go To 4

No

>> Refer to the Table of Contents located in this section for a no response test procedure.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

LX

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 91

4.

CHECK FOR ADDITIONAL COMMUNICATION RELATED DTCS

With the scan tool, select Network View and select Advanced.

Is there more than one module with active DTCs “Logged Against” the DDM?

Yes

>> Replace/update the Driver Door Module in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

No

>> Replace/update the module that set this DTC in accordance with the service information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST – VER 1).

8E - 92

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

LX

U0200-LOST COMMUNICATION WITH PASSENGER DOOR MODULE

For a complete wiring diagram Refer to Section 8W.

LX

ELECTRONIC CONTROL MODULES - ELECTRICAL DIAGNOSTICS

8E - 93
