Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 275





B1467-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT HIGH

For a complete wiring diagram Refer to Section 8W.

8A - 26

AUDIO - ELECTRICAL DIAGNOSTICS

LX

When Monitored:

With the ignition on.

Set Condition:

The Amplifier detects a short to battery condition on the output circuit.

Possible Causes

(X208) AMPLIFIED RIGHT I/P SPEAKER (+) CIRCUIT SHORT TO VOLTAGE

(X298) AMPLIFIED RIGHT I/P SPEAKER (-) CIRCUIT SHORT TO VOLTAGE

AMPLIFIER

Diagnostic Test

1.

CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on, then off, and then on again.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1467-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT HIGH?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST VER-1.

2.

CHECK FOR VOLTAGE ON THE (X208) AMPLIFIED RIGHT I/P SPEAKER (+) CIRCUIT

Turn the ignition off.

Disconnect the Amplifier C2 harness connector.

Disconnect the Amplified Right I/P Speaker harness connector.

Turn the ignition on.

Measure for voltage on the (X208) Amplified Right I/P Speaker (+) cir-
cuit.

Is the voltage above 10.0 volts?

Yes

>> Repair the (X208) Amplified Right I/P Speaker (+) circuit for

a short to voltage.

Perform BODY VERIFICATION TEST VER-1.

No

>> Go To 3

LX

AUDIO - ELECTRICAL DIAGNOSTICS

8A - 27

3.

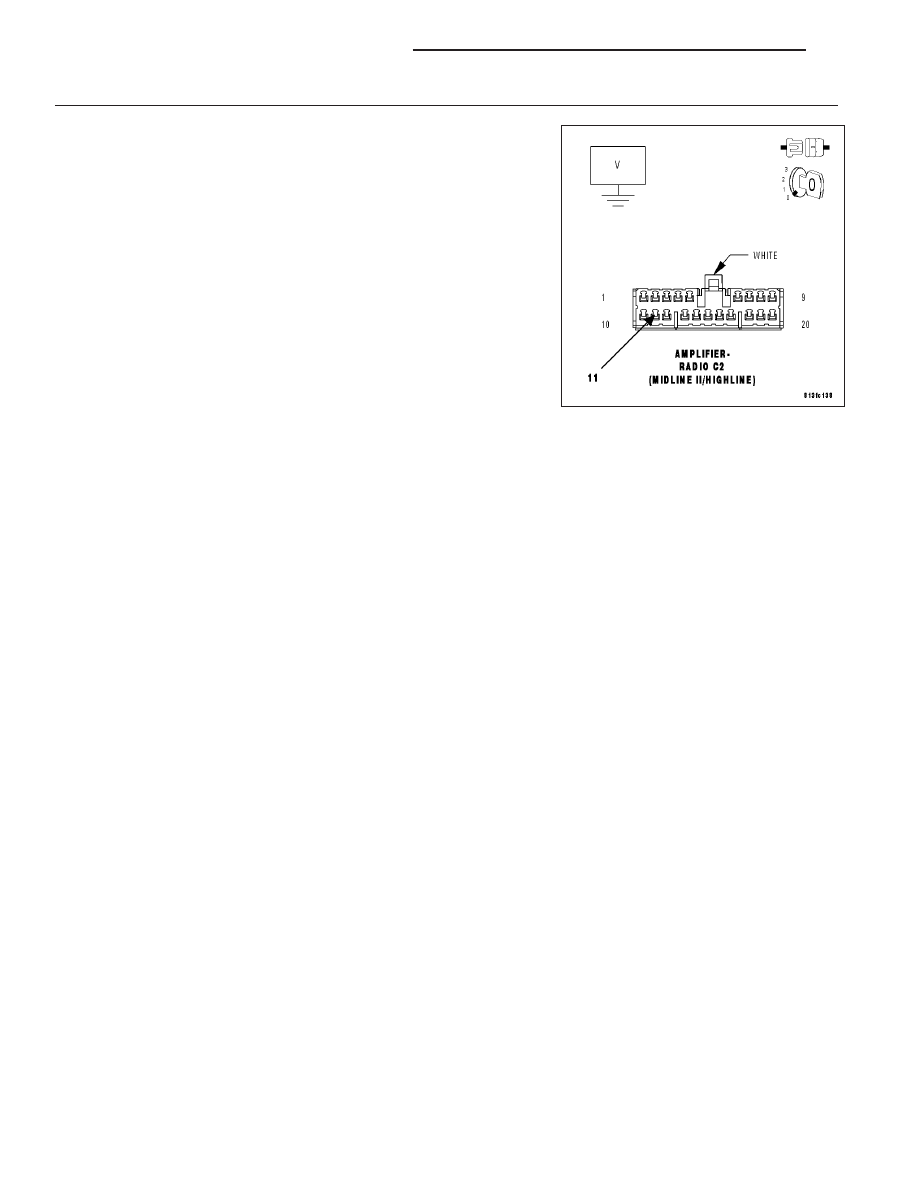

CHECK FOR VOLTAGE ON THE (X298) AMPLIFIED RIGHT I/P SPEAKER (-) CIRCUIT

Measure for voltage on the (X298) Amplified Right I/P Speaker (-) cir-
cuit.

Is the voltage above 10.0 volts?

Yes

>> Repair the (X298) Amplified Right I/P Speaker (-) circuit for

a short to voltage.

Perform BODY VERIFICATION TEST VER-1.

No

>> Replace the Amplifier in accordance with the service infor-

mation.

Perform BODY VERIFICATION TEST VER-1.

8A - 28

AUDIO - ELECTRICAL DIAGNOSTICS

LX

B1468-CHANNEL 2 AUDIO SPEAKER OUTPUT CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

LX

AUDIO - ELECTRICAL DIAGNOSTICS

8A - 29
