8.

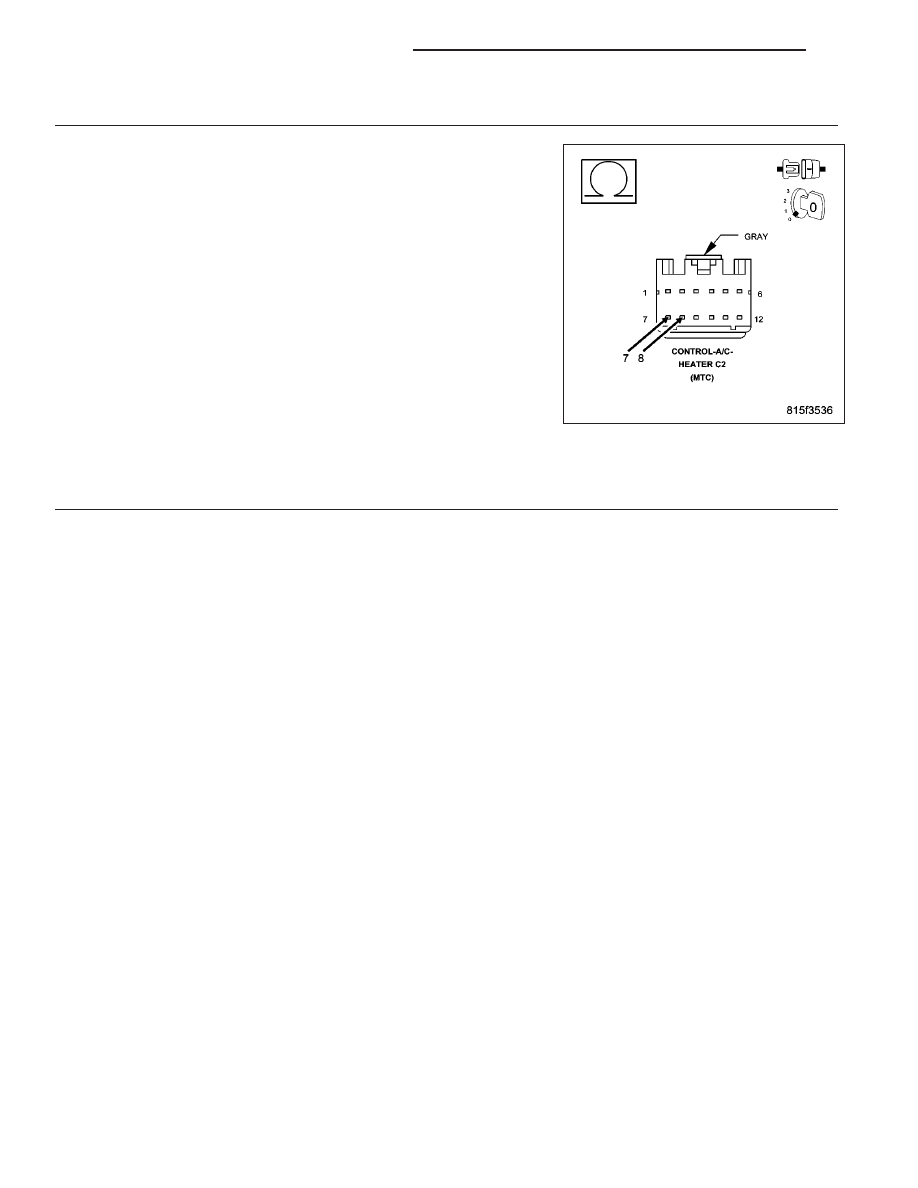

CHECK THE (C66) MODE DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C266) MODE DOOR
DRIVER CIRCUIT

Disconnect the Mode Door Actuator harness connector.

Measure the resistance between the (C66) Mode Door Common Driver
Circuit and the (C266) Mode Door Driver circuit in the A/C Heater Con-
trol C2 harness connector.

Is the resistance below 10k ohms?

Yes

>> Repair the (C66) Mode Door Common Driver Circuit for a

short to the (C266) Mode Door Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

No

>> Replace the Mode Door Actuator in accordance with the

Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

9.

CHECK THE LEFT BLEND DOOR ACTUATOR CIRCUIT RESISTANCE

Measure the resistance between the (C55) Left Blend Door Common
Driver Circuit and the (C255) Left Blend Door Driver circuit in the A/C
Heater Control C2 harness connector.

Is the resistance below 30.0 ohms?

Yes

>> Go To 10

No

>> Go To 11

24 - 130

HVAC - ELECTRICAL DIAGNOSTICS

LX

10.

CHECK THE (C55) LEFT BLEND DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C255)
LEFT BLEND DOOR DRIVER CIRCUIT

Disconnect the Left Blend Door Actuator harness connector.

Measure the resistance between the (C55) Left Blend Door Common
Driver Circuit and the (C255) Left Blend Door Driver circuit in the A/C
Heater Control C2 harness connector.

Is the resistance below 10k ohms?

Yes

>> Repair the (C55) Left Blend Door Common Driver Circuit

for a short to the (C255) Left Blend Door Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

No

>> Replace the Left Blend Door Actuator in accordance with

the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

11.

CHECK THE RECIRCULATION DOOR ACTUATOR CIRCUIT RESISTANCE

Measure the resistance between the (C68) Recirculation Door Common
Driver Circuit and the (C268) Recirculation Door Driver circuit in the A/C
Heater Control C2 harness connector.

Is the resistance below 30.0 ohms?

Yes

>> Go To 12

No

>> Go To 13

LX

HVAC - ELECTRICAL DIAGNOSTICS

24 - 131

12.

CHECK THE (C68) RECIRCULATION DOOR COMMON DRIVER CIRCUIT FOR A SHORT TO THE (C268)
RECIRCULATION DOOR DRIVER CIRCUIT

Disconnect the Recirculation Door Actuator harness connector.

Measure the resistance between the (C68) Recirculation Door Common
Driver Circuit and the (C268) Recirculation Door Driver circuit in the A/C
Heater Control C2 harness connector.

Is the resistance below 10k ohms?

Yes

>> Repair the (C68) Recirculation Door Common Driver Circuit

for a short to the (C268) Recirculation Door Driver circuit.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

No

>> Replace the Recirculation Door Actuator in accordance with

the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL

MODULES/

FRONT CONTROL MODULE - DIAGNOSIS AND TEST-
ING).

13.

VERIFY THAT THE FAULT IS STILL PRESENT

Reconnect the A/C Heater Control C2 harness connector.

Turn the ignition on.

Actuate the Clear DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait until both LEDs illuminate (approximately
5 seconds) and then release the A/C mode switch.

When the A/C status indicator begins displaying DTCs, set the Mode switch to the floor position, simulta-
neously press the A/C mode switch and the EBL mode switch down until both LEDs start flashing (approxi-
mately 5 seconds) and then release the mode switches. Stored DTCs will clear from memory in approximately
two seconds.

Turn the ignition off, wait 10 seconds, and turn the ignition on.

Actuate the Actuator Circuit Test / Door Calibration Function by performing the following:

Turn the blower control off.

Press and hold the EBL mode switch down and then turn the blower control on. Continue to hold the EBL
mode switch down until the EBL status indicator begins flashing. Then, release the EBL mode switch. While
the test / function is running, the EBL status indicator will flash once per second. If the test / function passes,
the EBL status indicator will stop flashing. If the test / function fails, the A/C and EBL status indicators will flash
alternately. Allow the test / function to run to completion before proceeding.

Actuate the Display DTC function by performing the following:

Turn the blower control on.

Press the A/C mode switch down, turn the blower control to off, wait until both LEDs illuminate (approximately
5 seconds) and then release the A/C mode switch.

24 - 132

HVAC - ELECTRICAL DIAGNOSTICS

LX

NOTE: The A/C status indicator displays active DTCs when the EBL status indictor is not illuminated and
stored DTCs when the EBL status indicator is illuminated.
Read DTCs from the A/C status indictor.

Does the A/C status indicator display DTC 72?

Yes

>> Replace the A/C Heater Control in accordance with the Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/FRONT CONTROL MODULE - DIAGNOSIS AND TESTING).

No

>> Using the wiring diagram as a guide, inspect the wiring and connectors for conditions causing an inter-

mittent short that set the original fault. Repair as necessary. Then, if present, diagnose and repair all
other DTCs. Refer to the Table of Contents in this Section for a complete list of HVAC related symp-
toms.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES/FRONT CONTROL MODULE - DIAGNOSIS AND TESTING).
