Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1823





19 - 110

COLUMN ELECTRICAL DIAGNOSIS

LX

COLUMN SERVICE INFORMATION

TABLE OF CONTENTS

page

page

COLUMN SERVICE INFORMATION

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
DIAGNOSIS AND TESTING

STEERING COLUMN . . . . . . . . . . . . . . . . . . . . . . . 113

REMOVAL

COLUMN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
COLUMN - COLUMN SHIFT . . . . . . . . . . . . . . . . . 119
COLUMN - RHD . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

INSTALLATION

COLUMN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
COLUMN - COLUMN SHIFT . . . . . . . . . . . . . . . . 140
COLUMN - RHD . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

SPECIFICATIONS

STEERING COLUMN FASTENER TORQUE . . 156

COUPLING-STEERING

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

SHAFT-INTERMEDIATE

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

LEVER-ELECTRONIC TELESCOPING

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

LEVER-GEAR SHIFT

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

MODULE-STEERING COLUMN CONTROL

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

SHROUD

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

SHROUD-ROLL TOP

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

WHEEL-STEERING

REMOVAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

LX

COLUMN SERVICE INFORMATION

19 - 111

COLUMN SERVICE INFORMATION

DESCRIPTION

The tilt, telescoping and electronic telescoping steer-
ing column (5) has been designed to be serviced as
an assembly (including the intermediate shaft (10));
less wiring, switches, shroud, steering wheel, etc.
Most steering column components can be serviced
without removing the steering column from the vehicle.

The steering column used on rear-wheel-drive (RWD)
vehicles is not interchangeable with the steering col-
umn used on all-wheel-drive (AWD) vehicles.

The steering column (1) for right-hand drive (RHD)
models is similar to the left-hand drive column, except
that it has a separate, serviceable intermediate shaft
(3) and a shaft lock module (2).

19 - 112

COLUMN SERVICE INFORMATION

LX

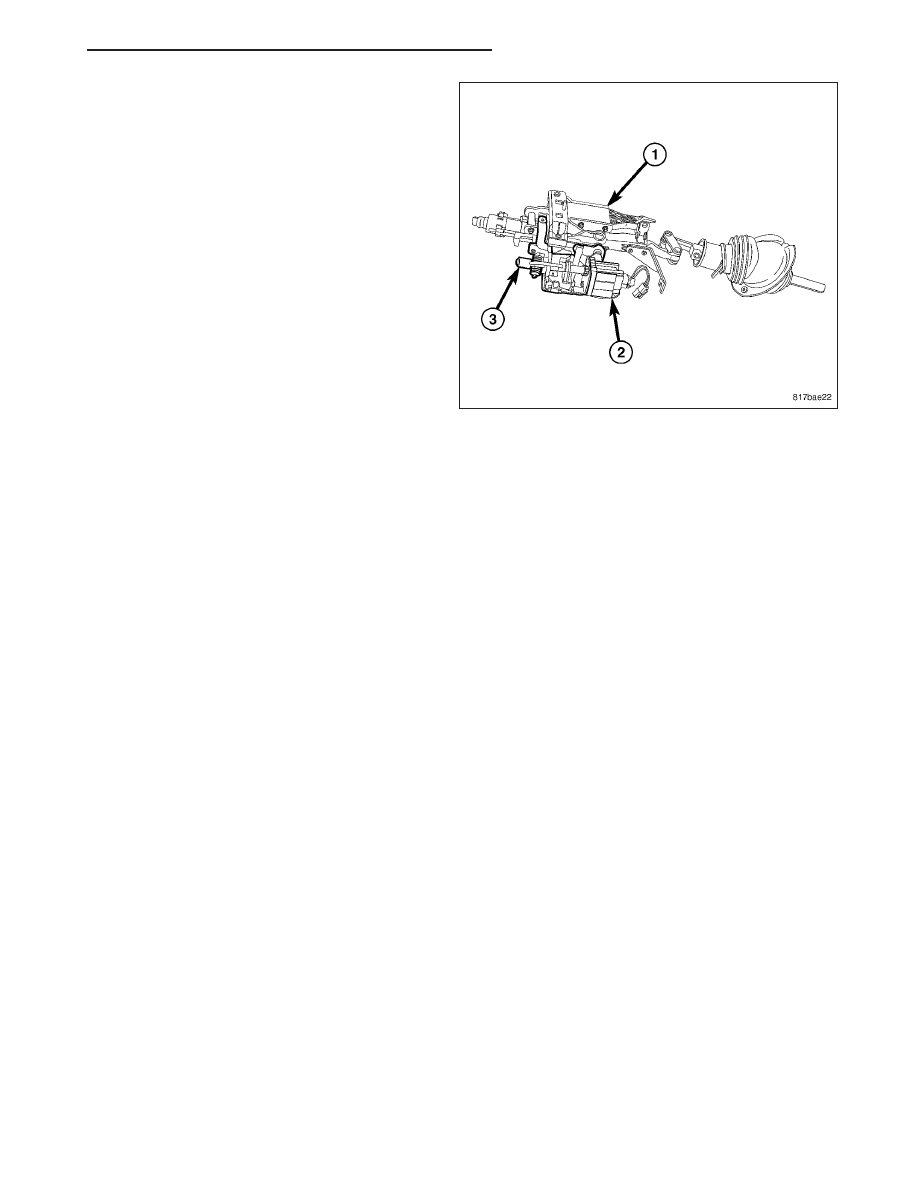

A column shift type steering column is available on
RWD fleet vehicles for police use only. This steering
column (1) has an add-on type gear shift mechanism
(3) attached to the right side of the steering column.
Beside the components serviced on the standard
RWD steering column, the serviceable components on
this column also include the gear shift lever. All other
components are serviced as part of the steering col-
umn. Do not attempt disassembly of the gear shift
mechanism.

The gear shift lever on the column shift steering col-
umn includes switches for autostick. These switches
are not replaceable. They are serviced with the gear
shift lever.

When servicing any component of the steering column, refer to Restraints and observe all WARNINGS and CAU-
TIONS. (Refer to 8 - ELECTRICAL/RESTRAINTS - WARNING)

WARNING: The airbag system is a sensitive, complex electro-mechanical unit. Before attempting to diag-
nose, remove or install the airbag system components you must first disconnect and isolate the battery
negative (ground) cable. Then wait two minutes for the system capacitor to discharge. Failure to do so
could result in accidental deployment of the airbag and possible personal injury. The fasteners, screws, and
bolts, originally used for the airbag components, have special coatings and are specifically designed for the
airbag system. They must never be replaced with any substitutes. Anytime a new fastener is needed,
replace with the correct fasteners provided in the service package or fasteners listed in the parts books.

CAUTION: Do not hammer on steering column shaft. This may cause damage to the column internally.

CAUTION: Do not attempt to remove or modify any part of the column.

NOTE: When servicing the steering wheel after removing the old bolt, a NEW bolt must be used when
installing.

NOTE: When servicing the steering coupler a NEW bolt must be used when installing.

DIAGNOSIS AND TESTING

STEERING COLUMN

If the vehicle is involved in a front end collision and/or the air bag has deployed, the steering column must be
replaced.

REMOVAL

COLUMN

WARNING: Before servicing the steering column the airbag system must be disarmed. Refer to electrical
restraint system for service procedures. Failure to do so may result in accidental deployment of the airbag
and possible personal injury.

NOTE: If steering column being removed is an electric telescoping column and it is being reused, place
column in mid-tilt position before removal to ease installation.

LX

COLUMN SERVICE INFORMATION

19 - 113
