Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1775





SYSTEM DIAGNOSIS

OPERATION

The PCM can test many of its own input and output circuits. If the PCM senses a fault in a major system, the PCM
stores a Diagnostic Trouble Code (DTC) in memory.

For DTC information see On-Board Diagnostics (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/
POWERTRAIN CONTROL MODULE - DESCRIPTION) .

SPECIFICATIONS

TORQUE

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Camshaft Position Sensor

Mounting Bolts

12

8.8

105

Crankshaft Position

Sensor Mounting Bolts

12

8.8

105

Engine Coolant

Temperature Sensor

28

20

-

Idle Air Control Motor—

2.7L

5.5

-

49

Idle Air Control Motor—

3.5L

7.3

-

65

Knock Sensor bolt—2.7L

10

7

88.5

Knock Sensor bolt—3.5L

10

7

88.5

Manifold Tuning

Valve—2.7L

2.8

-

25

Manifold Tuning

Valve—3.5L

2.8

-

25

Oxygen Sensor

28

20

Powertrain Control Module

4

-

35

Throttle Body Mounting—

2.7L

11.9

-

105

Throttle Body Mounting—

3.5L

11.9

-

105

Throttle Body Mounting—

5.7L

11.9

-

105

Throttle Position

Sensor—2.7L

6.2

-

55

Throttle Position

Sensor—3.5L

6.2

-

55

Short Runner Valve

6.7

-

60

Fuel Rail Bolts—2.7L

11

-

100

Fuel Rail Bolts—3.5L

28

-

250

Fuel Rail Bolts—5.7L

28

-

250

14 - 174

FUEL INJECTION

LX

SPECIAL TOOLS

FUEL

TEST KIT, FUEL

ADAPTERS, FUEL PRESSURE TEST - 6539 AND/OR

6631

SPANNER WRENCH; 6856

FUEL LINE ADAPTER 1/4

O2S (OXYGEN SENSOR) REMOVAL/INSTALL

OXYGEN SENSOR TOOL

LX

FUEL INJECTION

14 - 175

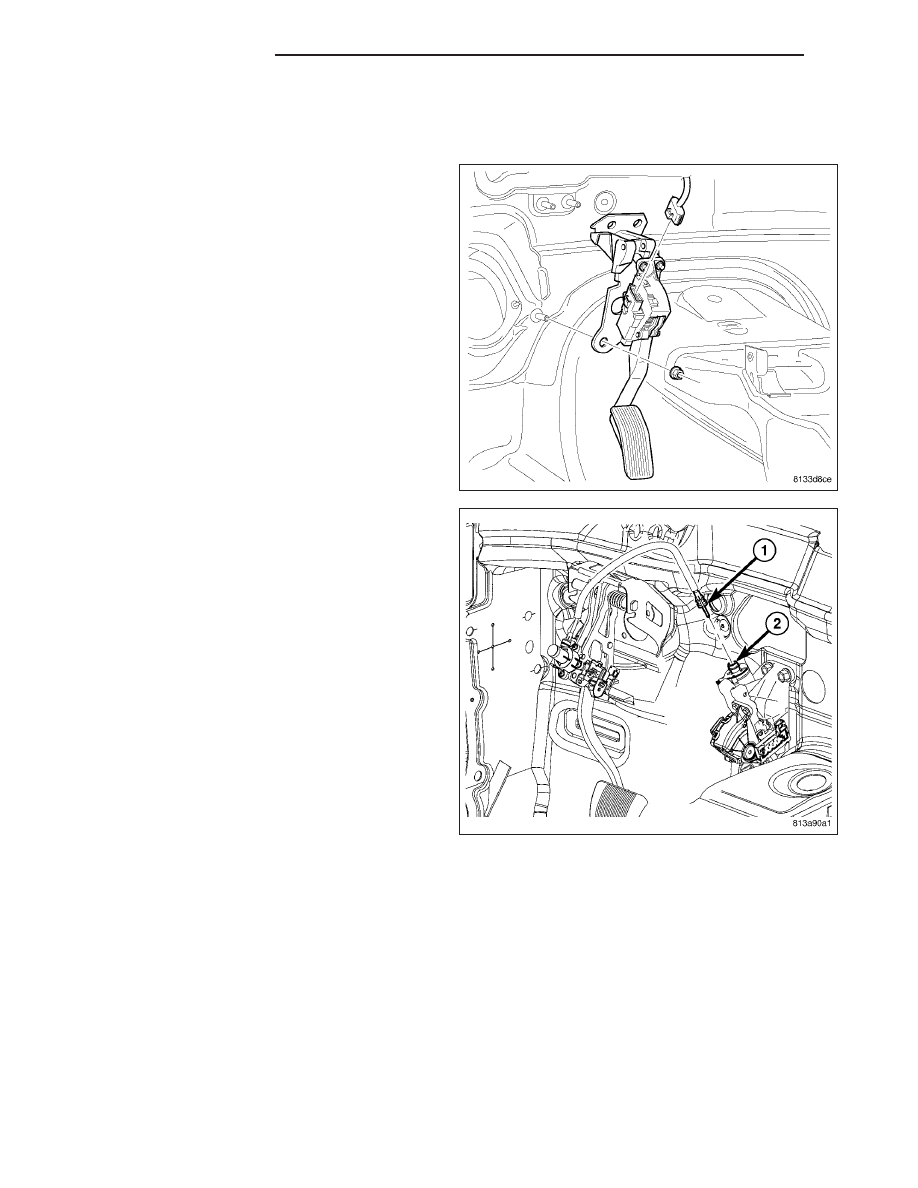

PEDAL-ACCELERATOR

REMOVAL

1. Disconnect negative battery cable.

2. Disconnect electrical connectors, if equipped with

adjustable pedals remove the adjuster cable (1) at
accelerator adjuster motor (2).

3. Remove 3 mounting nuts.

4. Remove pedal assembly.

14 - 176

FUEL INJECTION

LX

INSTALLATION

1. Install pedal assembly to mounting studs.

2. Install nuts.

3. Tighten mounting nuts to 34 N·m (25 ft. lbs.).

4. Connect

electrical

connector

to

assembly,

if

equipped with adjustable pedals perform the Syn-
chronization of brake pedal to accelerator pedal.

5. Connect negative battery cable.

6. Synchronize brake pedal to accelerator pedal, then

connect adjuster cable (1) to adjuster motor (2).
(Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/
PEDAL - STANDARD PROCEDURE).

LX

FUEL INJECTION

14 - 177
