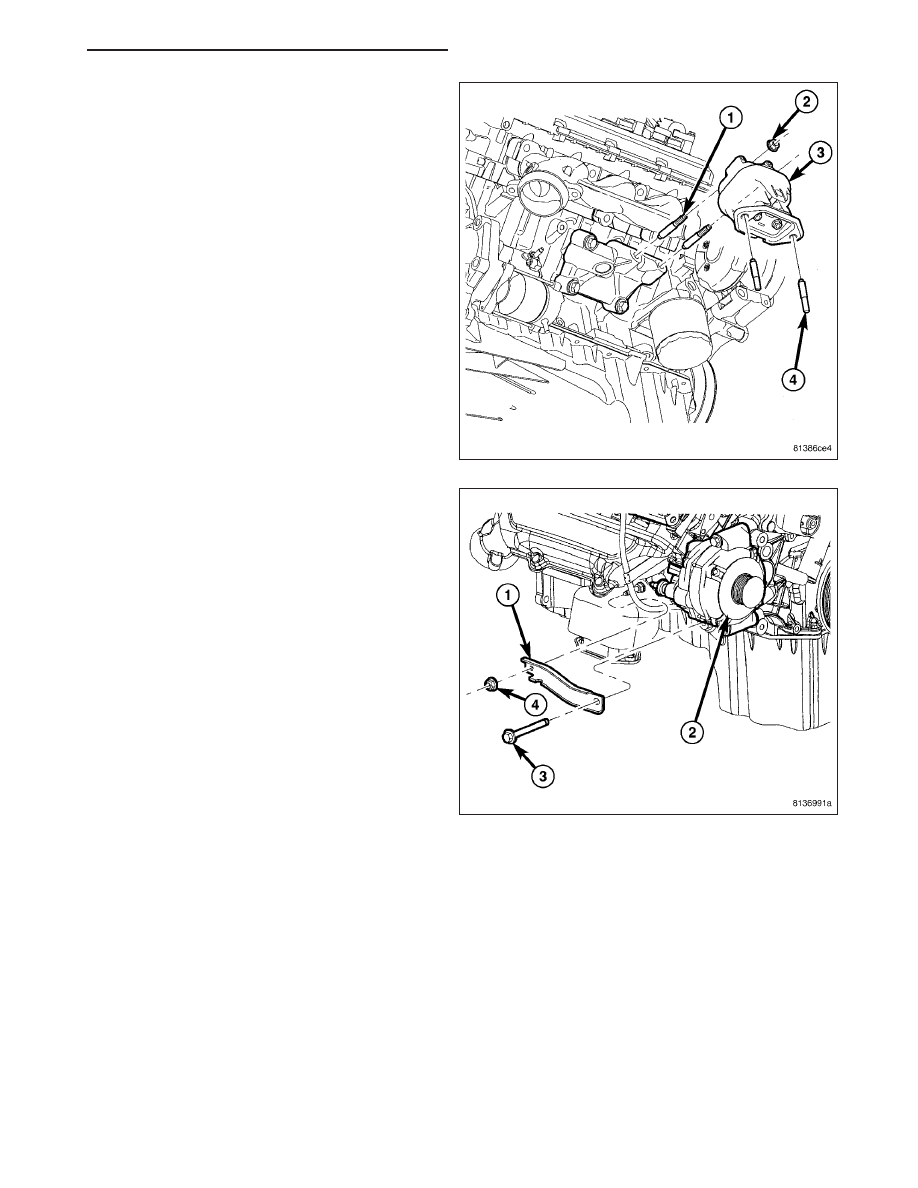

1. Disconnect negative battery cable.

2. Raise vehicle.

3. Remove the generator support bracket.

4. Remove the heat shield (1).

9 - 2400

ENGINE - 5.7L SERVICE INFORMATION

LX

5. Remove engine hydromount to frame nuts, and

studs (3).

6. Raise engine using suitable jack.

7. Remove engine mount to insulator bolts (2).

8. Remove engine hydromount (1) from engine.

INSTALLATION

INSTALLATION

LX

ENGINE - 5.7L SERVICE INFORMATION

9 - 2401

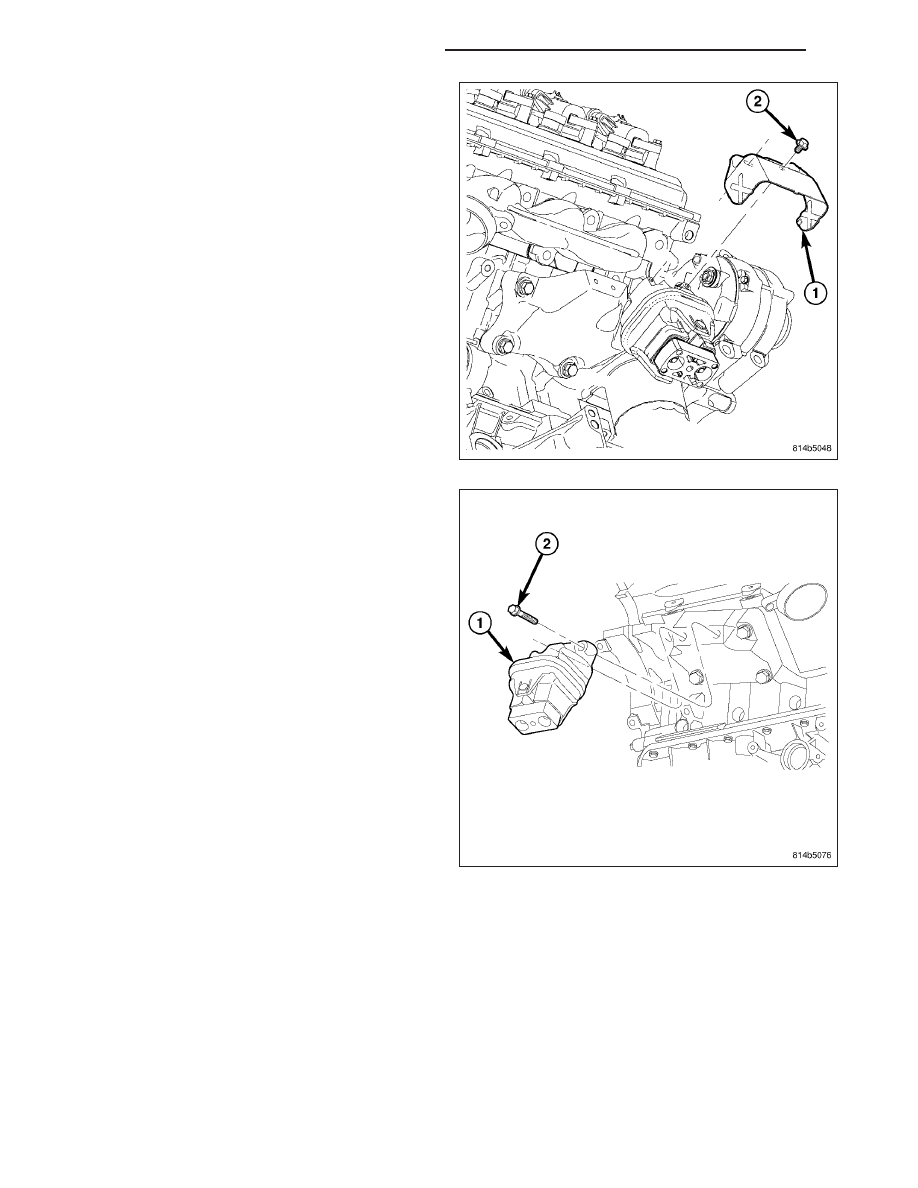

1. Install the engine mount brackets (1), if removed.

9 - 2402

ENGINE - 5.7L SERVICE INFORMATION

LX

2. Install hydromount (3) on the engine. Tighten

hydromount to bracket fasteners.

3. Install the studs (3,1) to the hydromount (2).

4. Install the generator support bracket (1).

5. Lower the engine.

LX

ENGINE - 5.7L SERVICE INFORMATION

9 - 2403
