2.

TEST DRIVE

Turn the ignition on.

With the scan tool, erase the ECM DTCs.

Test drive the vehicle.

With the scan tool, read the ECM DTCs.

Does the scan tool display this DTC?

Yes

>> Go To 3

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

3.

CHECKING (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT

Turn the ignition off.

Disconnect the Camshaft Position Sensor harness connector.

Turn the ignition on.

Measure the voltage of the (K44) CMP Sensor Signal circuit at the CMP
Sensor harness connector.

Select the appropriate voltage reading.

Voltage is above 5.4 volts.

Go To 4

Voltage is between 4.7 and 5.4 volts.

Go To 5

Voltage is below 4.7 volts.

Go To 12

4.

(K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE

Turn the ignition off.

Disconnect the ECM harness connectors.

Remove the ASD Relay.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
Relay connector.

Turn the ignition on.

Measure the voltage of the (K44) CMP Position Sensor Signal circuit at
the CMP Sensor harness connector.

Is the voltage below 1.0 volt?

Yes

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Repair the (K44) Camshaft Position Sensor Signal circuit for

a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

9 - 1364

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

5.

CHECKING (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT

Measure the voltage of the (K844) CMP Sensor 5-Volt Supply circuit at
the CMP Sensor harness connector.

Select the appropriate voltage reading.

Voltage is above 5.4 volts.

Repair the (K844) CMP 5-Volt Supply circuit for a short to
voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

Voltage is between 4.7 and 5.4 volts.

Go To 6

Voltage is below 4.7 volts.

Go To 9

6.

(K944) CAMSHAFT POSITION SENSOR GROUND CIRCUIT OPEN

Turn the ignition on.

Disconnect the ECT Sensor harness connector.

Connect one end of a jumper wire to the ECT Sensor signal circuit in
the ECT Sensor harness connector.

Connect the other end of the jumper wire to the (K944) CMP Sensor
Ground circuit in the Camshaft Position Sensor harness connector.

With the scan tool in Engine, Sensors, read the Engine Coolant Temp
volts.

Is the voltage below 0.5 volt?

Yes

>> Go To 8

No

>> Go To 7

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1365

7.

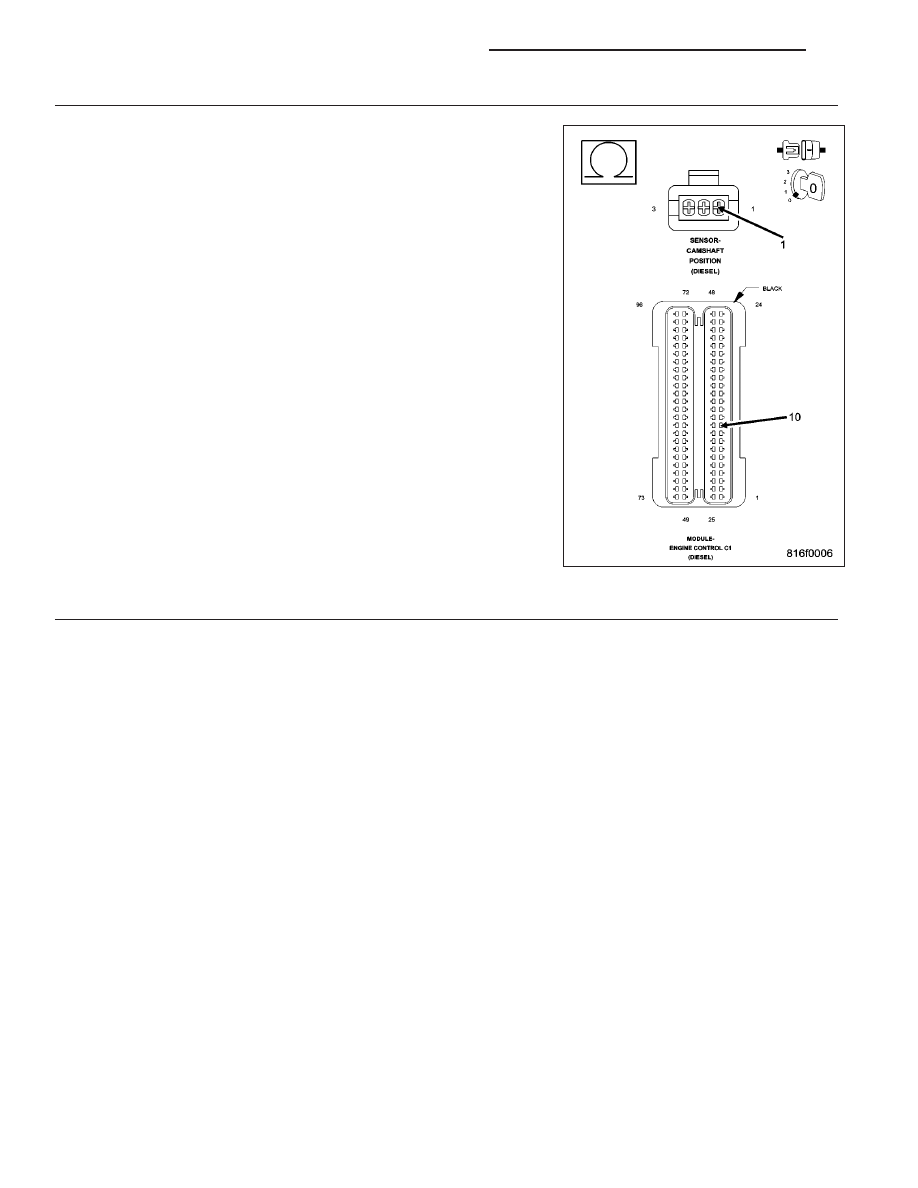

(K944) CAMSHAFT POSITION SENSOR GROUND CIRCUIT OPEN

Turn the ignition off.

Disconnect the CMP Sensor harness connector.

Disconnect the ECM harness connectors.

Measure the resistance of the (K944) CMP Sensor Ground circuit
between the CMP Sensor harness connector and the ECM harness
connector.

Is the resistance below 10.0 ohms?

Yes

>> Replace and program the ECM in accordance with the Ser-

vice Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Repair the (K944) CMP Sensor Ground circuit for an open.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

8.

DAMAGED CAMSHAFT POSITION SENSOR OR CAMSHAFT

Turn the ignition off.

Remove the CMP Sensor.

Inspect the CMP Sensor for conditions such as loose mounting screws, damage, or cracks.

Inspect the camshaft for conditions such as damage, debris or cracked teeth.

Is there any evidence of these conditions?

Yes

>> Repair as necessary.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Replace the Camshaft Position Sensor in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

9 - 1366

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

9.

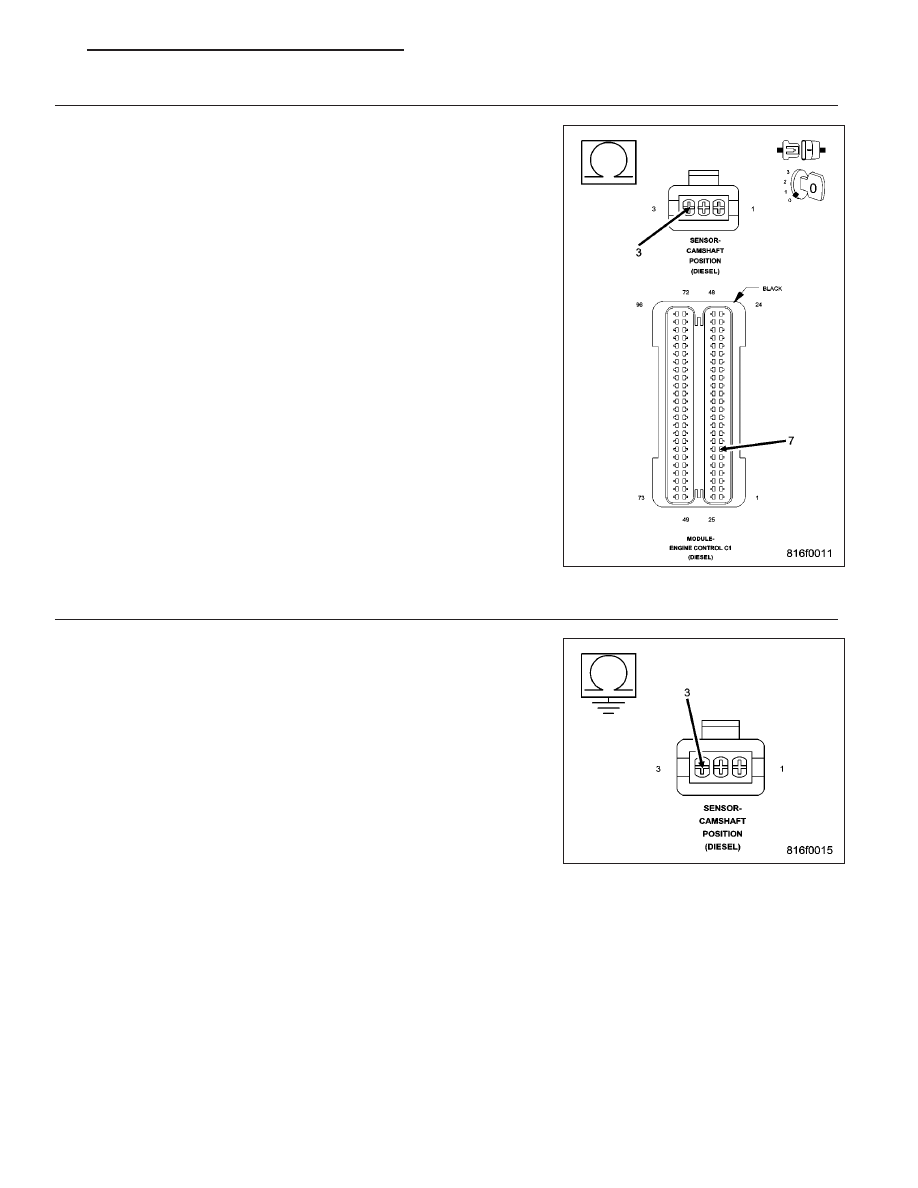

(K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT OPEN

Turn the ignition off.

Disconnect the ECM harness connectors.

Measure the resistance of the (K844) CMP 5-Volt Supply circuit
between the ECM harness connector and the CMP Sensor harness
connector.

Is the resistance below 10.0 ohms?

Yes

>> Go To 10

No

>> Repair the (K844) CMP 5-Volt Supply circuit for an open.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

10.

(K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (K844) CMP Sensor
5-Volt Supply circuit at the CMP Sensor harness connector.

Is the resistance above 1000 ohms?

Yes

>> Go To 11

No

>> Repair the (K844) CMP Sensor 5-Volt Supply circuit for a

short to ground.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1367
