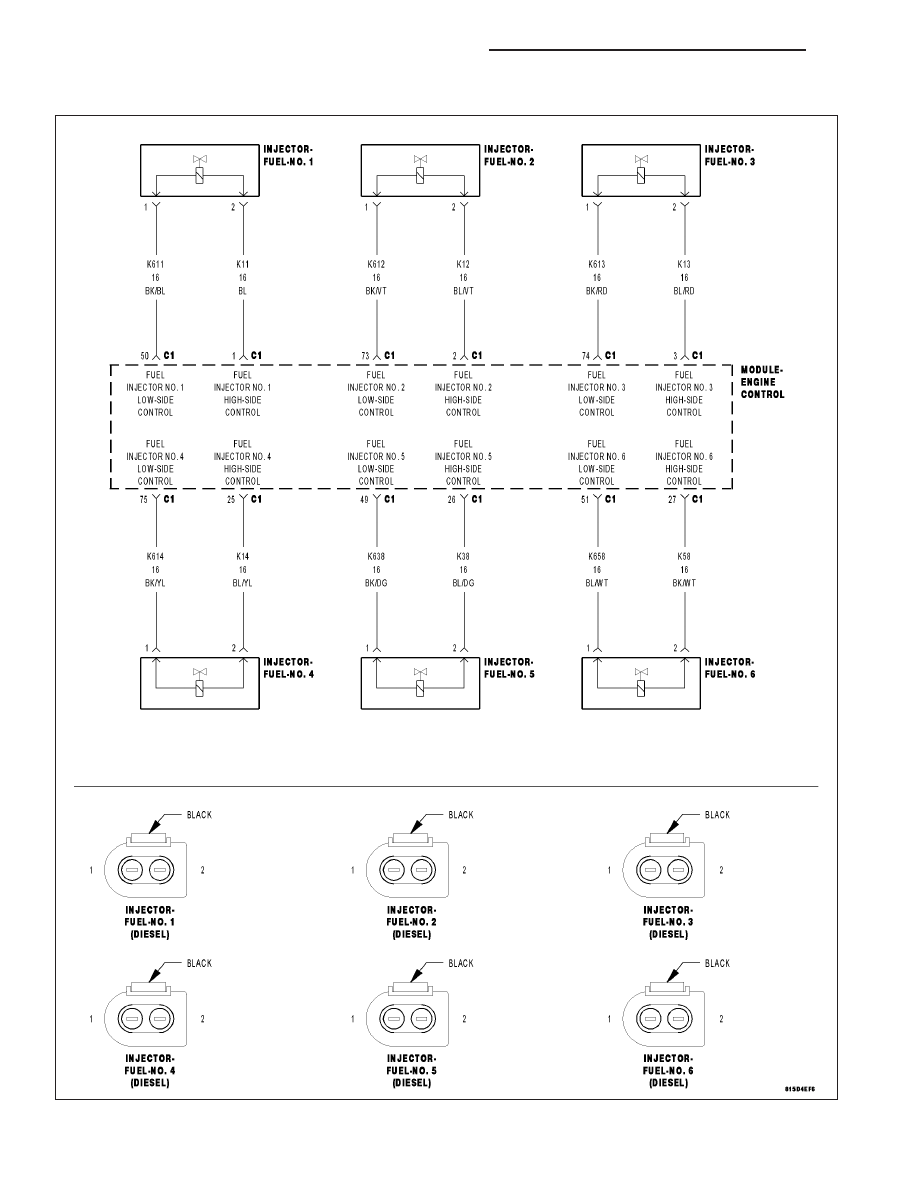

5. (K12) FUEL INJECTOR NO. 2 HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE Measure the resistance of the (K12) Fuel Injector No. 2 High-Side Con- Is the resistance below 10.0 ohms? Yes >> Go to 6 No >> Repair the (K12) Fuel Injector No. 2 High-Side Control cir- cuit for an open circuit or high resistance. Perform the ECM Verification Test Ver. 1. (Refer to 9 - 6. (K612) FUEL INJECTOR NO. 2 LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE Measure the resistance of the (K612) Fuel Injector No. 2 Low-Side Con- Is the resistance below 10.0 ohms? Yes >> Go to 7 No >> Repair the (K612) Fuel Injector No. 2 Low-Side Control cir- cuit for an open circuit or high resistance. Perform the ECM Verification Test Ver. 1. (Refer to 9 - 9 - 1292 ENGINE ELECTRICAL DIAGNOSTICS - DIESEL LX |
