Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 1298





5.

(G224) OIL TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN CIRCUIT OR HIGH RESISTANCE

Measure the resistance of the (G224) Oil Temperature Sensor Signal
circuit between the Oil Temperature Sensor harness connector and the
Engine Control Module (ECM) harness connector.

Is the resistance below 10.0 ohms?

Yes

>> GO TO 6

No

>> Repair the (G224) Oil Temperature Sensor Signal circuit for

an open circuit or high resistance.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

6.

ENGINE CONTROL MODULE (ECM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Oil Temperature
Sensor and the Engine Control Module (ECM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Refer to any technical service bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Replace the Engine Control Module (ECM) in accordance with the service information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

9 - 1216

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

P0198-ENGINE OIL TEMPERATURE SENSOR CIRCUIT HIGH

FOR A COMPLETE WIRING DIAGRAM REFER TO SECTION 8W

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1217

WHEN MONITORED:
With the ignition on.

SET CONDITION:
The (G224) Oil Temperature Sensor Signal circuit voltage is above 4.95 volts for 0.5 second.

POSSIBLE CAUSES

INTERMITTENT DTC

(G224) OIL TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

(Z36) OIL TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

(G224) OIL TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(Z36) OIL TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

OIL TEMPERATURE SENSOR

ENGINE CONTROL MODULE (ECM)

ALWAYS PERFORM THE PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE BEFORE PROCEEDING.
(REFER TO 9 - ENGINE - DIAGNOSIS AND TESTING)

DIAGNOSTIC TEST

1.

DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, clear DTCs in the Engine Control Module (ECM).

Monitor the scan tool for at least two minutes.

Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.

Start the engine.

Allow the engine to reach normal operating temperature.

With the scan tool, select view DTCs.

Is the status active for this DTC?

Yes

>> Go To 2

No

>> REFER TO THE *CHECKING FOR AN INTERMITTENT DTC DIAGNOSTIC PROCEDURE. (REFER TO

9 - ENGINE - DIAGNOSIS AND TESTING)

2.

(G224) OIL TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Oil Temperature Sensor connector.

Disconnect the Engine Control Module (ECM) connector.

Remove the ASD relay from the IPM.

Connect a jumper wire between cavity 30 and cavity 87 of the ASD
relay connector.

Turn the ignition on.

Measure the voltage of the (G224) Oil Temperature Sensor Signal cir-
cuit in the Oil Temperature Sensor connector.

Is there any voltage present?

Yes

>> Repair the (G224) Oil Temperature Sensor Signal circuit for

a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 3

9 - 1218

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

LX

3.

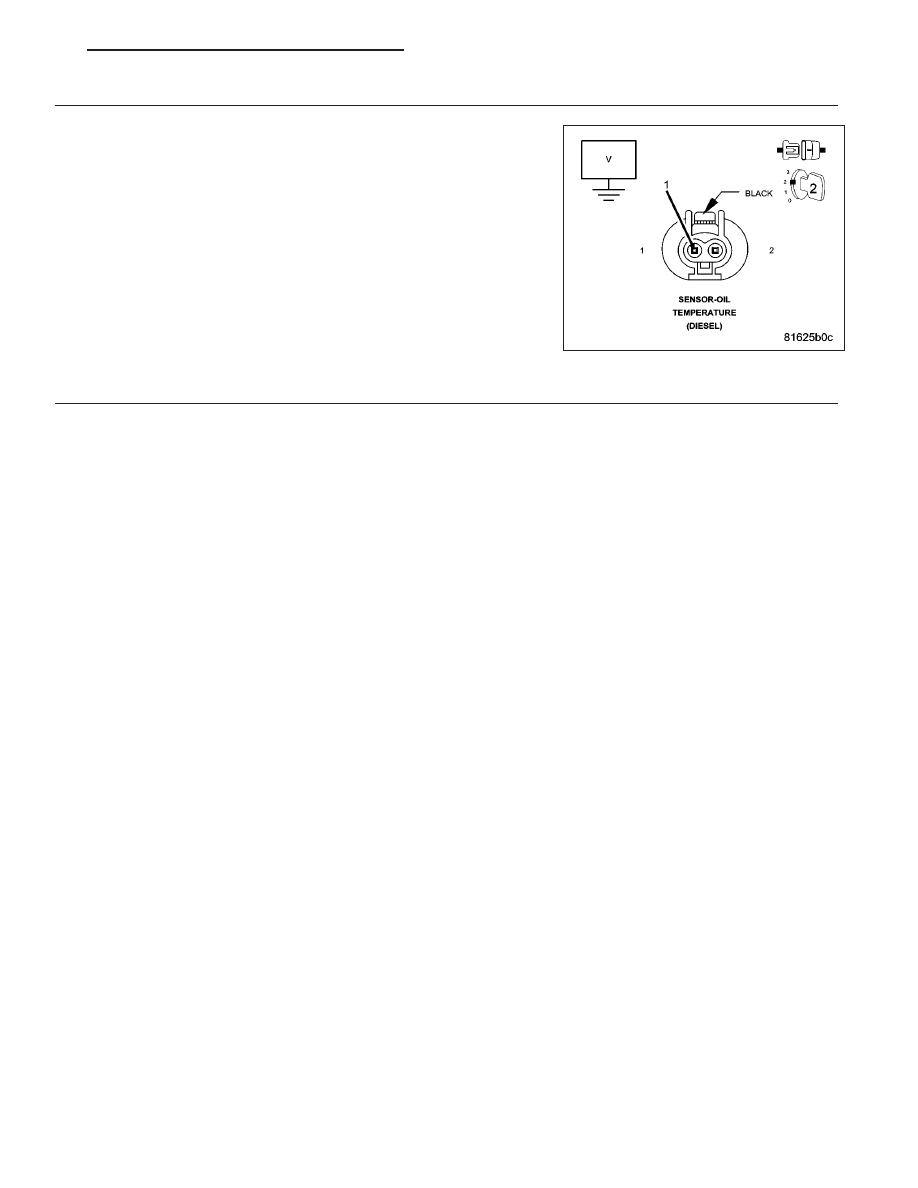

(Z36) OIL TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE

NOTE: THE JUMPER WIRE SHOULD STILL BE IN PLACE.
Measure the voltage of the (Z36) Oil Temperature Sensor Ground circuit
in the Oil Temperature Sensor harness connector.

Is there any voltage present?

Yes

>> Repair the (Z36) Oil Temperature Sensor Ground circuit for

a short to voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 4

4.

OIL TEMPERATURE SENSOR

Turn the ignition off.

Connect the Engine Control Module (ECM) harness connector.

Connect a jumper wire between the (Z36) Oil Temperature Sensor Ground circuit and the (G224) Oil Temperature
Sensor Signal circuit in the Oil Temperature Sensor harness connector.

Turn the ignition on.

With the scan tool, clear DTCs.

With the scan tool, select view DTCs.

NOTE: The scan tool should display an Oil Temperature Sensor Low Voltage or Short To Ground DTC with
the jumper wire in place.

Does the scan tool display the DTC(s) as described above?

Yes

>> Replace the Oil Temperature Sensor in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 5

LX

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1219
