3.

RADIATOR FAN CONTROL RELAY CONTROL CIRCUIT

Turn the ignition on, engine not running.

With a scan tool, select Radiator Cooling Fan Relay #1 Control State,
Toggle, to actuate the Radiator Fan Control Relay.

Using a 12–volt test light connected to battery voltage, probe the Radi-
ator Control Relay Control circuit in the PDM.

Does the test light illuminate and flash on and off?

Yes

>> Replace the Radiator Fan Control Relay.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL MODULES

-

STANDARD PROCEDURE)

No

>> Go To 4

4.

(N201) RADIATOR FAN CONTROL RELAY CONTROL CIRCUIT OPEN

Turn the ignition off.

Remove the FCM from the PDM.

Measure the resistance of the (N201) Radiator Fan Control Relay Con-
trol circuit from the Relay to the FCM PDM — 49 way connector.

Is the resistance below 5.0 ohms?

Yes

>> Go To 5

No

>> Replace the PDM in accordance with the Service informa-

tion.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL MODULES

-

STANDARD PROCEDURE)

5.

(N201) RADIATOR FAN CONTROL RELAY CONTROL CIRCUIT SHORTED TO GROUND

Measure the resistance between ground and the (N201) Radiator Fan
Control Relay Control circuit at the Relay connection.

Is the resistance below 100 ohms?

Yes

>> Replace the PDM in accordance with the Service informa-

tion.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL MODULES

-

STANDARD PROCEDURE)

No

>> Replace Front Control Module in accordance with the Ser-

vice Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL MODULES

-

STANDARD PROCEDURE)

9 - 480

ENGINE ELECTRICAL DIAGNOSTICS

LX

P0481-COOLING FAN 2 CONTROL CIRCUIT

For a complete wiring diagram Refer to Section 8W.

LX

ENGINE ELECTRICAL DIAGNOSTICS

9 - 481

When Monitored:
With the ignition on. Battery voltage greater than 10 volts.

Set Condition:
The ECM receives a CAN Bus message from the FCM indicating an open or shorted circuit on the Radiator
Fan High Relay Control circuit.

Possible Causes

FUSED B+ CIRCUITS

(N112) RADIATOR FAN HIGH RELAY CONTROL CIRCUIT OPEN

(N112) RADIATOR FAN HIGH RELAY CONTROL CIRCUIT SHORTED TO GROUND

RADIATOR FAN HIGH RELAY

FRONT CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).

Diagnostic Test

1.

RADIATOR FAN HIGH RELAY OPERATION

Ignition on, engine not running.

With a scan tool, select Radiator Cooling Fan Relay #2 Control State, to actuate the Radiator Fan High Relay.

Is the Cooling Fan Relay operating?

Yes

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 2

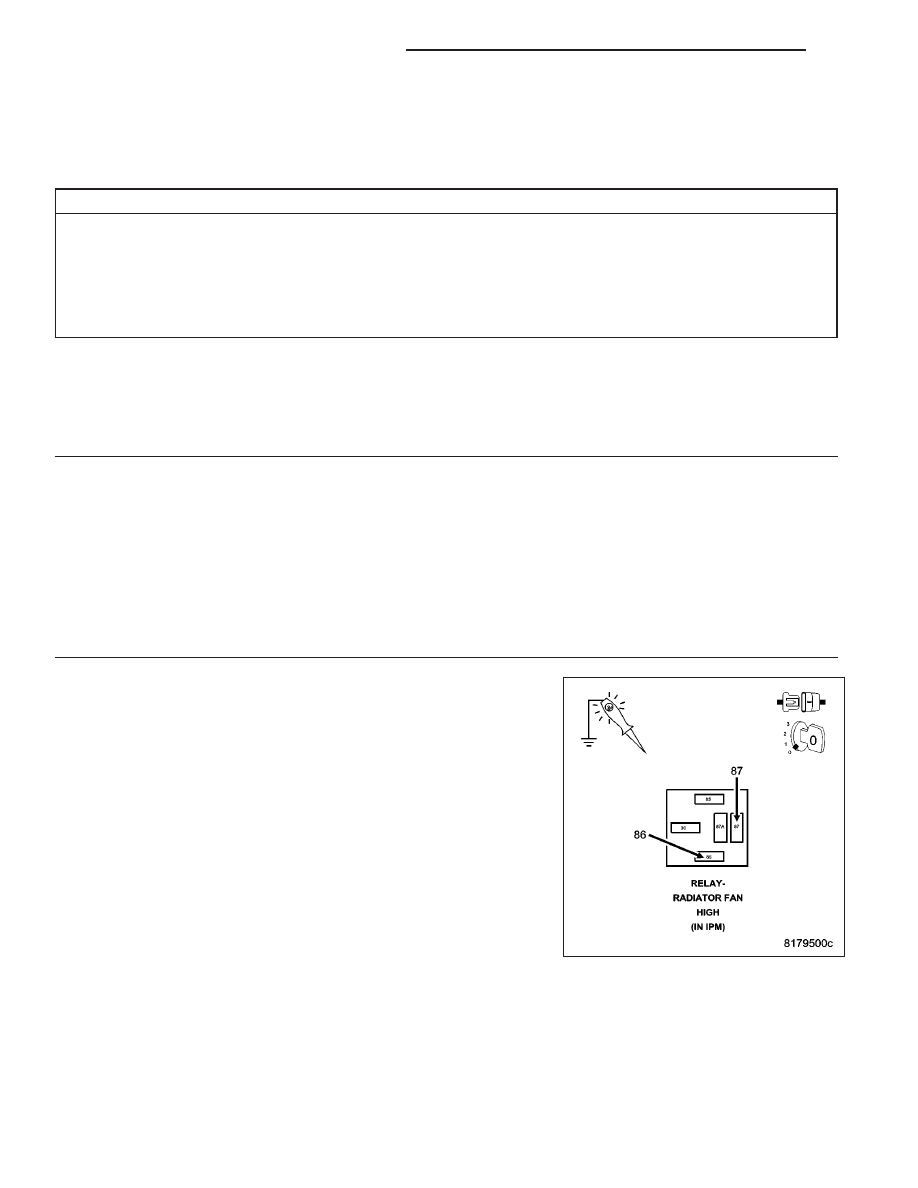

2.

FUSED B+ CIRCUITS

Turn the ignition off.

Remove the Radiator High Fan Relay.

Using a 12-volt test light connected to ground, probe the Fused B+ cir-
cuits in the Relay connection.

Does the test light illuminate brightly?

Yes

>> Go To 4

No

>> Go To 3

9 - 482

ENGINE ELECTRICAL DIAGNOSTICS

LX

3.

RADIATOR FAN HI/LO CONTROL RELAY SHORTED INTERNALLY

With the test light still at the Fused B+ circuit (Radiator High Fan Relay), remove the Radiator Fan HI/LO Control
Relay.

When the relay is removed, does the test light illuminate brightly?

Yes

>> Replace the Radiator Fan HI/LO Control Relay.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> Repair the open or short to ground in the Fused B+ circuits. Inspect the related fuse and repair as

necessary.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

4.

RADIATOR FAN HIGH RELAY CONTROL CIRCUIT

Turn the ignition on, engine not running.

With a scan tool, select Radiator Cooling Fan Relay #2 Control State
and then Toggle, to actuate the Radiator Fan High Relay.

Using a 12–volt test light connected to battery voltage, probe the Radi-
ator Fan High Relay Control circuit in the PDM.

Does the test light illuminate and flash on and off?

Yes

>> Replace the Radiator Fan High Relay.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL MODULES

-

STANDARD PROCEDURE)

No

>> Go To 5

5.

(N112) RADIATOR FAN HIGH RELAY CONTROL CIRCUIT OPEN

Remove the FCM from the PDM.

Measure the resistance of the (N112) Radiator Fan High Relay Control
circuit from the Relay connection to the FCM PDM — 49 way connec-
tor.

Is the resistance below 5.0 ohms?

Yes

>> Go To 6

No

>> Replace the PDM in accordance with the Service Informa-

tion.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8
-

ELECTRICAL/ELECTRONIC

CONTROL MODULES

-

STANDARD PROCEDURE)

LX

ENGINE ELECTRICAL DIAGNOSTICS

9 - 483
