16. Disengage right halfshaft (1) from axle and

remove from vehicle.

17. Remove left halfshaft (1) from vehicle.

INTERMEDIATE SHAFT ASSEMBLY

NOTE: The intermediate shaft assembly is serviced only as an assembly.

Right Halfshaft Removal/Installation

3 - 24

SHAFT-HALF (FRONT)

LX

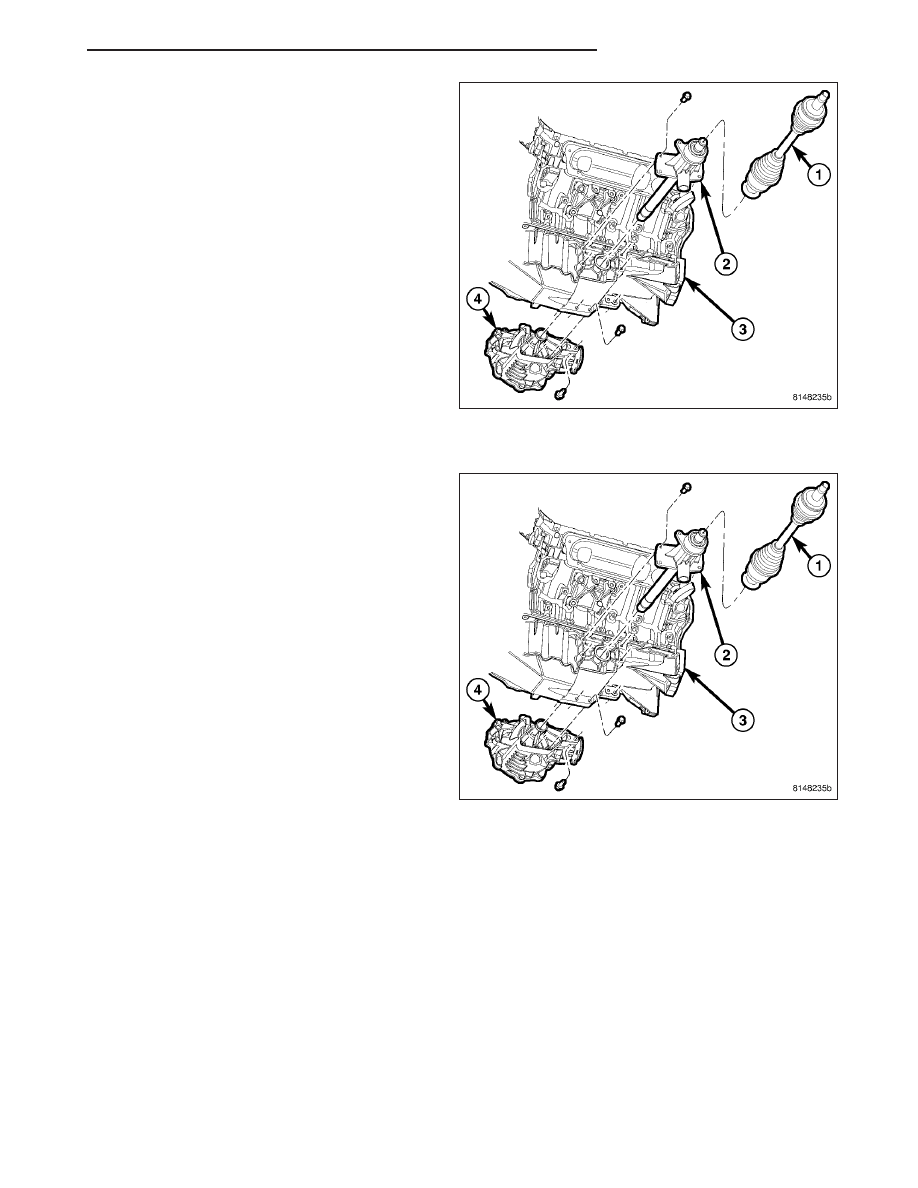

1. Remove four (4) intermediate shaft assembly-to-oil

pan bolts.

2. Remove intermediate shaft assembly (2) from

engine oil pan.

INSTALLATION

1. If previously removed, install intermediate shaft

assembly (2). Install four intermediate shaft-to-oil
pan bolts and torque to 25 N·m (18 ft. lbs.).

2. Install left halfshaft assembly (1).

LX

SHAFT-HALF (FRONT)

3 - 25

3. Using Tool C-4193-A (1), install new axle seal.

4. Install right halfshaft assembly (1).

5. Install halfshaft (1) into hub/bearing assembly (2).

Right Halfshaft Removal/Installation

3 - 26

SHAFT-HALF (FRONT)

LX

6. Loosely install halfshaft hub nut (1), and do not

tighten at this time.

CAUTION:

It

is

important

to

tighten

nut

as

described in following step to avoid damaging ball
stud joint.

7. Place upper ball joint stud (1) through hole in top of

knuckle and install nut (4). Tighten nut by holding
ball joint stud with a hex wrench while turning nut
with a wrench. Tighten nut using crow foot wrench
on torque wrench to 47 N·m + 90° turn (35 ft. lbs. +
90° turn) torque.

NOTE: Inspect brake shoes (pads) before installation. (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/
BRAKE PADS/SHOES - INSPECTION)

LX

SHAFT-HALF (FRONT)

3 - 27
