(4) Place end cover onto P.T.U. case and install bolts.

Tighten bolts to 28 N

Im (250 in. lbs.) in the sequence

shown in figure 5. Retighten first bolt after all other
bolts are tight.

(5) Reinstall P.T.U. assembly.
(6) Check and fill fluids as required.

POWER TRANSFER UNIT INPUT SHAFT END SEAL

The input shaft end seal is located on the end of the

input shaft.

REMOVAL

(1) Remove power transfer unit from the vehicle.
(2) Remove end cover bolts (Fig. 6).

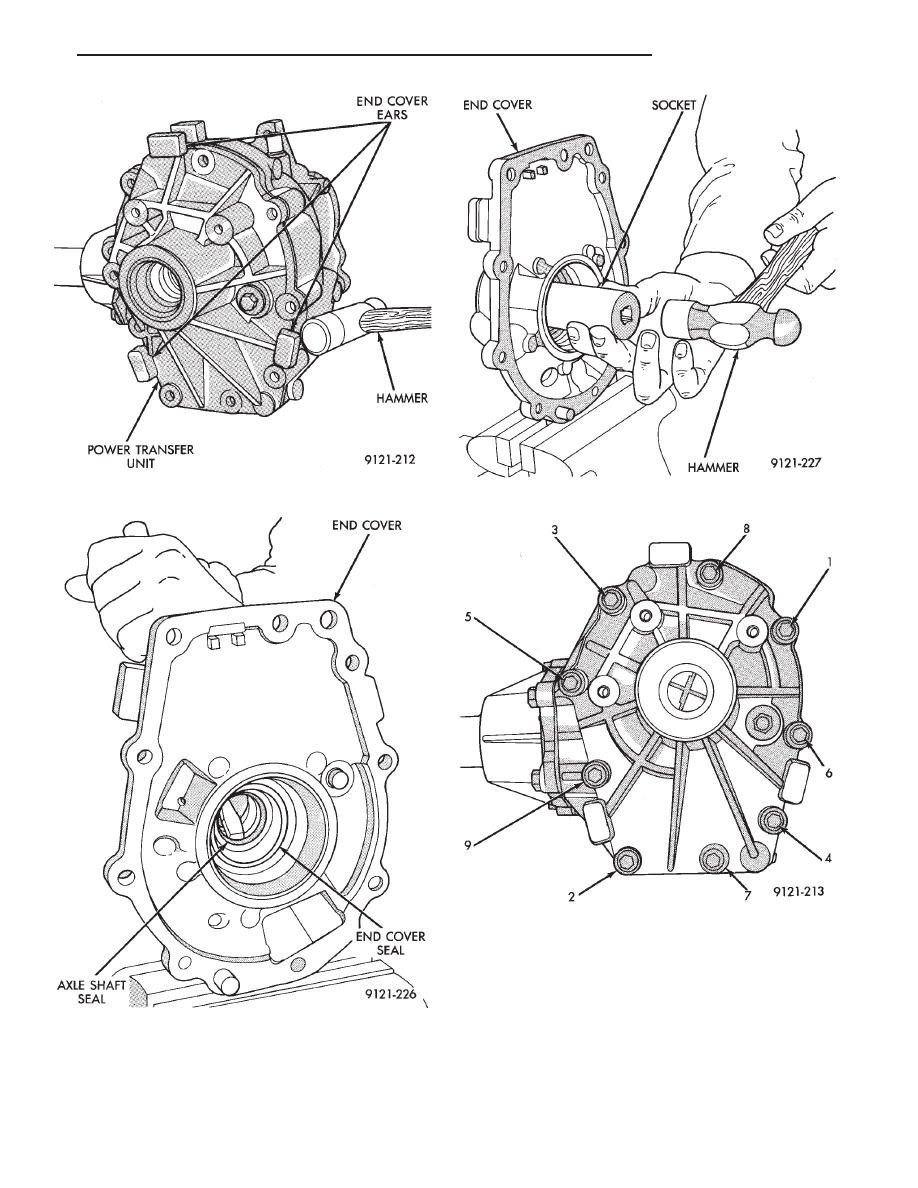

Fig. 2 End Cover Removal

Fig. 3 Seal Removal

Fig. 4 Seal Installation

Fig. 5 Bolt Tightening Sequence

.

TRANSAXLE

21 - 153

(3) Tap on end cover ears to separate end cover from

case (Fig. 7).

(4) Pry out seal with a pry bar (Fig. 8).

INSTALLATION

(1) Clean and inspect seal area.
(2) Remove input shaft from housing and stand on

soft block of wood. Install input shaft end seal with seal
installer 5065 and handle C-4171.

(3) Lubricate seal lip after installing seal into input

shaft.

(4) Clean sealing surfaces of the end cover and P.T.U.

case. Apply a bead of Mopar

t Gasket Maker, Loctite

Gasket Eliminator No. 518 or equivalent.

(5) Place end cover onto P.T.U. case and install bolts.

Tighten bolts to 28 N

Im (250 in. lbs.) in the sequence

shown in figure 9. Retighten first bolt after all others
are tight.

CAUTION: When end cover is installed be careful not
to damage the P.T.U. Input Shaft Cover Seal.

(6) Reinstall P.T.U. assembly.
(7) Check and fill fluids as required.

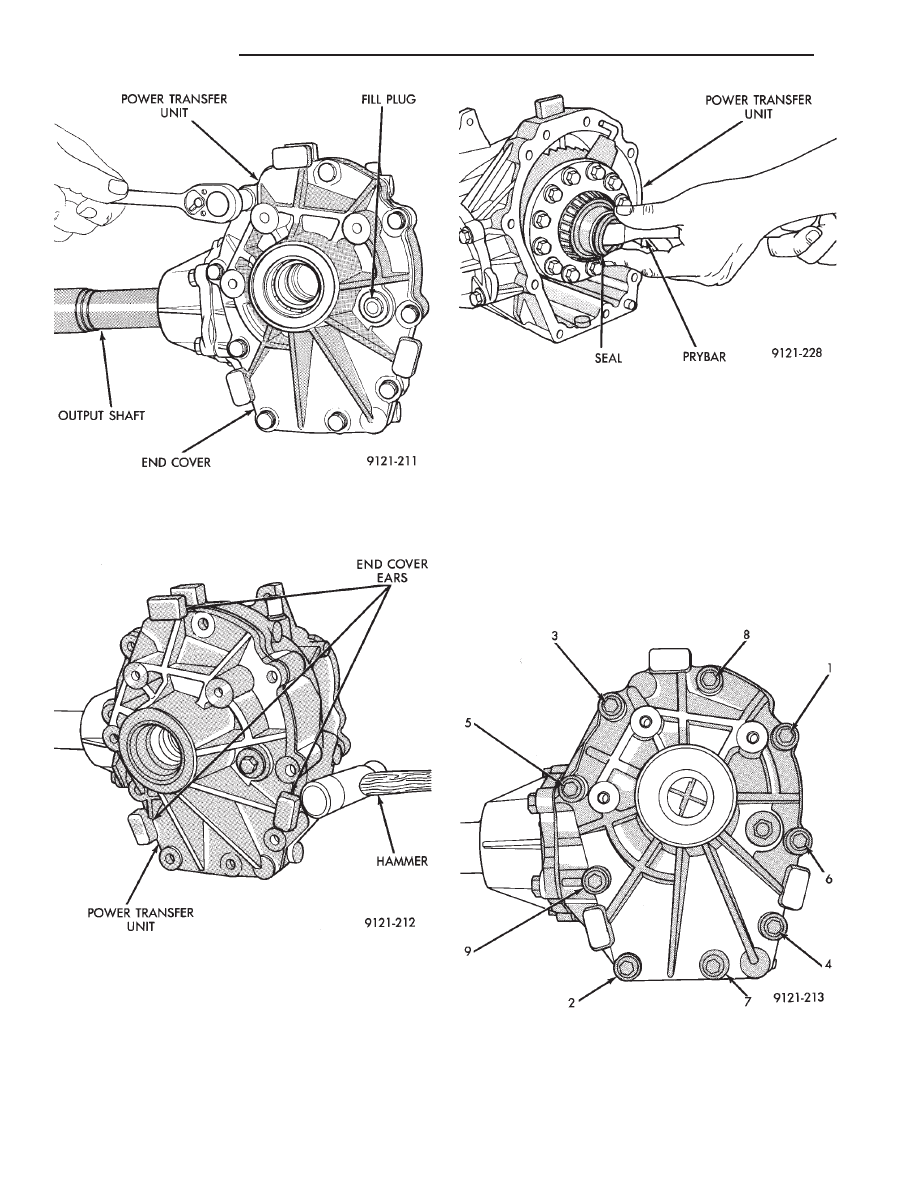

Fig. 6 End Cover Bolts

Fig. 7 End Cover Removal

Fig. 8 Seal Removal

Fig. 9 Bolt Tightening Sequence

21 - 154

TRANSAXLE

.

POWER TRANSFER UNIT OUTER HALF SHAFT
SEAL

The outer half shaft seal is located on the outside of

the end cover. The P.T.U. does not have to be removed
to replace this seal.

REMOVAL

(1) Lift vehicle on hoist.
(2) Remove right front half shaft from vehicle.
(3) Remove seal with a chisel and hammer (Fig. 1).

INSTALLATION

(1) Clean and inspect seal area.
(2) Install new seal with seal installer MD998334

(Fig. 2).

(3) Reinstall right front half shaft.
(4) Check and fill fluids as required.

POWER TRANSFER UNIT END COVER BALL BEAR-
ING

The end cover ball bearing can be removed and

installed without removing the Power Transfer Unit
from the vehicle. When replacing the bearing the
output seal must be removed to gain access to the
bearing.

REMOVAL

(1) Raise vehicle on hoist.
(2) Remove right front half shaft from vehicle.
(3) Remove output seal with a hammer and chisel

(Fig. 3).

(4) Remove bearing retaining snap ring (Fig. 4).

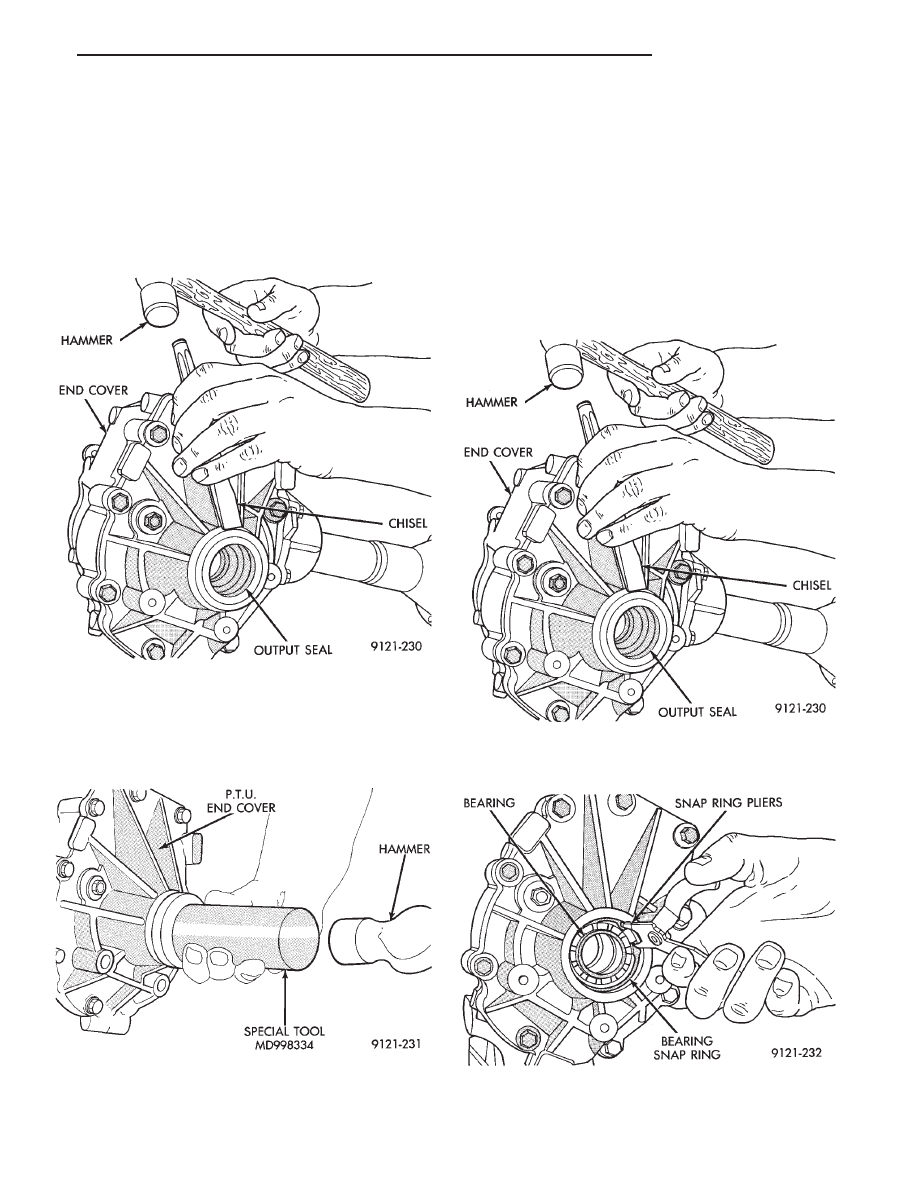

Fig. 1 Seal Removal

Fig. 2 Seal Installation

Fig. 3 Output Seal Removal

Fig. 4 Bearing Snap Ring

.

TRANSAXLE

21 - 155

(5) Use bearing puller MD998346 to remove bearing

(Fig.5).

INSTALLATION

(1) Use bearing driver L-4530 and handle C-4171-2

to install bearing.

(2) Install bearing retaining snap ring.

CAUTION:When installing bearing retaining snap
ring, be sure to index the snap ring so that the snap
ring does not cover bearing oil passage.

(3) Install new output seal using MD998334 seal

installer (Fig. 7). Do not reuse the old seal.

(4) Reinstall right front half shaft.
(5) Check and fill fluids as required.

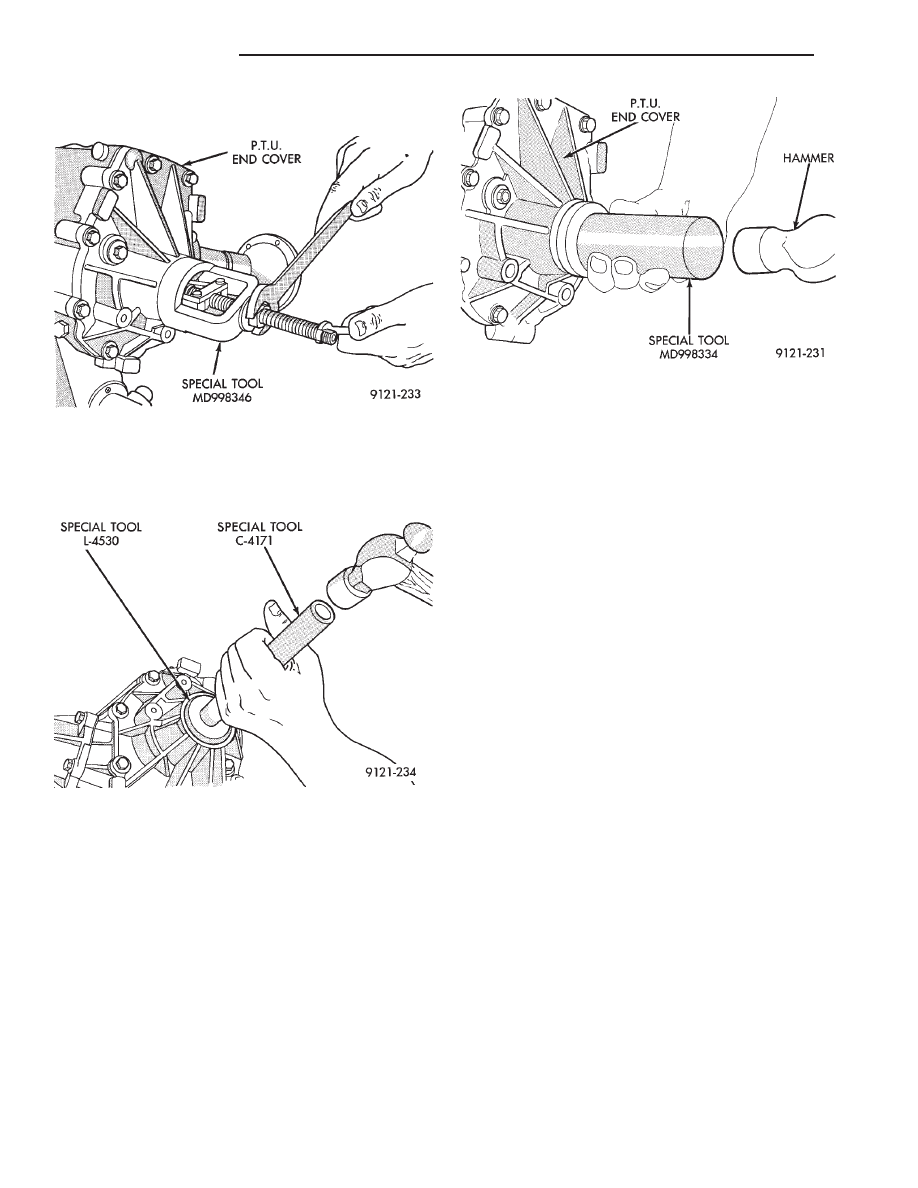

Fig. 5 Bearing Removal

Fig. 6 Bearing Installation

Fig. 7 Installing New Seal
