Chrysler Le Baron, Dodge Dynasty, Plymouth Acclaim. Manual - part 25





Fig.

5

Fuel

T

ank

Assembly—T

ypical

Ä

FUEL SYSTEMS

14 - 17

INSTALLATION

WARNING: FUEL TANKS DESIGNED FOR GASO-
LINE ONLY VEHICLES CANNOT BE USED ON
FLEXIBLE FUEL AA-BODY VEHICLES. WHEN SER-
VICING THE FUEL SYSTEM OF A FLEXIBLE FUEL
VEHICLE, ONLY USE ORIGINAL EQUIPMENT OR
EQUIVALENT REPLACEMENT COMPONENTS.

(1) Position fuel tank on transmission jack. Con-

nect vapor separator/rollover valve hose and position
insulator pad on fuel tank. Position vapor vent so
that it is not pinched between tank and floor pan
during installation.

(2) Raise tank and fuel filler tube carefully into

position. Use a light coating of power steering fluid
to ease fuel filler tube installation. Ensure filler tube
grommet is not damaged. Verify that the tube is in-
stalled correctly.

(3) Tighten fuel tank strap nuts to 23 N

Im (250 in.

lbs.)

torque.

Remove

transmission

jack.

Ensure

straps are not twisted or bent.

(4) Lubricate the metal tubes on the fuel pump

with clean 30 weight engine oil. Install the quick
connect fuel fittings. Refer to Quick Connect Fittings
in the Fuel Delivery section of this Group.

(5) Attach electrical connector to fuel pump mod-

ule and level sensor unit.

(6) Lower the vehicle.
(7) Attach filler tube to filler neck opening in

quarter panel. Tighten quarter panel screws to 2
N

Im (17 in. lbs.) torque.

(8) Fill fuel tank, install filler cap, and connect

battery cable.

CAUTION: When using the ASD Fuel System Test,
the Auto Shutdown (ASD) Relay remains energized
for either 7 minutes, until the test is stopped, or un-
til the ignition switch is turned to the Off position.

(9) Use the DRBII scan tool ASD Fuel System Test

to pressurize the fuel system. Check for leaks.

FUEL PUMP MODULE

Refer to the Fuel Delivery section of this group.

METHANOL CONCENTRATION SENSOR

Refer to the Fuel Delivery section of this group.

FUEL RESERVOIR

The fuel reservoir is internal to the fuel pump as-

sembly (Fig. 6). The purpose is to provide fuel at the
fuel pump intake during all driving conditions, espe-
cially when low fuel levels are present.

FUEL TANK LEVEL SENSOR

DIAGNOSIS

This procedure test the resistance of the level sen-

sor itself. It does not test the level sensor circuit. Re-
fer to Group 8W, Wiring Diagrams for circuit
identification and Group 8E, Instrument Panel and
Gauges for fuel gauge information.

The level sensor is a variable resistor. Its resis-

tance changes with the amount of fuel in the tank.
The float arm attached to the sensor moves as the
fuel level changes. To test the level sensor, connect
an ohmmeter across the sensor signal and sensor
ground terminals of the fuel level sensor connector
(Fig. 7 or Fig. 8). Move the float lever to the full stop
and empty stop positions shown in the resistance
chart (Fig. 7 or Fig. 8). Record the resistance at each
point. Replace the level sensor if the resistance is not
within specifications.

The low fuel warning light specifications determine

if the level sensor portion of the warning light circuit
functions properly. It does not test the complete
warning light circuit.

Refer to Group 8W, Wiring Diagrams for circuit

identification and Group 8E, Instrument Panel and
Gauges for fuel gauge information.

REMOVAL

WARNING: RELEASE FUEL SYSTEM PRESSURE
BEFORE SERVICING FUEL SYSTEM COMPONENTS.
WHEN

SERVICING

FLEXIBLE

FUEL

VEHICLES,

WEAR METHANOL RESISTANT GLOVES AND EYE
PROTECTION AND AVOID BREATHING FUMES. DO
NOT ALLOW METHANOL/GASOLINE MIXTURES TO
CONTACT SKIN. SERVICE VEHICLES IN WELL VEN-
TILATED AREAS AND AVOID IGNITION SOURCES.
NEVER SMOKE WHILE SERVICING THE VEHICLE.

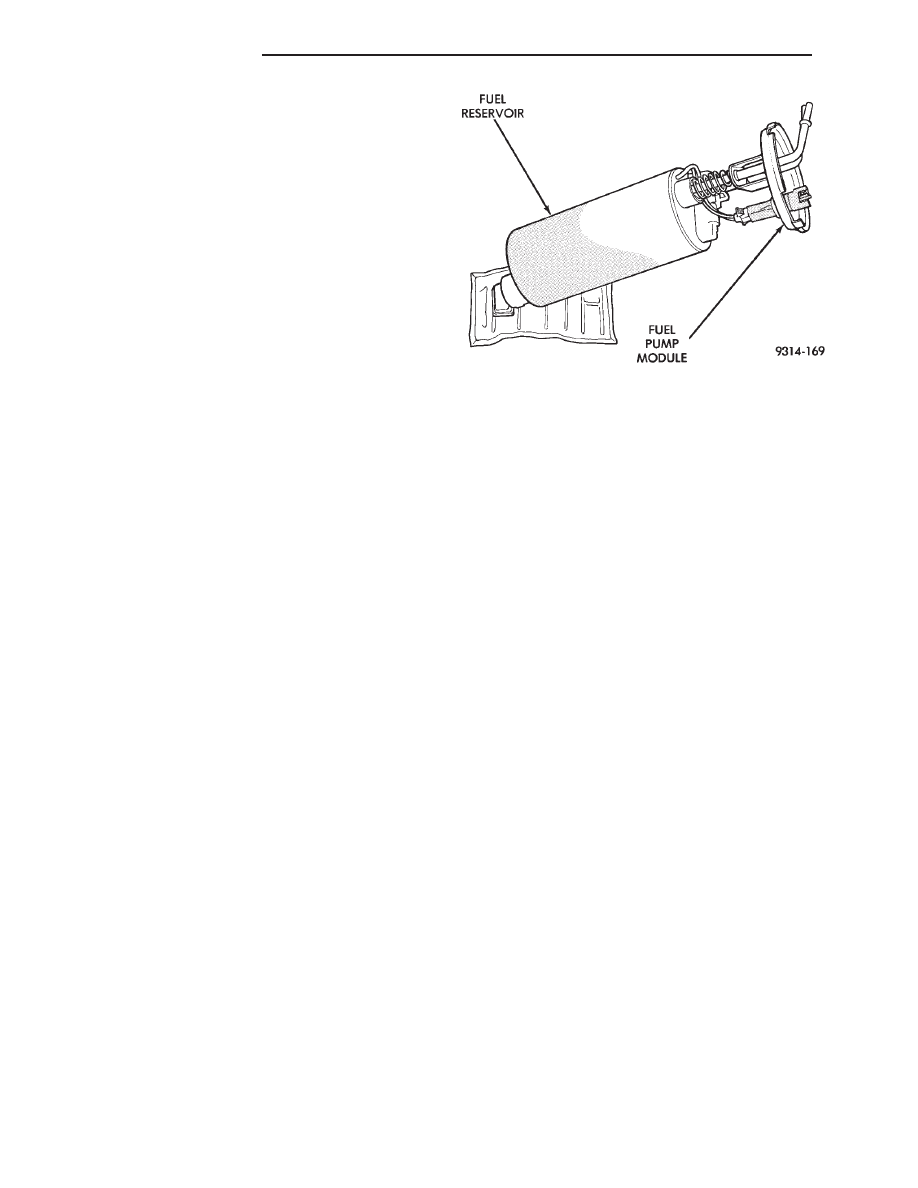

Fig. 6 Fuel Reservoir

14 - 18

FUEL SYSTEMS

Ä

The fuel tank must be removed to service the fuel

sending unit. Refer to Fuel Tank Removal in this
section.

(1) Using a hammer and brass drift punch, care-

fully tap lock ring counterclockwise to release send-
ing unit (Fig. 9).

(2) Lift level unit and O-ring away from tank (Fig.

10 or Fig. 11).

INSTALLATION

WARNING: FUEL LEVEL SENSORS DESIGNED FOR
GASOLINE ONLY VEHICLES CANNOT BE USED ON
FLEXIBLE FUEL AA-BODY VEHICLES. WHEN SER-
VICING THE FUEL SYSTEM OF A FLEXIBLE FUEL

VEHICLE, ONLY USE ORIGINAL EQUIPMENT OR
EQUIVALENT REPLACEMENT COMPONENTS.

(1) Wipe seal area of tank clean and place a new

O-ring seal in position.

(2) Place sending unit in tank. Position lock ring

in place. Using a brass drift and hammer, tap ring in
a clockwise direction.

(3) Install tank.

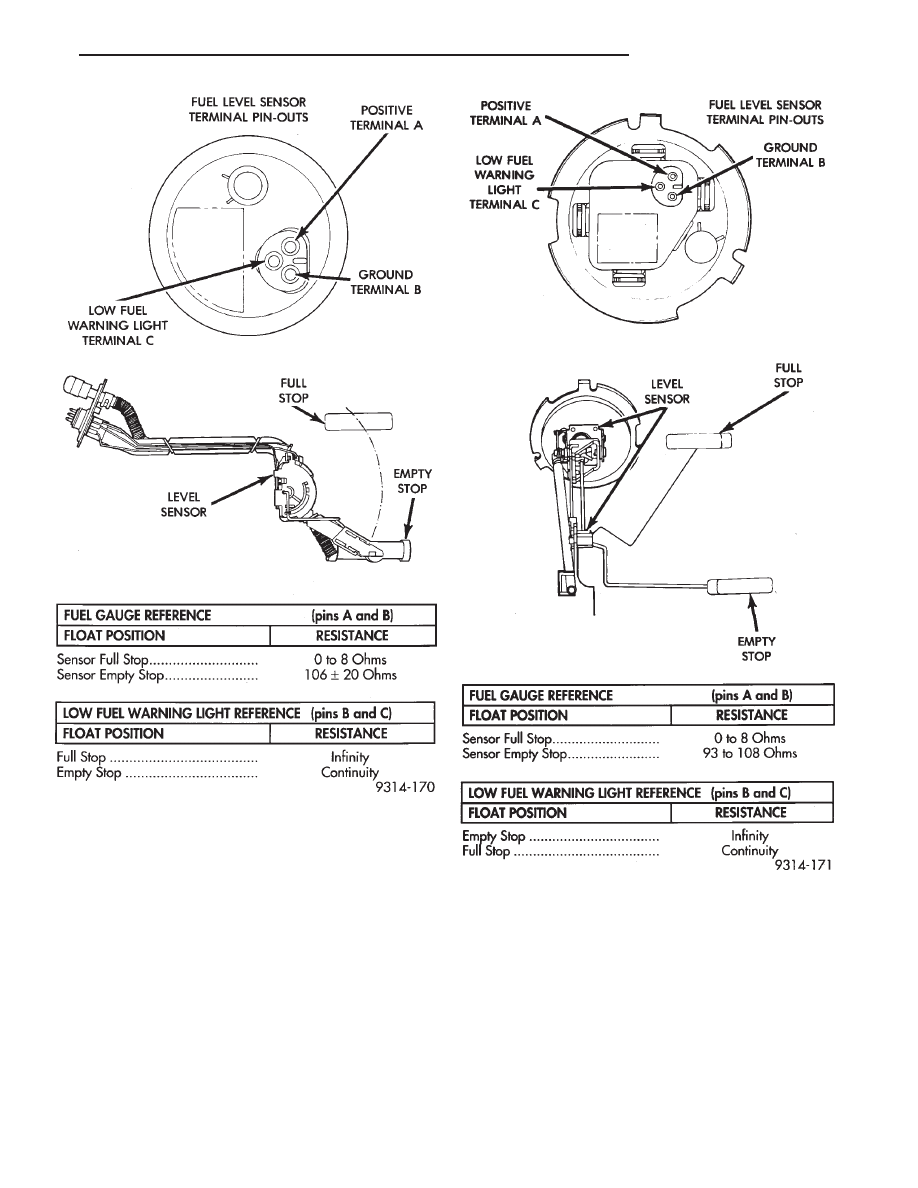

Fig. 8 Level Sensor Diagnosis—Flexible Fuel

AA-Body

Fig. 7 Level Sensor Diagnosis—Except Flexible Fuel

AA-Body

Ä

FUEL SYSTEMS

14 - 19

FUEL TANK PRESSURE RELIEF AND ROLL-OVER
VALVE

REMOVAL

WARNING: RELEASE FUEL SYSTEM PRESSURE BE-
FORE SERVICING FUEL SYSTEM COMPONENTS.
WHEN

SERVICING

FLEXIBLE

FUEL

VEHICLES,

WEAR METHANOL RESISTANT GLOVES AND EYE
PROTECTION AND AVOID BREATHING FUMES. DO
NOT ALLOW METHANOL/GASOLINE MIXTURES TO
CONTACT SKIN. SERVICE VEHICLES IN WELL VEN-
TILATED AREAS AND AVOID IGNITION SOURCES.
NEVER SMOKE WHILE SERVICING THE VEHICLE.

(1) Remove fuel tank. Refer to Fuel Tank Removal in

this section.

(2) Wedge the blade of a screwdriver between the

rubber grommet and the fuel tank where the support
rib is located (Fig. 12). Do not wedge between the
valve and the grommet. This could damage the
valve during removal.

(3) Use a second screwdriver as a support to pry the

valve and grommet assembly from the tank.

(4) Place the valve upright on a flat surface. Push

down on the grommet and peel it off the valve.

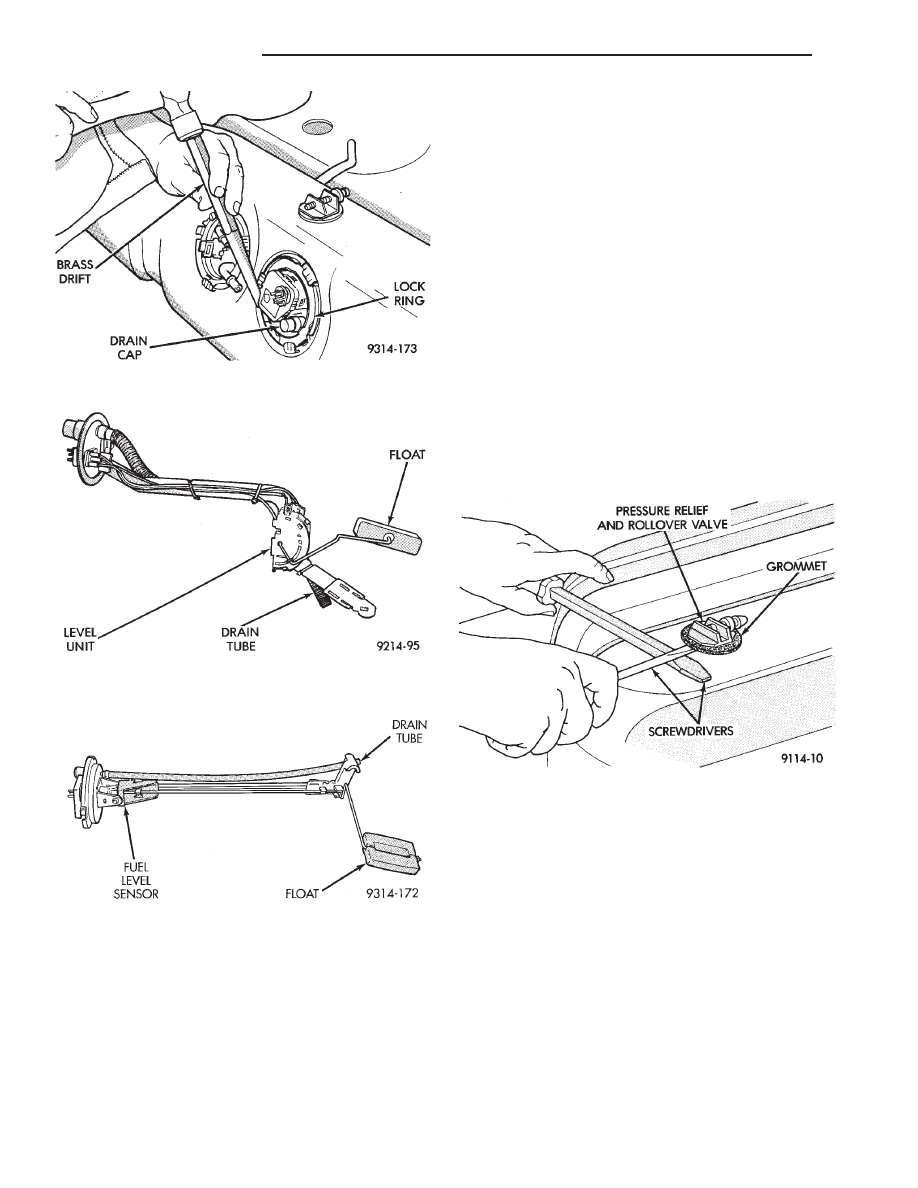

Fig. 9 Level Sensor Removal—Typical

Fig. 10 Fuel Tank Level Sensor—Except Flexible

Fuel AA-Body

Fig. 11 Fuel Tank Level Sensor—Flexible Fuel

AA-Body

Fig. 12 Removing Pressure Relief/Rollover Valve

14 - 20

FUEL SYSTEMS

Ä
